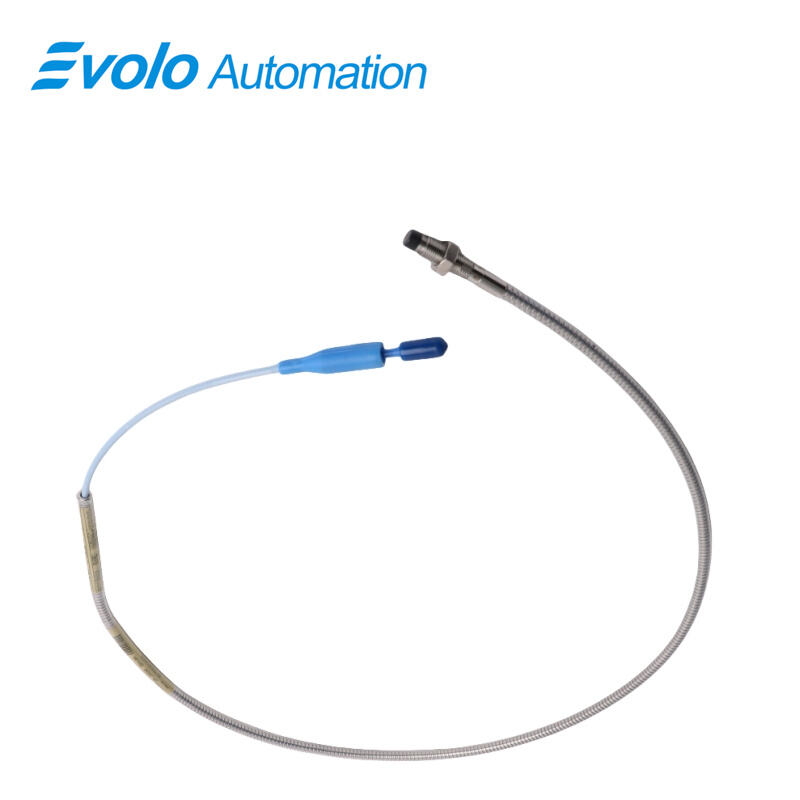

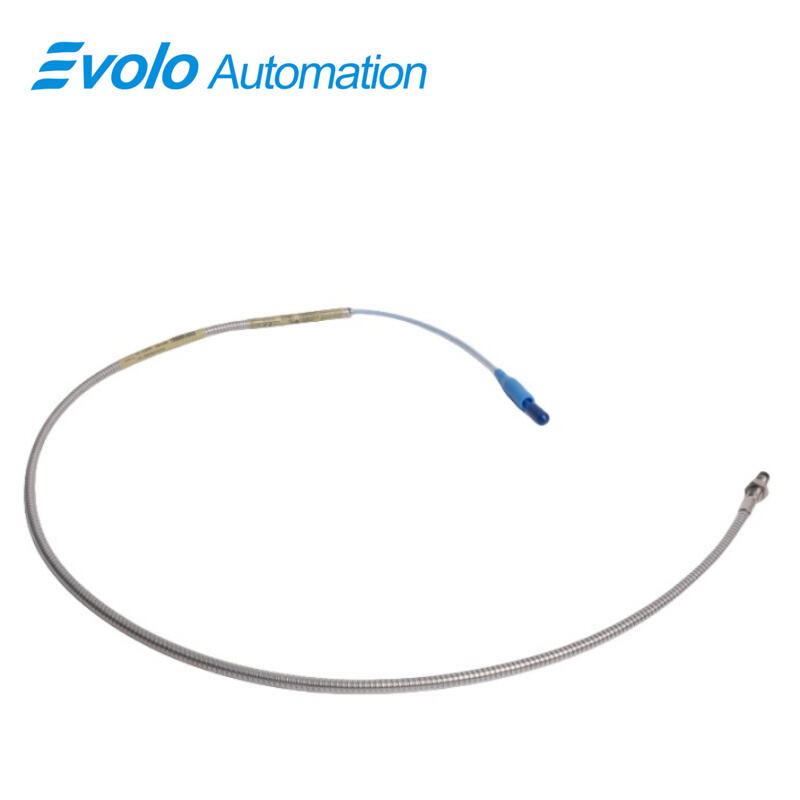

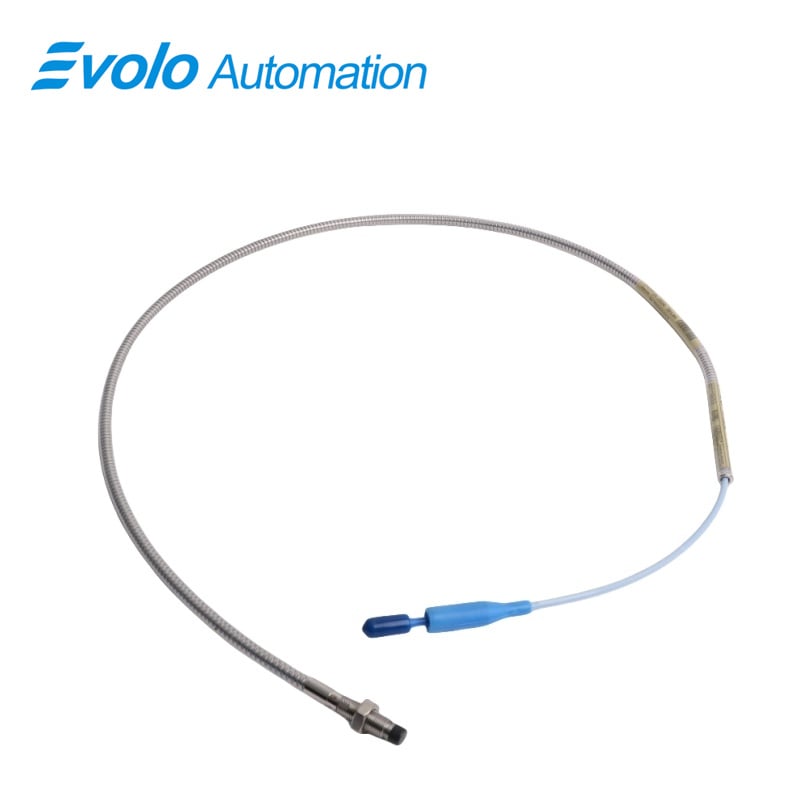

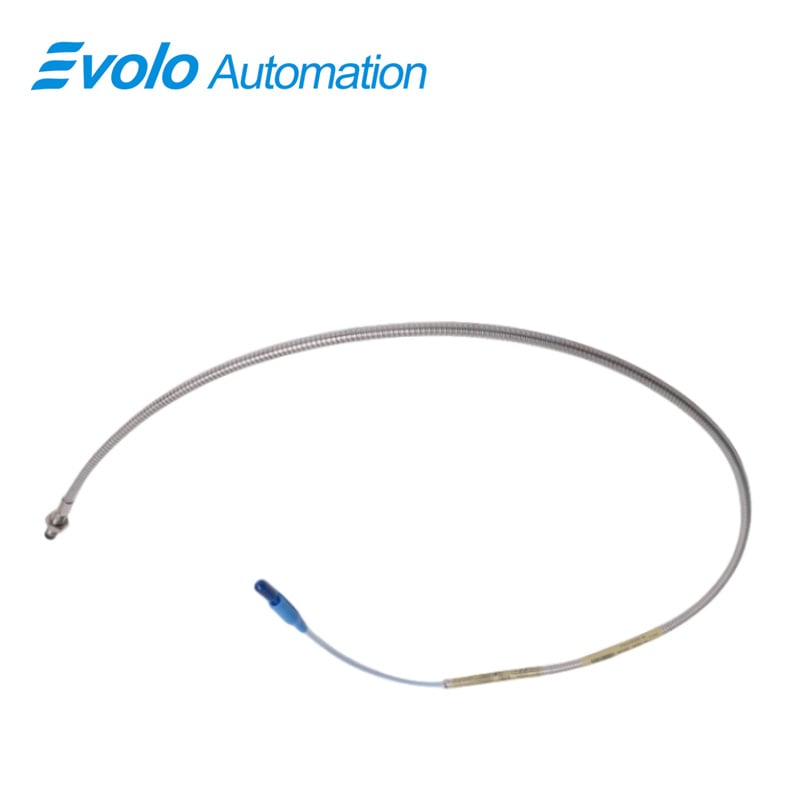

330102-00-12-05-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-12-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-12-05-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer system engineered for advanced industrial automation and vibration monitoring applications. This 8 mm proximity probe delivers an output voltage directly proportional to the distance between the probe tip and the measured conductive surface, accurately capturing both static positions and dynamic vibrations. Ideal for monitoring fluid-film bearing machinery, the 3300 XL 8 mm probe also supports Keyphasor reference signals and rotational speed measurements, making it essential for predictive maintenance and real-time condition monitoring in automated systems. Designed to meet and exceed API 670 standards, the system ensures reliable mechanical configuration, linear measurement range, temperature stability, and overall accuracy. The 3300 XL 8 mm probe, along with its extension cables and Proximitor sensors, offers complete interchangeability, eliminating the need for component-specific calibration while maintaining backward compatibility with legacy 5 mm and 8 mm 3300 series transducers. Enhanced with patented TipLoc and CableLoc technologies, the probe provides superior tip-to-body bonding and 330 N pull-strength cable attachment, ensuring long-term durability in demanding industrial environments. An optional FluidLoc cable feature further prevents fluid ingress, enhancing safety and reliability in oil-lubricated machinery. The 330102-00-12-05-02-05 probe is the definitive choice for engineers seeking robust, precise, and maintenance-friendly proximity transducer solutions in automation systems.

Applications

The 330102-00-12-05-02-05 3300 XL 8 mm Proximity Probe is designed for precision monitoring in industrial automation and machinery systems. Its primary applications include vibration and position measurements on fluid-film bearing machines, enabling real-time condition monitoring of rotating equipment such as turbines, compressors, and generators. The probe’s high sensitivity and 2 mm linear range allow accurate detection of shaft displacement, misalignment, and eccentricity in both static and dynamic conditions. Additionally, the 3300 XL 8 mm probe supports Keyphasor reference and speed measurements, making it suitable for predictive maintenance programs and automated machinery diagnostics. Its compact dimensions, miniature coaxial ClickLoc connector, and optional FluidLoc cable ensure compatibility in tight spaces and oil-lubricated environments, providing engineers with a reliable tool for continuous performance monitoring and process optimization. The probe’s wide operating temperature range from -52°C to +177°C (-62°F to +350°F) makes it adaptable to extreme industrial environments.

Specifications

Competitive Advantage

The 330102-00-12-05-02-05 3300 XL 8 mm Proximity Probe offers significant advantages in automation and industrial monitoring. Compliance with API 670 standards ensures consistent mechanical configuration, temperature stability, and high measurement accuracy. Patented TipLoc and CableLoc designs improve probe tip bonding and cable attachment, offering enhanced durability and 330 N pull strength for long-term reliability. Complete interchangeability of probes, extension cables, and Proximitor sensors eliminates the need for component-specific calibration and reduces downtime, while backward compatibility with legacy 3300 series transducers provides flexible integration into existing systems. Optional FluidLoc cabling prevents fluid ingress, protecting machinery and extending probe life. Lightweight design, compact dimensions, and CSA, ATEX, and IECEx approvals further expand its usability in automation, hazardous, and extreme environments, making the 3300 XL 8 mm probe a superior solution for precise, maintenance-friendly, and robust proximity measurements.
