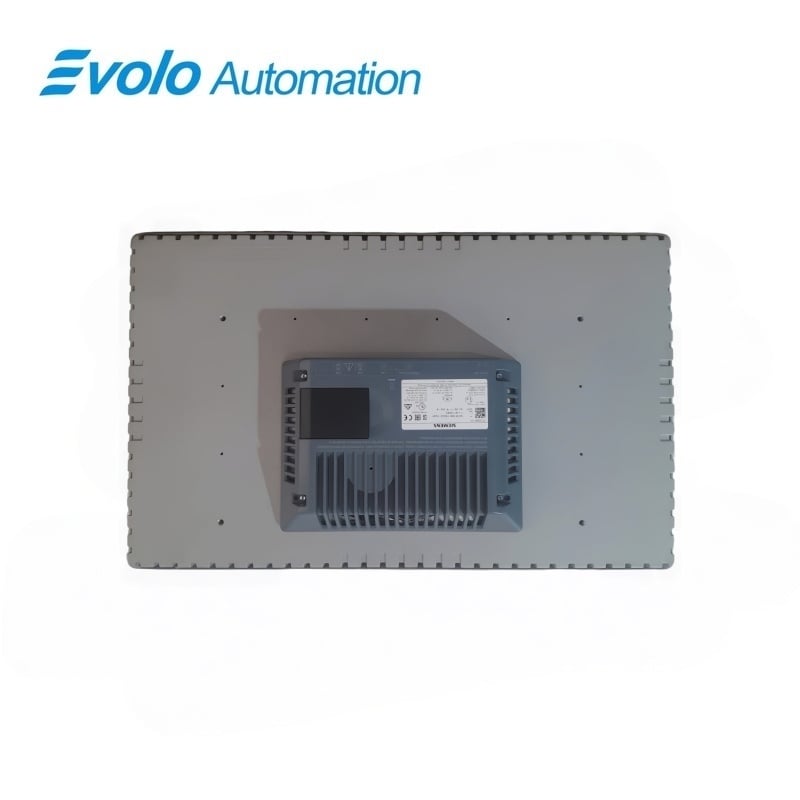

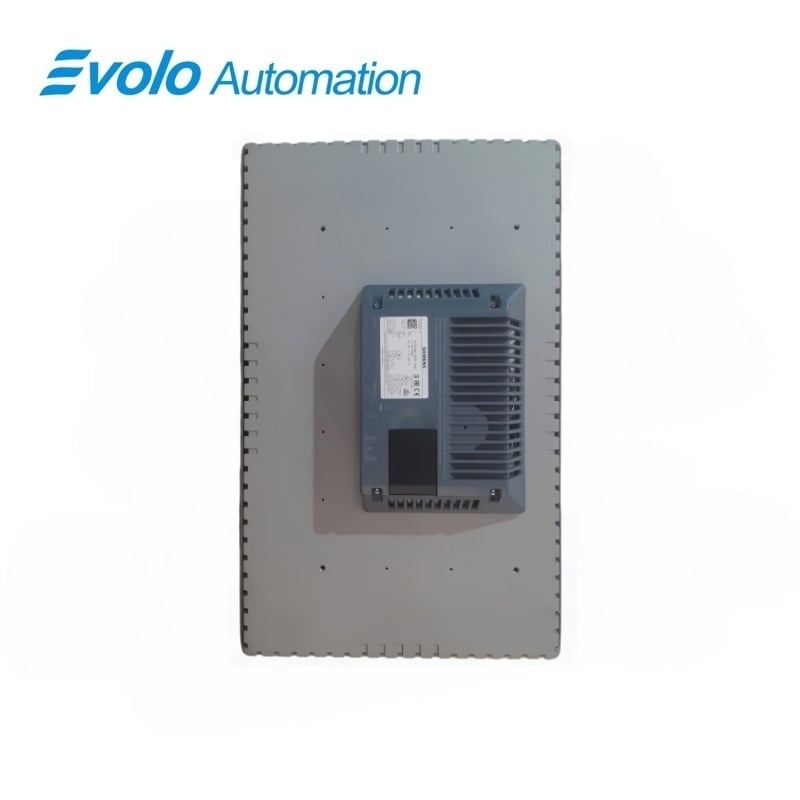

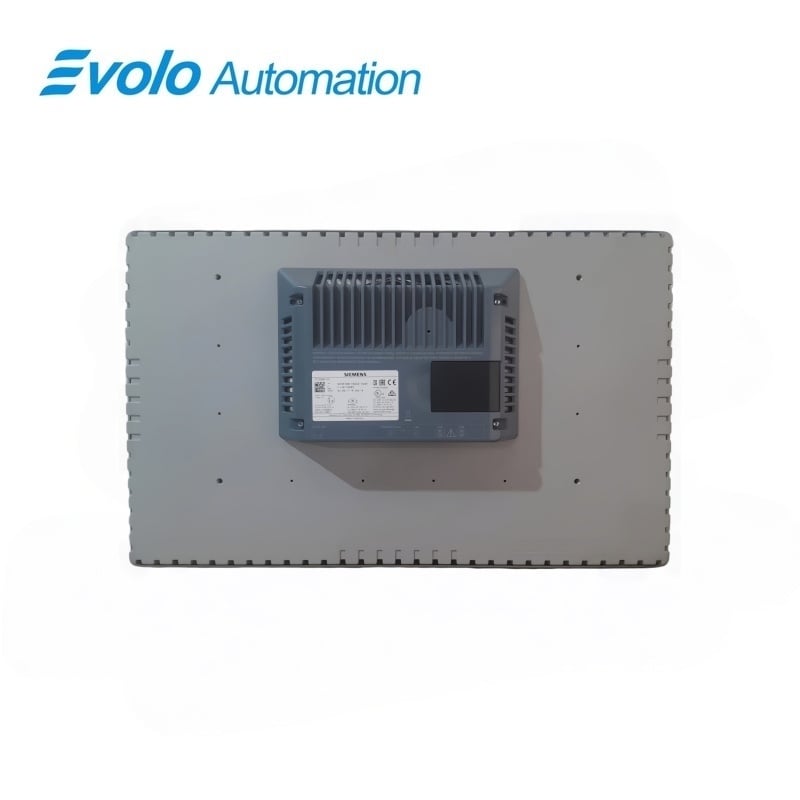

Siemens SIMATIC HMI 6AV6646-1BA22-1AA0 ITC2200 V3 Industrial Thin Client
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6AV6646-1BA22-1AA0 ITC2200 V3 Industrial Thin Client
Official Siemens identification and technical data for 6AV6646-1BA22-1AA0, prepared for accurate replacement matching and quotation.
At a Glance
| Article Number | 6AV6646-1BA22-1AA0 |
|---|---|
| Manufacturer | Siemens |
| Platform | SIMATIC HMI ITC |
| Product Type | ITC2200 V3 Industrial Thin Client |
| Official Configuration | 21.5-inch Full HD display, 1920 × 1080, projective-capacitive touch |
Exact Identification
Match the complete Siemens article number 6AV6646-1BA22-1AA0 and the photographed hardware revision.
Interfaces
Ethernet; RDP, VNC, Sm@rtServer and HTML5
Configuration Check
Confirm 21.5-inch Full HD display, 1920 × 1080, projective-capacitive touch before replacement.
Product Overview
6AV6646-1BA22-1AA0 is officially identified by Siemens as SIMATIC HMI ITC ITC2200 V3 Industrial Thin Client. 21.5-inch Full HD display, 1920 × 1080, projective-capacitive touch.
The complete article number 6AV6646-1BA22-1AA0 should be matched against the installed hardware, nameplate and official system documentation. Similar revisions can differ in memory, interfaces, operating system or configuration.
Key Functions
Model-Specific Configuration
6AV6646-1BA22-1AA0: 21.5-inch Full HD display, 1920 × 1080, projective-capacitive touch.
System Interface
6AV6646-1BA22-1AA0: Ethernet; RDP, VNC, Sm@rtServer and HTML5.
Replacement Control
6AV6646-1BA22-1AA0: verify the complete article number, hardware revision and official project documentation before replacement.
Official Specifications
| Display Active Area | 476 mm × 267.8 mm |
|---|---|
| Display Colors | 16,777,216 |
| Backlighting | Dimmable LED |
| Backlight MTBF | 30,000 h at 25 °C |
| Front Glass | Non-reflective tempered mineral glass |
| Mounting Design | Built-in unit with front mounting |
| Permitted Tilt Angle | 35° forward and 35° backward from vertical |
| Rated Supply Voltage | 24 V DC |
| Permissible Voltage Range | 19.2 V DC to 28.8 V DC |
| Rated Current Consumption | 1.7 A |
| Typical Active Power Input | 41 W |
| Industrial Ethernet Interfaces | 2 ports with integrated switch |
| Ethernet Transmission Rate | Up to 1,000 Mbit/s |
| USB Interfaces | 4 rear USB interfaces |
| Front Protection Rating | IP65 |
| Operating Temperature | 0 °C to 45 °C |
| Storage and Transport Temperature | -20 °C to +60 °C |
| Relative Humidity | Up to 90%, non-condensing |
| Housing and Cutout Dimensions | Front: 529 × 331 mm; cutout: 513 × 315 mm; depth: 73 mm |
| Weight | 7.2 kg without packaging |
Frequently Asked Questions
Which remote-access protocols are supported by 6AV6646-1BA22-1AA0?
The industrial thin client supports RDP, VNC, Sm@rtServer and HTML5-based access, allowing connection to compatible remote systems.
Does 6AV6646-1BA22-1AA0 operate as a standalone process-control HMI?
No. It is an industrial thin client intended to display and operate applications running on a remote host through supported remote-access protocols.
Which mounting version should be selected when replacing 6AV6646-1BA22-1AA0?
Use the 22-inch built-in version with Siemens branding; do not substitute a neutral-design device or a PRO pedestal/support-arm variant without checking the mechanical installation.
What display and touch technology is used by 6AV6646-1BA22-1AA0?
The device uses a 21.5-inch Full HD widescreen TFT display with LED backlighting, 16,777,216 colors and a capacitive touch sensor.
What supply-voltage range is required for 6AV6646-1BA22-1AA0?
Provide 24 V DC within the permitted range of 19.2 V to 28.8 V and follow the official grounding and equipotential-bonding instructions.
What installation angle is permitted for 6AV6646-1BA22-1AA0?
For the built-in unit, the documented maximum backward inclination from the vertical is 35°; maintain the required clearances and ambient conditions.
What settings should be preserved before replacing 6AV6646-1BA22-1AA0?
Record the Ethernet parameters, remote-server addresses, selected protocol, authentication settings and display configuration, then test the remote session and touch operation after installation.
Compatibility & Ordering Notes
Compatibility Checklist for 6AV6646-1BA22-1AA0
- Match the complete article number 6AV6646-1BA22-1AA0 without shortening the suffix.
- Confirm the installed SIMATIC HMI ITC family and hardware revision.
- Verify Ethernet; RDP, VNC, Sm@rtServer and HTML5.
- Confirm included connectors, memory media and accessories in the written quotation.
