Siemens SIMATIC TP170B Mono Touch Panel 6AV6545-0BB15-2AX0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SIMATIC HMI TP170B

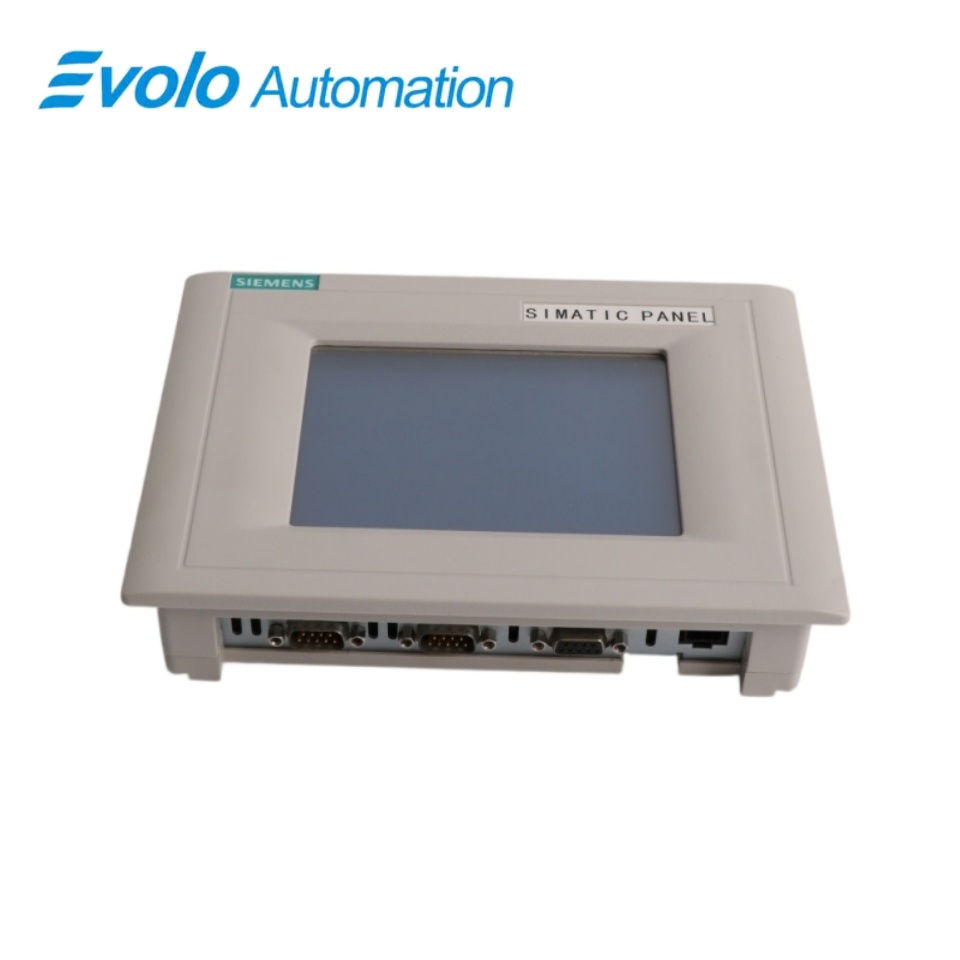

6AV6545-0BB15-2AX0 SIMATIC TP170B Mono Touch Panel
The SIMATIC TP170B Mono is a 5.7-inch STN touch panel with a 320 x 240 pixel blue-mode display, MPI/PROFIBUS DP, printer/RS232 connectivity and a CompactFlash card slot.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6AV6545-0BB15-2AX0 |
| Product Type | 5.7-inch monochrome touch operator panel |
| Core Function | Provides touch-based machine operation and visualization over MPI or PROFIBUS DP |
| Application or Compatible Series | Legacy SIMATIC HMI applications engineered for the TP170B Mono panel |

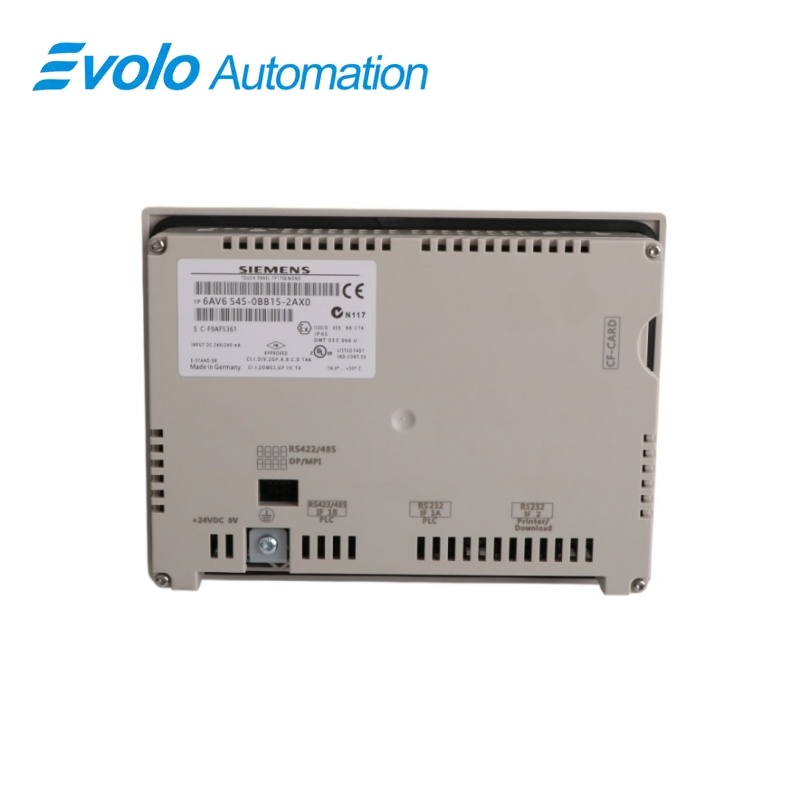

Exact Identification
Match 6AV6545-0BB15-2AX0 character by character and confirm the complete SIMATIC TP170B Mono Touch Panel designation.

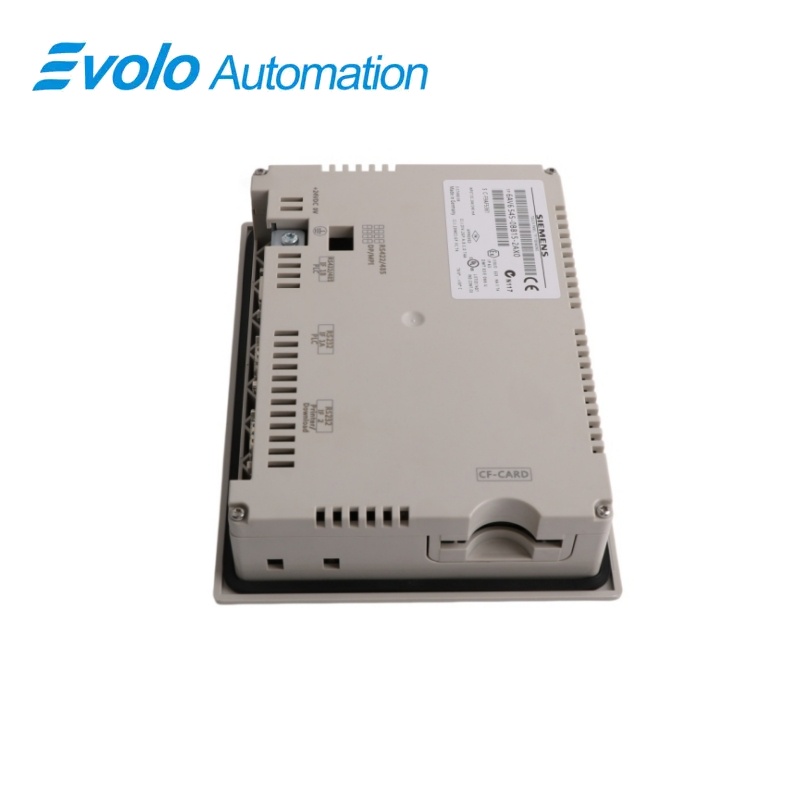

Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The SIMATIC TP170B Mono is a 5.7-inch STN touch panel with a 320 x 240 pixel blue-mode display, MPI/PROFIBUS DP, printer/RS232 connectivity and a CompactFlash card slot.
The 5.7-inch resistive touch interface presents the configured machine screens and input controls. MPI and PROFIBUS DP support the engineered connection to the installed automation system. Serial printer communication and a CompactFlash slot support the configured legacy HMI application.
Key Functions
Touch-Based Operation
The 5.7-inch resistive touch interface presents the configured machine screens and input controls.
SIMATIC Controller Communication
MPI and PROFIBUS DP support the engineered connection to the installed automation system.
Service and Data Interfaces
Serial printer communication and a CompactFlash slot support the configured legacy HMI application.
Official Specifications
| Display Technology | STN |
|---|---|
| Screen Diagonal | 5.7 in |
| Display Mode | Monochrome blue, 4 levels |
| Resolution | 320 x 240 pixels |
| Operator Input | Touch screen |
| Typical Power Input | 6 W |
| Processor | RISC 32-bit, 66 MHz |
| User Data Memory | 768 KB |
| MPI / PROFIBUS DP Interface | Provided |
| Serial Interfaces | 2 x RS232; 1 x RS422; 1 x RS485 |
| Maximum RS485 Data Rate | 12 Mbit/s |
| Memory Card Slot | 1 x CompactFlash |
| Front Protection | IP65 |
| Rear Protection | IP20 |
| Storage / Transport Temperature | -20 to +60 °C |
Frequently Asked Questions
What display should a replacement for 6AV6545-0BB15-2AX0 reproduce?
Match the 5.7-inch STN blue-mode display with 320 x 240 pixel resolution.
Which controller networks can 6AV6545-0BB15-2AX0 use?
The panel supports the engineered MPI or PROFIBUS DP connection.
Can 6AV6545-0BB15-2AX0 store data on removable media?
Yes; the panel provides one CompactFlash card slot.
What should I back up before changing 6AV6545-0BB15-2AX0?
Save the HMI project, transfer settings, controller addresses, recipes, alarms and CompactFlash contents.
How should the front seal of 6AV6545-0BB15-2AX0 be checked?
Inspect the gasket and mounting pressure so the installed front maintains its specified protection.
Which serial connections are available on 6AV6545-0BB15-2AX0?
The panel provides RS232 together with RS422 and RS485 communication interfaces.
What should I test after installing 6AV6545-0BB15-2AX0?
Verify touch calibration, display, controller communication, serial devices, alarms and every configured screen.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the exact legacy HMI project and supported engineering release.
- Match the original MPI or PROFIBUS address and bus wiring.
- Preserve removable-media data and verify the panel seal before commissioning.
