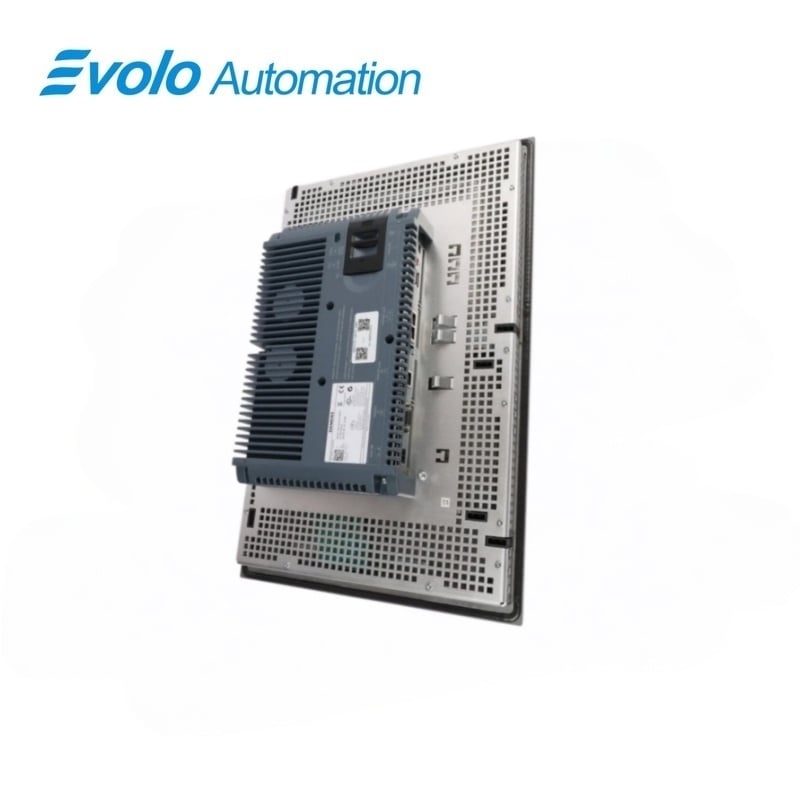

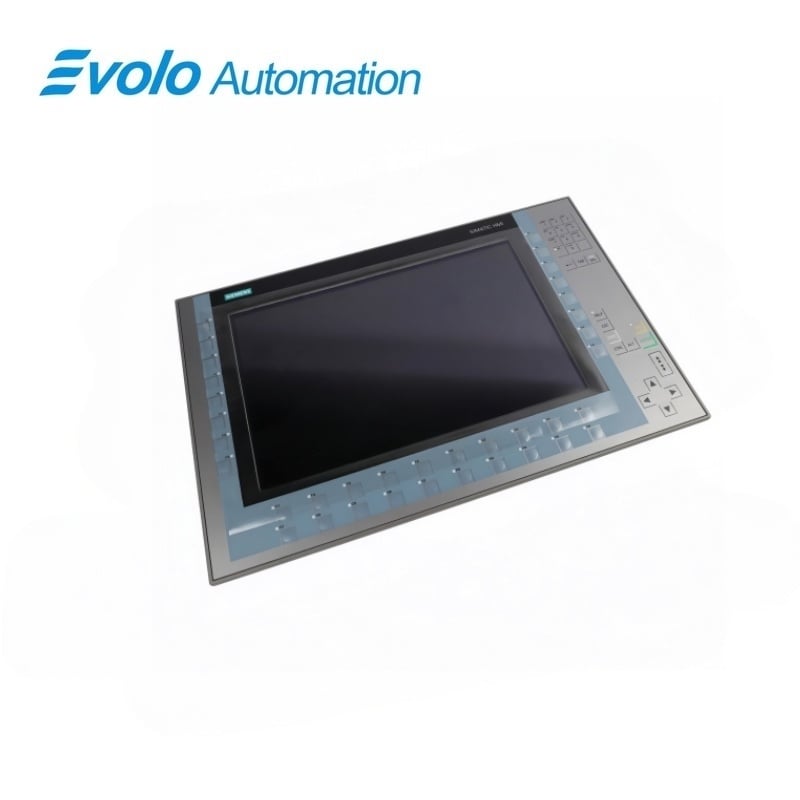

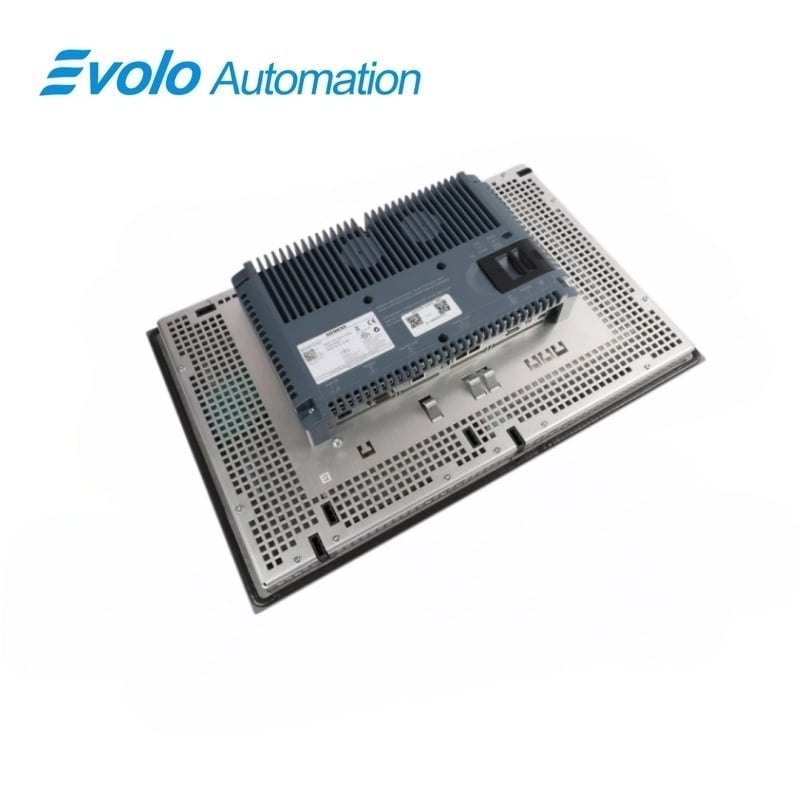

Siemens SIMATIC HMI 6AV2124-1QC02-0AX0 KP1500 Comfort Panel
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
SIMATIC HMI 6AV2124-1QC02-0AX0 KP1500 Comfort Panel
KP1500 Comfort key-operated HMI panel with a 15-inch widescreen display, 16 million colors and 24 MB configuration memory.
At a Glance
| Article Number | 6AV2124-1QC02-0AX0 |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC HMI Comfort Panels |
| Product Type | KP1500 Comfort Key Panel |
| Display | 15-inch widescreen TFT, 16 million colors |
Exact Identification
Match the complete article number and installed hardware.
Interfaces
Confirm PROFINET and MPI/PROFIBUS DP.
Configuration Check
Verify project data and official system documentation.
Product Overview
6AV2124-1QC02-0AX0 is officially identified by Siemens as the KP1500 Comfort in the SIMATIC HMI Comfort Panels family. KP1500 Comfort key-operated HMI panel with a 15-inch widescreen display, 16 million colors and 24 MB configuration memory.
For replacement and quotation, compare the complete article number, hardware version, interface requirements and installed configuration.
Key Functions
Model-Specific Configuration
6AV2124-1QC02-0AX0: 15-inch widescreen TFT display.
System Interface
6AV2124-1QC02-0AX0: 16 million display colors.
Performance & Memory
6AV2124-1QC02-0AX0: Key-operated Comfort Panel design.
Replacement Control
6AV2124-1QC02-0AX0: PROFINET and MPI/PROFIBUS DP communications.
Official Specifications
| Display Technology | TFT widescreen display |
|---|---|
| Screen Diagonal | 15.4 in |
| Active Display Area | 331.2 mm × 207 mm |
| Display Resolution | 1,280 × 800 pixels |
| Display Colors | 16,777,216 |
| Backlight MTBF | 80,000 h at 25 °C |
| Backlight Control | LED, dimmable |
| Function Keys | 36 |
| Illuminated Keys | Supported |
| System Keys | Supported |
| Numeric Keypad | Integrated |
| Alphanumeric Keyboard | Integrated |
| Touch Operation | Not supported |
| Mounting Orientation | Landscape |
| Maximum Inclination | 35° without external ventilation |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Range | 19.2 to 28.8 V DC |
| Rated Current Consumption | 1.7 A |
| Typical Active Power | 41 W |
| User Data Memory | 24 MB |
Official source: Siemens Industry Mall product data for undefined. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What mounting orientation and panel conditions should be checked for 6AV2124-1QC02-0AX0?
Install the unit in landscape format, verify the specified panel cutout and clearances, and keep the inclination within 35° when no external ventilation is used.
Which automation networks can 6AV2124-1QC02-0AX0 use in a retrofit?
The panel supports PROFINET IO with IRT as well as MPI/PROFIBUS DP. Confirm controller addressing, bus parameters and the existing project before replacement.
How should the 24 V supply be prepared for 6AV2124-1QC02-0AX0?
Provide a regulated 24 V DC source within 19.2 to 28.8 V. Allow for 1.7 A rated current consumption and approximately 41 W typical active power.
Can operators use touch input on 6AV2124-1QC02-0AX0?
No. Operation is by 36 function keys together with illuminated, system, numeric and alphanumeric keys.
What memory and removable-media checks are recommended for 6AV2124-1QC02-0AX0?
Confirm that the project fits the 24 MB user-data memory and back up recipes, archives and project data using supported memory cards before service work.
What should engineers verify before transferring a project to 6AV2124-1QC02-0AX0?
Check that the engineering installation contains the correct Comfort Panel device, then verify the selected transfer channel, IP or bus settings and project compatibility.
How should Ethernet connections be planned for 6AV2124-1QC02-0AX0?
The industrial Ethernet arrangement provides a two-port integrated switch plus an independent port. Match the cabling and network topology to the commissioned project.
Compatibility & Ordering Notes
Compatibility Checklist for 6AV2124-1QC02-0AX0
Match the full suffix without shortening the order number.
Confirm the installed SIMATIC HMI Comfort Panels hardware and project version.
Verify PROFINET and MPI/PROFIBUS DP.
Confirm required memory media, connectors and accessories in the written quotation.
