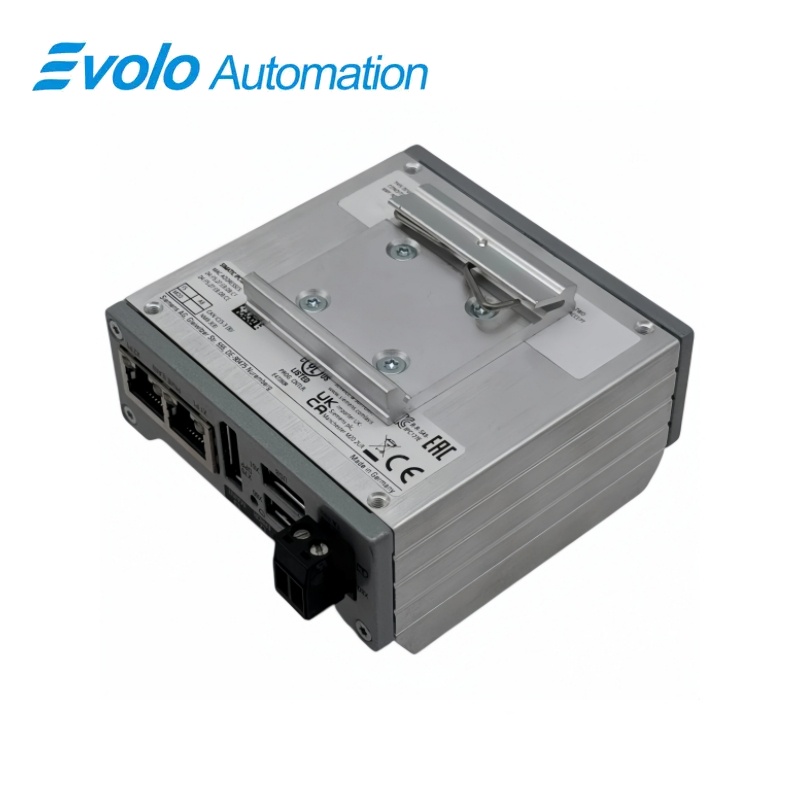

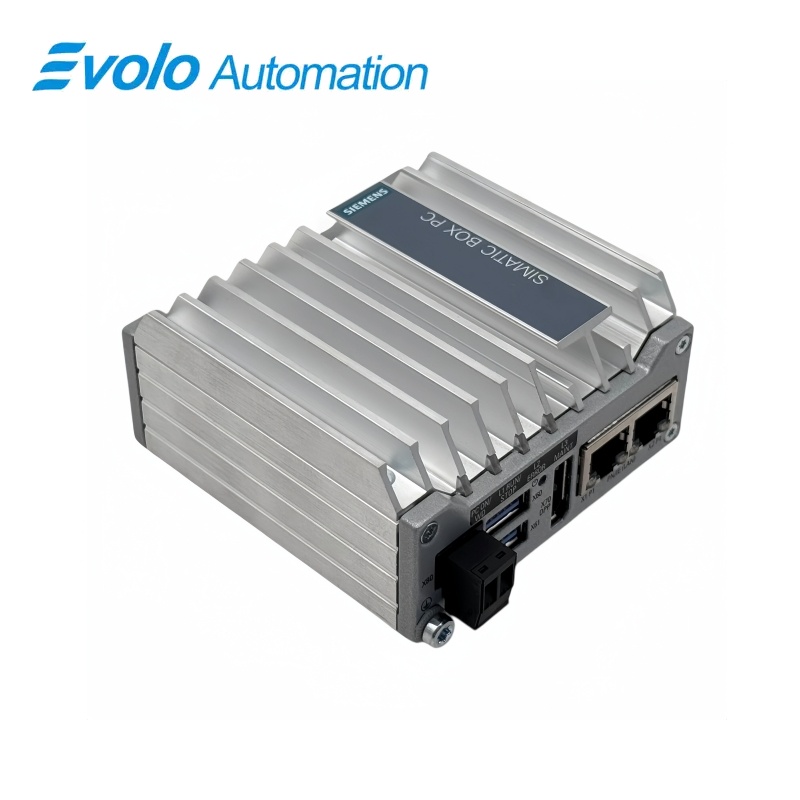

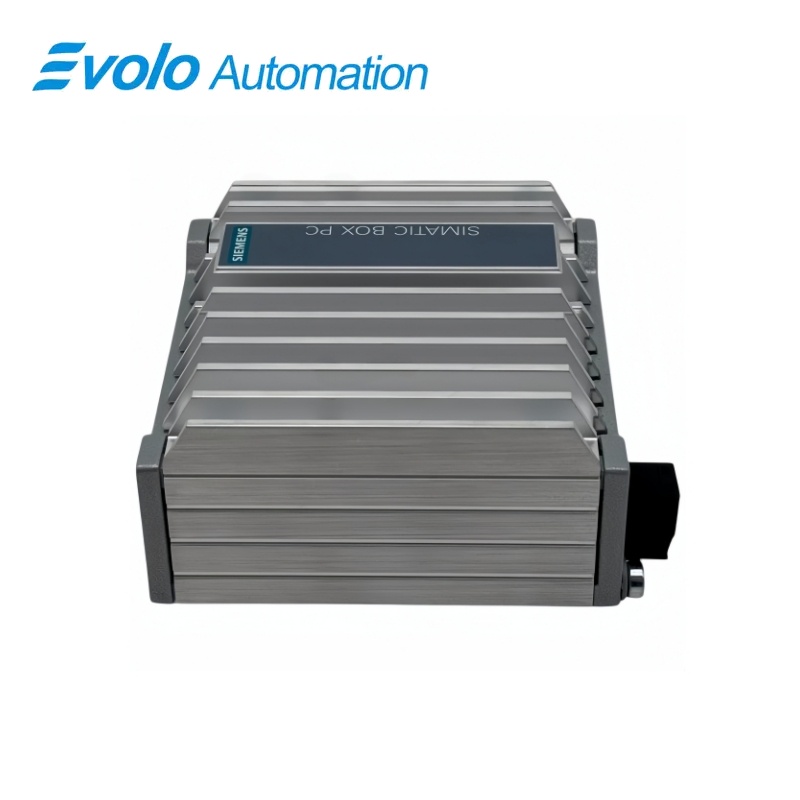

Siemens SIMATIC IPC127E Industrial PC 6AG4021-0AB11-1BA0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: China
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SIMATIC IPC127E
6AG4021-0AB11-1BA0 SIMATIC IPC127E Industrial PC
This SIMATIC IPC127E configuration combines an Intel Atom E3940 four-core processor, 4 GB RAM, a 64 GB SSD, dual Ethernet and Windows 10 Enterprise 2016 LTSB in a compact industrial box PC.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6AG4021-0AB11-1BA0 |
| Product Type | Compact fanless industrial box PC |
| Core Function | Runs Windows-based industrial applications at machine level |
| Application or Compatible Series | Compact control, gateway, data-acquisition and edge applications requiring dual Industrial Ethernet |
Exact Identification
Match 6AG4021-0AB11-1BA0 character by character and confirm the complete SIMATIC IPC127E Industrial PC designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
This SIMATIC IPC127E configuration combines an Intel Atom E3940 four-core processor, 4 GB RAM, a 64 GB SSD, dual Ethernet and Windows 10 Enterprise 2016 LTSB in a compact industrial box PC.
The small industrial housing supports cabinet and machine-level computing without a rotating cooling fan. Two RJ45 interfaces support separated machine, plant or service networks at 100 or 1,000 Mbit/s. The ordered variant includes a 64-bit multilingual Windows 10 Enterprise 2016 LTSB installation on a 64 GB SSD.
Key Functions
Compact Fanless Computing
The small industrial housing supports cabinet and machine-level computing without a rotating cooling fan.
Independent Ethernet Connectivity
Two RJ45 interfaces support separated machine, plant or service networks at 100 or 1,000 Mbit/s.
Ready Windows Configuration
The ordered variant includes a 64-bit multilingual Windows 10 Enterprise 2016 LTSB installation on a 64 GB SSD.
Official Specifications
| Processor | Intel Atom E3940, 1.6 GHz |
|---|---|
| Processor Cores and Threads | 4 cores / 4 threads |
| Installed Memory | 4 GB DDR4 RAM |
| Solid-State Drive | 64 GB SSD |
| Operating System | Windows 10 Enterprise 2016 LTSB, 64-bit MUI |
| Industrial Ethernet Ports | 2 independent RJ45 |
| Ethernet Rates | 100 and 1,000 Mbit/s |
| USB Interfaces | 2 USB 3.0 |
| Display Interface | 1 DisplayPort |
| Supply Type | 24 V DC |
| Mains Failure Buffer | 5 ms |
| Status Indicators | 1 power LED and 3 user LEDs |
| Temperature Monitoring | Integrated |
| Expansion Slots | No PCI slots |
| Housing Design | Box PC built-in unit |
| Included Mounting Accessories | None |
Frequently Asked Questions
Which operating-system image belongs on 6AG4021-0AB11-1BA0?
Use the licensed Windows 10 Enterprise 2016 LTSB 64-bit multilingual image supplied for this hardware configuration.
Can the two Ethernet ports on 6AG4021-0AB11-1BA0 serve separate networks?
Yes; configure the independent interfaces with the approved addresses, routing and security controls for each network.
What should be imaged before replacing 6AG4021-0AB11-1BA0?
Back up the SSD, application software, licenses, drivers, certificates, network settings and machine-specific data.
Which external displays can connect to 6AG4021-0AB11-1BA0?
Use a compatible DisplayPort monitor and cable within the display requirements of the installed application.
How should 24 V power be connected to 6AG4021-0AB11-1BA0?
Provide a compliant industrial DC supply, connect protective earth first and size the wiring and protection for the installed system.
Can USB service media be used with 6AG4021-0AB11-1BA0?
Yes; apply the site cybersecurity policy and use only approved USB 3.0 devices during commissioning or maintenance.
What should be tested after commissioning 6AG4021-0AB11-1BA0?
Verify boot behavior, SSD health, both Ethernet links, display output, USB ports, application services, licenses and automatic recovery.
Compatibility & Ordering Notes
Compatibility Checklist
- Match the complete configurable article number, not only the IPC127E family.
- Restore the approved SSD image, licenses, drivers and industrial applications.
- Reapply both network configurations and validate the 24 V supply and grounding.
