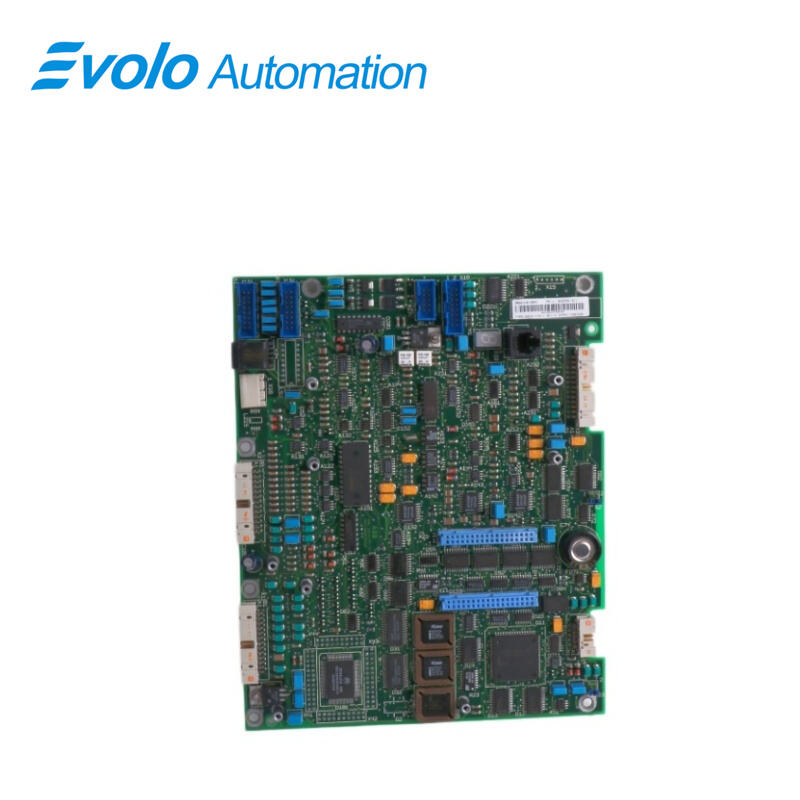

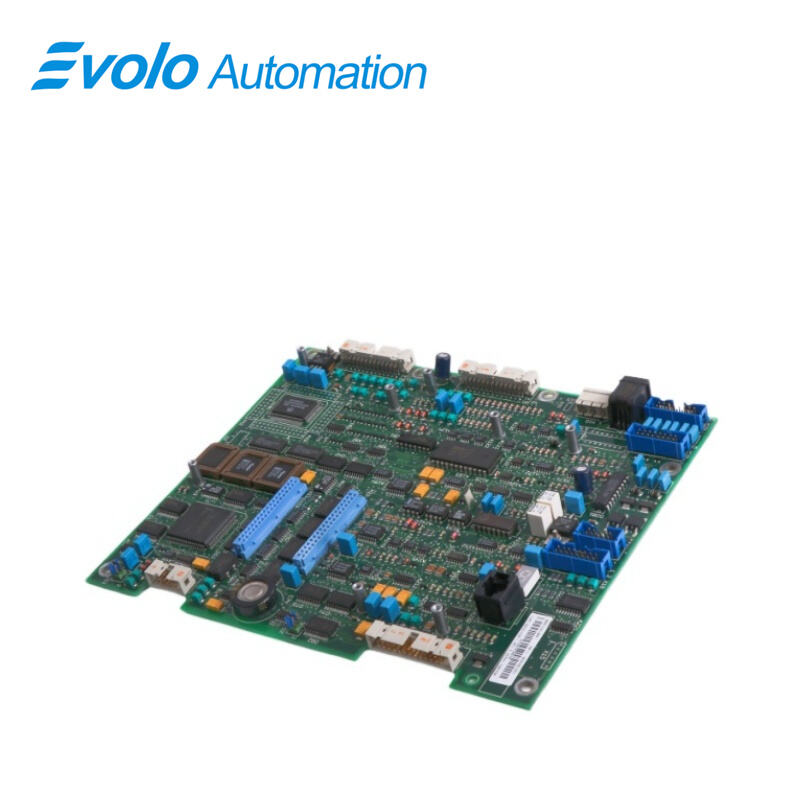

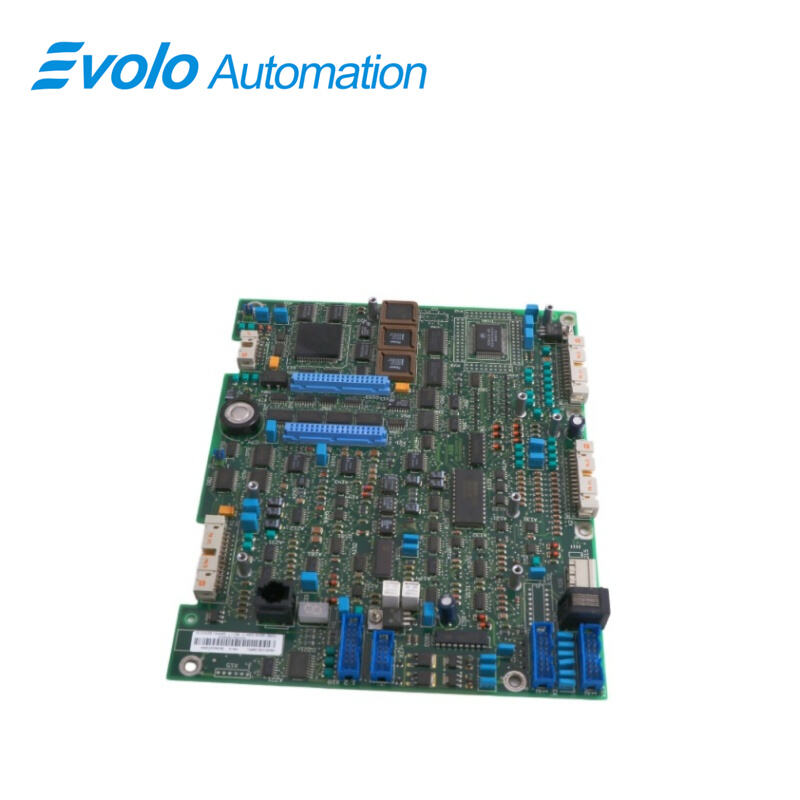

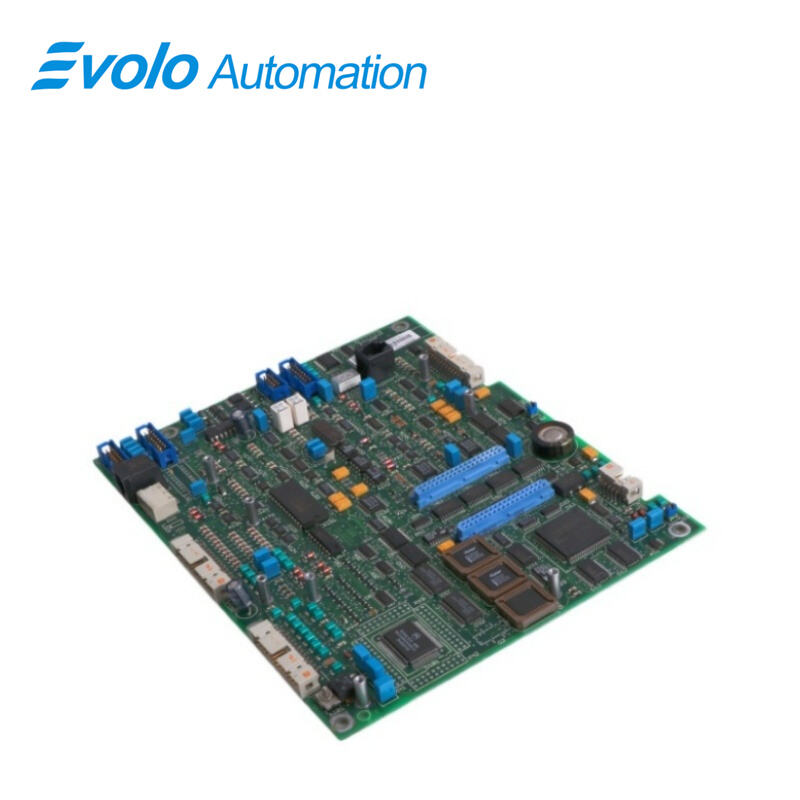

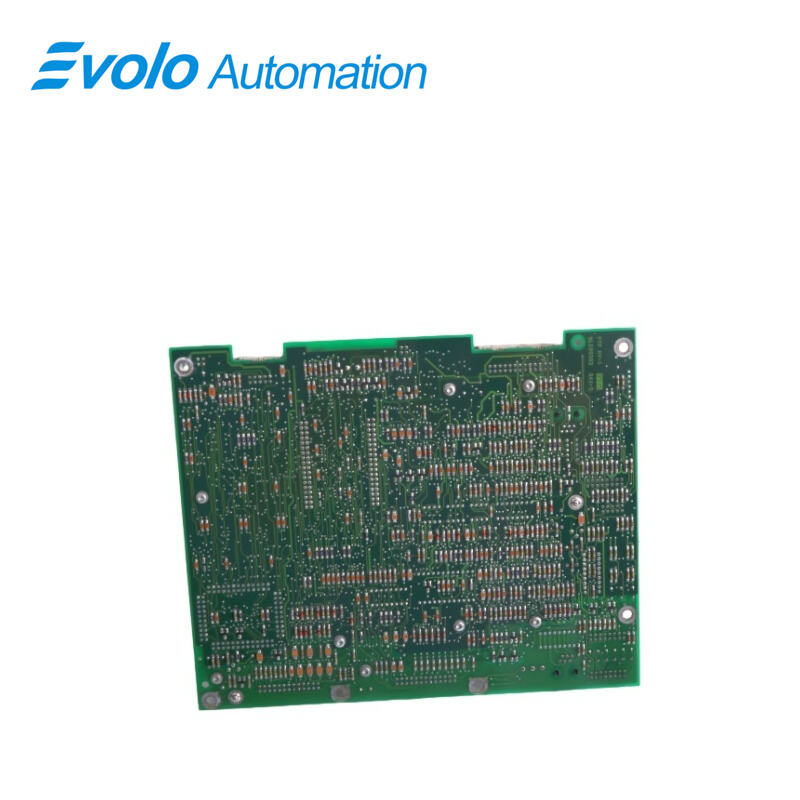

Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
SDCS-CON-1 3BSE006196R1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SDCS-CON-1 3BSE006196R1 |
|
Product Type |
Control Board |
|
Dimensions |
16 x 16 x 12 cm |
|
Storage Temperature |
-40°C to +55°C |
|
Transport Temperature |
-40°C to +70°C |
|
Relative Humidity |
5%–95% (non-condensing) |
|
Protection Rating |
IP00 (module, must be installed in control cabinet) |
|
Communication Interface |
Built-in Modbus RTU; optional Profibus DP / DeviceNet / ControlNet / Ethernet/IP / Modbus TCP / CANopen |
|
Fiber Communication |
Supports SDCS-COM-81/COM-82 (DDCS protocol) |
|
Speed Feedback |
EMF (sensorless), analog tachometer, pulse encoder (5/12/15/24 V), optional resolver (RRIA-01 / FEN-21) |
|
Velocity Resolution (Encoder) |
0.005% rated speed |
|
Velocity Resolution (Analog Tach) |
0.1% (16-bit) |
|
Control Cycle Time |
2.77 ms (60 Hz) / 3.33 ms (50 Hz) |
|
Current Controller Response |
5 ms |
|
Digital Inputs |
8 standard / up to 14 expanded (+RDIO-01) |
|
Digital Outputs |
6 standard / up to 12 expanded |
|
|
|
|
Analog Inputs |
2 standard (±10 V or 0/4–20 mA) / up to 6 expanded (+RAIO-01) |
|
Analog Outputs |
3 standard (±10 V or 0/4–20 mA) / up to 4 expanded |
Description
The SDCS-CON-1 3BSE006196R1 is a control board, which offers advanced control functionality, allowing for precise management and regulation of industrial processes. It can execute complex control algorithms, adjust parameters, and respond to various input signals, ensuring optimal performance and desired outcomes.
Applications
Iron and steel metallurgical plants: DC drive systems for high-power rolling mills, coilers, and wire drawing machines.
Mining and excavation plants: Responsible for high-torque speed regulation of mine hoists and conveyors.
Rubber and tire factories: Driving key production equipment such as internal mixers and calenders.
Paper and printing plants: Synchronously controlling multi-motor production lines to maintain constant tension operation.
Textile printing and dyeing plants: Precision control of DC traction equipment.
Competitive Advantage
Advanced Control Technology: Employs microprocessor control, supporting speed control, torque control, armature current control, and field current control.
Flexible Programming: Supports IEC 61131 standard programming and allows for custom programming via Control Builder.
Multiple Feedback Methods: Supports various speed feedback methods including EMF (sensorless motor), analog tachometer, pulse encoder, and rotary transformer.
FAQ
Q: How does the SDCS-CON-1 3BSE006196R1 achieve fiber optic communication?
A: It requires the installation of the optional SDCS-COM-81 or COM-82 module to support the DDCS high-speed protocol.
Q: Can the SDCS-CON-1 3BSE006196R1 connect two encoders simultaneously?
A: The standard configuration is one channel, but it can support a second encoder feedback channel through expansion configuration.
Q: Can the SDCS-CON-1 3BSE006196R1 operate without an encoder?
A: Yes, its standard configuration supports EMF (sensorless) feedback mode.
Q: Does the analog input of the SDCS-CON-1 3BSE006196R1 support 4-20mA signals?
A: Yes, it can be switched between ±10V and 0/4-20mA via jumpers or parameter settings.
Q: Are the environmental requirements of the SDCS-CON-1 3BSE006196R1 high?
A: Due to its IP00 protection rating, it must be installed in an industrial-standard ventilation control cabinet.
