330103-00-07-10-01-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-07-10-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

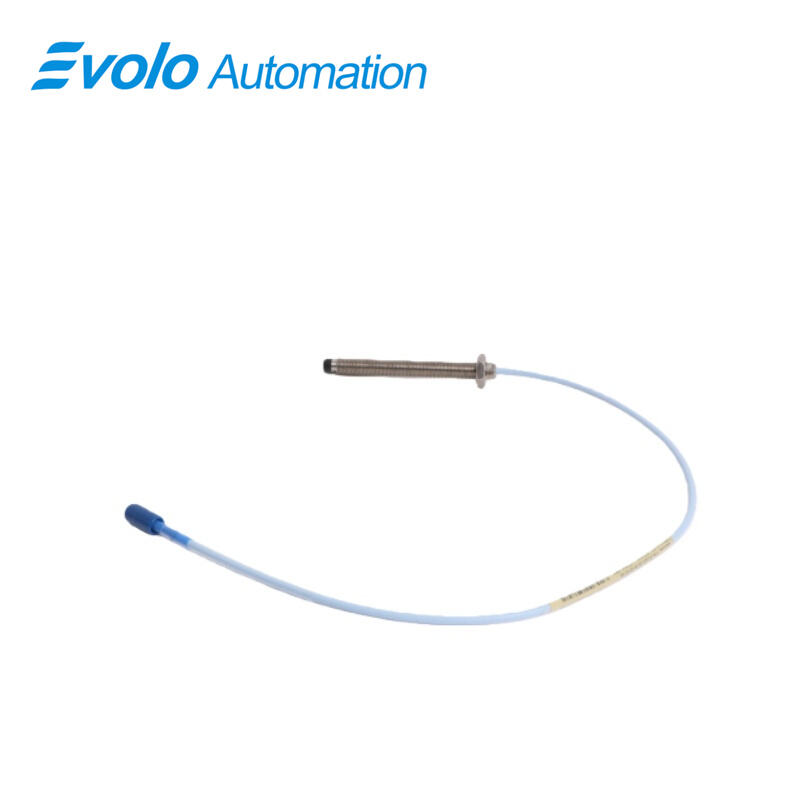

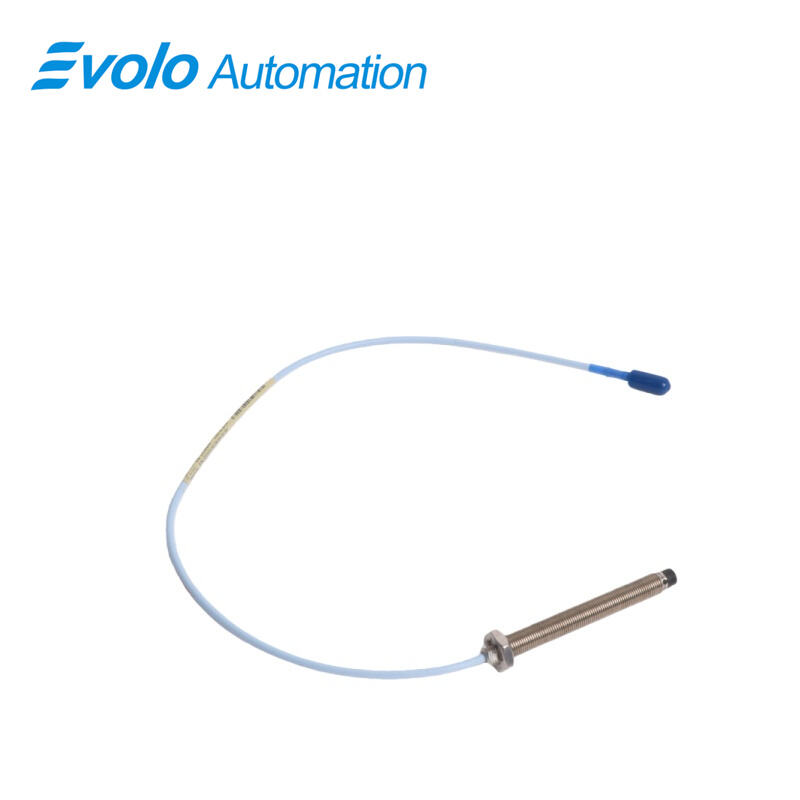

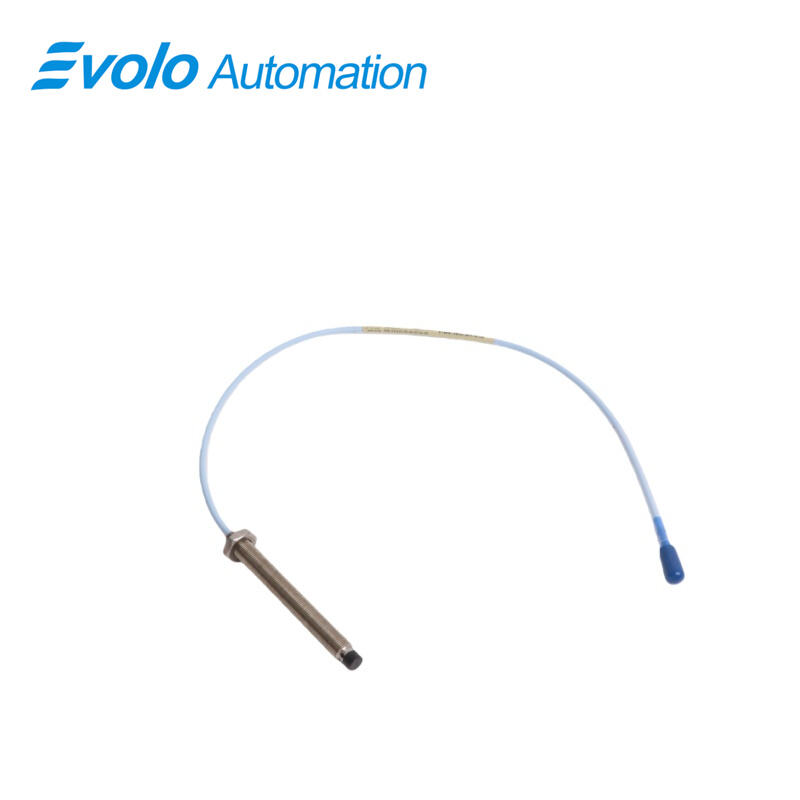

The Bently Nevada 330103-00-07-10-01-05 is a highly versatile and durable 3300 XL 8 mm Proximity Probe, engineered to deliver precision eddy current displacement and vibration measurements in the most demanding industrial monitoring applications. This specific model features a 70 mm overall case length with a 0 mm unthreaded length, presenting a fully threaded, compact profile ideal for direct installation into standard threaded mounting holes on machinery housings, bearing caps, and gearboxes. The probe is distinguished by its integrated 1.0-meter (3.3 feet) standard cable, which is terminated with a secure miniature coaxial ClickLoc connector complemented by a connector protector. This design ensures a robust, vibration-resistant, and environmentally sealed connection, safeguarding signal integrity in challenging environments. Furthermore, the probe carries the critical CSA, ATEX, and IECEx agency approvals, certifying it for safe and compliant use in hazardous locations with potentially explosive atmospheres, a necessity for sectors like oil & gas and chemical processing.

Constructed for enduring performance, the probe utilizes a Polyphenylene Sulfide (PPS) sensing tip, known for its excellent electrical insulation and resistance to a wide array of industrial chemicals, oils, and solvents. This tip is housed within a rugged AISI 303 or 304 stainless steel case, providing superior mechanical strength and corrosion resistance. This robust assembly allows the probe to operate reliably across an extensive temperature range of -45°C to +180°C, ensuring consistent functionality from freezing outdoor conditions to high-heat areas adjacent to turbines and process equipment.

Applications

1.Hazardous Area Monitoring in Refineries and Offshore Platforms

Equipped with CSA, ATEX, and IECEx certifications, this proximity probe is specifically authorized for use in Zone 1/2 and Division 1/2 hazardous areas. Its fully sealed construction and protected connector make it the ideal choice for monitoring critical pumps, compressors, and gas turbines within oil refineries, offshore drilling platforms, and chemical plants, where safety regulations strictly require intrinsically safe or flameproof instrumentation to prevent ignition risks.

2.Compact Installation on Motors, Pumps, and Gearboxes

The probe's fully threaded 70 mm case with 0 mm unthreaded length provides an exceptionally compact and secure mounting solution. This makes it perfectly suited for space-constrained installations on electric motors, centrifugal pumps, and industrial gearboxes, where mounting depth is limited. The integrated 1.0-meter cable with protected ClickLoc connector offers a convenient and reliable immediate connection point, simplifying wiring in dense equipment arrangements.

3.High-Temperature Vibration Sensing on Turbines and Large Fans

Capable of operating at temperatures up to 180°C, this probe is engineered for reliable performance in high-heat environments. It is effectively deployed for measuring shaft radial vibration and axial displacement on steam turbines, gas turbines, and large induced-draft fans. Its durable construction ensures long-term stability and accurate data collection even when installed near hot casings or exhaust streams, supporting essential condition-based maintenance for these high-value assets.

Specifications

Competitive Advantage

1.Certified Safety for Explosive Atmospheres

Holding the triple certification of CSA, ATEX, and IECEx, this probe meets the most rigorous international standards for equipment used in explosive atmospheres. This pre-certification provides a significant advantage by eliminating complex and costly site-specific safety assessments, streamlining global procurement, and offering a guaranteed safe and compliant sensing solution for the petrochemical, pharmaceutical, and offshore energy sectors.

2.Optimized Compact and Sealed Design for Challenging Installations

The probe's fully threaded, 70 mm long case and integrated connector protector create a highly compact and environmentally sealed unit. This design is optimal for installations where space is at a premium and where exposure to moisture, dust, or washdowns is a concern. It offers a more robust and installation-friendly alternative to probes with exposed unthreaded sections or unprotected connectors.

3.Robust Construction for Extended Service Life in Extreme Conditions

Built with a PPS tip and stainless steel housing, and rated for an operating temperature up to 180°C, the probe is engineered for longevity in harsh conditions. This durability translates to reduced failure rates, lower frequency of replacement, and minimized maintenance interventions, providing a lower total cost of ownership and higher system reliability over the long term compared to probes with lesser environmental ratings.
