Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
SDCS-COM-5 3BSE006567R1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SDCS-COM-5 3BSE006567R1 |
|
Product Type |
Communication Board |
|
Dimensions |
16.1 x 8.2 x 1.8 cm |
|
Weight |
0.05 kg |
|
Number of Channels |
4 independent fiber channels (V1–V4) |
|
Data Rate |
4 Mbit/s (standard) |
|
Media Type |
POF (Plastic Optical Fiber) / HCS (Hard Clad Silica Fiber) |
|
Mounting Platform |
Compatible with SDCS-CON-2 (DCS600 expansion slot) |
Description

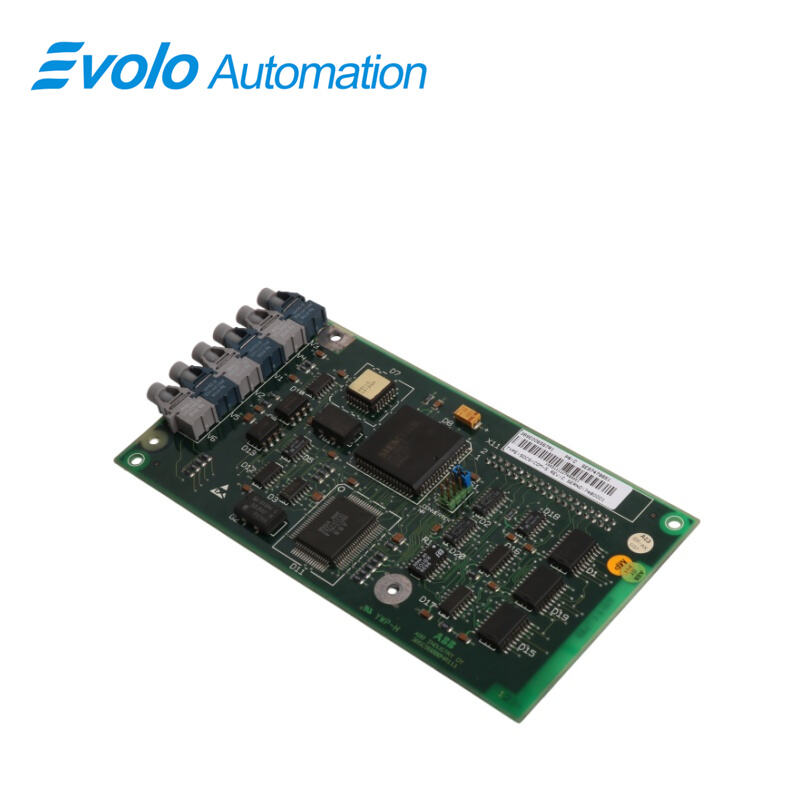

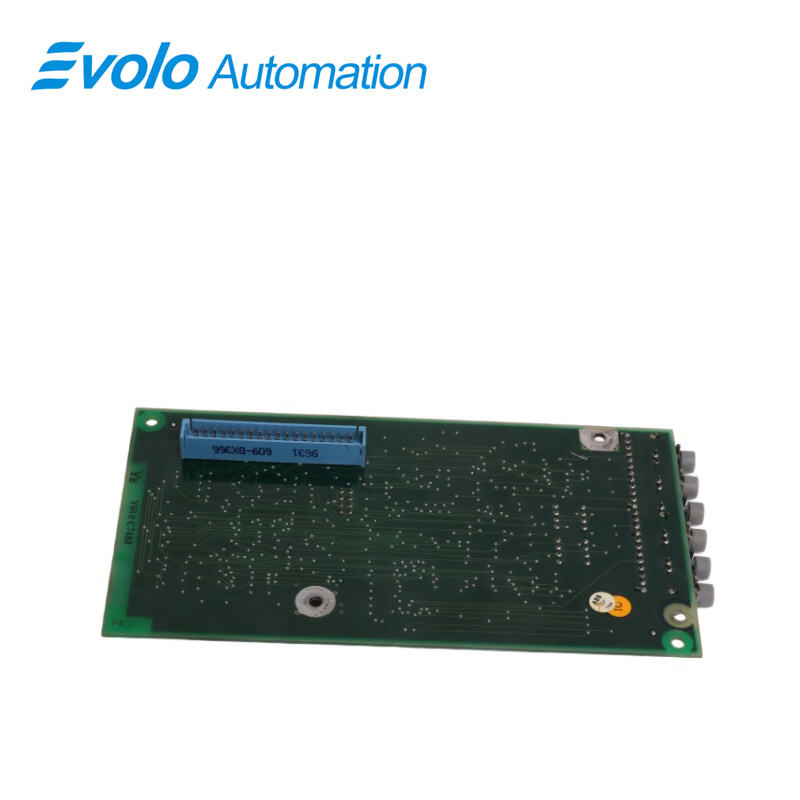

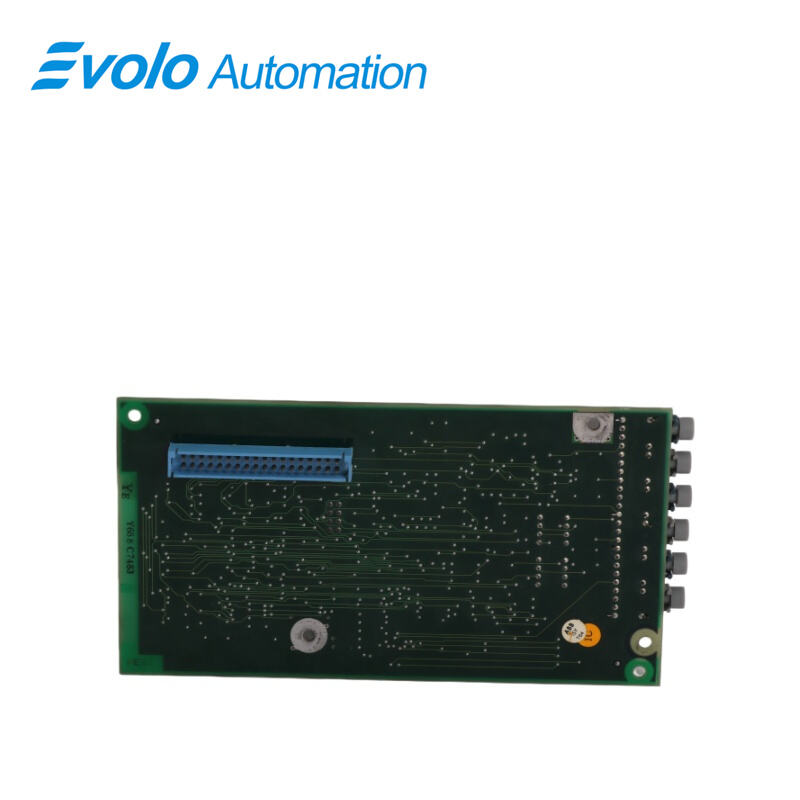

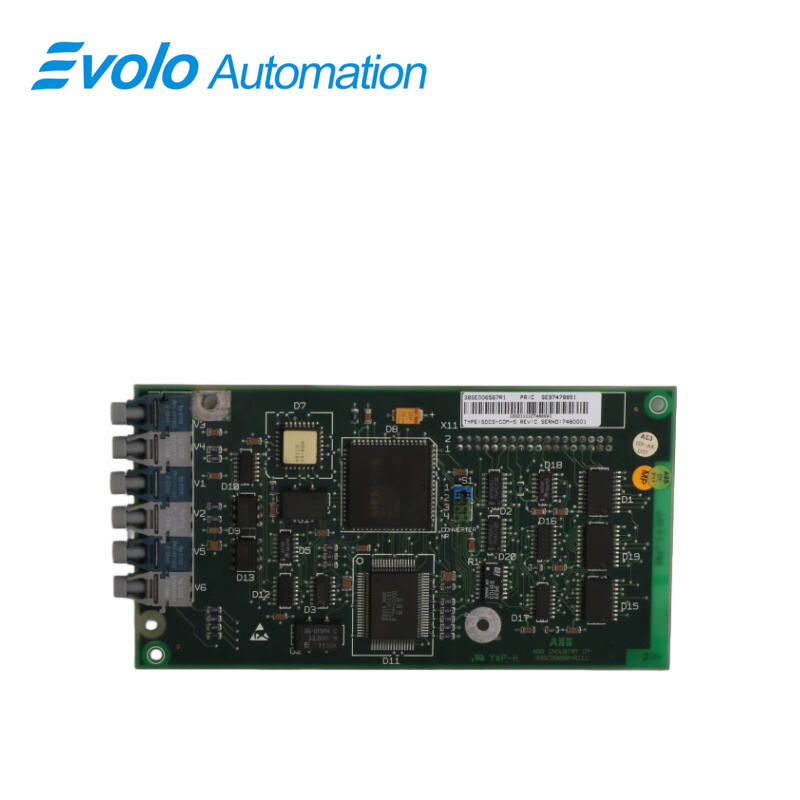

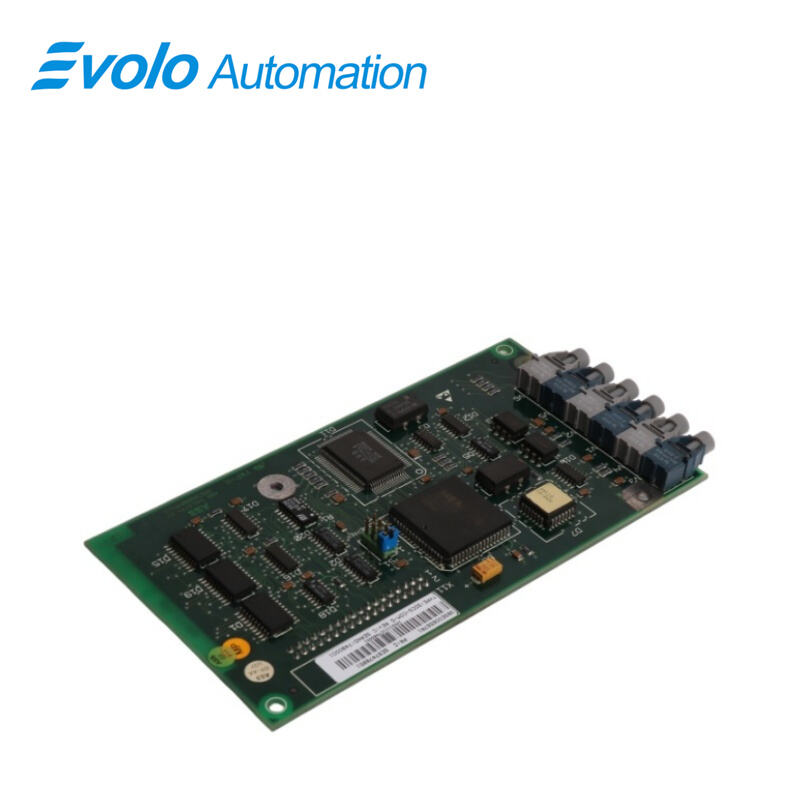

The ABB SDCS-COM-5 3BSE006567R1 is a dedicated DDCS communication board for DCS600 DC drives, utilizing fiber-optic connections to ensure high-speed data exchange and robust EMC immunity in industrial environments. It features four fiber channels (V1-V4) for real-time communication, supporting high-speed torque and speed control in applications such as rolling mills and paper machines.
Applications
Large steel rolling mills: Responsible for high-speed synchronous control and load distribution of the main rolling mill drive unit.
Paper and pulp mills: Enable precise speed and tension communication between multiple drive systems of the paper machine.
Mining hoist mills: Perform real-time remote transmission of critical operating data within the hoist control system.
Metal processing plants: Support the distributed integration of drive units for continuous annealing or galvanizing lines.
Rubber extrusion plants: Maintain a stable link between the drive system of large internal mixers and the DCS system.
Troubleshooting and Maintenance Recommendations
Troubleshooting:
Fiber Link Interruption (7011): First, check if the V1-V4 fiber optic connectors are damp or dusty. Confirm that the transmit (black) and receive (gray) terminals are correctly cross-connected.
Communication Timeout: Check if the boards on SDCS-CON-2 are securely plugged in. Confirm that the corresponding parameter group (e.g., group 70) settings are consistent with the physical slot.
Maintenance Recommendations:
Optical Path Cleaning: Regularly clean fiber optic interfaces with dedicated alcohol swabs or compressed air to prevent industrial oil mist from affecting light transmittance.
Bending Radius: Strictly adhere to the minimum bending radius requirements for fiber optic cables during cabling to avoid fiber damage leading to signal attenuation.
FAQ
Q: What is the main function of the fiber optic ports on the SDCS-COM-5 3BSE006567R1?
A: They support DDCS protocol for high-speed, EMI-immune communication between drives and AC 800M controllers or other drive modules.
Q: Can I upgrade from Rev:B/C to Rev:D on the SDCS-COM-5 3BSE006567R1?
A: Yes. It is backward compatible, but firmware must support Rev:D features to avoid communication issues.
Q: How do I troubleshoot “Comm Loss” on the SDCS-COM-5 3BSE006567R1?
A: Check LEDs, inspect fiber bend radius and cleanliness, and verify power supply within specification.
Q: What is the maximum fiber optic length for the SDCS-COM-5 3BSE006567R1?
A: Typically 10–15 m with plastic fiber; longer distances require converters or special fiber.
Q: Can V1–V4 channels on the SDCS-COM-5 3BSE006567R1 be mixed?
A: No. Each channel has a defined role and should follow system configuration guidelines.
