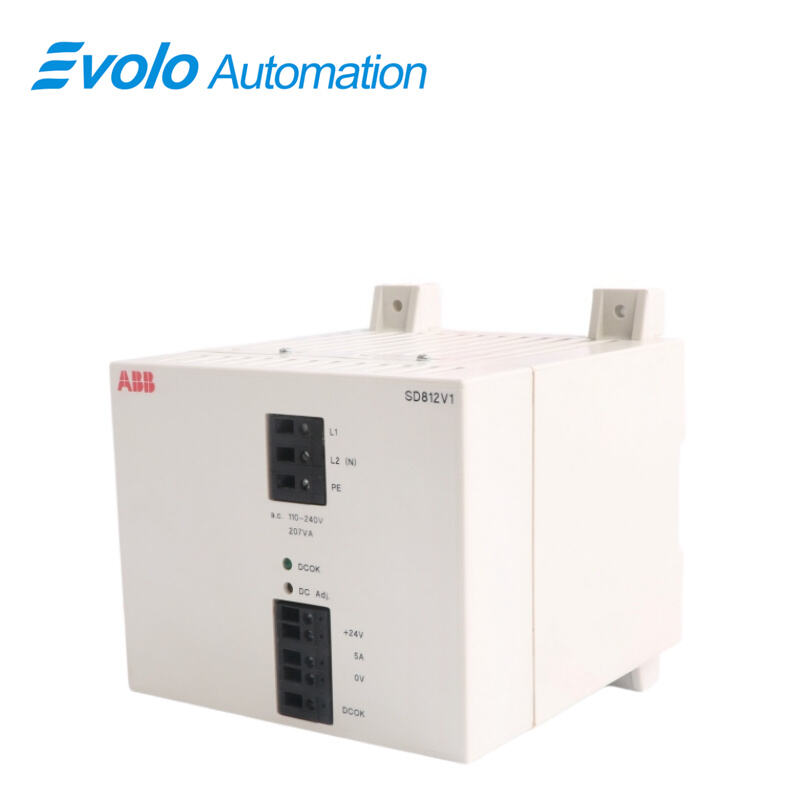

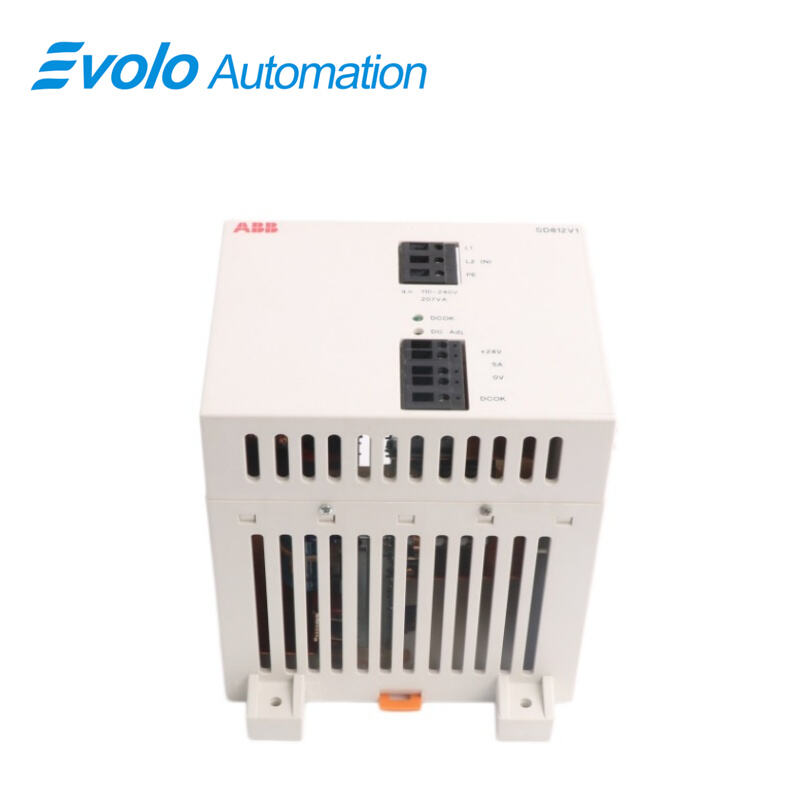

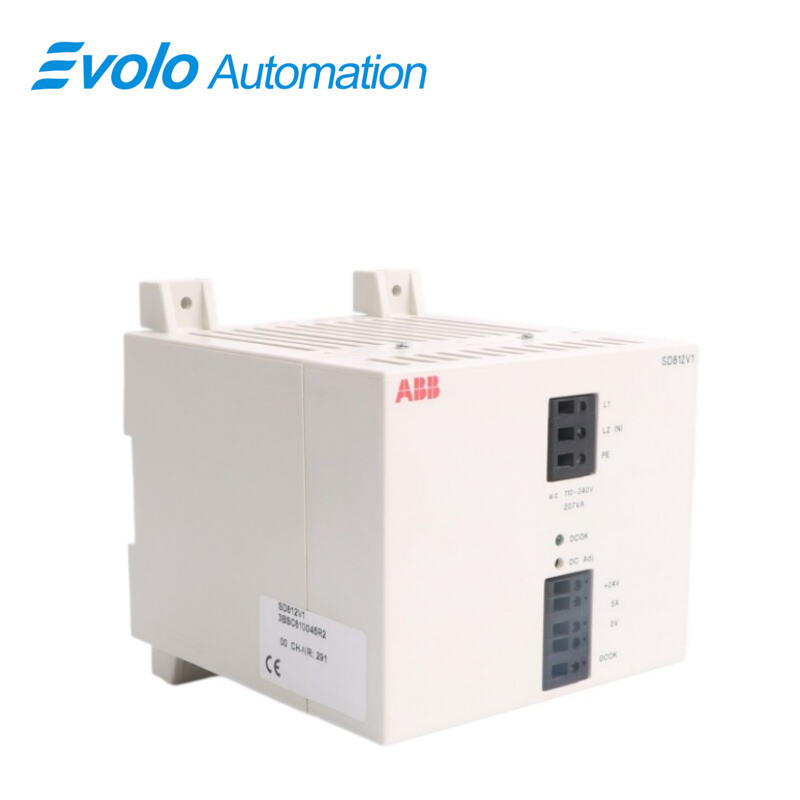

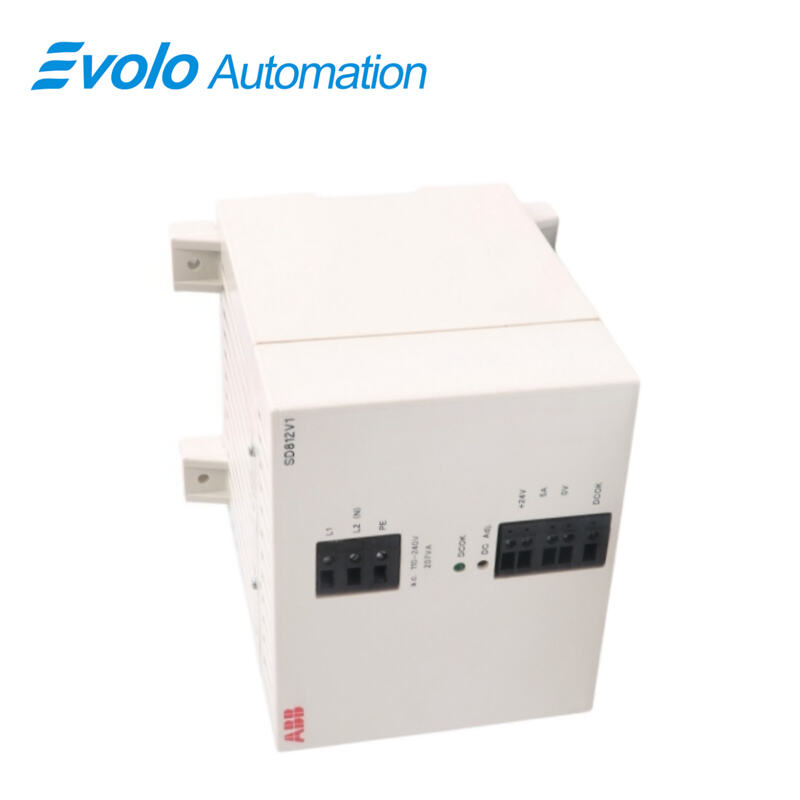

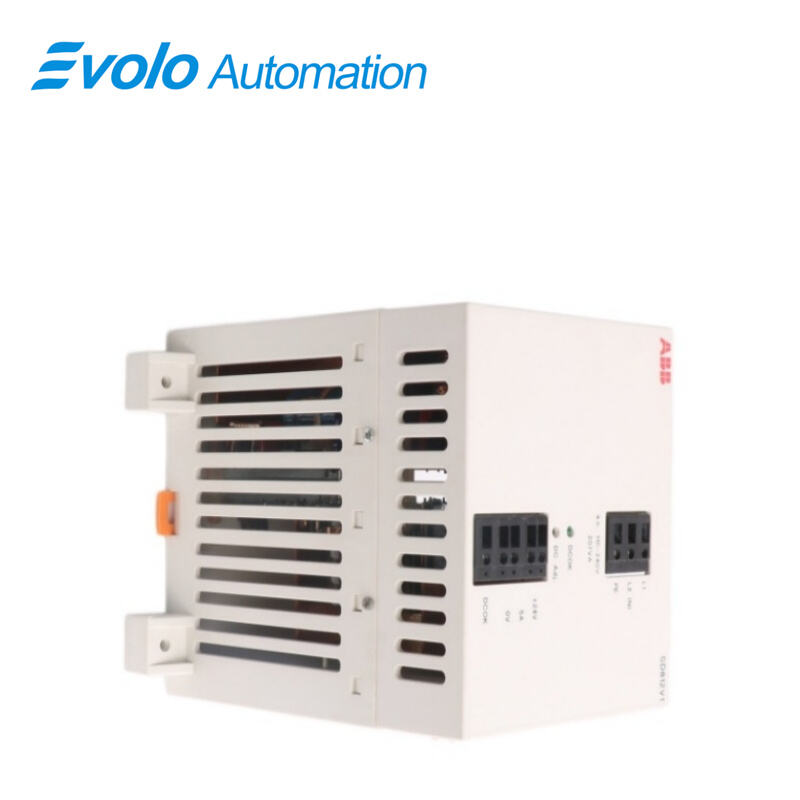

SD812V1 3BSC610045R2 Power Supply Module

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	SD812V1  3BSC610045R2
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The ABB SD812V1 3BSC610045R2 Power Supply Module is designed for industrial automation applications, ensuring consistent power supply with high reliability and efficiency. Equipped with advanced protection features, including overvoltage and overcurrent protections, it safeguards against potential failures and extends the lifespan of connected devices.

Applications

Automotive manufacturing plants: Drive workshop field control boxes and robot I/O units.

Coal-fired power plants: Provide 24V logic power for boiler monitoring and data acquisition systems.

Oil refineries: Suitable for redundant power distribution of controllers within central control room cabinets.

Paper machinery plants: Support communication between sensors and actuators on high-speed production lines.

Water treatment plants: Provide stable power support for remote control cabinets in pump stations.

Troubleshooting and Maintenance Recommendations

Troubleshooting:

Overload Protection: The module will automatically limit the current when the load current exceeds 18.75A. Please check if too many devices are connected.

Output Drop: Check if the input voltage is below 85V AC. Ensure the input power grid is stable to maintain the full 450W output.

Maintenance Recommendations:

Heat Dissipation Space: Due to the high power, please ensure sufficient ventilation space around the module during installation to prevent hot air from accumulating.

Periodic Inspection: Regularly check the terminal wiring, especially the 18.75A high-current output terminal, to prevent overheating caused by loose screws.

Troubleshooting: Overload Protection: The module will automa

Q: Does the SD812V1 3BSC610045R2 power supply support DC input voltage?
A: The specifications state 85-264V AC. For DC input, please check the DC input compatibility on the product label.

Q: Is an additional fan required for 450W output cooling in SD812V1 3BSC610045R2?
A: Under the specified ambient temperature below 60°C, natural convection is sufficient, but good cabinet ventilation is required.

Q: What does IP20 rating mean for SD812V1 3BSC610045R2?
A: It means it can prevent the intrusion of solid objects larger than 12mm, such as fingers, but it is not dustproof or waterproof. It must be installed in an electrical control cabinet.

Q: Does SD812V1 3BSC610045R2 support parallel redundancy?
A: This module supports building redundant systems. It is recommended to use it with ABB's redundant modules (such as the SS823) for higher reliability.

Q: Will a storage temperature of -40°C damage SD812V1 3BSC610045R2?
A: No. As long as it is not powered on, -40°C is within the device's permissible storage tolerance range.
