Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
SC510 3BSE003832R1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SC510 3BSE003832R1 |
|
Product Type |
Submodule Carrier (without CPU) |
|
Dimensions |
3 x 33.3 x 29.7 cm |
|
Weight |
0.6 kg |
|
Mounting Type |
DIN rail mounting |
|
Operating Temperature |
0°C to +55°C |
|
Storage Temperature |
-25°C to +70°C |
|
Relative Humidity |
5%–95% (non-condensing) |
|
Protection Rating |
IP20 |
|
WEEE Category |
5 (Small Equipment ≤ 50 cm) |
|
Number of Batteries |
0 |
Description

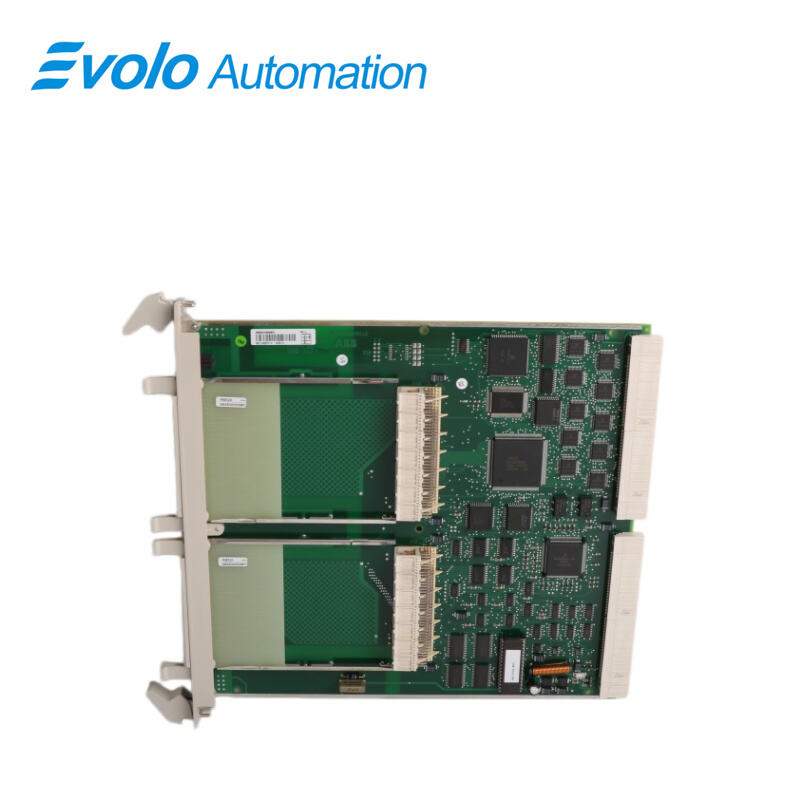

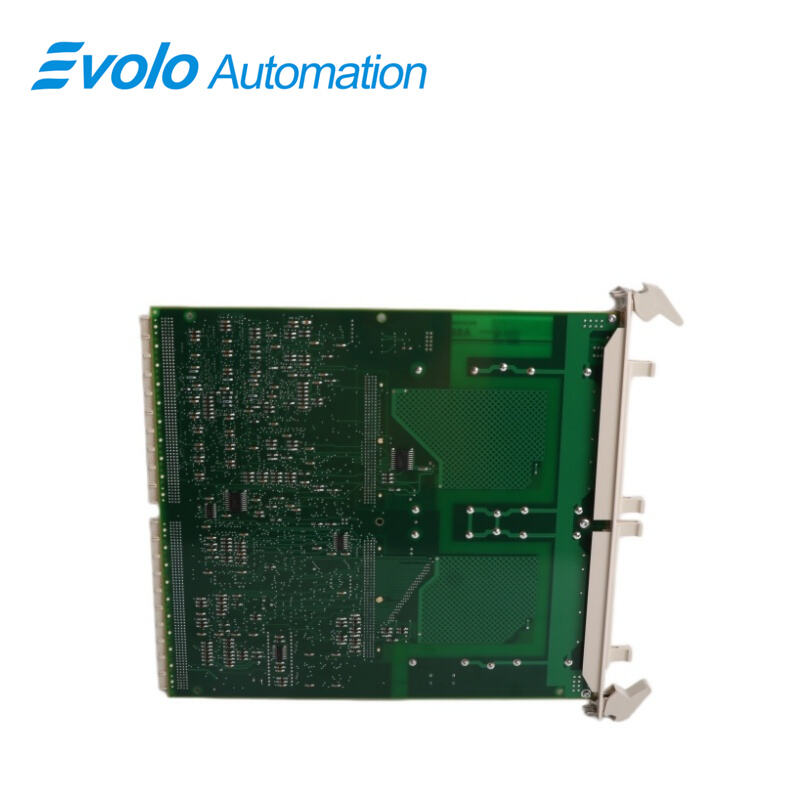

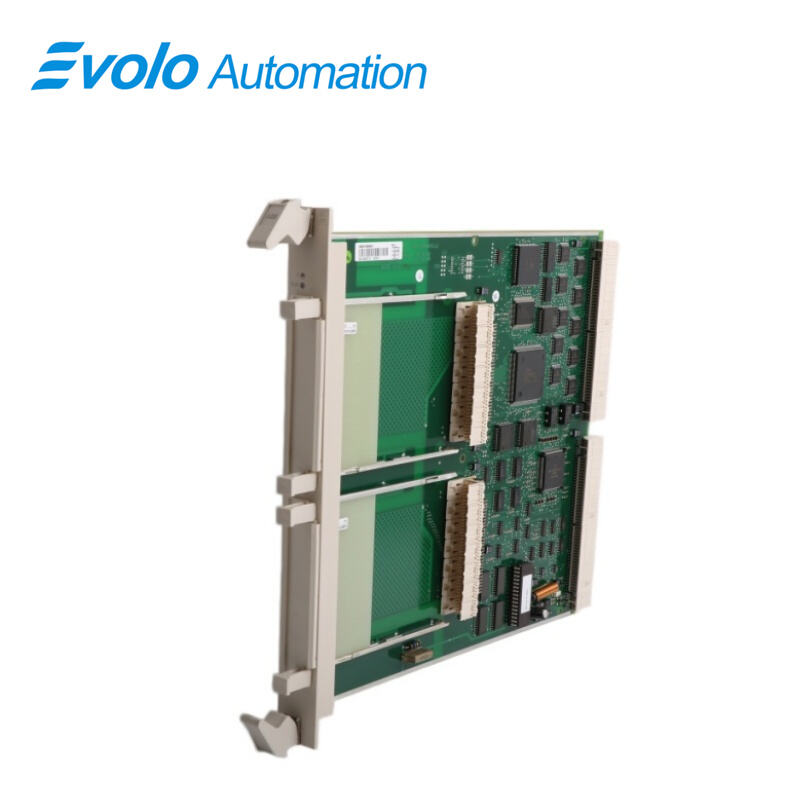

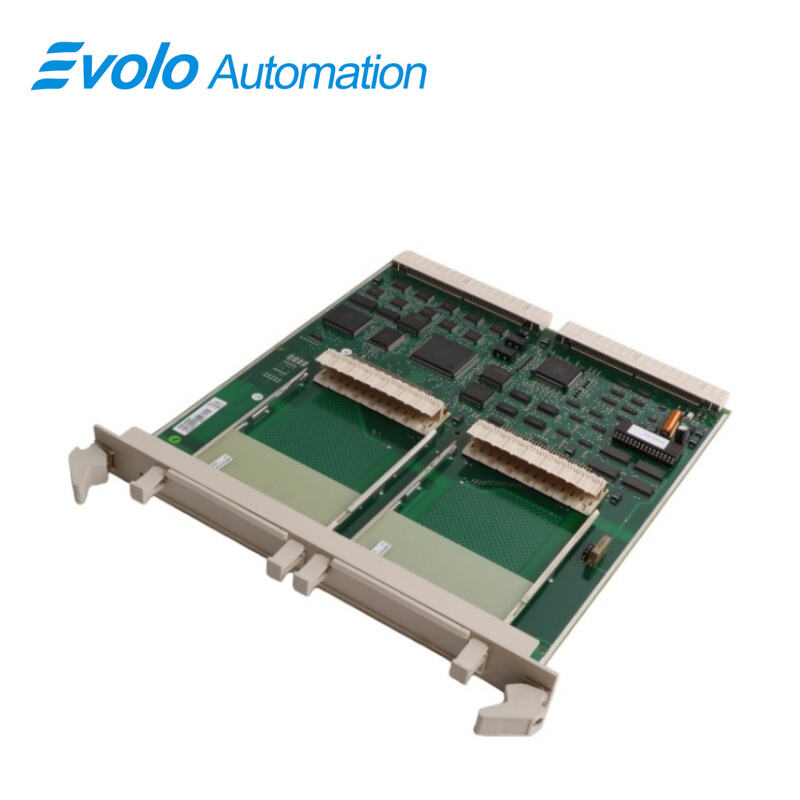

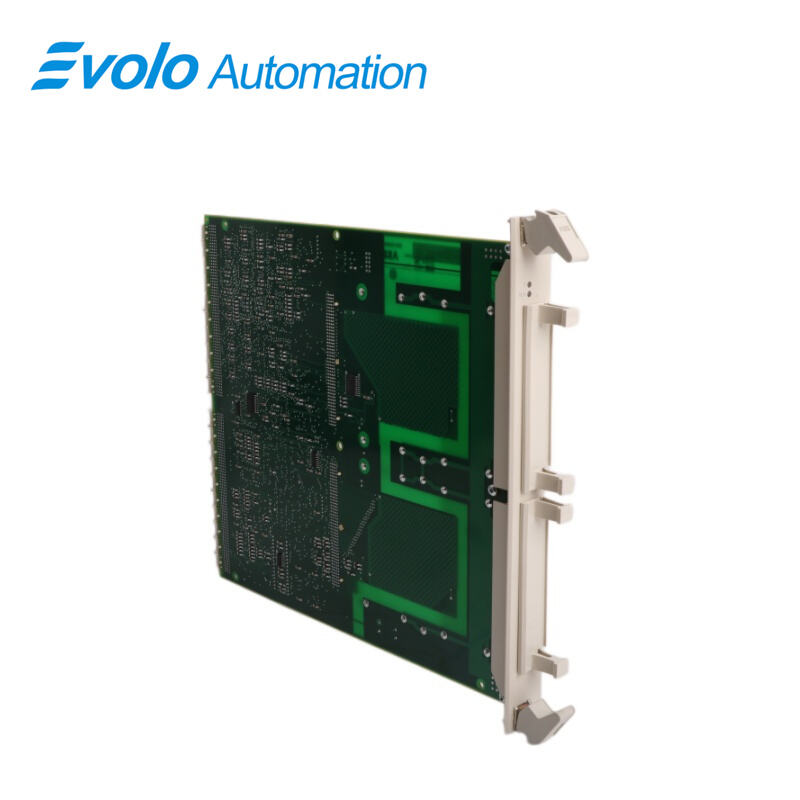

The ABB SC510 3BSE003832R1 is a CPU-less submodule carrier and an important component of ABB's automation systems. It provides a physical mounting platform for various I/O modules and enables communication with other components within the SC510 system.
Applications
Thermal power plants: Used for redundant communication in distributed control systems (DCS).
Petrochemical plants: Enables signal integration between field instruments and central control systems.
Steel smelting plants: Extends logic and sequence control for complex production lines.
Paper and packaging plants: Increases the multi-channel communication density of automated control systems.
Water treatment plants: Used for remote data acquisition of pump stations and treatment units.
Features
Modular Design: Utilizes a modular design, allowing for flexible combination of different I/O modules to meet diverse application needs.
High Reliability: Employs industrial-grade design, ensuring high reliability and stability.
Easy Installation: Simple and convenient installation, saving installation time.
High Expandability: Can be expanded with more I/O modules to adapt to ever-changing production needs.
Good Compatibility: Compatible with other components in the ABB SC510 system.
FAQ
Q: Can SC510 3BSE003832R1 operate independently as a controller?
A: No. The SC510 is a carrier board and does not contain a CPU. It must be used with the main processor of the AC 450 system.
Q: How many sub-modules can be installed on SC510 3BSE003832R1?
A: The carrier board provides 2 standard sub-module slots.
Q: Does SC510 3BSE003832R1 support hot-swapping?
A: To protect the hardware, it is recommended to perform module replacement operations after the system is powered off to prevent damage.
Q: What is the main role of SC510 3BSE003832R1 in the AC 450 system?
A: It serves as the physical carrier for communication interfaces (such as printers, EXCOM, etc.).
Q: Where is SC510 3BSE003832R1 made?
A: This product is typically made in Sweden (SE).
