Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
SB3610-B |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SB3610-B |
|
Product Type |
Circuit Board |
|
Dimensions |
11.5 × 10 × 4.7 cm |
|
Weight |
0.24 kg |
|
Operating Temperature |
-40°C to 70°C |
|
Memory Capacity |
16 Kbytes |
|
Input Voltage Range |
85 VAC to 264 VAC |
|
Output Current |
0.5 A |
|
Communication Protocol |
Modbus RTU |
Description

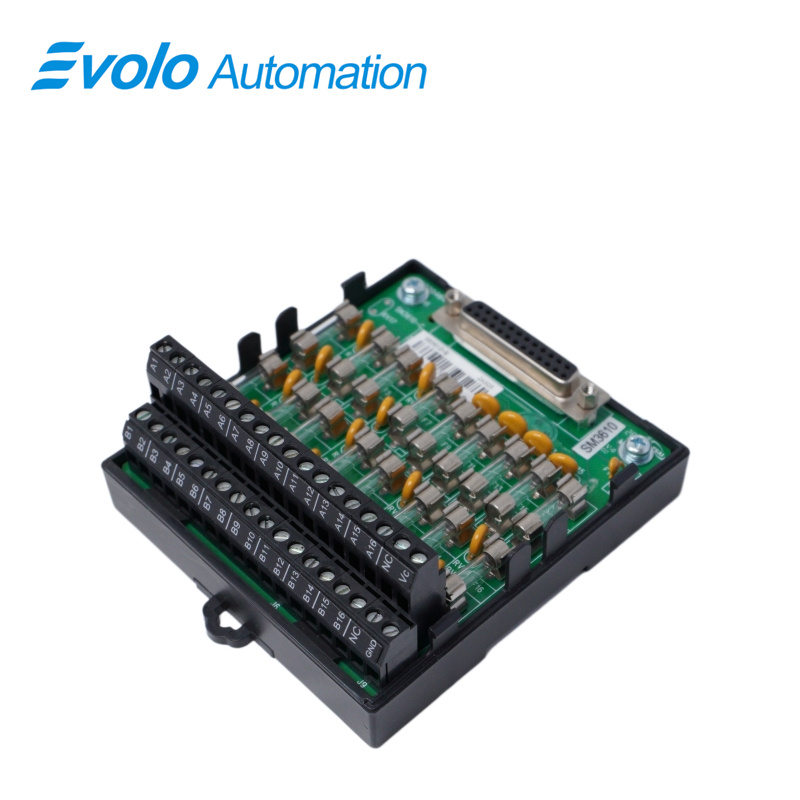

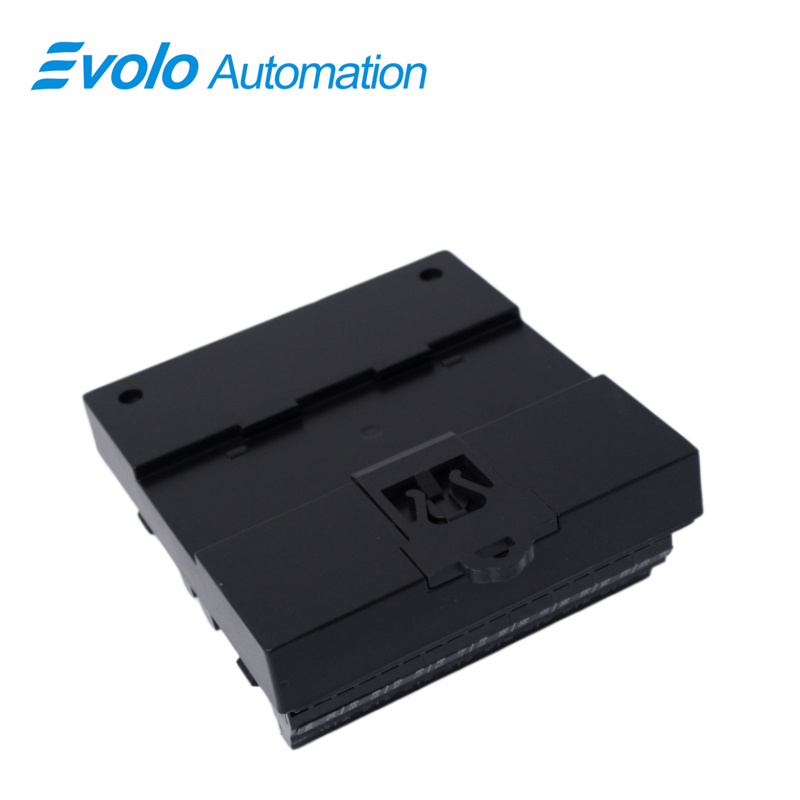

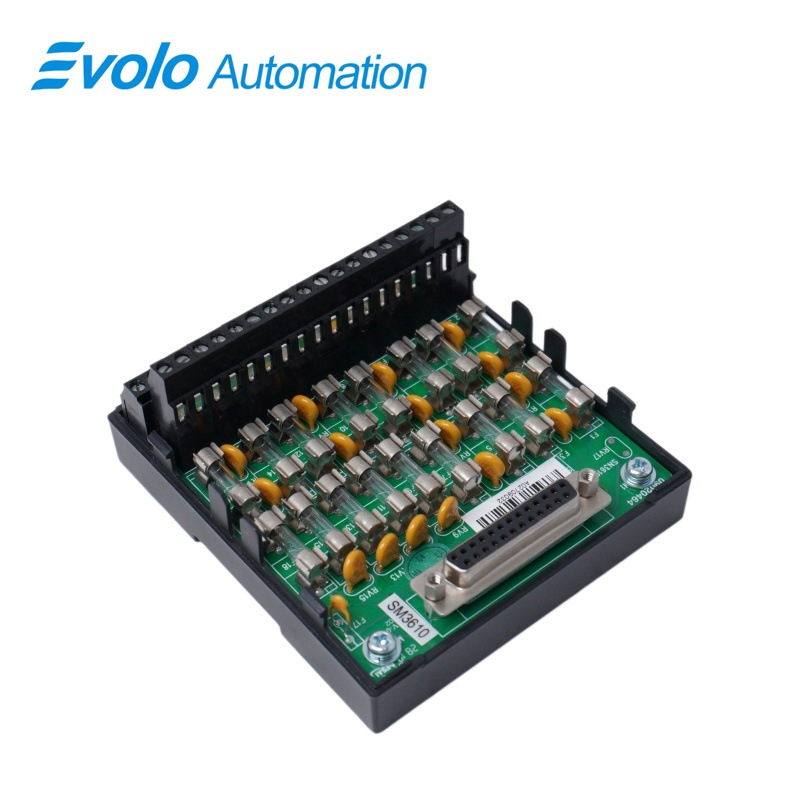

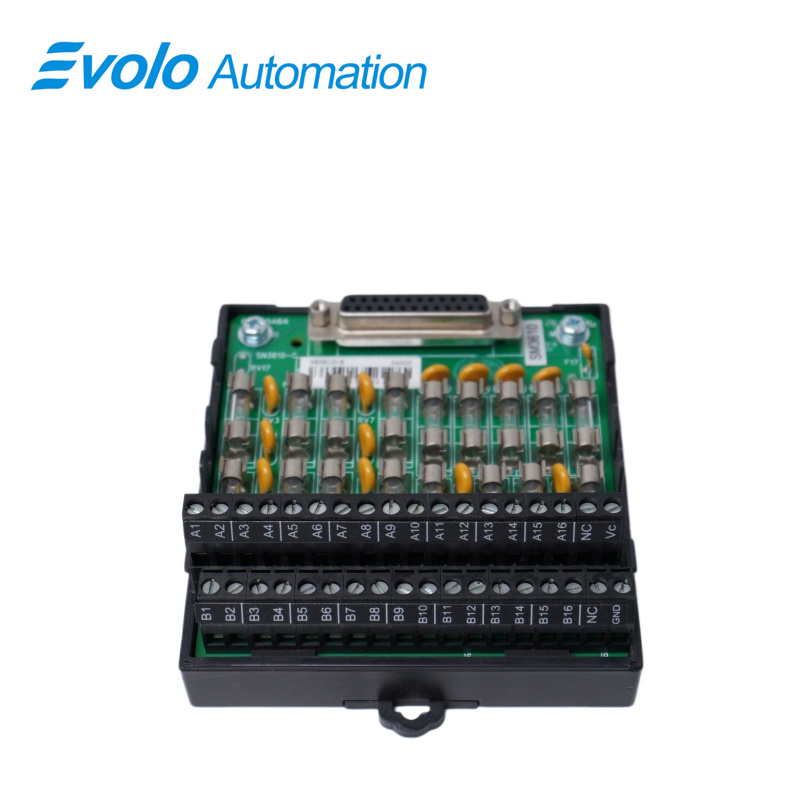

The Honeywell SB3610-B is a circuit board. It is responsible for receiving signals from external sensors and transmitting power or control commands to various actuators in the factory.
Applications
Oil Refineries: Wide temperature tolerance for outdoor pipeline metering and valve control data collection.
Chemical Plants: Wide input power range ensures stable operation during reactor start-up voltage fluctuations.
Thermal Power Plants: Built-in memory supports local execution of emission control and parameter storage tasks.
Natural Gas Plants: Modbus communication enables long-distance transmission of field signals to control rooms.
Water Treatment Plants: Stable low-current drive for controlling small contactors and actuators in dosing systems.
Troubleshooting
Complete loss of Modbus communication: Verify baud rate, parity, and slave ID match master station and SB3610-B. If correct, check twisted-pair wiring for loose/reverse connections or EMI damage from heavy-load switching.
No power/no output current: Check AC input within 85–264VAC. If input is normal but 0.5A output is zero, overload protection or power stage may be damaged by surge.
Data loss/logic errors: At -40°C or 70°C extremes, memory timeout may occur. Check heat sources, cooling measures, and verify 16 Kbytes configuration.
FAQ
Q: What is the operating temperature range of SB3610-B?
A: Its operating temperature range is -40°C to 70°C.
Q: What is the memory capacity of SB3610-B?
A: Its memory capacity is 16 Kbytes.
Q: What is the input voltage range of SB3610-B?
A: Its input voltage range is 85 VAC to 264 VAC.
Q: What is the output current of SB3610-B?
A: Its output current is 0.5 A.
Q: What communication protocol does SB3610-B use?
A: It uses the Modbus RTU communication protocol.
