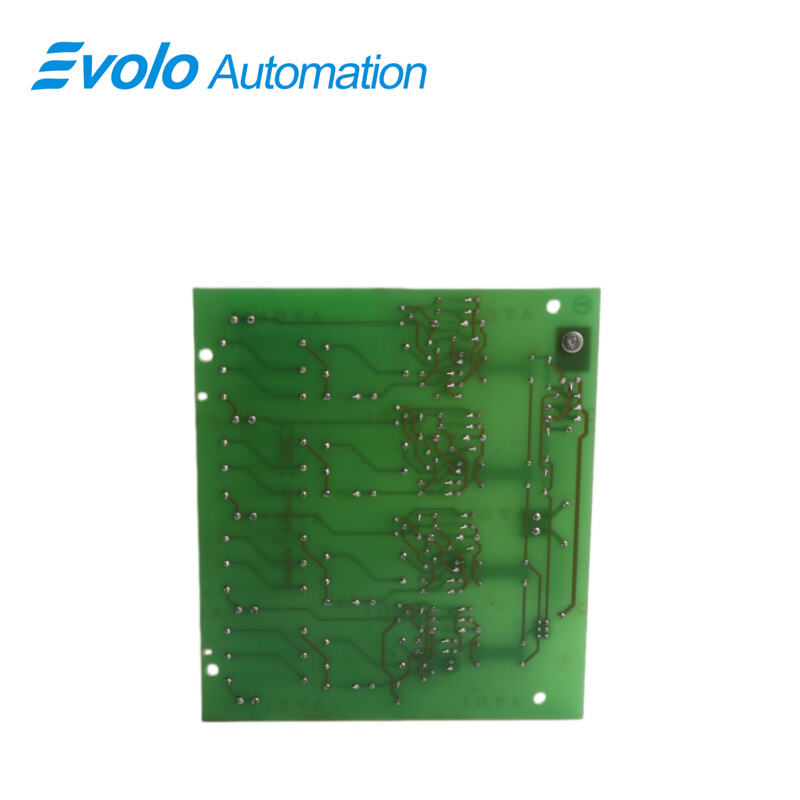

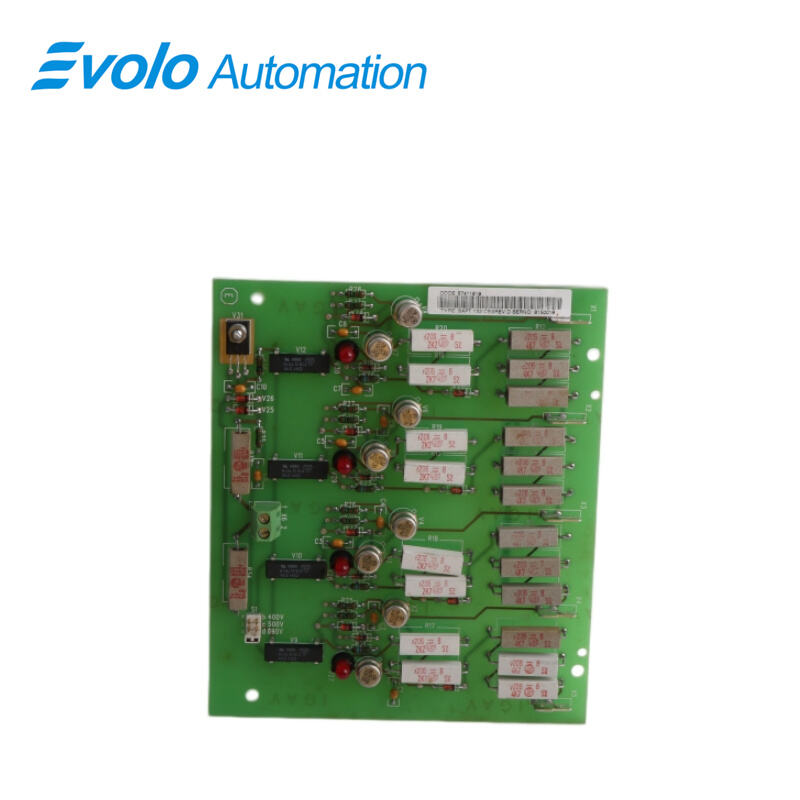

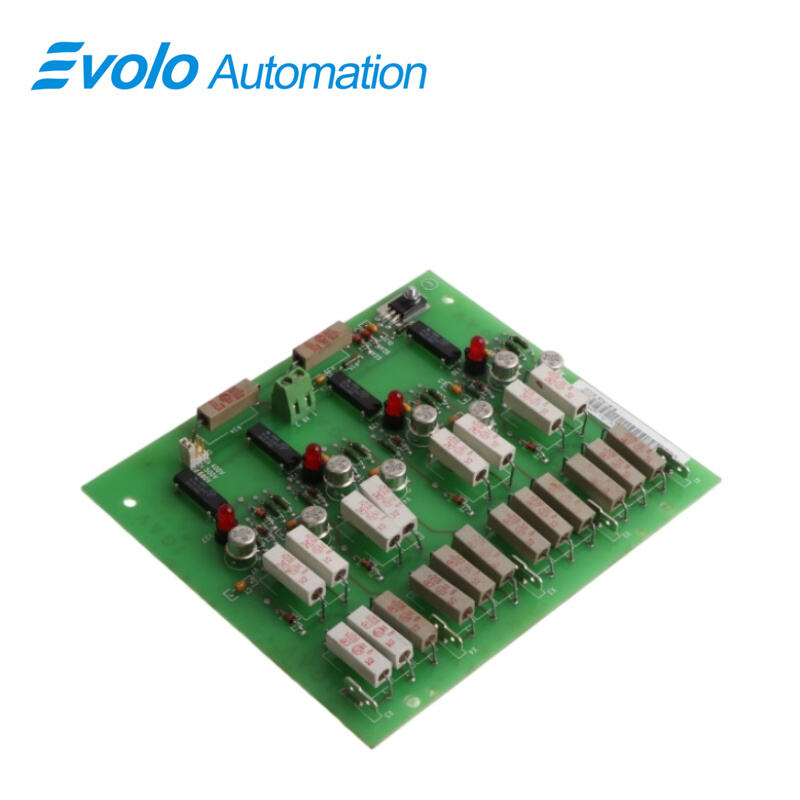

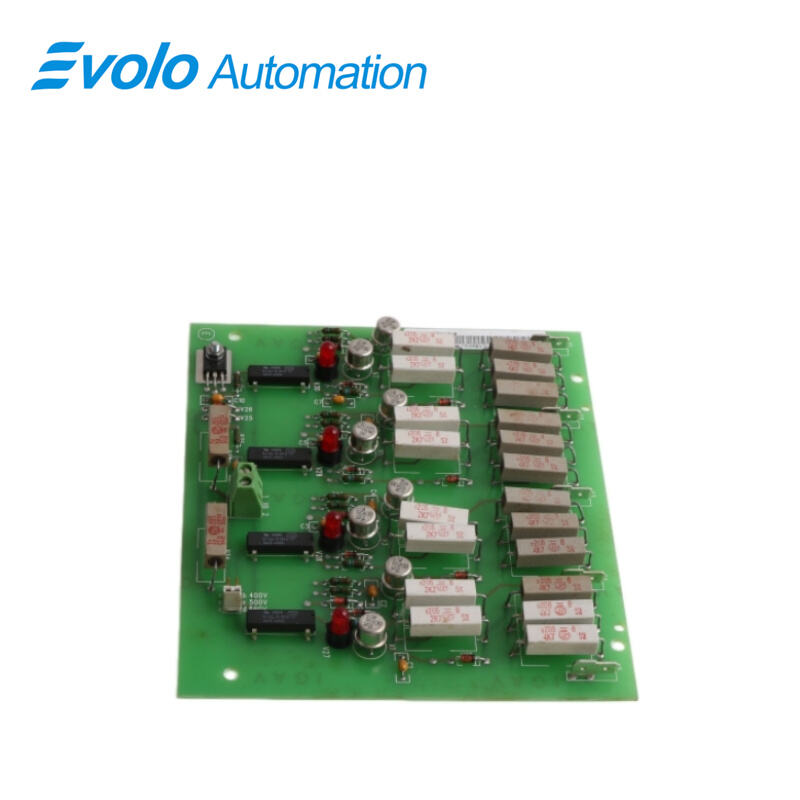

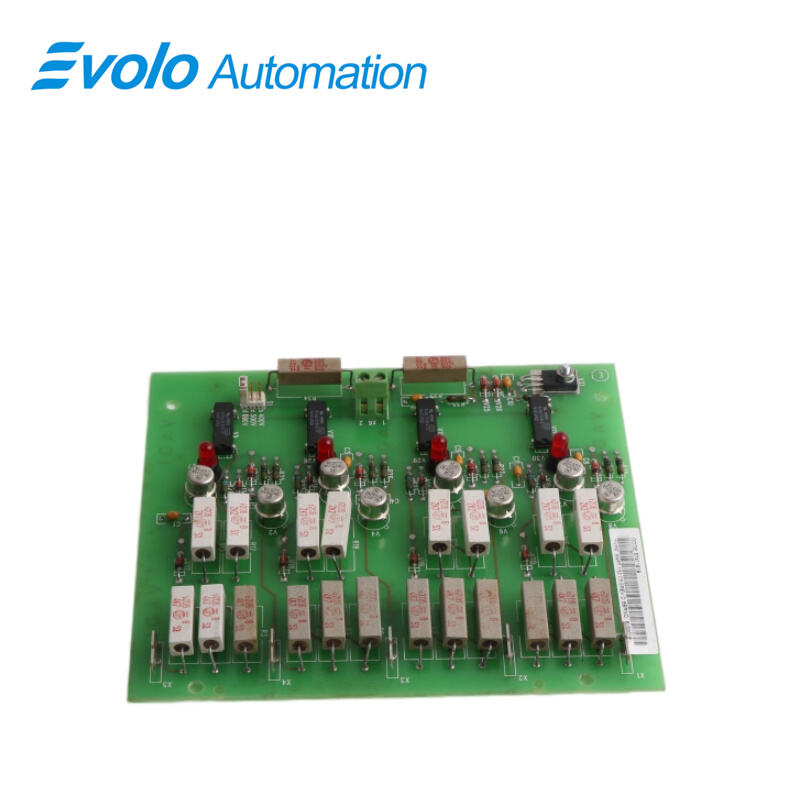

SAFT132CBS SAFT 132 CBS 57411619 Supervision Board

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	SAFT132CBS  SAFT 132 CBS  57411619
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The ABB SAFT132CBS SAFT 132 CBS 57411619 is a multi-channel supervision board designed for ABB's early industrial drive systems (such as Stromberg drives) and control networks. This module integrates logic monitoring, signal isolation, and real-time diagnostics, providing intuitive feedback on system operating status through an onboard LED array.

Applications

Open-pit mines (adapted to extreme temperature variations and vibration environments)

Offshore drilling platforms (IP67 high protection, resistant to salt spray and moisture)

Heavy machinery manufacturing plants (handling high current monitoring up to 20A)

Cold chain warehousing and logistics plants (suitable for ultra-low temperature cold storage control systems)

Wind/solar power plants (remote RS-485 data monitoring and environmental adaptability)

Troubleshooting and maintenance

Troubleshooting:

Communication Interruption: Although it has IP67 protection, the external RS-485 connector should still be checked for oxidation.

Module Overheating: At 10W power consumption and high current operation, ensure adequate ventilation space on the rear mounting surface.

Maintenance Recommendations:

Tightening Check: Given its support for 20A current, the terminal pressure should be checked regularly to prevent excessive contact resistance.

Sealing Check: After maintenance, ensure the housing seals are undamaged to maintain its IP67 rating.

FAQ

Q: What does the IP67 rating of the SAFT132CBS SAFT 132 CBS 57411619 mean?
A: It provides full dust protection and temporary water immersion resistance for humid or dusty environments.

Q: Does the SAFT132CBS SAFT 132 CBS 57411619 have special heat dissipation requirements?
A: Yes. With 10W consumption and 0.14 kg weight, it should be mounted on a metal surface for heat dissipation.

Q: Does the 20A rating of the SAFT132CBS SAFT 132 CBS 57411619 mean it can be used as a circuit breaker?
A: No. It is a monitoring board; 20A is internal circuit capacity and requires external fuses or contactors.

Q: Why is the operating temperature range of the SAFT132CBS SAFT 132 CBS 57411619 so wide (-40°C to +85°C)?
A: It uses military-grade components to prevent temperature-induced logic drift in extreme environments.

Q: Is the RS-485 interface of the SAFT132CBS SAFT 132 CBS 57411619 surge protected?
A: It includes a basic TVS device; external surge protection is recommended in lightning-prone areas.
