Overview
Allen-Bradley · FLEX 5000 I/O

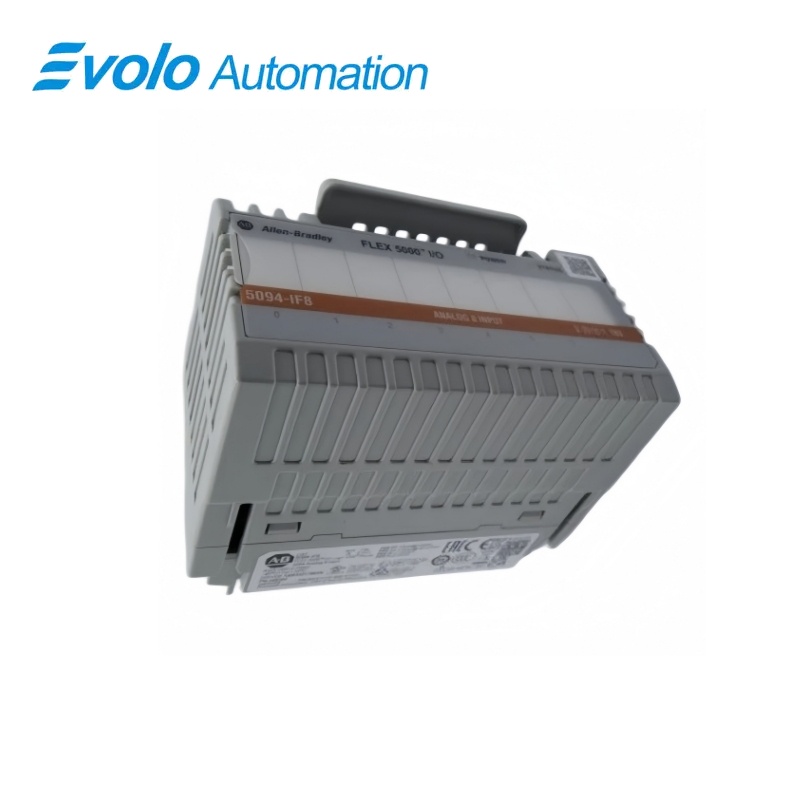

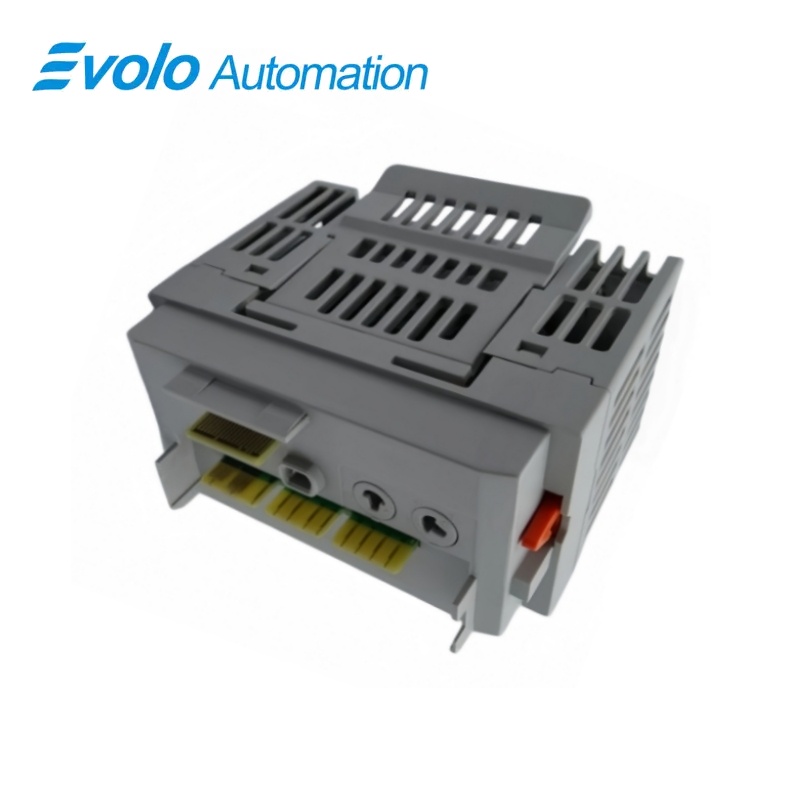

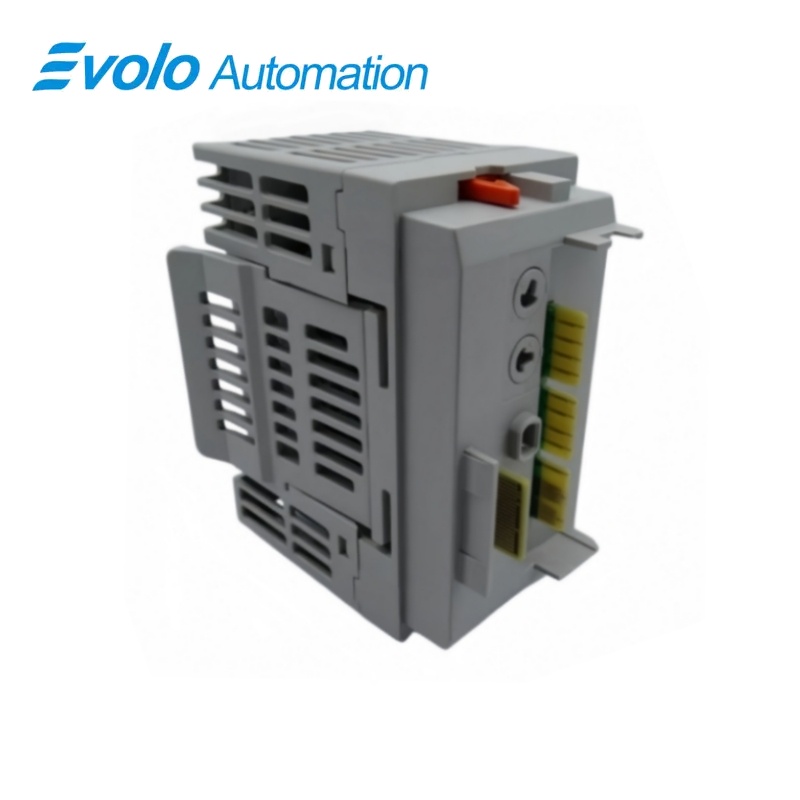

5094-IF8 Eight-Channel Analog Input Module
Allen-Bradley 5094-IF8 is a FLEX 5000 eight-channel single-ended analog input module for voltage and current signals, with configurable input ranges, filtering, diagnostics and IEEE 754 process data.
At a Glance
| Brand | Allen-Bradley |
|---|---|
| Model | 5094-IF8 |
| Product Type | Eight-channel non-isolated analog input module |
| Core Function | Acquires industrial voltage and current signals for a Logix control system |
| Application or Compatible Series | Allen-Bradley FLEX 5000 distributed I/O systems |
Signal Planning
Assign the correct voltage or current range, scaling and filter settings to every connected channel.
Terminal Base
Use the specified FLEX 5000 terminal base and reproduce the original field wiring and shield arrangement.
Controller Project
Add the exact catalog entry and firmware revision in Studio 5000 Logix Designer before commissioning.
Product Overview
Allen-Bradley 5094-IF8 is a FLEX 5000 eight-channel single-ended analog input module for voltage and current signals, with configurable input ranges, filtering, diagnostics and IEEE 754 process data.
Each channel can be configured for common unipolar or bipolar voltage ranges or for 0 to 20 mA and 4 to 20 mA current loops. Notch and digital filters allow the response to be matched to line-noise and control-cycle requirements. Open-wire detection, overrange behavior, timestamping and channel status data support troubleshooting.
Key Functions
Flexible Analog Ranges
Each channel can be configured for common unipolar or bipolar voltage ranges or for 0 to 20 mA and 4 to 20 mA current loops.
Configurable Filtering
Notch and digital filters allow the response to be matched to line-noise and control-cycle requirements.
Integrated Signal Diagnostics
Open-wire detection, overrange behavior, timestamping and channel status data support troubleshooting.
Official Specifications
| Analog Input Channels | 8 single-ended, non-isolated |
|---|---|
| Voltage Input Ranges | -10 to 10 V, 0 to 5 V and 0 to 10 V |
| Current Input Ranges | 0 to 20 mA and 4 to 20 mA |
| Voltage-Mode Input Impedance | Greater than 1 MΩ |
| Current-Mode Input Impedance | 250 Ω typical |
| Conversion Architecture | Two multiplexed 24-bit sigma-delta ADCs |
| Voltage Resolution at 0 to 5.25 V | Less than 80 µV per count |
| Current Resolution | Less than 0.32 µA per count |
| Calibrated Accuracy at 25 °C | 0.05% of full scale |
| Voltage Temperature Drift | 28 ppm/°C |
| Current Temperature Drift | 47 ppm/°C |
| Channel Scan Time | 360 µs |
| Module Scan Time | 1.4 ms |
| Selectable Notch Frequencies | 5 Hz to 62.5 kHz |
| Input Digital Filter Range | 0 to 32,767 ms |
| Maximum Input Overvoltage | ±32 V DC |
| Current-Mode Overload Protection | ±30 mA |
| Process Data Format | IEEE 754 32-bit floating point |
| Open-Wire Detection Time | Less than 2 s in voltage mode and less than 1 s on the 4 to 20 mA range |
| Channel Timestamping | CIP Sync input timestamps |
Frequently Asked Questions
Which signals can I connect to 5094-IF8?
Connect voltage or current signals that fit one of the selectable channel ranges.
How should I choose the notch filter for 5094-IF8?
Select the frequency that attenuates the dominant line noise while preserving the sampling response required by the control task.
Can I mix voltage and current channels on 5094-IF8?
Yes, the input type and range are configured independently for each channel.
What should I check if 5094-IF8 reports an open wire?
Inspect the field circuit, terminal base, loop supply, polarity and the configured input range for the affected channel.
Which engineering software configures 5094-IF8?
Configure the module in Studio 5000 Logix Designer with the matching catalog profile and firmware revision.
What terminal-base details should I preserve when replacing 5094-IF8?
Preserve the exact terminal base, channel wiring, shielding, loop supplies and keying arrangement.
How should I commission 5094-IF8 after installation?
Verify range, scaling, filters, alarms and live values one channel at a time before returning the process to service.
Compatibility & Ordering Notes
Compatibility Checklist
- Confirm the controller project contains the exact standard eight-channel analog input profile and installed firmware.
- Match the terminal base and every voltage or current channel assignment to the existing field circuits.
- Retain scaling, filter, alarm, timestamp and diagnostic parameters before replacement.
