Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MU-TAMR03 51309218-125 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MU-TAMR03 51309218-125 |
|
Product Type: |
Low Level Analog Multiplexer Module (LLMux RTD FTA) |
|
Input Channels: |
16 |
|
IOP Interface: |
Single IOP interface |
|
Terminal Type: |
Compression terminals |
|
Redundancy Support: |
Not supported |
|
Conformal Coating: |
No |
|
CE Compliance: |
Not CE compliant |
|
Dimensions: |
12.1 × 5 × 30.8 cm |
|
Weight: |
0.78 kg |
Description

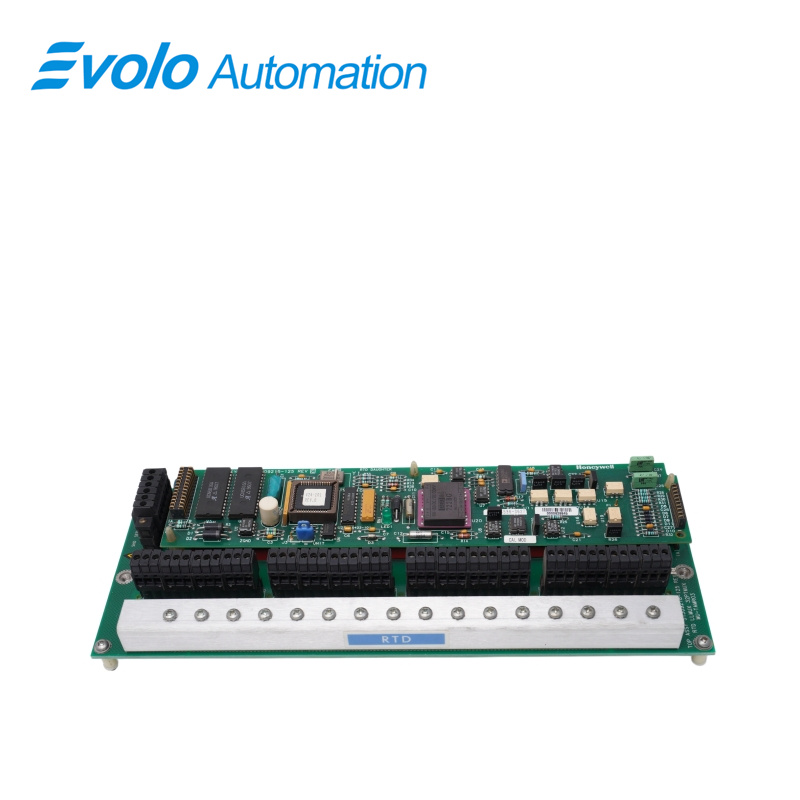

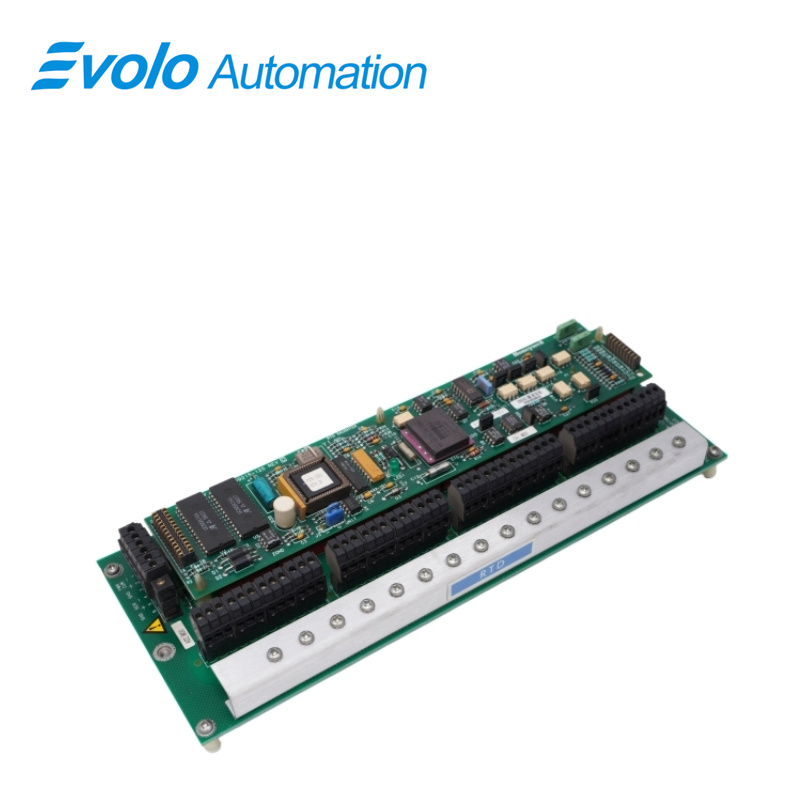

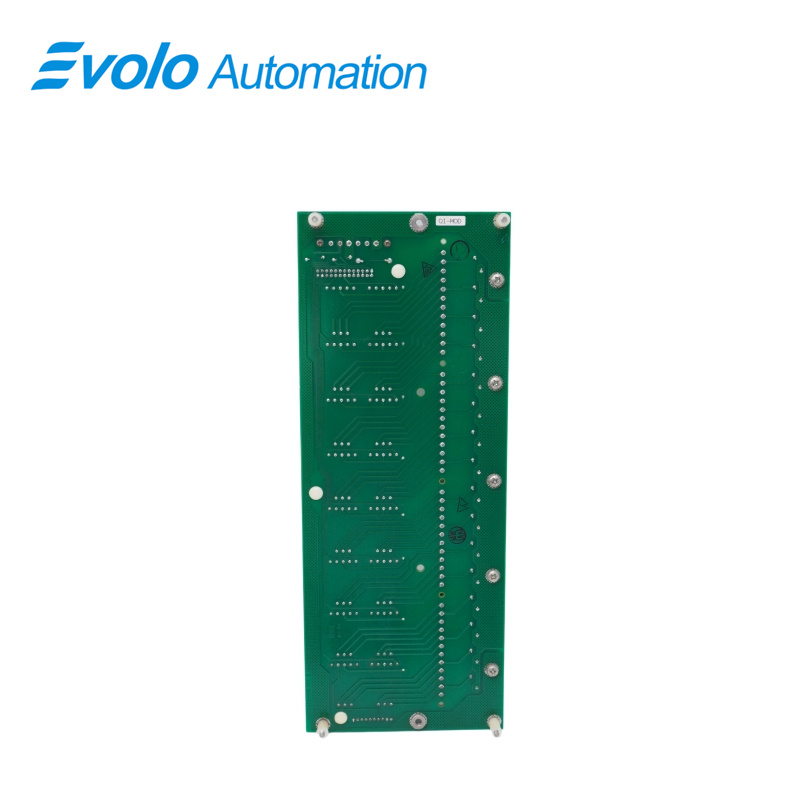

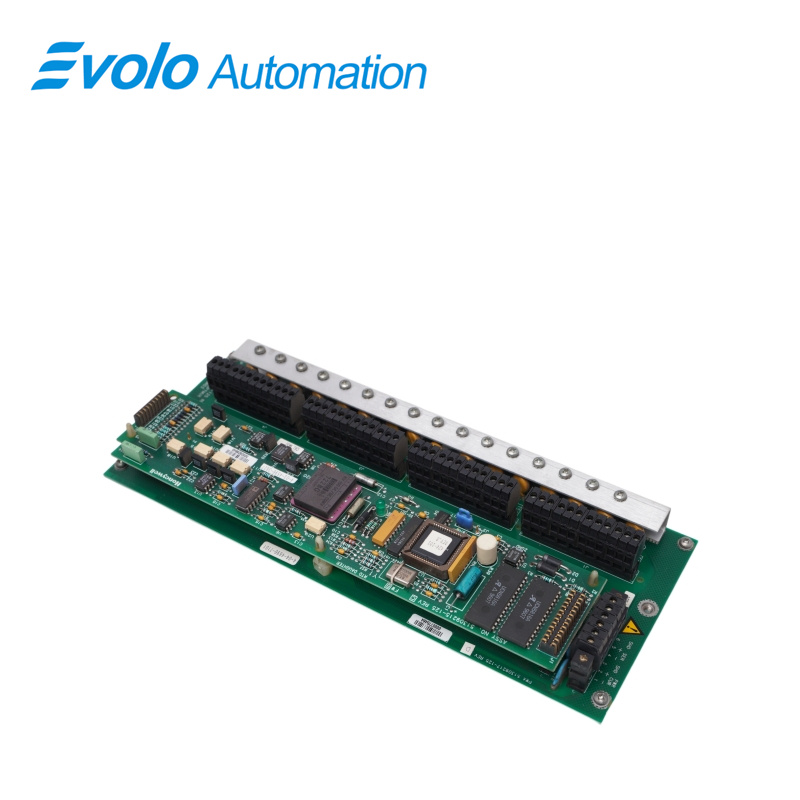

Honeywell's MU-TAMR03 51309218-125 is a Low Level Analog Multiplexer Module. This module connects to multiple field thermocouples, RTDs, and other measuring devices to sequentially queue and convert weak temperature or voltage change signals transmitted from different locations. It then transmits this field-measured temperature information in batches to the main control unit, enabling unified, queued monitoring of temperature conditions at different points in a large production environment.
Applications
Thermal power plant: Collects low-level RTD temperature signals from turbine bearings, generator windings, and boiler auxiliary bearings via termination cabinets.
Fertilizer plant: Installed in non-corrosive control rooms to monitor multi-point temperatures in heat exchangers and process piping.
Non-ferrous metallurgical plant: Used in control rooms to multiplex RTD signals from furnace transformers and electrolytic cooling systems.
Cement plant: Enables cost-efficient multiplexed temperature monitoring of kiln bearings, mill gearboxes, and fan bearings.
Pharmaceutical plant: Aggregates RTD signals from boiler and chiller systems in controlled utility rooms for centralized temperature monitoring.
Troubleshooting
Multiple channels inaccurate/offline: Check IOP communication, cables, and multiplexer scan clock or control bus for faults.
Single channel reading jumps: Inspect compression terminals for looseness or high contact resistance; clean RTD shield grounding.
Signal crosstalk: Verify FTA channel isolation components and replace damaged high-speed switching elements if needed.
FAQ
Q: How many input channels does MU-TAMR03 51309218-125 have?
A: This model has 16 input channels.
Q: What type of I/O Processor (IOP) interface does MU-TAMR03 51309218-125 use?
A: It uses a Single IOP interface.
Q: What type of terminals does MU-TAMR03 51309218-125 use?
A: This model uses compression terminals.
Q: Does MU-TAMR03 51309218-125 support redundancy?
A: No, this model does not support redundancy.
Q: Does MU-TAMR03 51309218-125 comply with CE certification standards?
A: No, this model does not comply with CE standards.
