Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MU-TAIH02 51304453-100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MU-TAIH02 51304453-100 |
|
Product Type: |
High Level Analog Input Module |
|
Input Channels: |
16 differential |
|
Input Types: |
Voltage; current (2-wire or self-powered transmitters) |
|
Input Voltage Ranges: |
0–5 V; 1–5 V; 0.4–2 V; 4–20 mA (via 250 Ω) |
|
A/D Converter Resolution: |
16-bit (14-bit used) |
|
Common Mode Rejection Ratio (CMRR): |
70 dB (DC–60 Hz, 500 Ω imbalance) |
|
Common Mode Voltage: |
-6 to +5 V peak (DC–60 Hz) |
|
Normal Mode Rejection Ratio (60 Hz): |
32 dB |
|
Normal Mode Filter Response: |
Single-pole RC, -3 dB @ 1 Hz |
|
Maximum Differential Input (no damage): |
±30 V |
|
Maximum Input (to common, no damage): |
±30 V |
|
Input Impedance (Voltage Inputs): |
>10 MΩ (powered) |
|
Crosstalk: |
60 dB (DC–60 Hz, channel-to-channel) |
|
Input Scan Rate: |
4 samples/sec per channel (250 ms full scan window) |
|
Hardware Accuracy (@ CMV=0V): |
±0.075% FS (23.5°C ±2°C); ±0.15% FS (0–50°C) |
|
Transmitter Power Conditioning: |
Resistor current limited (145 Ω) or individually protected current limiting (Class 1 Div 2) |
|
Max Current (conditioning): |
30 mA |
|
Minimum Voltage: |
23 V |
|
Surge Withstand Capability: |
ANSI/IEEE C37.90.1-1978 |
Description

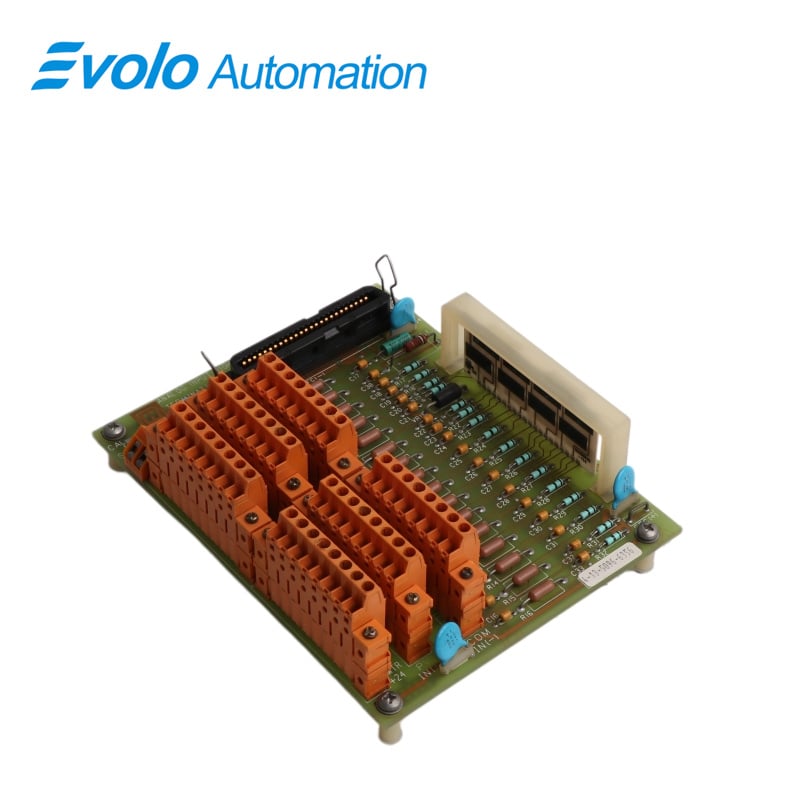

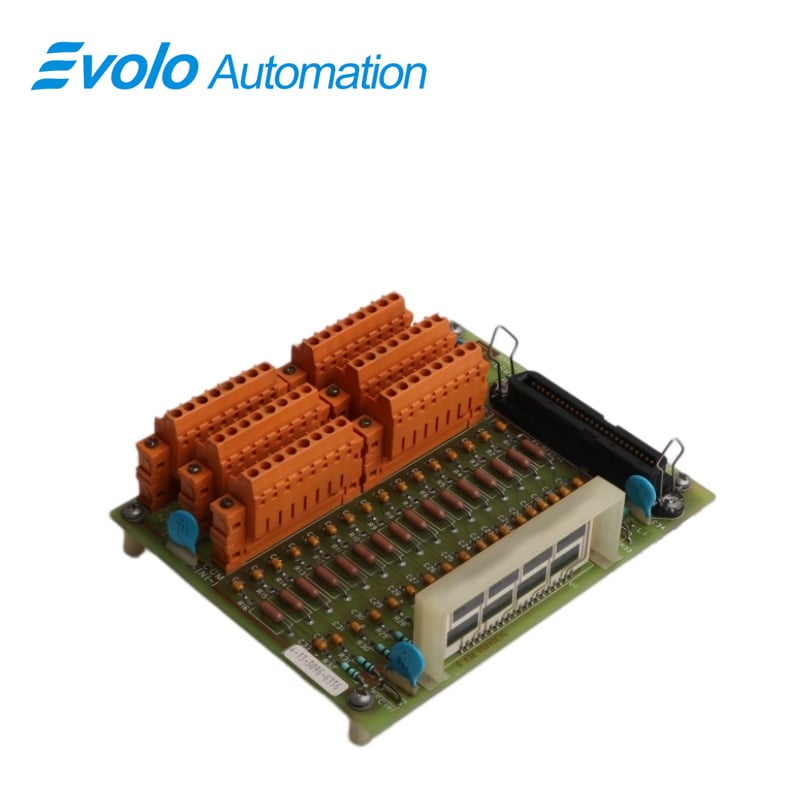

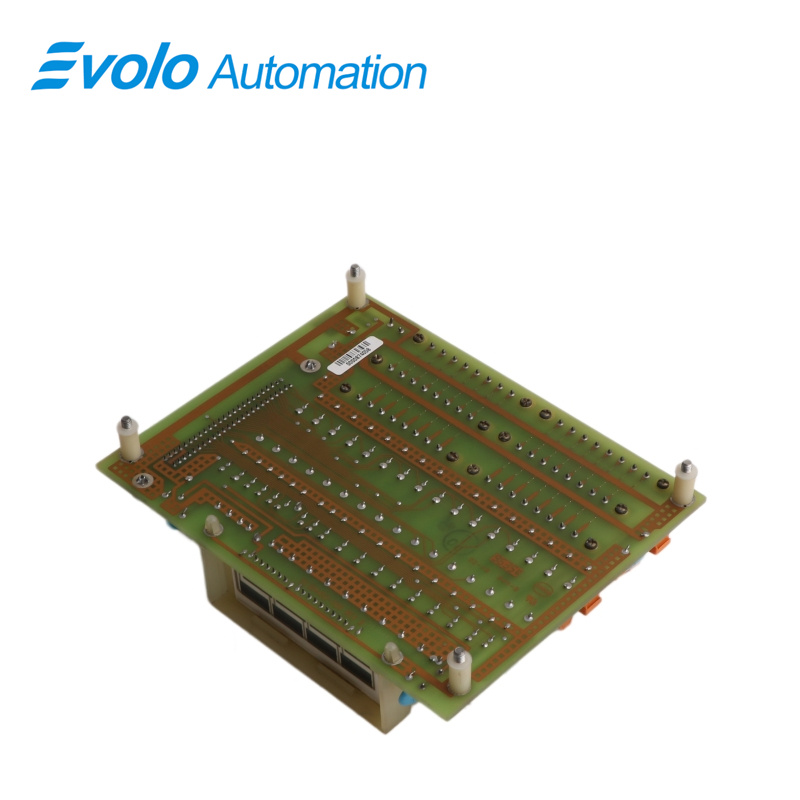

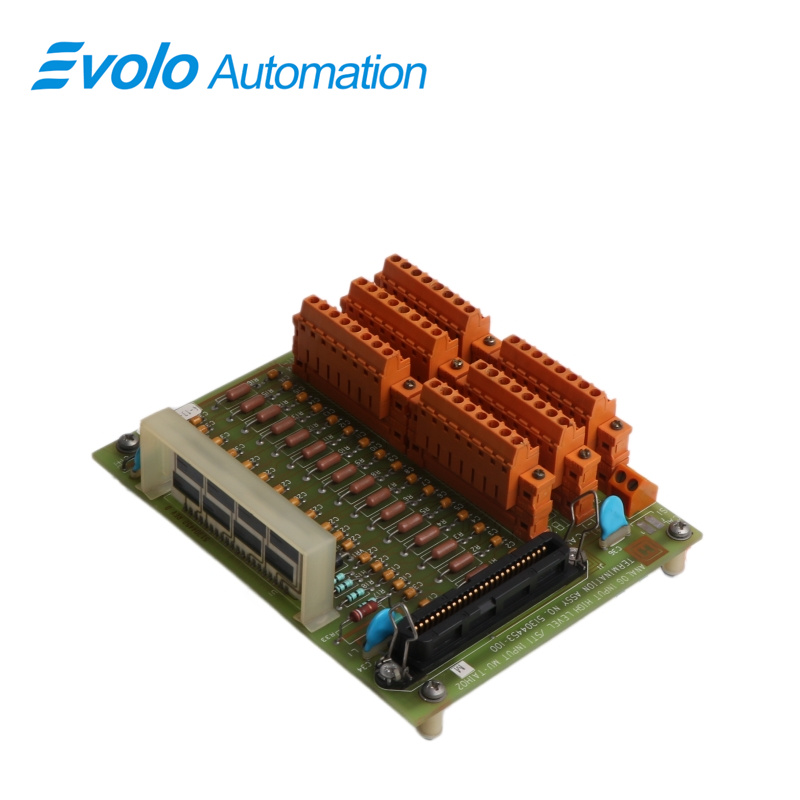

MU-TAIH02 51304453-100 is a high level analog input module in process automation and control systems. It can collect high-level analog signals from field instruments and convert them into reliable data for control and monitoring applications.
Applications
Petrochemical plant: Collects pressure, level, and flow signals from refinery and ethylene units with safe isolation and signal conditioning.
Fertilizer plant: Monitors high-pressure reactors and batching systems with multi-channel differential inputs to reduce measurement errors.
Cement plant: Receives remote actuator and instrument signals with strong overvoltage protection for harsh kiln environments.
Thermal power plant: Gathers turbine, lubrication, and pipeline data with synchronized multi-channel scanning for accurate interlocking control.
Paper and metallurgical plant: Reads flow meters and drive feedback signals in corrosive and dusty environments with stable signal filtering.
Features
Screw and Compression Terminal Options
CE Compliant Options
Conformally Coated Options
FAQ
Q: How many input channels does MU-TAIH02 51304453-100 have?
A: This model has 16 differential input channels.
Q: What input voltage ranges does MU-TAIH02 51304453-100 support?
A: It supports 0–5 V, 1–5 V, and 0.4–2 V inputs, as well as 4–20 mA through a 250 Ω resistor.
Q: What is the maximum differential input voltage of MU-TAIH02 51304453-100?
A: Its non-destructive maximum differential input voltage is ±30 V.
Q: What is the input scan rate of MU-TAIH02 51304453-100?
A: Its input scan rate is 4 samples per second per channel.
Q: What is the input impedance of MU-TAIH02 51304453-100 in voltage input mode?
A: The voltage input impedance of this model when powered is greater than 10 MΩ.
