Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MU-PAOX03 51304672-100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MU-PAOX03 51304672-100 |
|
Product Type: |
Analog Output Module |
|
Output Channels: |
8 |
|
Output Type: |
4–20 mA |
|
Output Ripple: |
100 mV peak-to-peak (at power line frequency, across 250 Ω load) |
|
Output Temperature Stability: |
0.02% Full Scale/°C |
|
Resolution: |
±0.05% |
|
Calibrated Accuracy: |
±0.35% (25°C, including linearity) |
|
Output Readback Accuracy: |
±4% |
|
Directly Accessible Output Current Range: |
0.1–21.4 mA |
|
Maximum Output Current: |
26 mA |
|
Maximum Resistive Load: |
750 Ω @ 22 mA |
|
Output Settling Time: |
4 ms (to 98% of final value) |
|
Humidity: |
10–90% non-condensing |
|
Surge Withstand Capability: |
ANSI/IEEE C37.90.1-1978 |
Description

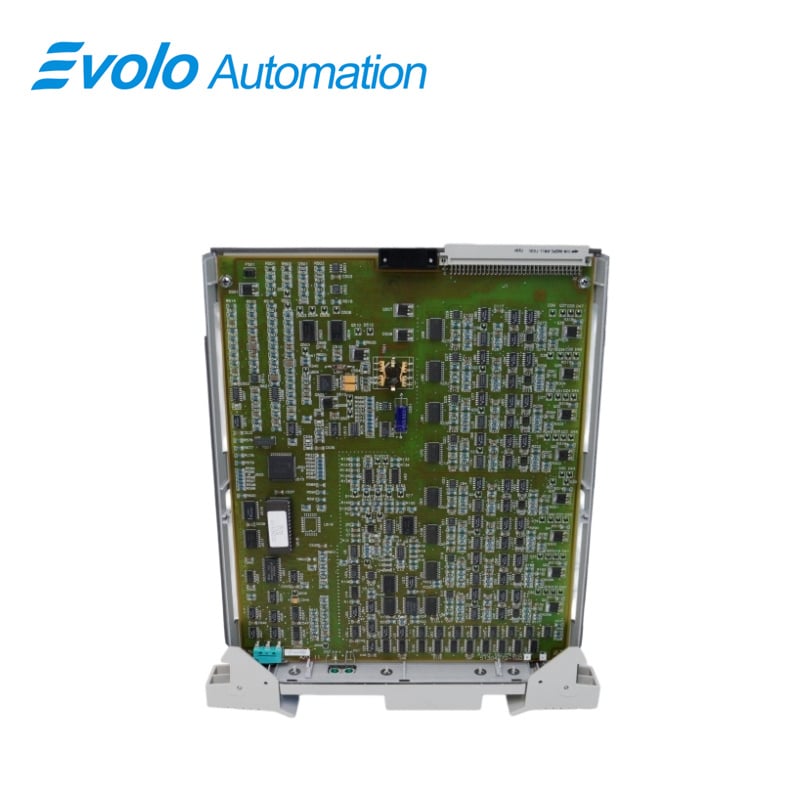

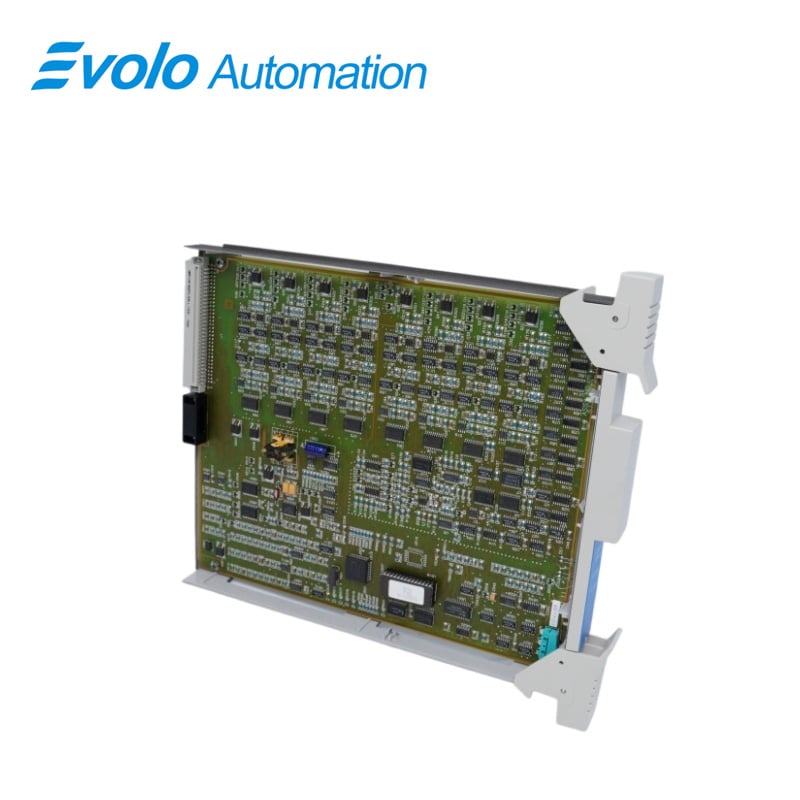

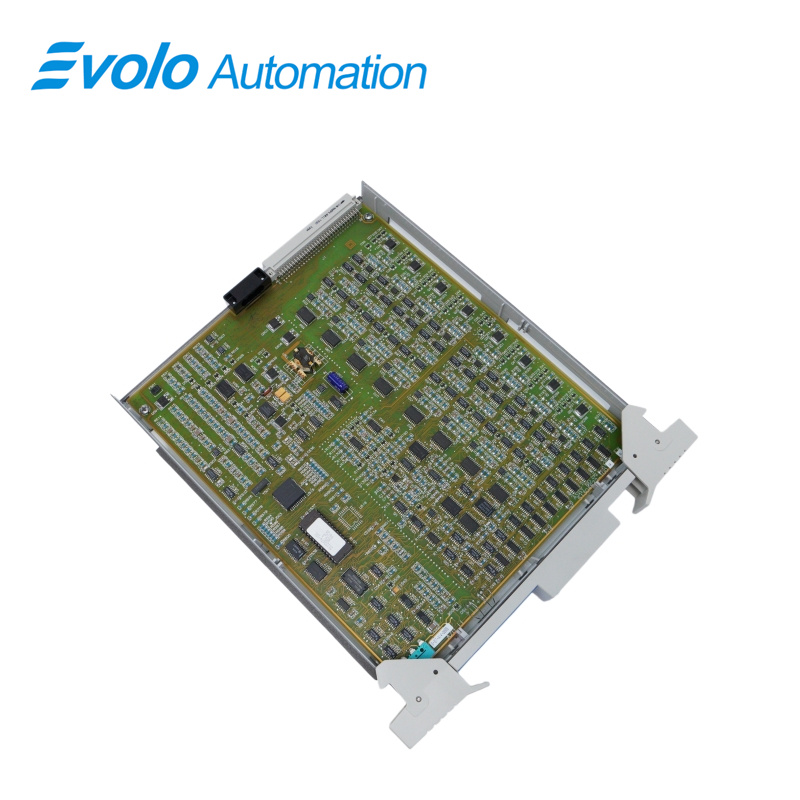

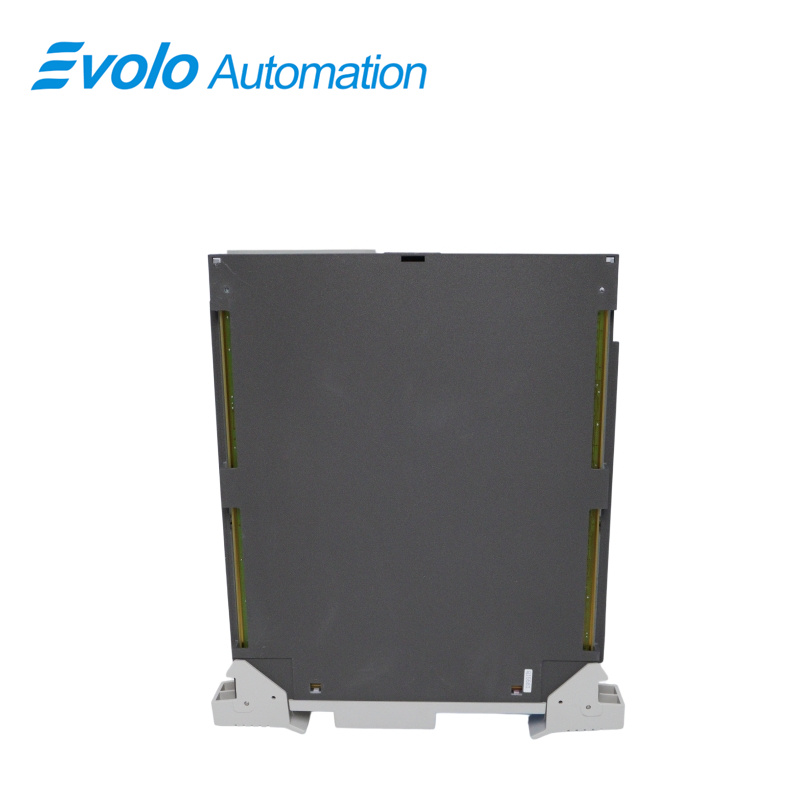

MU-PAOX03 51304672-100 is a high-precision industrial analog output device used for process automation and control systems. It converts digital control signals into stable current outputs for driving field devices such as control valves, actuators, and speed regulators.
Applications
Petrochemical plant: Controls valves and flow devices with stable current output for precise process regulation in harsh conditions.
Fertilizer plant: Uses multi-channel output to regulate pump drives and optimize chemical batching processes.
Thermal power plant: Controls boiler feedwater and turbine systems with fast response for stable load adjustment.
Pharmaceutical plant: Ensures high-precision environmental and mixing control for continuous production stability.
Paper and metallurgical plant: Provides surge-resistant control for hydraulic systems in high-temperature and high-humidity environments.
Features
Process Manager (PM), Advanced Process Manager (APM) and High Performance Process Manager (HPM)
Common Set of IOPs and FTAs
All IOPs and FTAs are Usable by All (3) Controllers
FAQ
Q: How many output channels does MU-PAOX03 51304672-100 have?
A: This model has 8 output channels.
Q: What output type does MU-PAOX03 51304672-100 support?
A: Its output type is 4–20 mA.
Q: What is the resolution of MU-PAOX03 51304672-100?
A: Its resolution is ±0.05%.
Q: What is the maximum output current of MU-PAOX03 51304672-100?
A: Its maximum output current is 26 mA.
Q: What is the output settling time of MU-PAOX03 51304672-100?
A: Its output settling time is 4 ms (to 98% of the final value).
