Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MC-TDOY22 51204162-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MC-TDOY22 51204162-175 |
|
Product Type: |
Digital Output Field Termination Assembly |
|
Dimensions: |
30.8 × 12.1 × 5.5 cm |
|
Weight: |
0.55 kg |
|
Output Channels: |
32 isolated |
|
Load Voltage Range: |
15–30 VDC (up to 500 mA) |
|
Output Type: |
Relay dry contact; open-collector / push-pull |
|
Communication: |
Redundant Fault Tolerant Ethernet (FT Ethernet) |
|
Power Supply: |
24 VDC |
|
Operating Temperature Range: |
-20°C to +60°C |
|
Redundancy Support: |
Yes |
|
Terminal Type: |
Compression terminals |
|
Size Class: |
B (12 in / 307 mm) |
Description

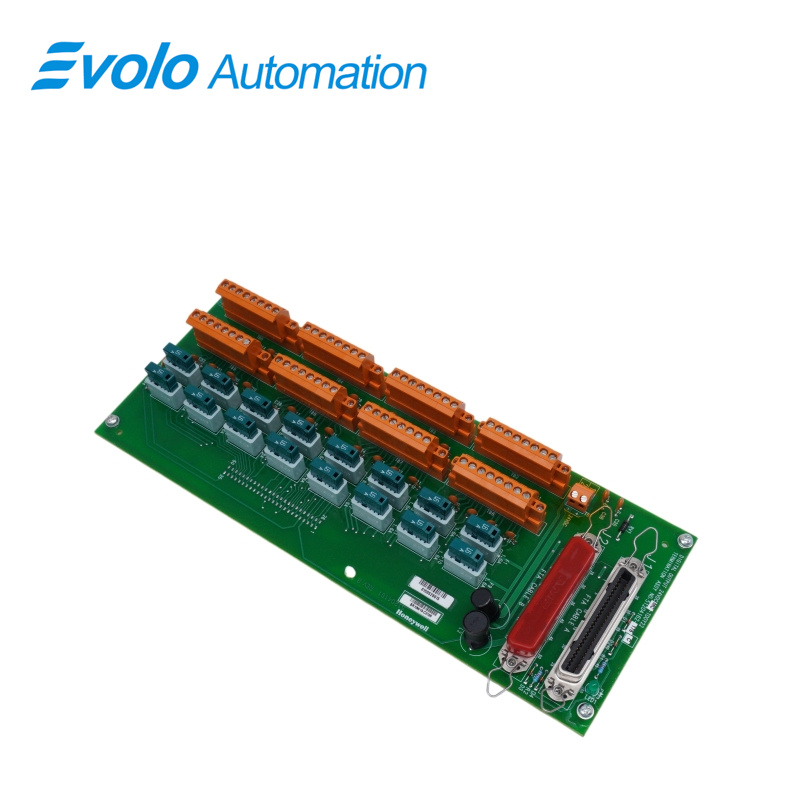

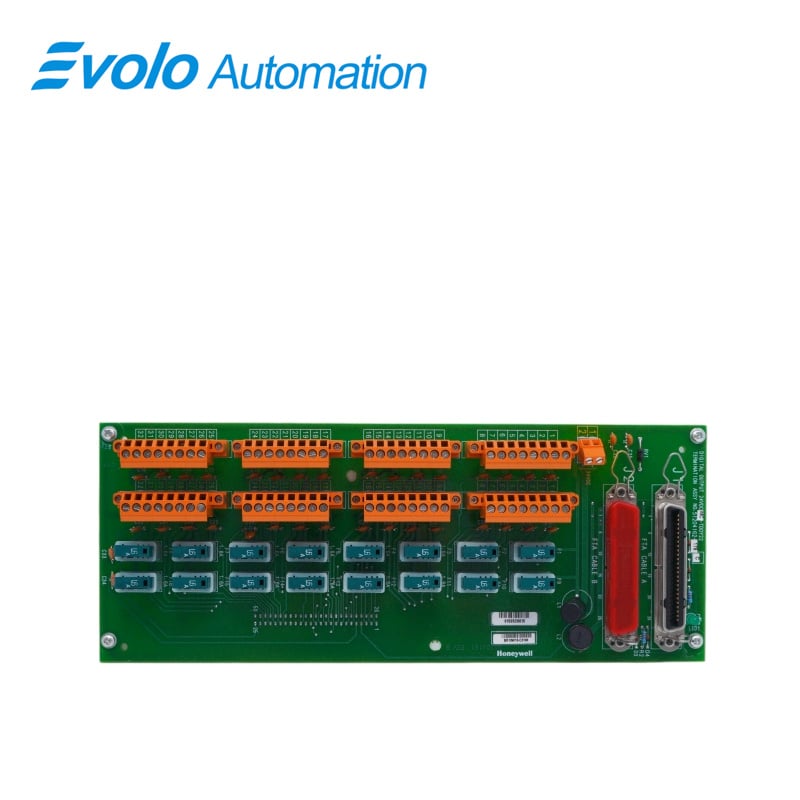

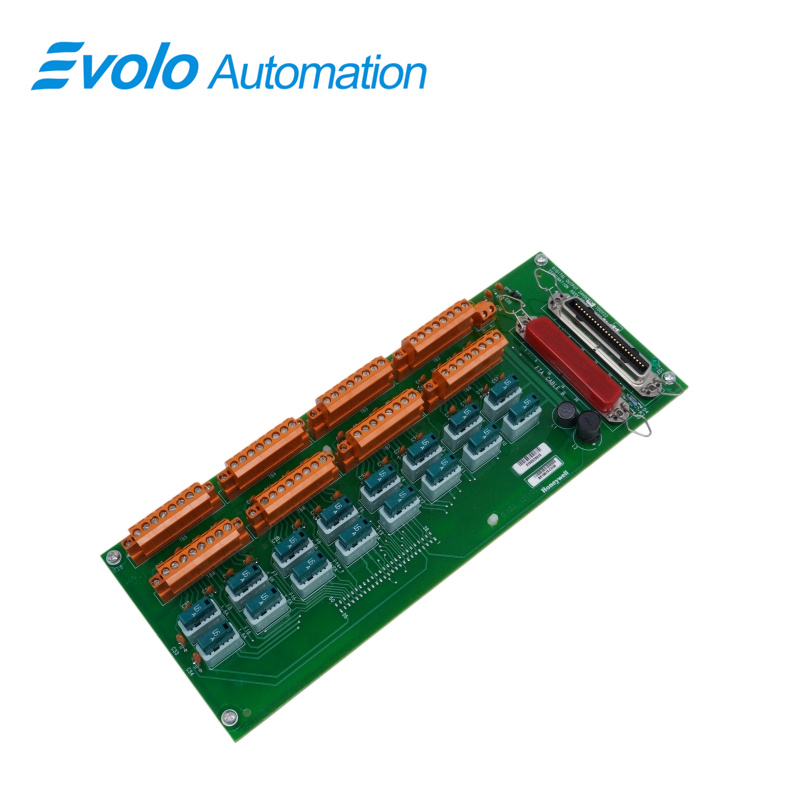

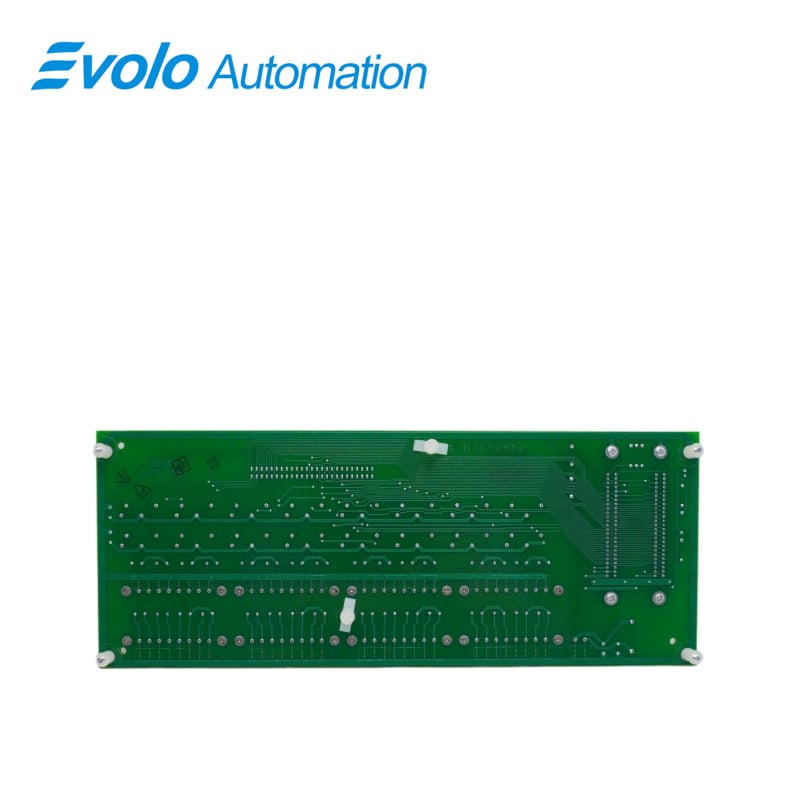

Honevwell MC-TDOY22 51204162-175 Digital Output Field Termination Assembly is used for Experion PKS C200/C300 controllers. It provides reliable discrete control signals to field devices such as motors, valves, pumps, and alarms. With industrial-grade design and redundancy features, it ensures safe and continuous operation in demanding environments.
Applications
Oil & gas plant: Controls ESD valves with redundant industrial Ethernet communication for reliable shutdown logic.
Chemical plant: Drives reactor dosing pumps and relays, isolated channels prevent signal interference.
Combined cycle plant: Controls alarms and indicator panels, direct-drive output supports active devices.
Metallurgy plant: Used in blast furnace and conveyor logic systems, compact structure saves cabinet space.
Water treatment plant: Schedules distributed pump valves, open-collector output supports third-party control networks.
Features
High Reliability: Industrial-grade design for petrochemical, refining, and power applications
Hot-Swappable: Enables maintenance without system downtime
Redundancy Support: Dual communication paths for fault tolerance
LED Indicators: Channel status monitoring for quick diagnostics
Wide Application: Drives motors, valves, alarms, and interlocks in process industries
Compact Design: Space-saving module for rack integration
FAQ
Q: How many output channels does MC-TDOY22 51204162-175 provide?
A: It provides 32 isolated output channels.
Q: What load voltage and current range does MC-TDOY22 51204162-175 support?
A: Its load voltage range is 15–30 VDC, with a maximum current of 500 mA.
Q: What communication interface does MC-TDOY22 51204162-175 use?
A: This model uses redundant Fault-Tolerant Ethernet (FT Ethernet) for communication.
Q: What is the power supply voltage requirement for MC-TDOY22 51204162-175?
A: Its power supply requirement is 24 VDC.
Q: What output types are supported by MC-TDOY22 51204162-175?
A: It supports relay dry contacts as well as open-collector / push-pull outputs.
