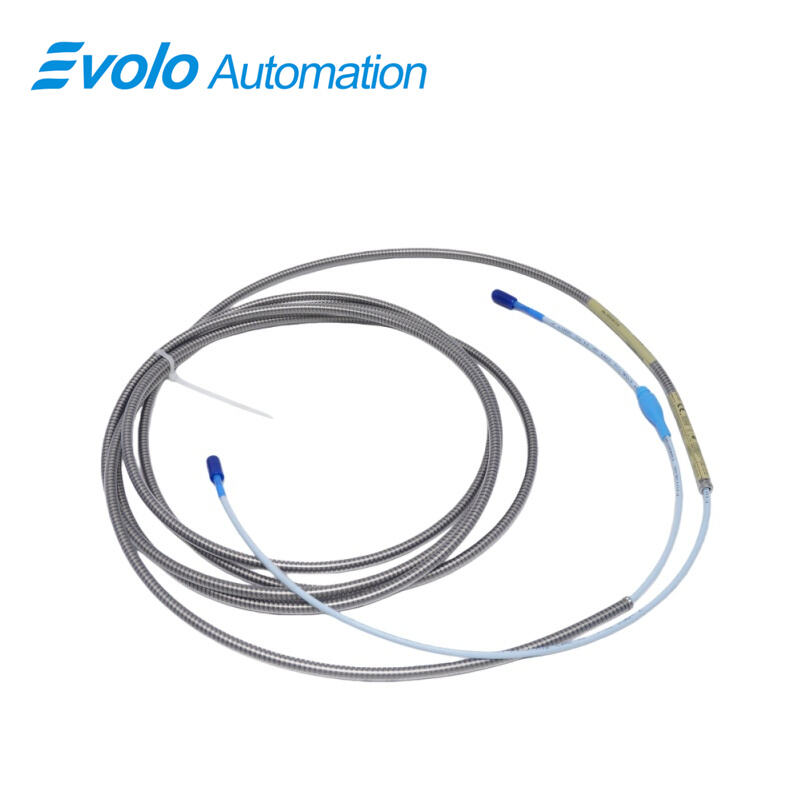

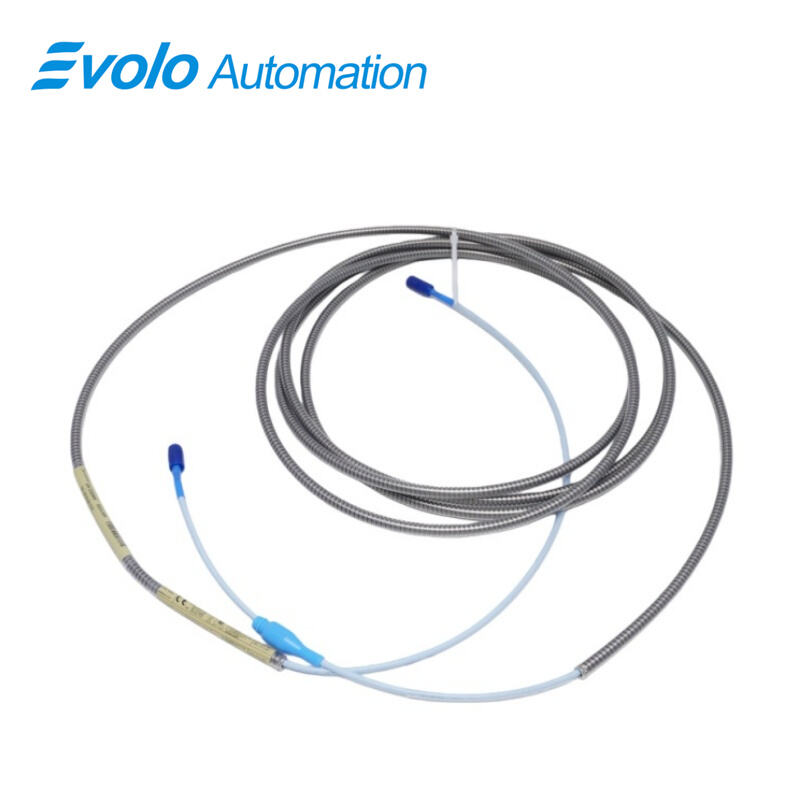

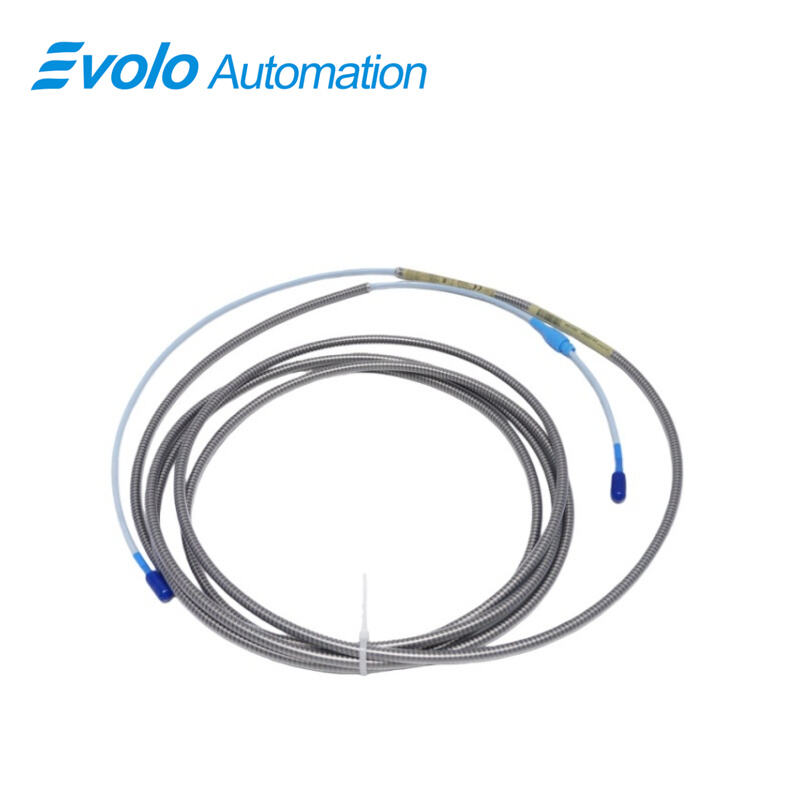

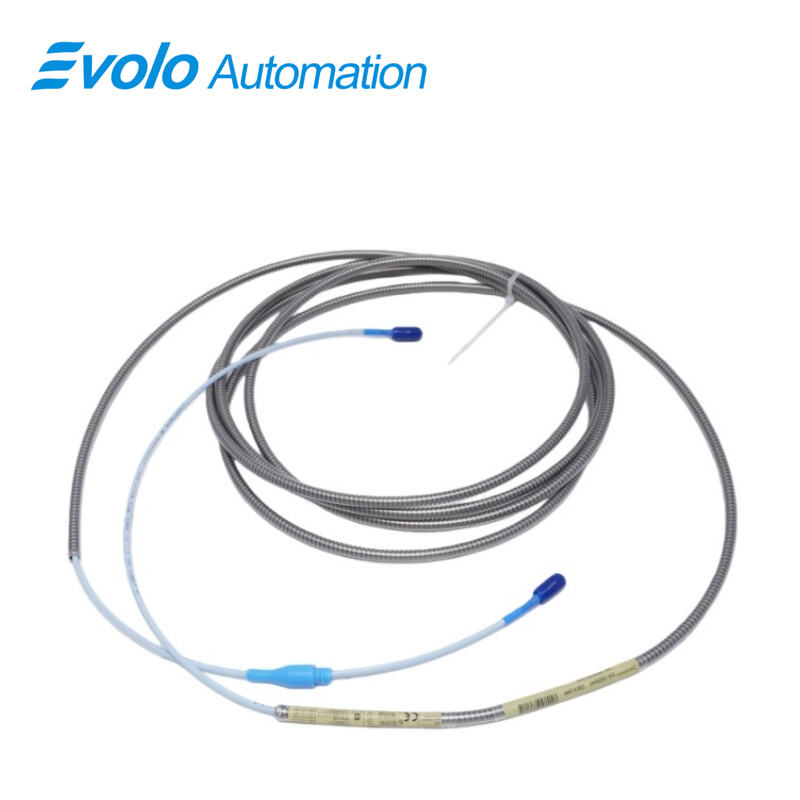

330130-045-13-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-045-13-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-045-13-05 3300 XL Standard Extension Cable is engineered for high-performance automation systems and is fully compatible with the 3300 XL 8 mm Proximity Transducer System. Designed to extend the probe signal over distances up to 4.5 meters (14.8 feet), this extension cable ensures accurate transmission of analog signals with a typical capacitance of 69.9 pF/m (21.3 pF/ft), supporting field wiring from 0.2 to 1.5 mm² (16 to 24 AWG). Its armored FluidLoc construction with connector protector provides superior mechanical strength and environmental protection, ensuring reliable operation across an operating temperature range of -52°C to +177°C (-62°F to +350°F). This cable is ideal for industrial vibration and position monitoring, offering seamless integration with probes, Proximitor sensors, and complete interchangeability within the 3300 XL series.

The 3300 XL 8 mm Proximity Transducer System, when combined with this extension cable, delivers a voltage output directly proportional to the distance between the probe tip and the monitored conductive surface. Capable of measuring both static (position) and dynamic (vibration) signals, it is widely used in fluid-film bearing machinery, Keyphasor speed measurement, and other high-precision industrial applications. The system meets the API 670 Standard for linearity, accuracy, and temperature stability, providing long-term reliability and precise automation feedback. Enhanced features such as the patented TipLoc molding and CableLoc pull-strength design (330 N / 75 lbf) improve durability and ensure secure cable-probe attachment, while the optional FluidLoc cable prevents leakage of lubricants or process fluids.

Applications

1. Rotating Equipment Vibration Monitoring
The 3300 XL extension cable facilitates high-fidelity signal transmission from proximity probes mounted on turbines, pumps, and compressors, allowing vibration detection with linear range up to 2 mm (80 mils). This enables predictive maintenance and early fault detection in industrial machinery.

2. Position Measurement in Hydraulic and Bearing Systems
Used with 3300 XL 8 mm probes, the cable supports precise measurement of shaft displacement and bearing clearances in fluid-film bearings, providing accurate positional data for automated control systems.

3. Keyphasor Signal Acquisition for Speed Measurement
By maintaining signal integrity over long distances, the extension cable allows Keyphasor probes to generate accurate rotational speed pulses for real-time process control in large industrial motors and generators.

4. Hazardous Area Industrial Applications
With CSA, ATEX, and IECEx approvals, the cable ensures safe operation in environments with explosive gases or dust, making it suitable for petrochemical and oil & gas automation monitoring systems.

5. Retrofit and System Upgrade Compatibility
The 3300 XL extension cable is backward compatible with non-XL 3300 probes and systems, enabling easy upgrades of existing monitoring systems without recalibration, improving automation efficiency and reducing downtime.

Specifications

Competitive Advantage

1. Superior Signal Integrity
The triaxial 75 Ω FEP-insulated cable ensures minimal signal loss and noise interference, maintaining high measurement accuracy over the full 4.5 m length, critical for automated vibration and position monitoring.

2. Robust Mechanical Protection
Armored FluidLoc cable design and connector protector offer enhanced durability against mechanical stress, withstanding pull forces up to 330 N (75 lbf), ensuring long-term reliability in industrial environments.

3. High-Temperature and Environmental Resistance
Operates reliably from -52°C to +177°C (-62°F to +350°F), allowing deployment in extreme industrial conditions without affecting measurement precision.

4. Full Interchangeability and Backward Compatibility
Supports complete interchangeability with 3300 XL probes and Proximitor sensors, as well as older 5 mm and 8 mm 3300 series components, simplifying system integration and reducing maintenance complexity.

5. Compliance with Industry Standards
The cable and system comply with API 670 standards for linearity, accuracy, and thermal stability, ensuring that automation systems meet industrial regulatory requirements while providing high-performance monitoring.
