Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MC-TAOX12 51304335-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MC-TAOX12 51304335-175 |
|
Product Type: |
Analog Output Module |
|
Dimensions: |
12 × 8.5 × 30.7 cm |
|
Weight: |
0.48 kg |
|
Output Channels: |
8 |
|
Output Signal Range: |
4–20 mA; 0–20 mA |
|
Power Supply: |
24 VDC |
|
Terminal Type: |
Compression terminals |
|
Conformal Coating: |
Yes |
|
CE Compliance: |
Yes |
Description

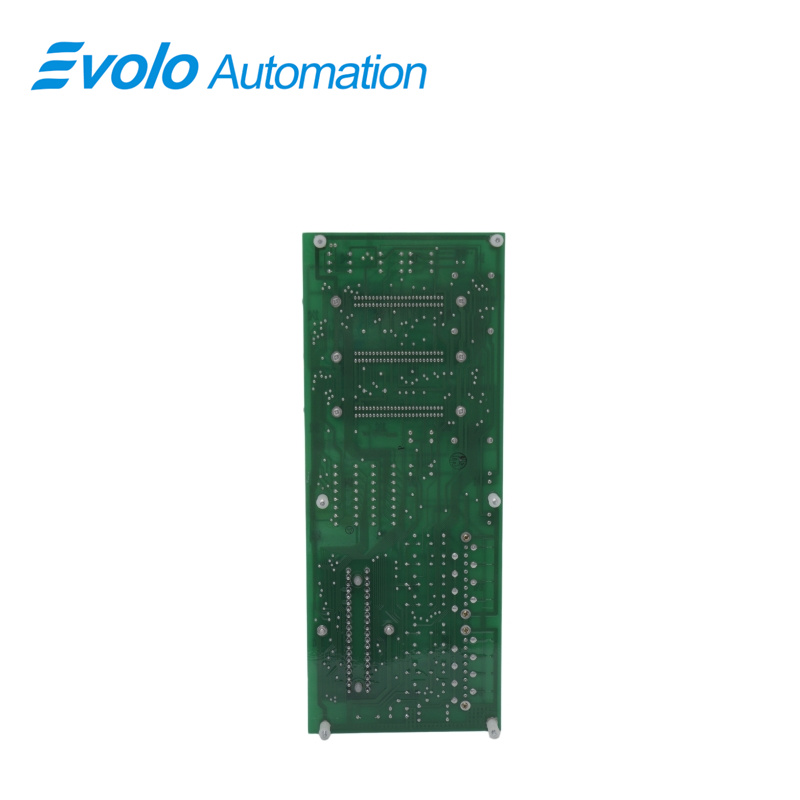

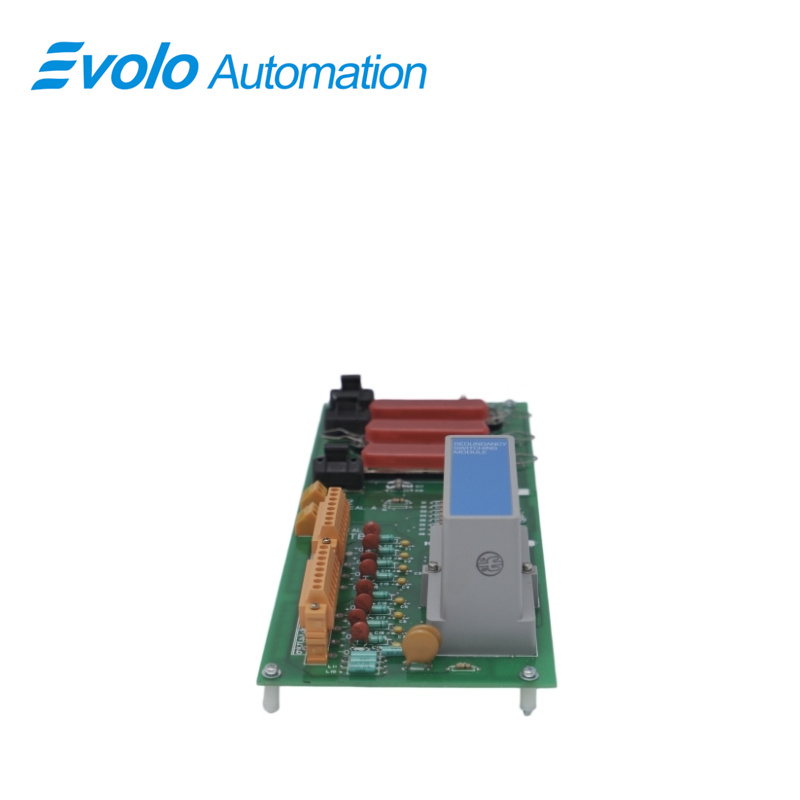

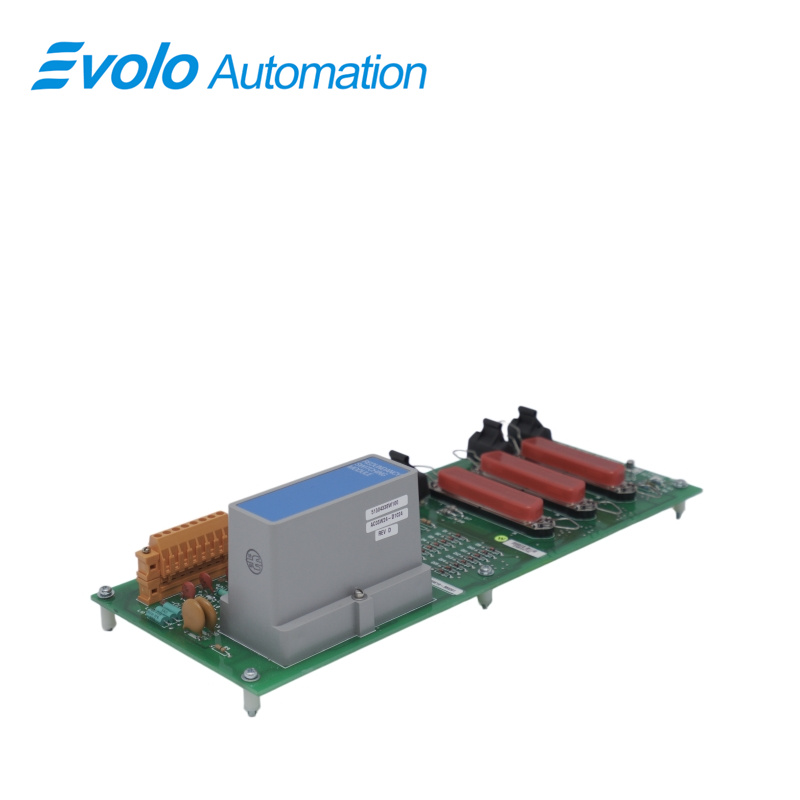

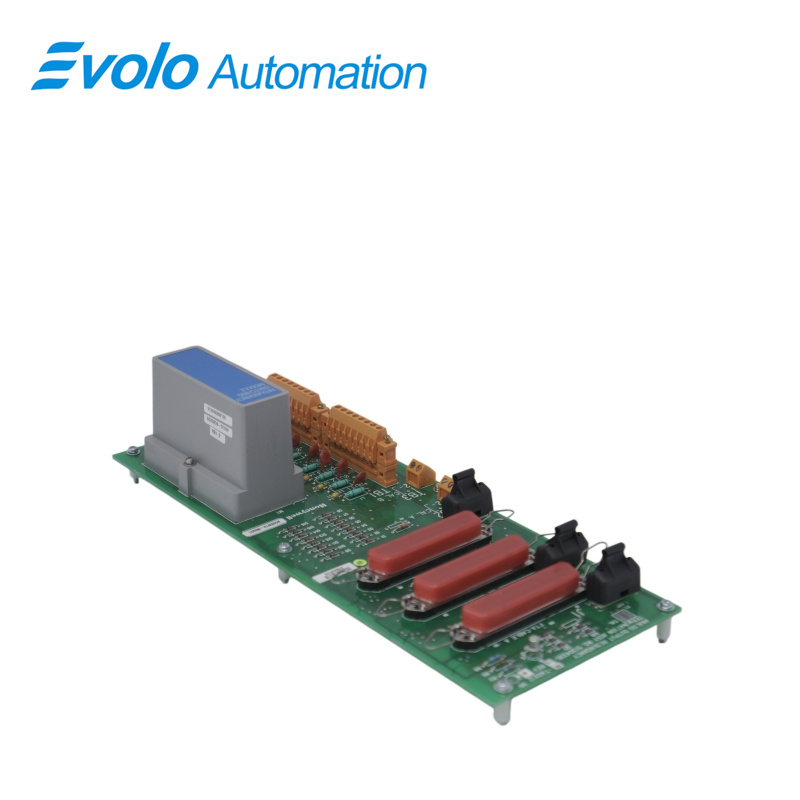

Honeywell MC-TAOX12 51304335-175 is an Analog Output Module used for industrial automation applications. It provides 8 analog output channels with redundancy support, facilitating precise control in various systems. This module is CE compliant and features a conformal coating for enhanced protection against environmental factors.
Applications
Oil and Gas Plants: Controls pipeline and valve opening to maintain stable pressure in long-distance transmission systems.
Combined Cycle Power Plants: Drives boiler feedwater and damper actuators with strong immunity to electrical noise.
Fine Chemical Plants: Regulates steam heating valves with corrosion-resistant protective coating.
Wastewater Treatment Plants: Controls dosing pump flow loops with vibration-resistant terminal connections.
Cement Plants: Manages kiln airflow and feeding systems with stable analog output under mixed power conditions.
Common Troubleshooting
Single-channel lockup or loss: Check loop impedance and wiring; verify 24VDC supply and actuator current saturation due to overload.
Actuator jitter: Measure output ripple; if harmonics are high, check grounding balance and recalibrate cabinet shielding busbar.
Poor terminal contact: Inspect compression terminals for looseness, retighten screws, and clean exposed wire cores.
FAQ
Q: What are the channel count and output signal range of MC-TAOX12 51304335-175?
A: 8 channels, 4–20 mA and 0–20 mA.
Q: What is the rated supply voltage of MC-TAOX12 51304335-175?
A: 24 VDC.
Q: What type of terminal blocks are used in MC-TAOX12 51304335-175?
A: Compression-type terminals.
Q: Does MC-TAOX12 51304335-175 include conformal coating?
A: Yes, conformal coating is included.
Q: Is MC-TAOX12 51304335-175 CE compliant?
A: Yes, it complies with CE standards.
