Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MC-PAOX03 51309152-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MC-PAOX03 51309152-175 |
|
Product Type: |
Analog Output Module |
|
Dimensions: |
2.9 × 31.9 × 27.9 cm |
|
Weight: |
0.58 kg |
|
Output Type: |
4–20 mA |
|
Output Channels: |
8 |
|
Output Ripple: |
100 mV peak-to-peak (at power line frequency, across 250 Ω load) |
|
Output Temperature Stability: |
0.02% FS / °C |
|
Resolution: |
±0.05% |
|
Calibrated Accuracy: |
±0.35% (25°C, incl. linearity) |
|
Output Readback Accuracy: |
±4% |
|
Humidity: |
10–90% (non-condensing) |
|
Output Current Range: |
0.1–21.4 mA |
|
Maximum Output Current: |
26 mA |
|
Maximum Resistive Load: |
750 Ω @ 22 mA |
|
Output Settling Time: |
4 ms (to 98% final value) |
|
Surge Withstand Capability: |
ANSI/IEEE C37.90.1-1978 |
Description

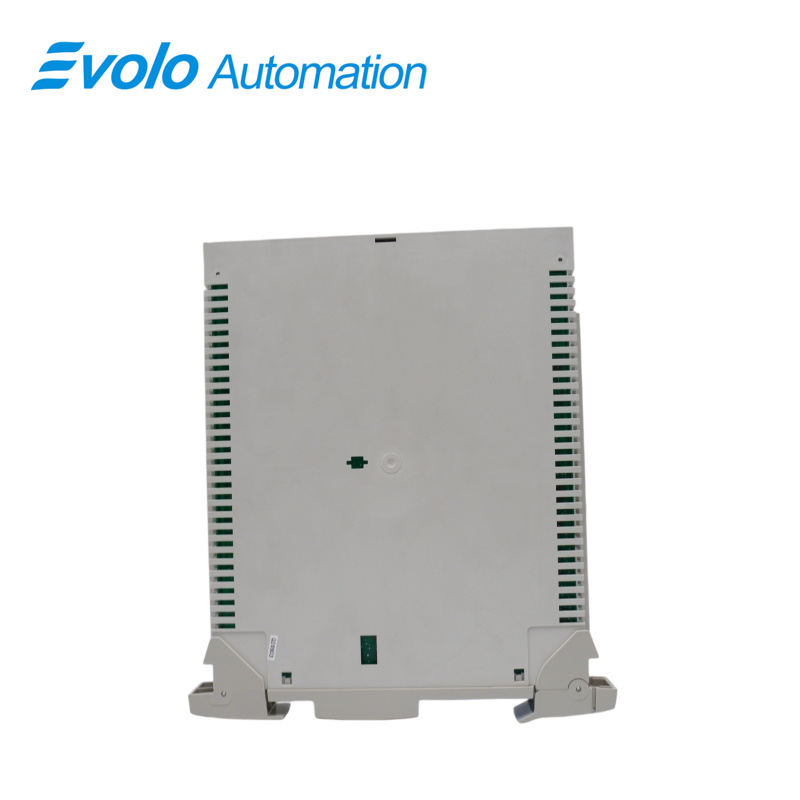

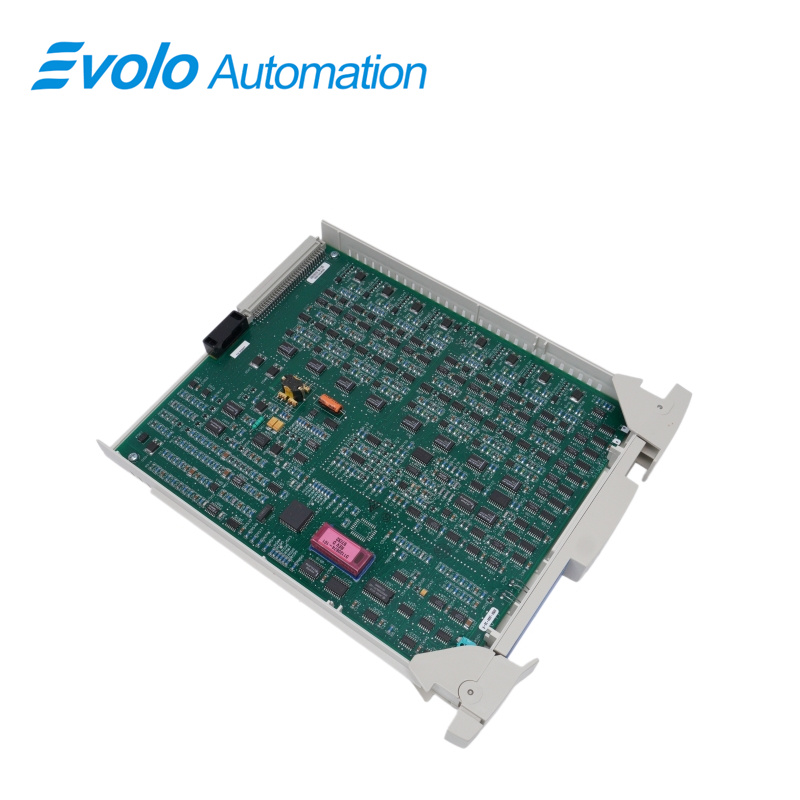

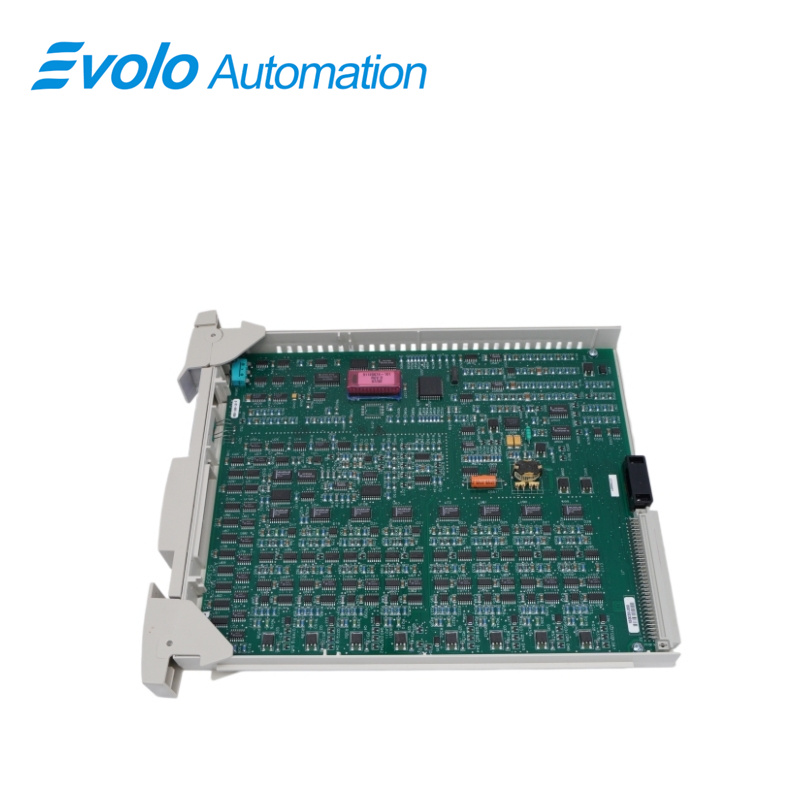

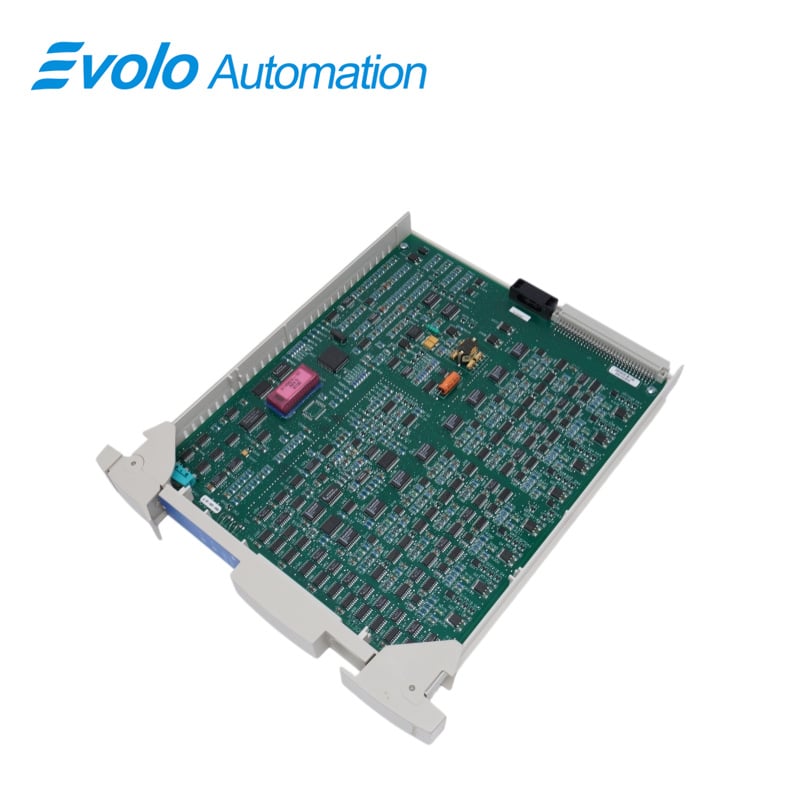

The MC-PAOX03 51309152-175 is an analog output module manufactured by Honeywell. This module is installed in a dedicated card slot in the central control room. Its main function is to convert the computer digital electrical signals from the main control unit into continuously changing analog current signals, which are then directly transmitted to regulating valves, servo mechanisms, or speed controllers via external connection cables.
Applications
Oil and Gas Plants: Controls pipeline pressure regulating valves with fast and precise response for safe operation.
Combined Cycle Power Plants: Regulates boiler feedwater pump frequency and multiple actuators simultaneously.
Wastewater Treatment Plants: Maintains stable dosing pump control in humid industrial environments.
Cement Plants: Drives kiln air damper systems with reliable long-distance signal transmission.
Fertilizer and Fine Chemical Plants: Controls reactor heating valves for stable and accurate process temperature regulation.
Features
Process Manager (PM), Advanced Process Manager (APM) and High Performance Process Manager (HPM)
Common Set of IOPs and FTAs
All IOPs and FTAs are Usable by All (3) Controllers
FAQ
Q: What are the channel count and output type of MC-PAOX03 51309152-175?
A: 8 channels, 4–20 mA.
Q: What are the current range and maximum output of MC-PAOX03 51309152-175?
A: 0.1–21.4 mA, maximum 26 mA.
Q: What are the calibration accuracy and resolution of MC-PAOX03 51309152-175?
A: Accuracy ±0.35%, resolution ±0.05%.
Q: What are the maximum load and settling time of MC-PAOX03 51309152-175?
A: 750 Ω (at 22 mA), settling time 4 ms.
Q: What are the ripple and temperature stability of MC-PAOX03 51309152-175?
A: 100 mV peak-to-peak, 0.02% FS/°C.
