Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MC-IOLX02 51304419-150 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MC-IOLX02 51304419-150 |
|
Product Type: |
I/O Link Extender |
|
Dimensions: |
3 × 31.8 × 28 cm |
|
Weight: |
0.58 kg |
|
CE Compliance: |
Yes (51304419-150) |
|
Non-CE Part Number: |
N/A |
|
Coating: |
Conformal coating for harsh environment protection |
|
Installation Location: |
I/O Link Extender Pair – Main Location |
|
Operating Voltage: |
24 VDC |
|
Output Frequency: |
100 kHz |
|
Interface Type: |
M12 connector |
|
Data Transfer Rate: |
Up to 1 Mbps |
|
Operating Temperature: |
-40°C to +70°C |
Description

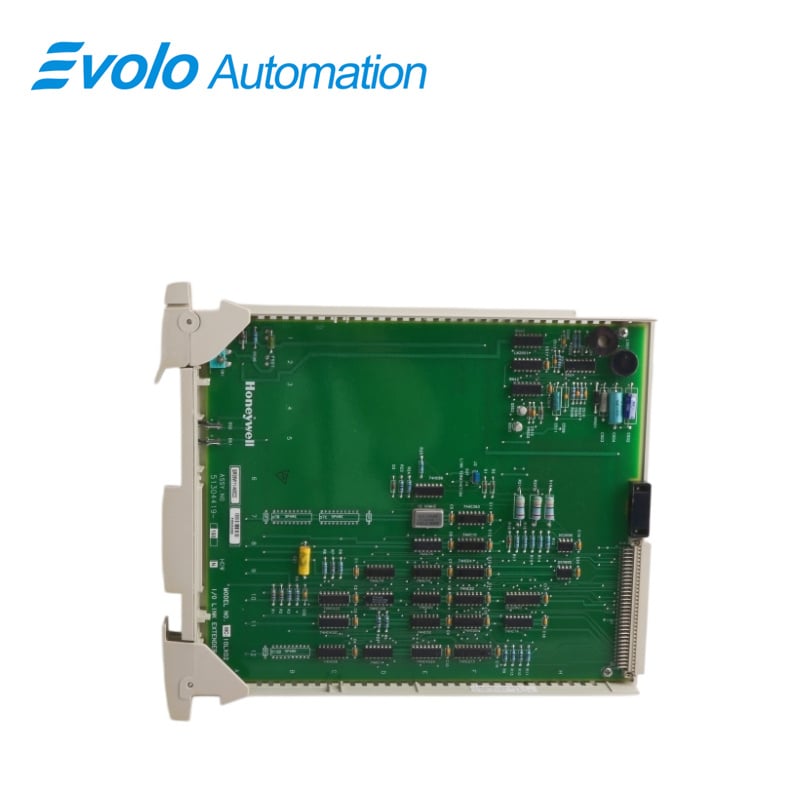

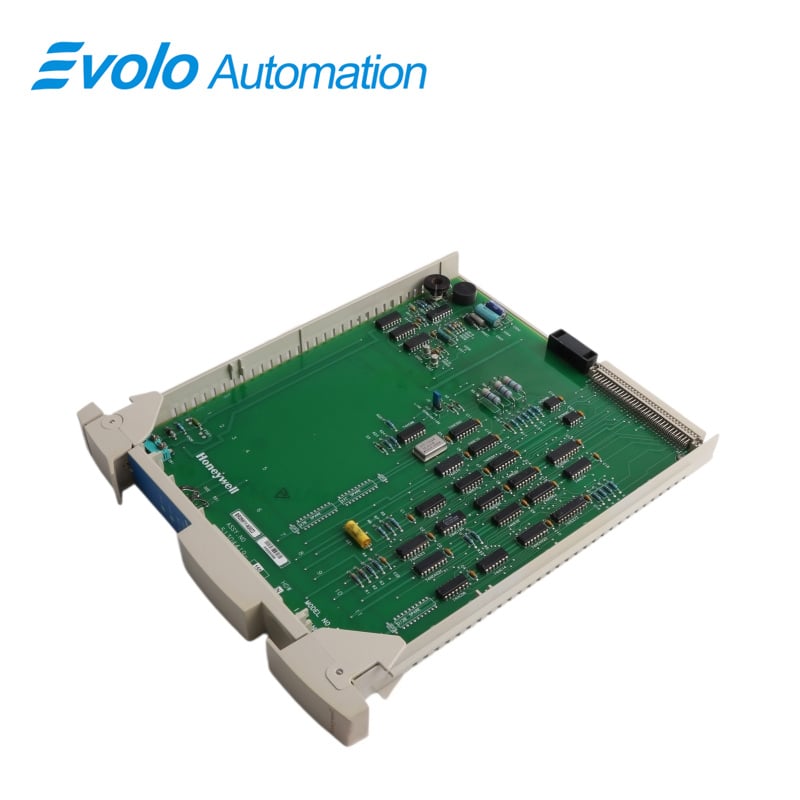

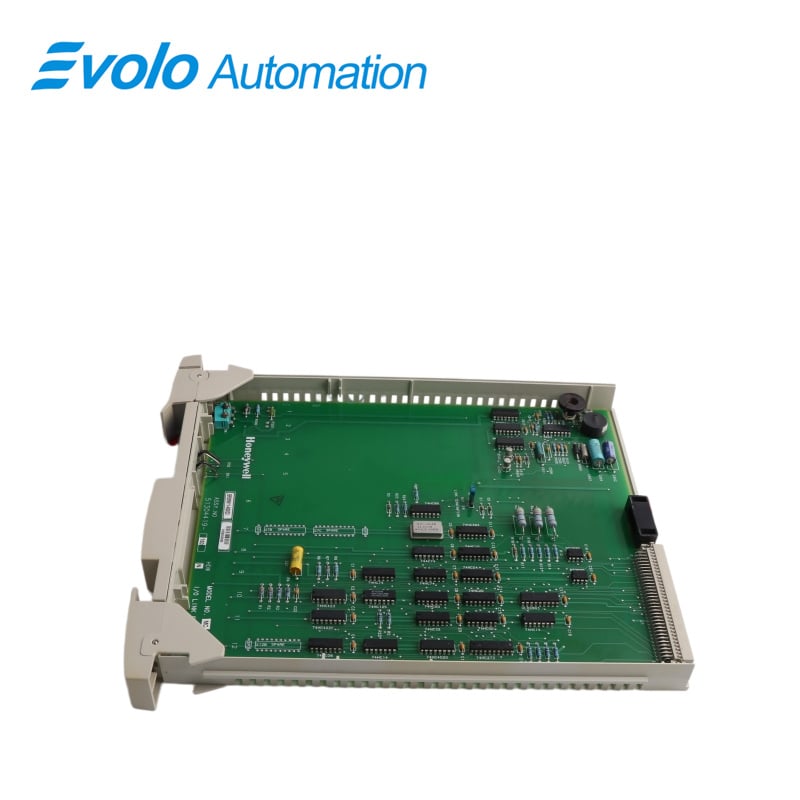

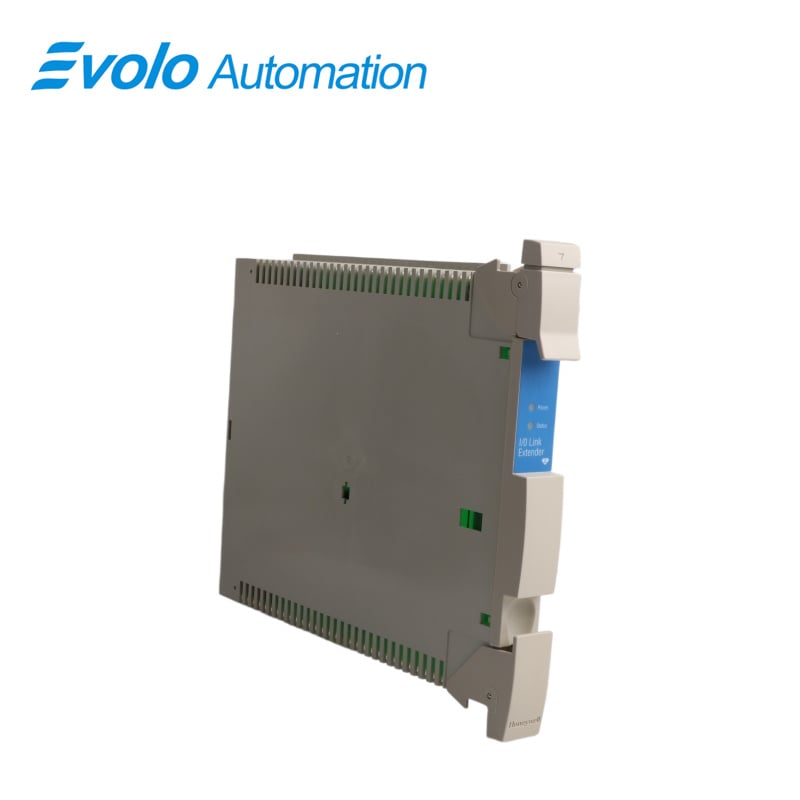

The Honeywell MC-IOLX02 51304419-150 I/O Link Extender is used to extend the PM/APM/HPM's I/O Link Interface through fiber optic cable. If a portion of an controller's I/O is installed in an enclosure (cabinet) other than the enclosure that the controller is resident in, and the distance between the enclosures exceeds the allowable segment length of an I/O Link Interface cable, the use of an I/O Link Extender can be considered.
Applications
Railway Equipment Plants: Installed in locomotive control cabinets with vibration-resistant connection performance.
Fine Chemical Plants: Extends communication links between control rooms and hazardous areas while resisting corrosive gases.
Desalination Plants: Supports long-distance valve control in humid and high-salt environments.
Steel Rolling Mills: Acts as a signal repeater in cross-plant automation networks for stable data transmission.
Mining Processing Plants: Used for remote conveyor monitoring with reliable operation in cold environments.
Common Troubleshooting
Link Communication Interruption: Check if the M12 connector is loose or has been dislodged by vibration. Retighten the threads and clean any oil from the pins.
Abnormal Speed Drop: Test the 24V DC input power supply for high-frequency ripple to rule out message retransmissions caused by unstable power supply.
Signal Attenuation Error: Confirm that the total length of the extension cable is within specifications, or use an oscilloscope to check if the 100 kHz output frequency waveform is distorted.
FAQ
Q: What are the CE certification status and coating type of MC-IOLX02 51304419-150?
A: CE compliant, with conformal coating for harsh environments.
Q: What are the installation position and operating voltage of MC-IOLX02 51304419-150?
A: Main position of an I/O Link Extender pair, operating voltage 24 VDC.
Q: What are the output frequency and data transfer rate of MC-IOLX02 51304419-150?
A: Output frequency 100 kHz, data transfer rate up to 1 Mbps.
Q: What interface type is used by MC-IOLX02 51304419-150?
A: M12 interface.
Q: What is the operating temperature range of MC-IOLX02 51304419-150?
A: -40°C to +70°C.
