KJ2201X1-JA1 12P3323X022 SLS Redundant Terminal Block
Official-source product identification, application guidance and ordering checks for KJ2201X1-JA1 12P3323X022.
At a Glance
| Brand | Emerson |
|---|---|
| Model | KJ2201X1-JA1 12P3323X022 |
| Product Type | SLS Redundant Terminal Block |
| Core Function | Redundant SLS1508 safety-I/O termination. |
| Application / Compatible Series | DeltaV SIS |
Verified identification

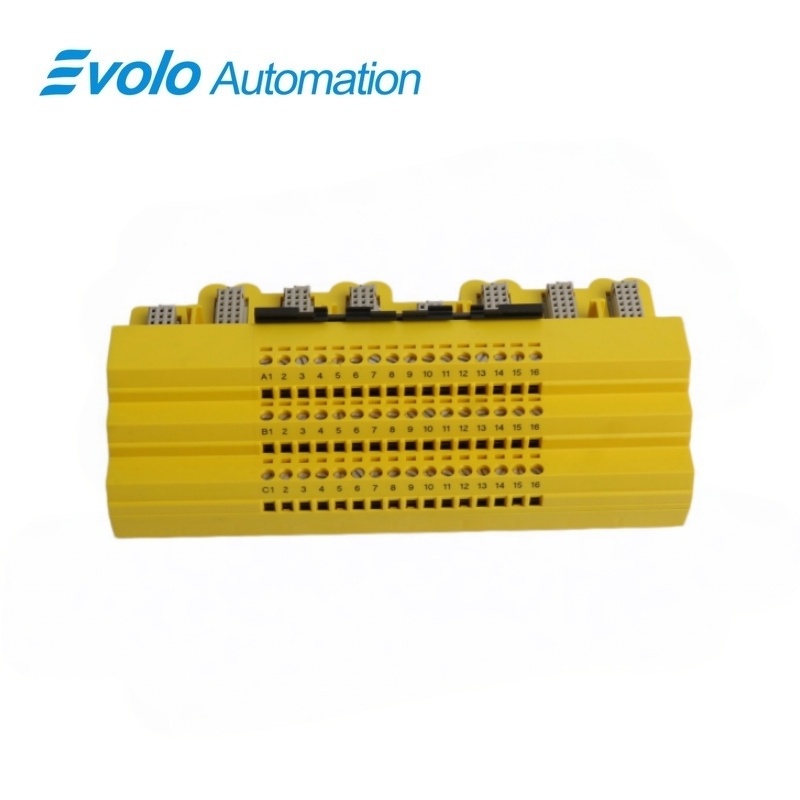

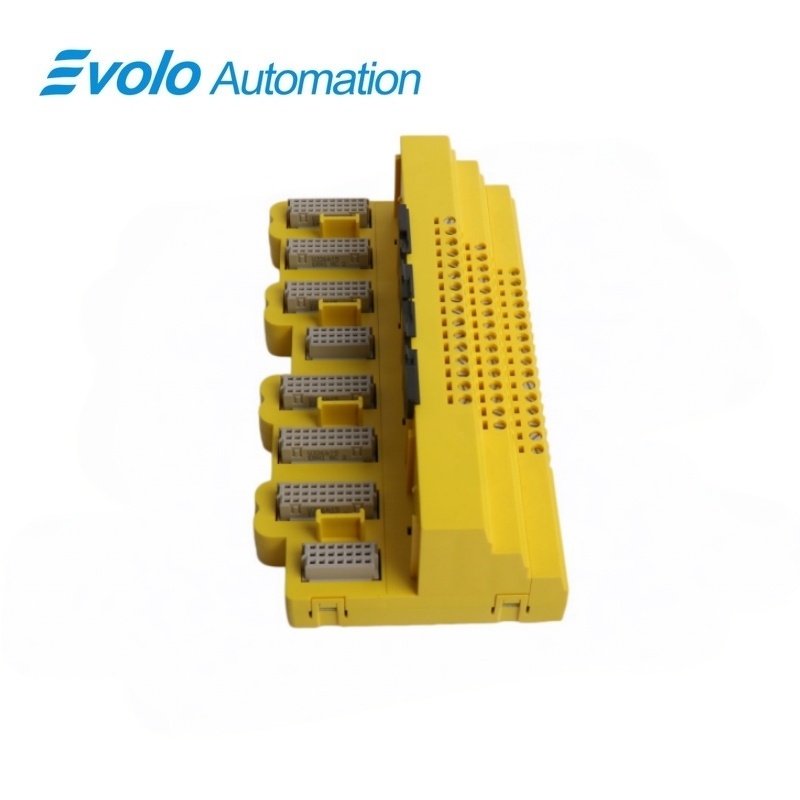

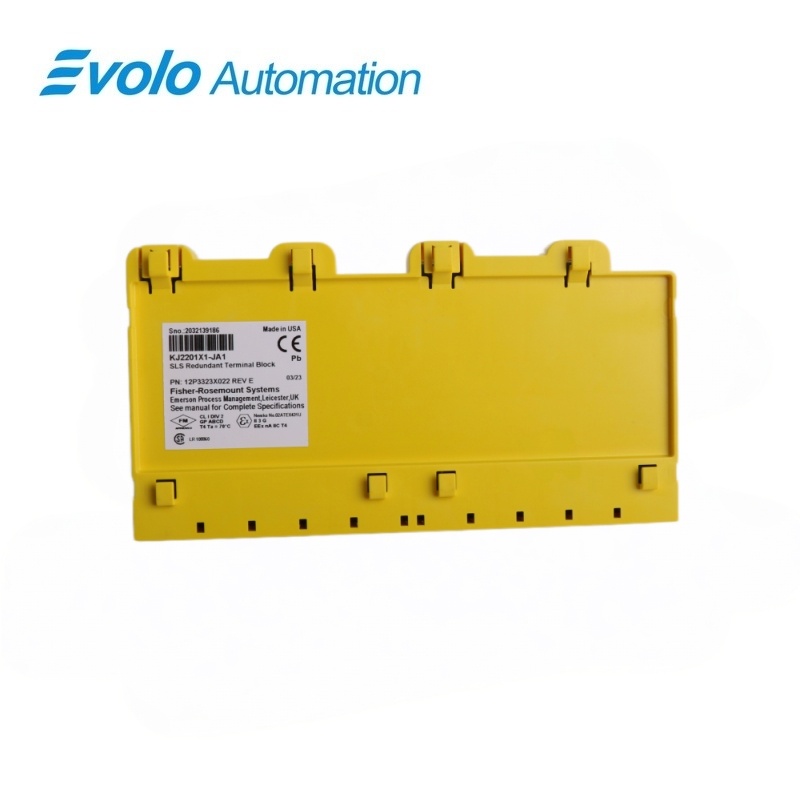

KJ2201X1-JA1 12P3323X022 is identified by the complete manufacturer model and the photographed unit.
Application focus
KJ2201X1-JA1 12P3323X022 is intended for redundant SLS1508 safety-I/O termination.
Ordering control
KJ2201X1-JA1 12P3323X022 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
Emerson KJ2201X1-JA1 12P3323X022 is the redundant terminal block used with DeltaV SIS SLS 1508 logic-solver hardware. It provides the terminal interface required by the redundant logic-solver arrangement documented by Emerson.
The complete KJ number and 12P revision are important replacement identifiers. Emerson specifies 30 VDC input limits, up to 30 mA per channel between terminals A–B and up to 1 A per channel between A–C for this terminal-block family.
Key Functions
Redundant SLS interface
KJ2201X1-JA1 12P3323X022 supports the redundant SLS terminal arrangement covered by the DeltaV SIS documentation.
Documented field limits
The terminal circuits must remain within Emerson’s stated voltage and per-channel current limits.
Controlled maintenance
System power must be removed before insertion or removal, and field wiring must follow the applicable DeltaV SIS installation instructions.
Official Specifications
| Rated input | 30 VDC |
|---|---|
| Redundant SLS interface | supports the redundant SLS terminal arrangement covered by the DeltaV SIS documentation. |
| Documented field limits | The terminal circuits must remain within Emerson’s stated voltage and per-channel current limits. |
| Controlled maintenance | System power must be removed before insertion or removal, and field wiring must follow the applicable DeltaV SIS installation instructions. |
| Redundancy Mode | Redundant |
| Redundancy Mode 2 | Simplex |
| A–B Maximum Channel Current | 30 mA per channel |
| A–C Maximum Channel Current | 1 A per channel |
| Compatible Logic Solver | SLS 1508 |
| Logic Solver Arrangement | Paired |
Source scope: Technical statements below are limited to Emerson KJ2201X1-JA1 ATEX Instructions. Commercial availability, condition and warranty are seller terms.
Frequently Asked Questions
What compatibility checks apply when integrating KJ2201X1-JA1 12P3323X022 with DeltaV SIS?
It is intended for DeltaV SIS.
What engineering application is KJ2201X1-JA1 12P3323X022 intended to support as a SLS Redundant Terminal Block?
Redundant SLS1508 safety-I/O termination.
What should a commissioning engineer inspect before installing KJ2201X1-JA1 12P3323X022?
Match the specified code and revision the specified code exactly. Confirm the redundant SLS carrier and paired logic-solver arrangement.
How should redundant sls interface be checked during maintenance of KJ2201X1-JA1 12P3323X022?
The unit supports the redundant SLS terminal arrangement covered by the DeltaV SIS documentation.
What design information about documented field limits is required for KJ2201X1-JA1 12P3323X022?
The terminal circuits must remain within Emerson’s stated voltage and per-channel current limits.
Which controlled maintenance details should engineers confirm for KJ2201X1-JA1 12P3323X022?
System power must be removed before insertion or removal, and field wiring must follow the applicable DeltaV SIS installation instructions.
Which documented ordering details prevent a mismatch for KJ2201X1-JA1 12P3323X022?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for KJ2201X1-JA1 12P3323X022
- Match KJ2201X1-JA1 and revision 12P3323X022 exactly.
- Confirm the redundant SLS carrier and paired logic-solver arrangement.
- Compare terminal labels and field-wiring assignments before disconnection.
- Follow the DeltaV SIS safety manual and de-energization procedure.
