Emerson KC3011X1-BA1 12P6749X042 16-Channel AO Plus HART Module
Manufacturer: Emerson
Condition: Brand New
Lead Time: In Stock
Origin: United States
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
DELTAV DCS

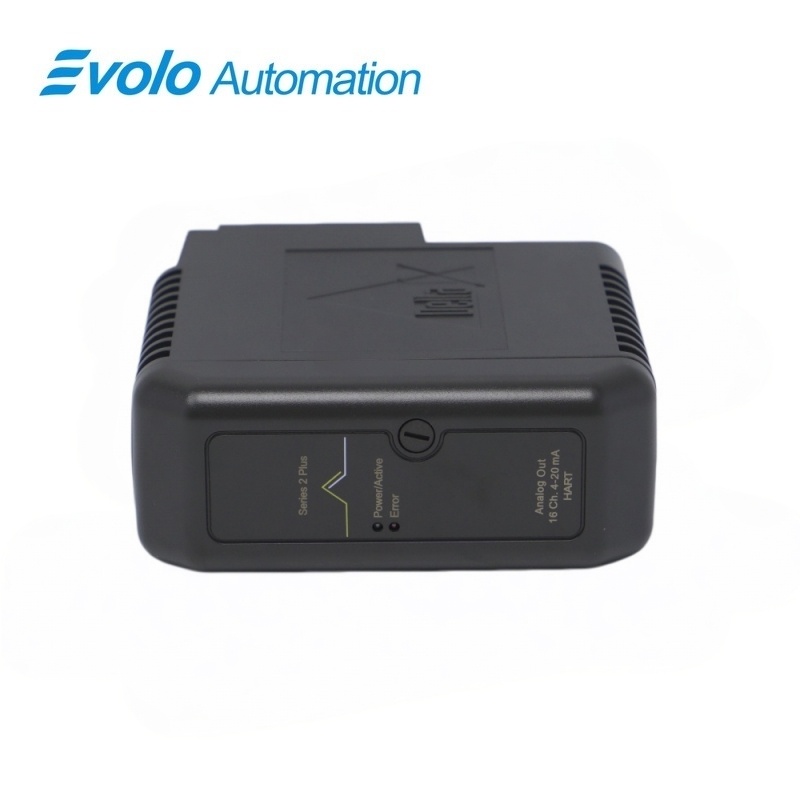

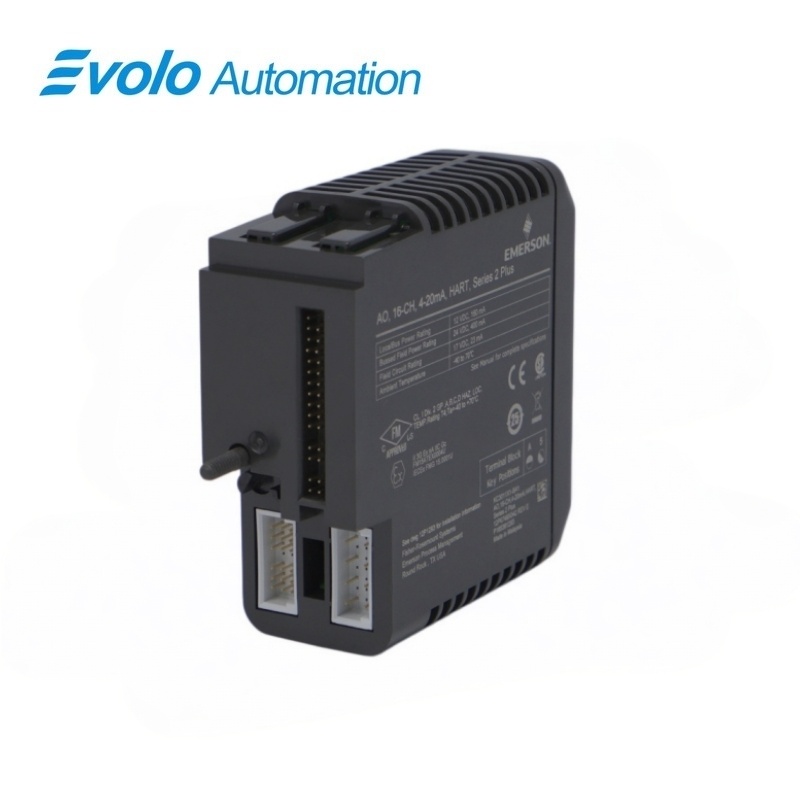

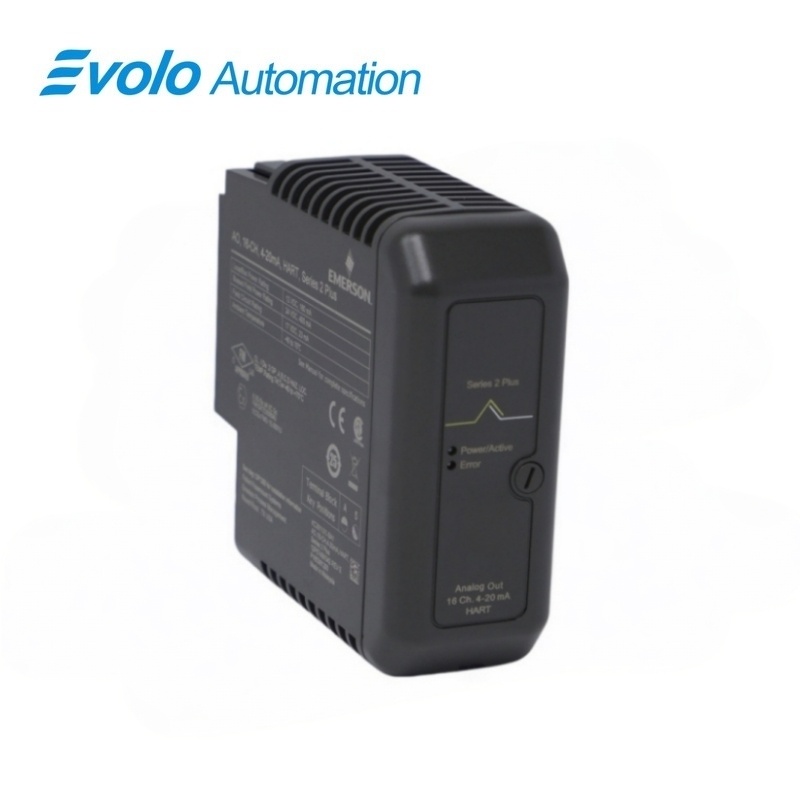

KC3011X1-BA1 12P6749X042 16-Channel AO Plus HART Module
Official-source product identification, application guidance and ordering checks for KC3011X1-BA1 12P6749X042.
At a Glance
| Brand | Emerson |
|---|---|
| Model | KC3011X1-BA1 12P6749X042 |
| Product Type | 16-Channel AO Plus HART Module |
| Core Function | 4–20 mA HART final-control and analog-output service. |
| Application / Compatible Series | DeltaV DCS |
Verified identification
KC3011X1-BA1 12P6749X042 is identified by the complete manufacturer model and the photographed unit.
Application focus
KC3011X1-BA1 12P6749X042 is intended for 4–20 mA HART final-control and analog-output service.
Ordering control
KC3011X1-BA1 12P6749X042 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
Emerson KC3011X1-BA1 12P6749X042 is a DeltaV AO Plus module providing sixteen 4–20 mA analog output channels with HART communication.
Official documentation identifies A5 terminal keying, a 12 VDC local-bus load and a separate 24 VDC bussed field-power requirement. The exact BA1 and 12P6749X042 markings, terminal block and carrier configuration must agree.
Key Functions
Sixteen Analog Outputs
Provides 16 individually addressed 4–20 mA output channels for supported DeltaV field-control applications.
HART Communication
Carries HART communication on the analog output channels for compatible smart field instruments.
Keyed Terminal Selection
Uses A5 keying and supports the documented standard, redundant and mass-termination AO connection options.
Official Specifications
| Channels | 16 analog outputs, 4–20 mA HART |
|---|---|
| Local bus | 12 VDC at 160 mA |
| Bussed field power | 24 VDC at 400 mA |
| Terminal key | A5 |
| Operating environment | −40 to +70 °C; 5–95% RH, non-condensing |
| Sixteen Analog Outputs | Provides 16 individually addressed 4–20 mA output channels for supported DeltaV field-control applications. |
| HART Communication | Carries HART communication on the analog output channels for compatible smart field instruments. |
| Keyed Terminal Selection | Uses A5 keying and supports the documented standard, redundant and mass-termination AO connection options. |
| Redundancy Mode | Redundant |
| HART Support | Supported |
| Operating Temperature Range | 40 to +70 °C |
| 12 VDC Output Rail | 12 VDC |
| Relative Humidity Range | 5–95% RH |
| Minimum Operating Temperature | −40 °C |
| Maximum Operating Temperature | +70 °C |
| Output Voltage | 24 V DC |
| Output Current Type | DC |
Official source: Emerson DeltaV AO Plus official certificate and S-series Traditional I/O Product Data Sheet. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
How should engineers verify KC3011X1-BA1 12P6749X042 compatibility with DeltaV DCS?
It is intended for DeltaV DCS.
How is KC3011X1-BA1 12P6749X042 normally applied when a 16-Channel AO Plus HART Module is required?
4–20 mA HART final-control and analog-output service.
How should engineers prepare the existing system for installation of KC3011X1-BA1 12P6749X042?
Confirm the complete BA1 and the specified code nameplate. Verify an approved A5-keyed 16-channel AO terminal option.
How does KC3011X1-BA1 12P6749X042 handle sixteen analog outputs?
Provides 16 individually addressed 4–20 mA output channels for supported DeltaV field-control applications.
What should technicians verify about HART communication when commissioning KC3011X1-BA1 12P6749X042?
Carries HART communication on the analog output channels for compatible smart field instruments.
Why is keyed terminal selection important when integrating KC3011X1-BA1 12P6749X042?
Uses A5 keying and supports the documented standard, redundant and mass-termination AO connection options.
How should an engineer match KC3011X1-BA1 12P6749X042 before replacing an installed unit?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for KC3011X1-BA1 12P6749X042
- Confirm the complete BA1 and 12P6749X042 nameplate.
- Verify an approved A5-keyed 16-channel AO terminal option.
- Check 12 V local-bus and 24 V field-power capacity.
- Confirm each 4–20 mA HART loop and its polarity.
