Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
IS420ESWAH3A |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Product Name: |
IONet Ethernet Switch |
|
Model Number: |
IS420ESWAH3A |
|
Manufacturer: |
General Electric |
|
Series: |
Mark VIe |
|
Dimensions: |
14 x 9.2 x 5.8 cm (138 x 86 x 56 mm) |
|
Weight: |
0.52 kg |
|
Mounting: |
Panel mounted or DIN-rail mounted |
|
Power Connection: |

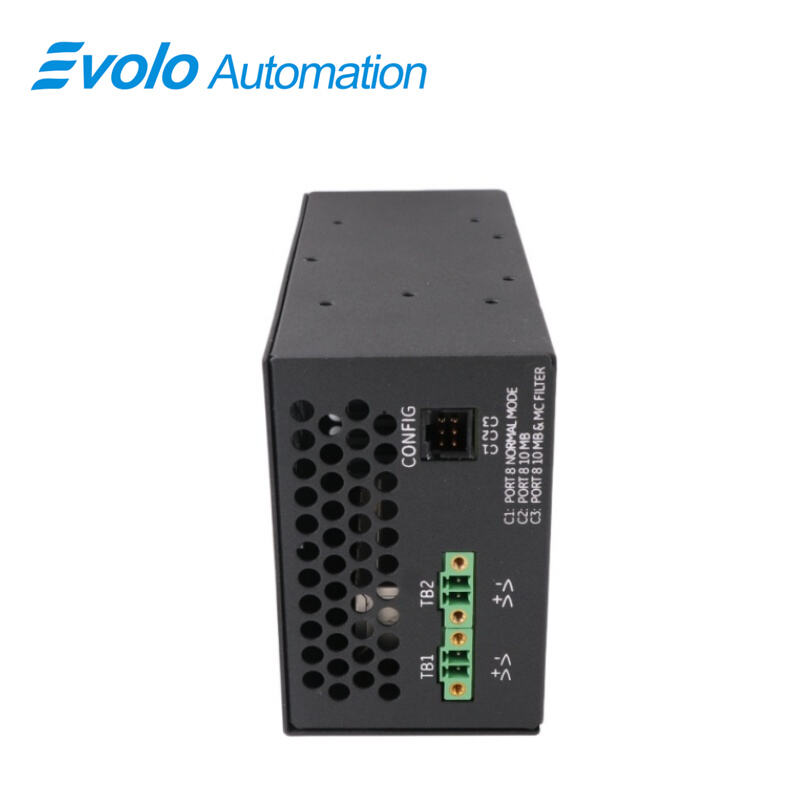

Two redundant diode-OR power supply inputs, 18–36 V DC |
|
Cooling: |
Convection cooled (vertical or horizontal) |
|
Corrosion Protection: |
IEC 60721-3-3 Class 3C2 compliant, grounding provisions |
|
Operating Temperature: |
-30 to +65 °C |
|
Storage / Shipping Temperature: |
-40 to +85 °C |
|
Humidity: |
5–95% RH, non-condensing |
|
Seismic / Vibration Compliance: |
Meets Universal Building Code (UBC) |
|
Country of Manufacture: |
United States (USA) |
Description

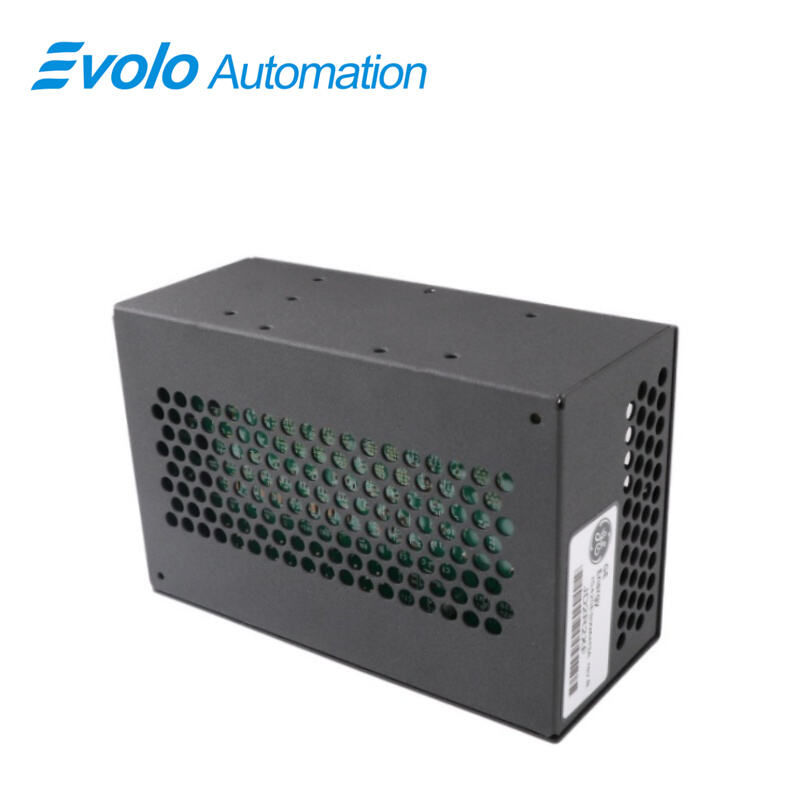

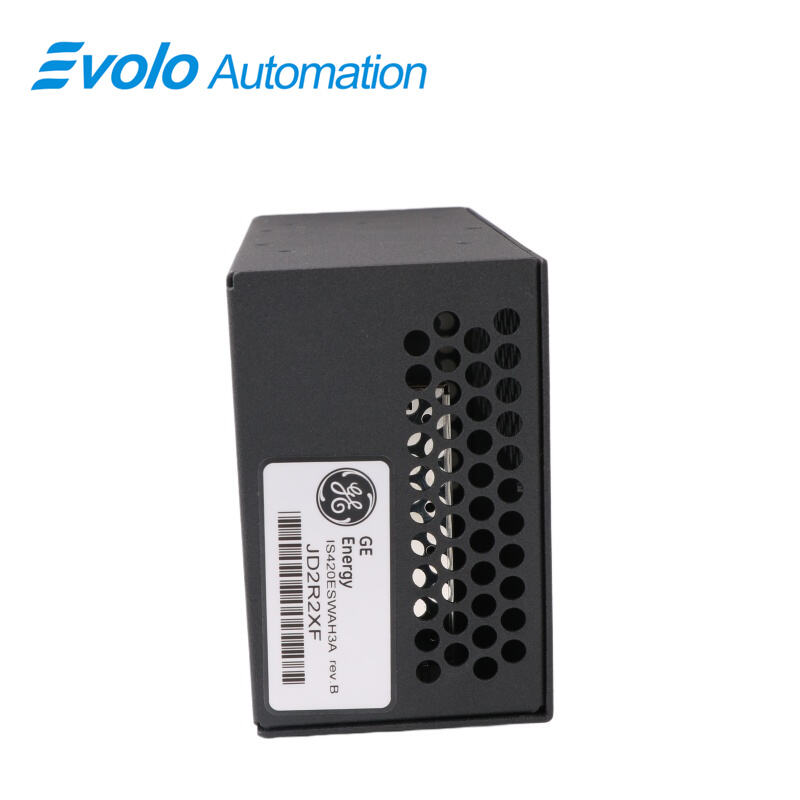

IS420ESWAH3A is an IONet Ethernet Switch developed by GE and is part of the General Electric Speedtronic Mark Vle gas turbine control systems. It uses Achilles-certified controllers and current Fieldbus technology to meet NERC version 5 Protection Reliability Standards for Critical Infrastructure. The component has eight ports with 10/100BASE-TX capability. It's one of numerous Ethernet switch models available for use with the Mark Vle system. It features a conformal coating and is suitable for usage in hazardous environments. The machine can function in temperatures ranging from -40 to 158 degrees Fahrenheit.
Applications
Power plants (large-scale gas turbine/steam turbine combined cycle control network)
Nuclear power plants (highly redundant digital safety control systems)
Chemical plants (backbone network of plant-wide distributed control systems (DCS))
Oil refineries (large-scale real-time monitoring network covering all process units)
Steel plants (communication supporting high-speed rolling lines and complex logic interlocks)
Features
1 Compatibility with 802.3, 802.3u, and 802.3> 10/100 base copper with auto-negotiation
2 Full/half duplex auto-negotiation
3 100 Mbps FX uplink port
4 HP-MDIX auto-sensing
5 Link Presence, Activity, Duplex, and Speed per port LEDs (each LED has two colors)
6 Power LED
7 256 KB buffer with 4K media access control (MAC) addresses
Flow Control
Flow control between switches is supported by the switch. It receives and honors pause packets using IEEE defined pause packets. The switch only sends pause packets if port requires flow control.
Diagnostics

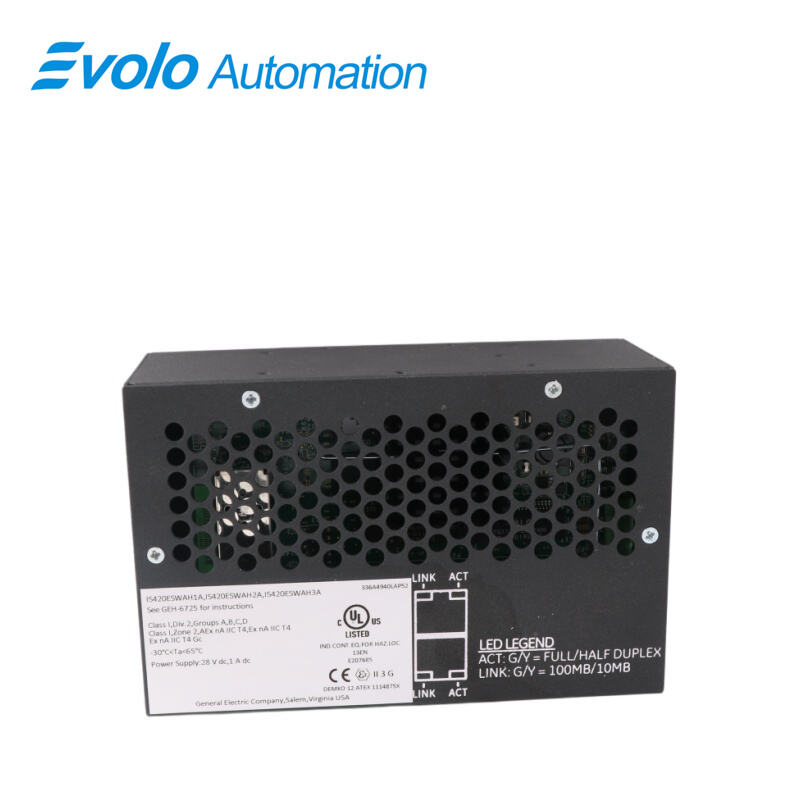

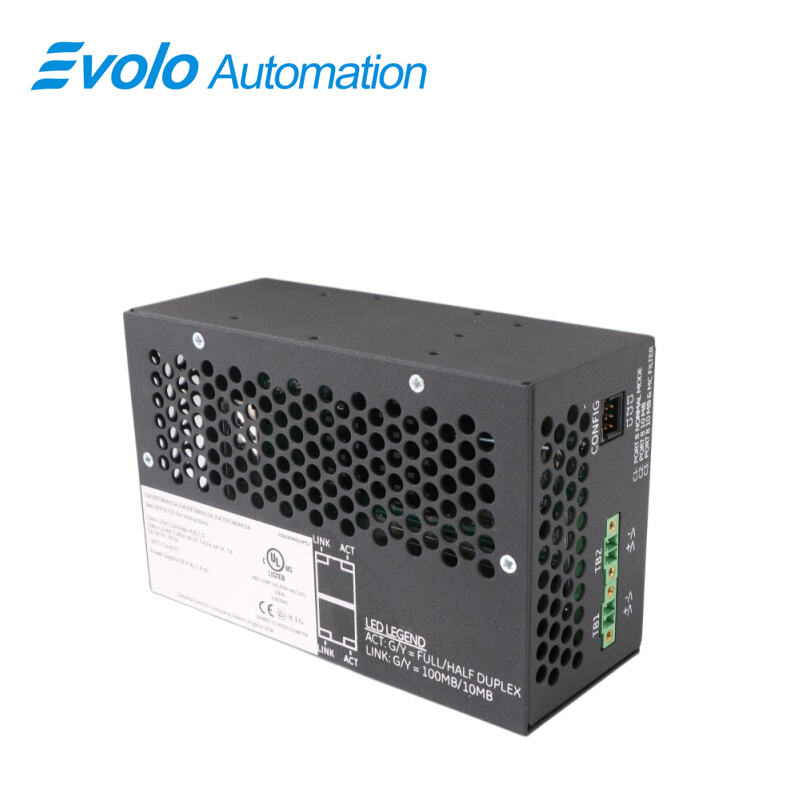

Link presence, activity and duplex, and port speed LEDs have two colors that indicate their status
LED One
Full Duplex activity is indicated by a green flash.
Yellow flashes for activity at Half Duplex
LEDTWO
Green indicates a link and 100 Mb.
Yellow indicates a link and 10 Mb.
No link= no led lit
Benefits
Longer availability of parts for future network expansion
Backward compatibility with legacy systems
Improved performance for real-time control systems
FAQ
Q: What is IS420ESWAH3A?
A: IS420ESWAH3A is an IONet Ethernet Switch used in GE Speedtronic Mark Vle gas turbine control systems.
Q: Where is IS420ESWAH3A installed?
A: The IS420ESWAH3A is often mounted on a DIN-rail.
Q: How long is the warranty period of IS420ESWAH3A?
A: We offer a standard one-year warranty for all new and original products.
Q: Do you offer any discounts?
A: Yes! For discounts on IS420ESWAH3A, please contact John for the best offer.
