IS200VSVOH1BEF VME SERVO CARD, China IS200VSVOH1BEF VME SERVO CARD Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	IS200VSVOH1BEF
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Model:	IS200VSVOH1BEF
Product Type:	VME Servo Card
Brand:	GE
Series:	VersaMax
Connector:	Two RJ-45
I/O Discrete Points:	2880 bytes total (1440 bytes input data, 1440 bytes output data)
Manufacturer:	GE Intelligent Platforms; Emerson Automation
Power Consumption:	0.60 A, 5 VDC
PNS Status and Control:	32-bit input status bits and 32-bit output control bits, 8 modules
Supported I/O Modules:	Up to eight (8) modules
Supported Topology:	Line, Star, Ring (redundant)
Operating Temperature Range:	0°C to 60°C ambient, no fan
Transmission Rate:	10/100 Mbps
Diagnostic Data:	32 input status bits; 32 output control bits
Dimensions:	2 x 18.5 x 26.1 cm
Weight:	0.34 kg

Description

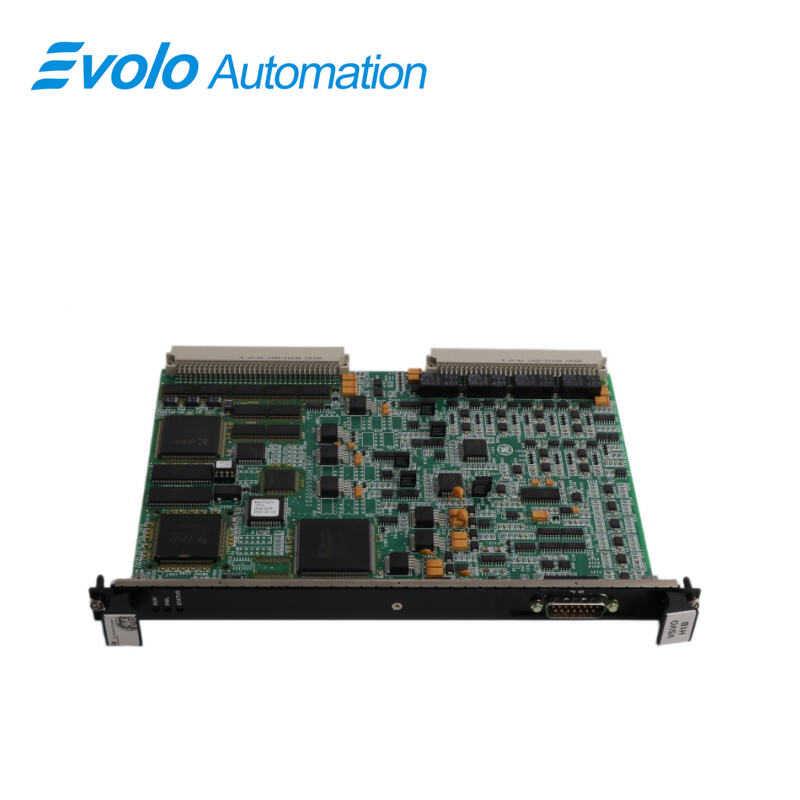

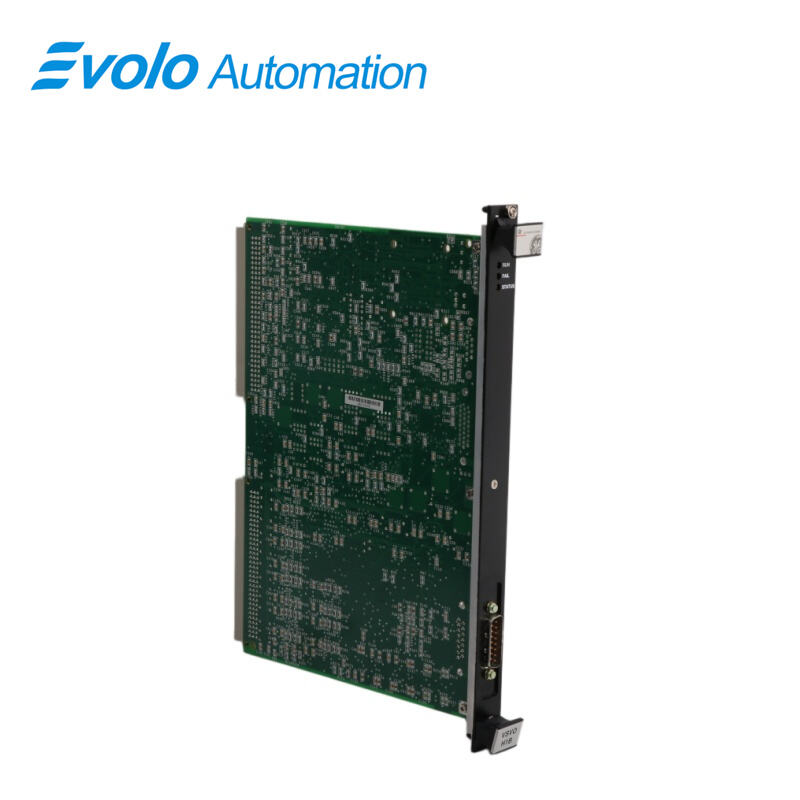

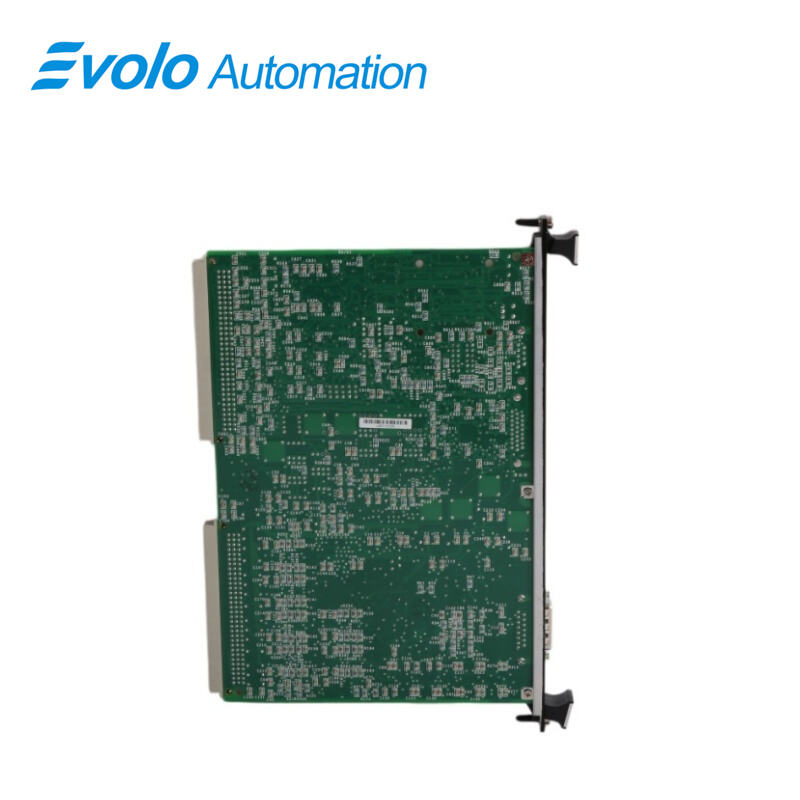

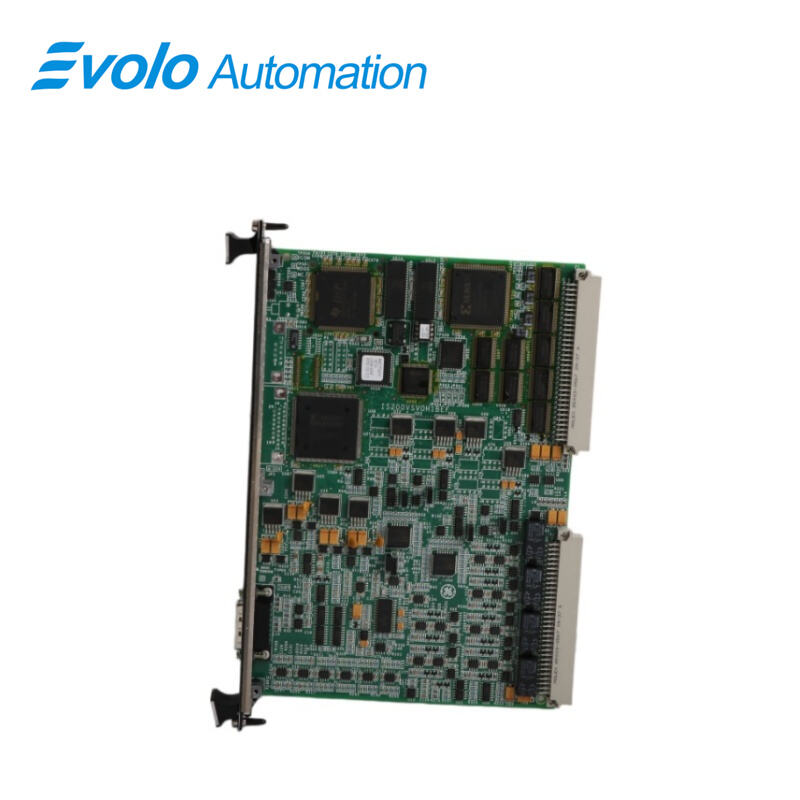

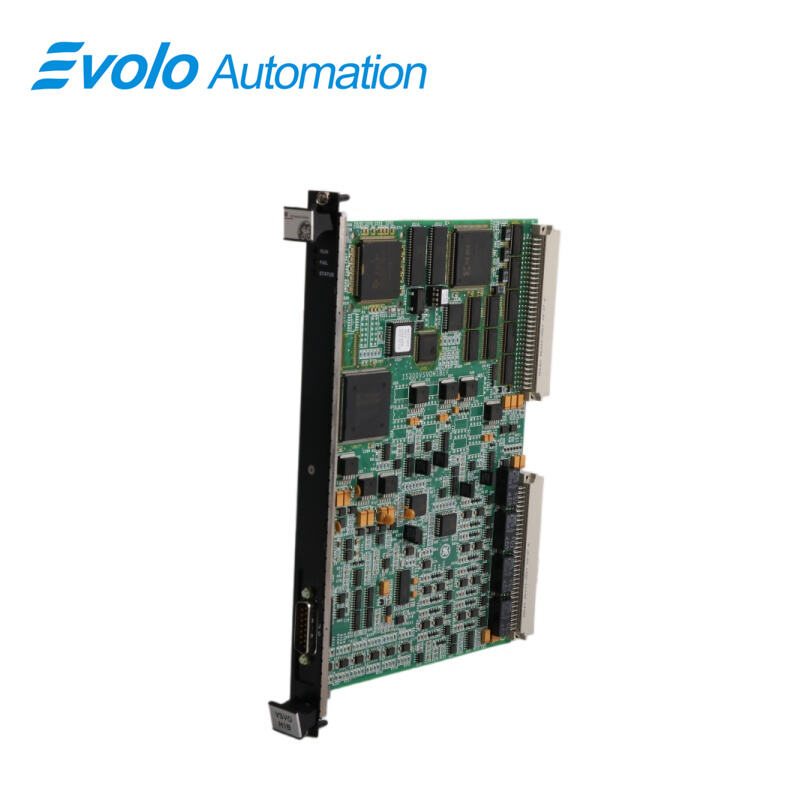

The IS200VSVOH1BEF card will use the servo valve interface I/O. When the VSVO is used, many functions are available, some of which are optional current drivers, feedback from LVDRs and LVDTs, and pulse rate input from shunt feedback. Depending on the chosen redundancy application, the VSVO card can also be used with two or three coil servos. Typically, four servo channels are used with the VSVO card, and for each servo channel, up to three LVDT/LVDR feedback sensors can be selected using median, high, or low selection software. Note that the servo current output used for this model will be bidirectional.

Applications

Gas Turbine Control Systems

Industrial Automation Equipment

Process Control Systems

Large-scale Energy and Manufacturing Applications (e.g., refineries, gas plants, petrochemical plants, power plants, etc.)

Functions and Features

Servo Control: As a VME servo control board, the IS200VSVOH1BEF can be used in the servo control system of gas turbines or other industrial equipment, responsible for operating critical components such as steam/fuel valves.

Loop Control Algorithm: This servo card can execute complex loop control algorithms to ensure precise equipment operation.

Position Feedback: Uses a linear variable differential transformer (LVDT) to determine valve position and provide position feedback, which is crucial for precise control.

Multiple Signal Processing: May support excitation and signal processing for multiple LVDT valve position inputs, as well as gas turbine flow measurement.

Redundancy and Fault Tolerance: As part of the GE Mark VI series, the IS200VSVOH1BEF may have redundancy and fault tolerance features to improve system reliability and stability.

Communication and Interfaces: Supports standard communication protocols and interfaces for easy integration with other control systems and equipment.

Competitive Advantage

Robust Signal Processing and Feedback Capabilities
With 2880 bytes of I/O discrete points (1440 bytes input, 1440 bytes output), the card handles extensive data for precise monitoring and actuation. It processes multiple feedback signals including optional current drivers, LVDT/LVDR inputs, and pulse-rate inputs from shunt feedback, enhancing accuracy and control reliability.

Redundancy and Fault Tolerance
Supporting line, star, and ring topologies, including redundant configurations, the IS200VSVOH1BEF ensures continuous operation even in critical industrial environments. PNS status and control functionality with 32-bit input and output control across eight modules further enhances system reliability.

Flexible Integration and Communication
Equipped with dual RJ-45 connectors and a 10/100 Mbps transmission rate, the card offers seamless connectivity to existing VME systems and control networks. Its support for up to eight I/O modules provides scalability for complex industrial setups.

Energy Efficient and Environmentally Resilient
Consuming only 0.60 A at 5 VDC and capable of operating from 0°C to 60°C without forced air, this card combines low power usage with resilience in standard industrial ambient conditions, minimizing maintenance needs and operational costs.
