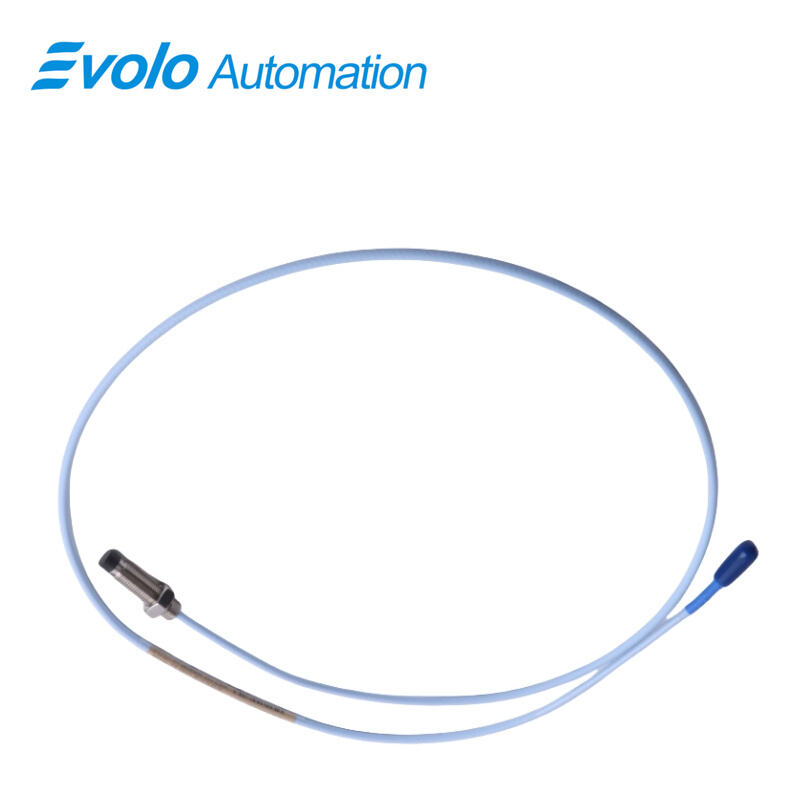

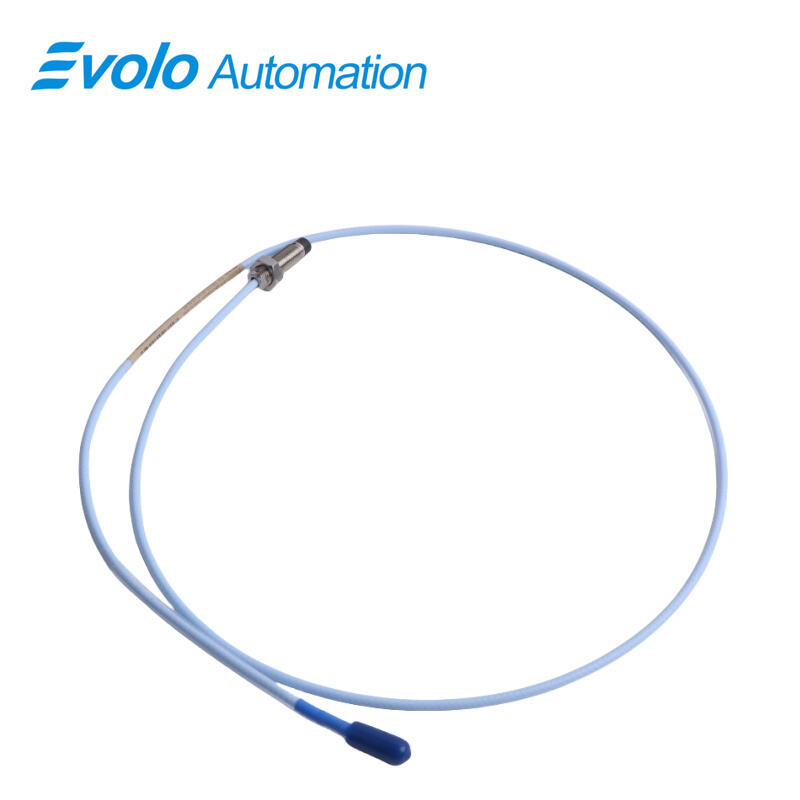

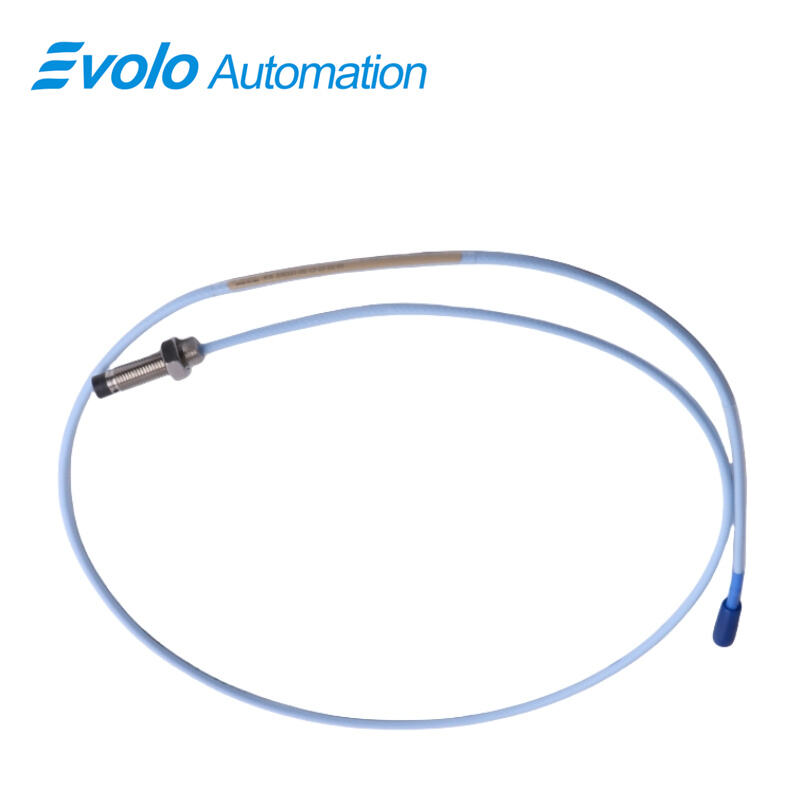

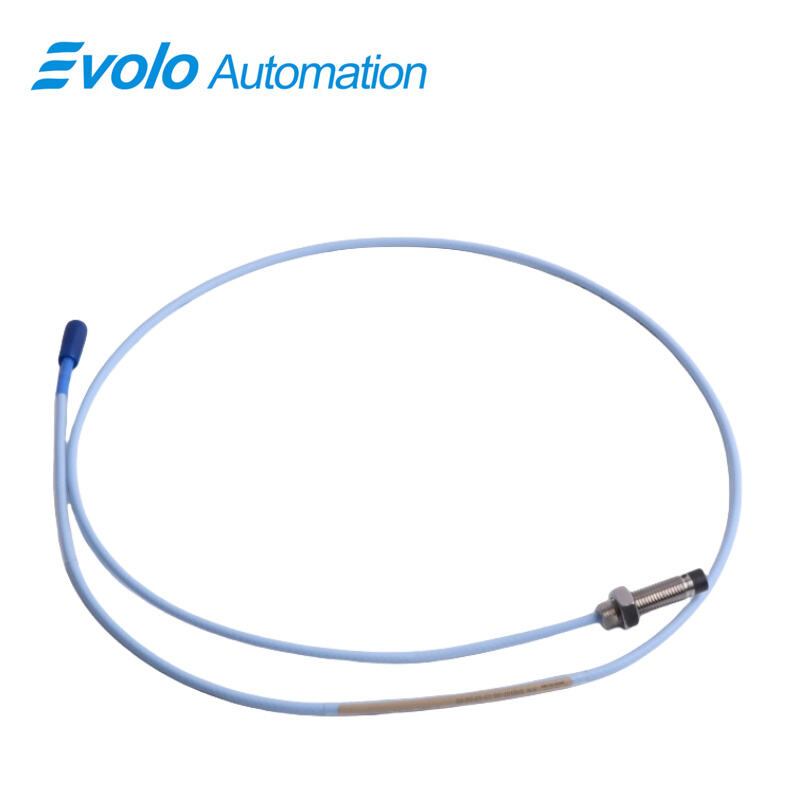

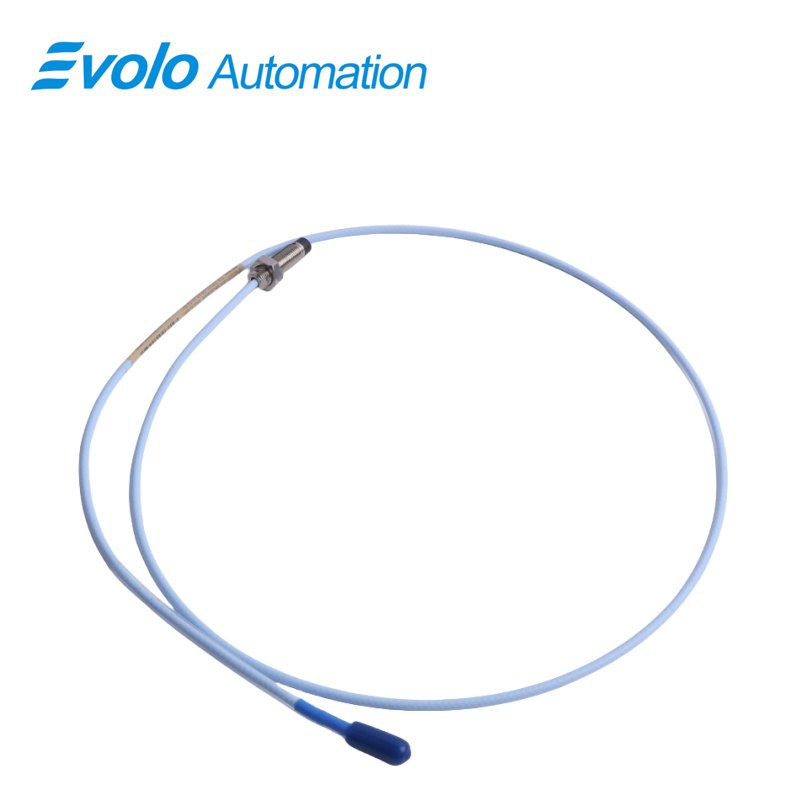

330101-00-13-15-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-13-15-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 3300 XL 8 mm Proximity Probe (330101-00-13-15-02-05) is a high-precision eddy current sensor designed for industrial automation and machinery condition monitoring. This probe converts the distance between the probe tip and a conductive target surface into a proportional output voltage, enabling accurate measurement of both static position and dynamic vibration. It is specifically engineered for fluid-film bearing machines, compressors, turbines, and other rotating equipment, delivering reliable performance in predictive maintenance, speed monitoring, and Keyphasor phase reference applications.

Featuring a total length of 1.5 meters (4.9 feet) and a compact 1.3-inch overall case, this probe fits in tight installation spaces. The 3/8-24 UNF threaded housing ensures secure mounting, while the operating range of -52°C to +177°C (-62°F to +350°F) allows reliable performance in extreme temperature conditions. CSA, ATEX, and IECEx approvals make this probe suitable for hazardous environments. The linear range of 2 mm (80 mils) and output resistance of 50 Ω, combined with minimal supply sensitivity (less than 2 mV per volt), ensure stable and precise signal transmission.

Mechanical enhancements include the patented TipLoc molding, providing a strong bond between the probe tip and body, and CableLoc technology, delivering 330 N (75 lbf) pull strength to securely attach the probe cable. Optional FluidLoc cabling prevents leakage of oil or other fluids through the probe cable, protecting both signal quality and machinery. The probe is fully backward-compatible with non-XL 3300 series 5 mm and 8 mm probes and extension cables, enabling seamless system upgrades without recalibration. This combination of precision, durability, and compatibility makes the 3300 XL 8 mm probe ideal for high-performance industrial automation applications.

Applications

1. Radial Vibration Measurement
Accurately monitors radial shaft vibrations on machinery with shafts up to 51 mm (2 in) in diameter, detecting imbalance or misalignment before they lead to mechanical failure. Linear range: 2 mm ensures high-resolution measurements.

2. Axial (Thrust) Position Monitoring
Tracks axial movement on fluid-film bearings and small-diameter shafts, preventing excessive thrust loads and enhancing bearing life in compressors and turbines.

3. Keyphasor and Speed Monitoring
Provides precise phase reference signals for high-speed shaft monitoring, enabling predictive maintenance, early fault detection, and vibration analysis.

4. Hazardous Area Applications
Certified CSA, ATEX, and IECEx for safe deployment in chemical, petrochemical, and offshore installations, ensuring reliable measurement in explosive atmospheres.

5. Compact Installation and Space-Limited Areas
Designed for restricted spaces, including side-view, counter bore, or reverse mount applications, where larger probes cannot be installed without compromising performance.

Specifications

Competitive Advantage

1. Extreme Temperature and Environmental Tolerance
Operates from -52°C to +177°C (-62°F to +350°F) with full CSA, ATEX, and IECEx approvals, ensuring performance in harsh industrial conditions.

2. Enhanced Mechanical Robustness
Patented TipLoc and CableLoc technologies provide strong probe tip-to-body and cable connections, with 330 N pull strength, reducing maintenance frequency.

3. Accurate and Stable Measurement
Linear range of 2 mm and less than 2 mV per volt supply sensitivity deliver precise, consistent measurements of both static and dynamic machine conditions.

4. Backward System Compatibility
Fully compatible with existing 3300 series 5 mm and 8 mm probes and extension cables, enabling cost-effective upgrades without recalibration.

5. Fluid Protection for Long-Term Reliability
Optional FluidLoc cabling prevents oil and other fluids from leaking through the probe cable, maintaining electrical integrity and protecting sensitive industrial machinery.
