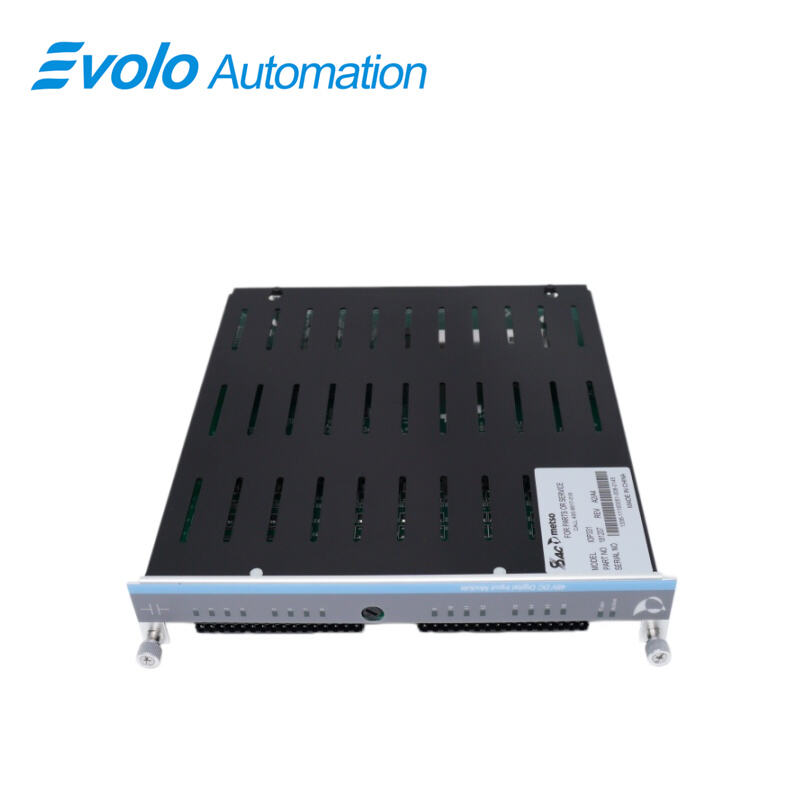

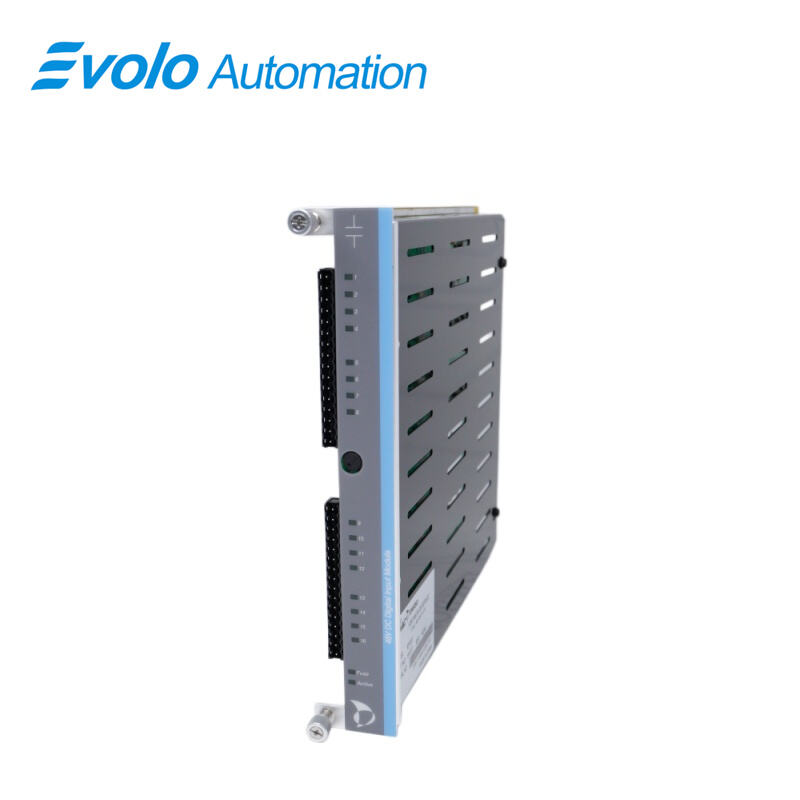

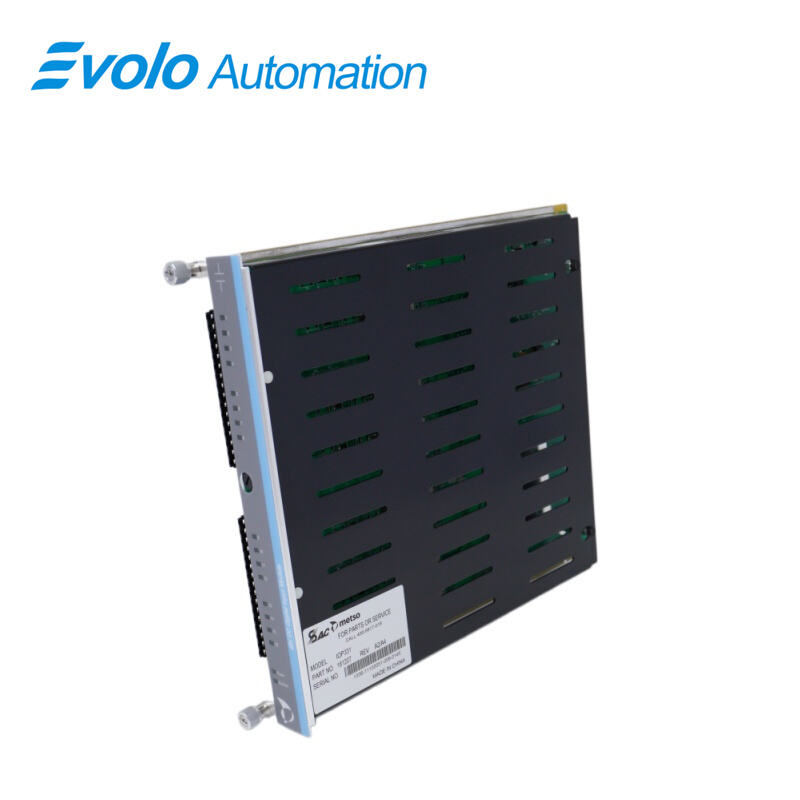

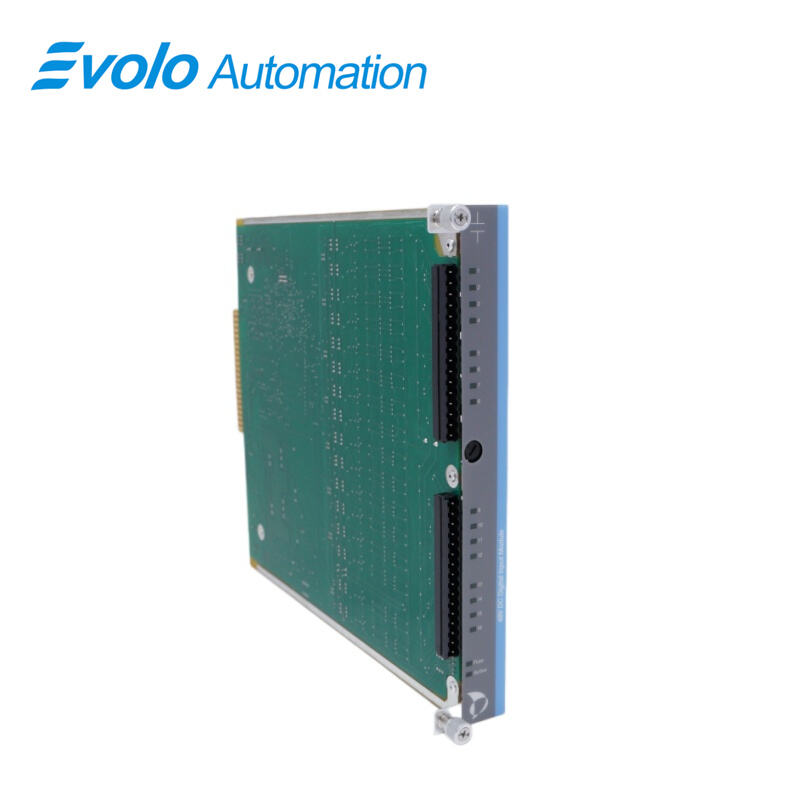

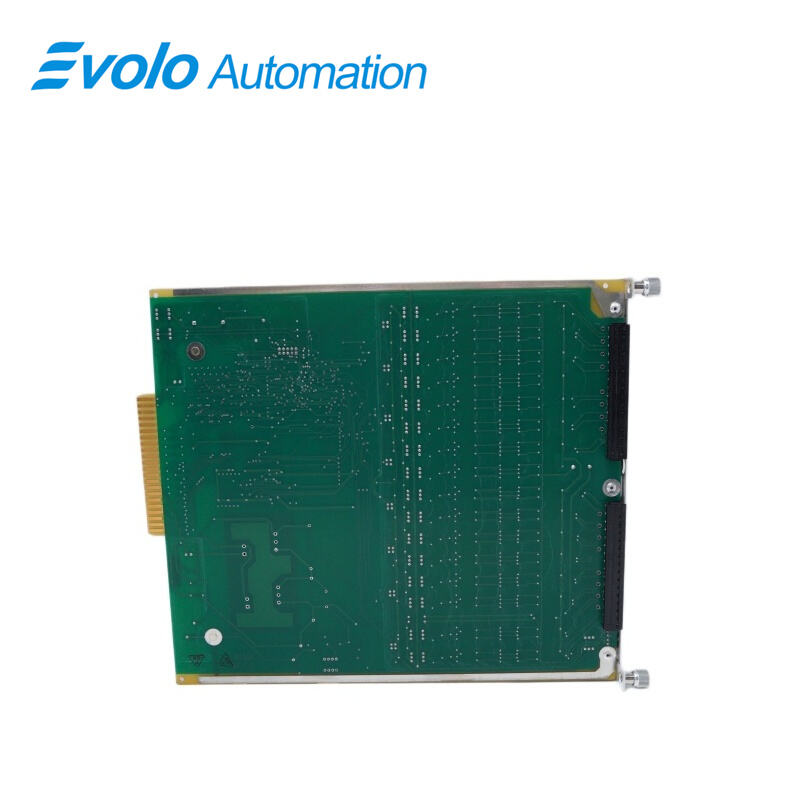

IOP331 Module

Overview

Place of Origin:	Finland
Brand Name:	Mesto
Model Number:	IOP331
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The IOP331 combines powerful dual CPUs (faster scan times, up to 2048 I/Os, operand and datasheet memory: 256k reserved and 2MB non-reserved), a variety of high-quality HMI touchscreens, and easy local and remote I/O installation, giving OEMs and system integrators a competitive edge in cost reduction, space saving, and shorter programming times. Unistream not only allows users to remotely access the system via VNC through PCs, tablets, and smartphones; it also allows them to reduce system programming time by 50% by anticipating programmer intent and allowing for the reuse of written code. It is suitable for harsh operating conditions, with an operating temperature range of -40°C to +85°C (-40°F to +185°F). The 4K-enabled modular system is designed for graphics-intensive industrial IoT applications, including industrial control systems, medical imaging, digital signage, gaming consoles, military, and networking.

Key features

High Reliability: Utilizing high-quality materials and manufacturing processes, the METSO IOP331 boasts high reliability and stability, meeting the demands of various industrial applications.

Easy Programming and Control: The METSO IOP331 supports multiple programming languages ​​and communication interfaces, facilitating easy connection and control with PLCs, motion controllers, and other devices. It also features an easy-to-use interface and fast processing speed, improving work efficiency.

High Scalability: The METSO IOP331 can expand its functionality and performance through expansion modules and function cards to meet diverse application needs. This makes the module highly flexible and customizable.

Multiple Functions: The METSO IOP331 offers multiple functions, such as input module program capacity and an integrated I/O processor. It can process various input signals, such as digital and analog signals, and enables remote analog control.

High-Efficiency Computing Power: The METSO IOP331 features a high-speed processor and large-capacity memory, enabling rapid execution of complex control algorithms and data processing tasks, improving system response speed and efficiency.

Modular Design: The METSO IOP331 adopts a modular design, facilitating user expansion and upgrades, thus improving system flexibility and maintainability.

Easy Maintenance and Debugging: The METSO IOP331 features self-diagnostic capabilities, detecting and reporting faults, allowing users to promptly identify and resolve problems, reducing maintenance costs. It also boasts easy debugging features, enabling users to conveniently perform program debugging and system testing.

Strong Compatibility: The METSO IOP331 is compatible with various CPU models and operating systems, allowing for wide application in diverse systems and meeting the needs of different users.

Applications

Digital Signal Acquisition for Industrial Automation: The IOP331 module supports 16 channels with 48 VDC input and <2 mA per channel, allowing precise monitoring of digital sensors and devices in factory automation systems.

Remote Monitoring and Control via S800 I/O Bus: With S800 I/O bus communication and open-collector outputs up to 24 VDC and 20 mA per channel, IOP331 enables real-time remote operation of actuators, relays, and process devices.

Industrial IoT Data Processing: The dual CPU design of IOP331 supports up to 2048 I/Os and 2 MB non-reserved memory, allowing high-speed processing of large-scale data from sensors and control systems.

Harsh Environment Control: Designed for operating temperatures from −40 °C to +85 °C and 0–95% non-condensing humidity, IOP331 can be deployed in mining, chemical, or outdoor industrial installations.

Graphics-Intensive Control Interfaces: The IOP331 supports HMI touchscreens and modular I/O expansion, enabling visualization and interaction in industrial control, medical imaging, or digital signage systems.

Applications area

Pulp & Paper Mills: Used for high-speed distributed control across the entire plant, encompassing automation of the entire process from wood processing and cooking to papermaking.

Power & Nuclear: Thermal Power Plants: Used for critical loops such as turbine overspeed protection.

Nuclear Power Plants: Provides highly reliable monitoring and control as part of the reactor safety system.

Oil & Gas: Used in HIPPS (High Integrity Pressure Protection Systems) for offshore platforms and refineries to prevent overpressure risks.

Chemical & Pharma: Manages safety loops compliant with SIL 3 standards, ensuring hazardous chemical processes operate within safe limits.

Water Treatment Facilities: Used for real-time monitoring of flow and water quality in critical infrastructure.

Competitive Advantage

High-Speed Dual CPU Processing: The IOP331 features dual CPUs, enabling faster scan times and processing up to 2048 I/Os, improving responsiveness and reducing cycle times.

Low-Power, High-Density Channels: With 16 input channels at <2 mA per channel and open-collector outputs up to 20 mA per channel, IOP331 ensures low energy consumption while supporting multiple devices.

Flexible Modular Design: The IOP331 allows easy expansion with function cards and modules, letting operators scale the system to their specific application requirements.

Easy Remote Access and Programming: Using VNC via PCs, tablets, or smartphones, the IOP331 provides remote monitoring and reduces programming time by up to 50% through code reuse.

Robust Environmental Tolerance: Compliance with IEC 60068-2 for shock and vibration, and operating temperatures from −40 °C to +85 °C, ensures IOP331 performs reliably in harsh industrial conditions.
