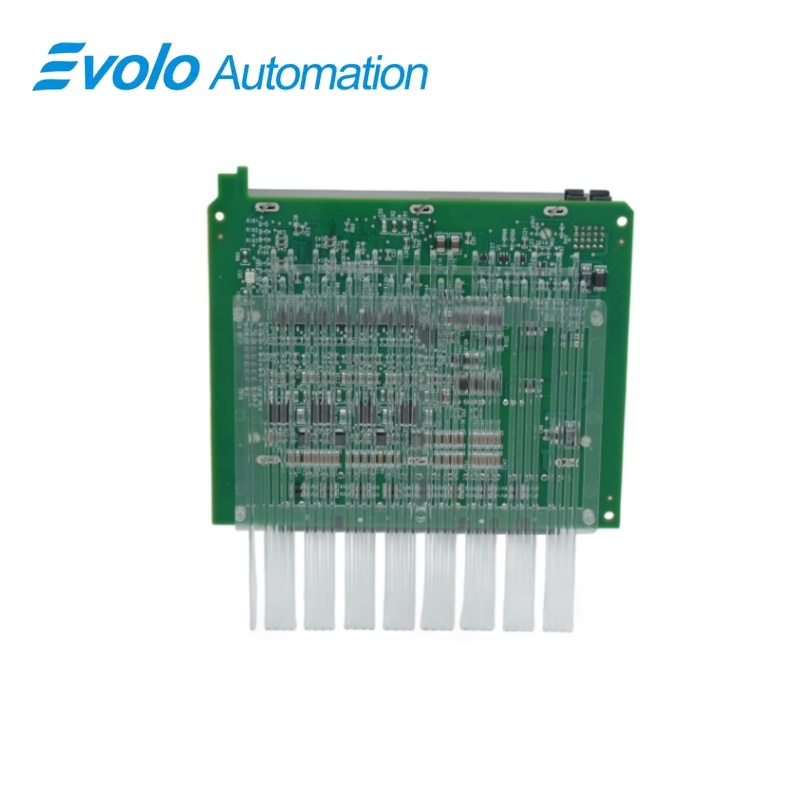

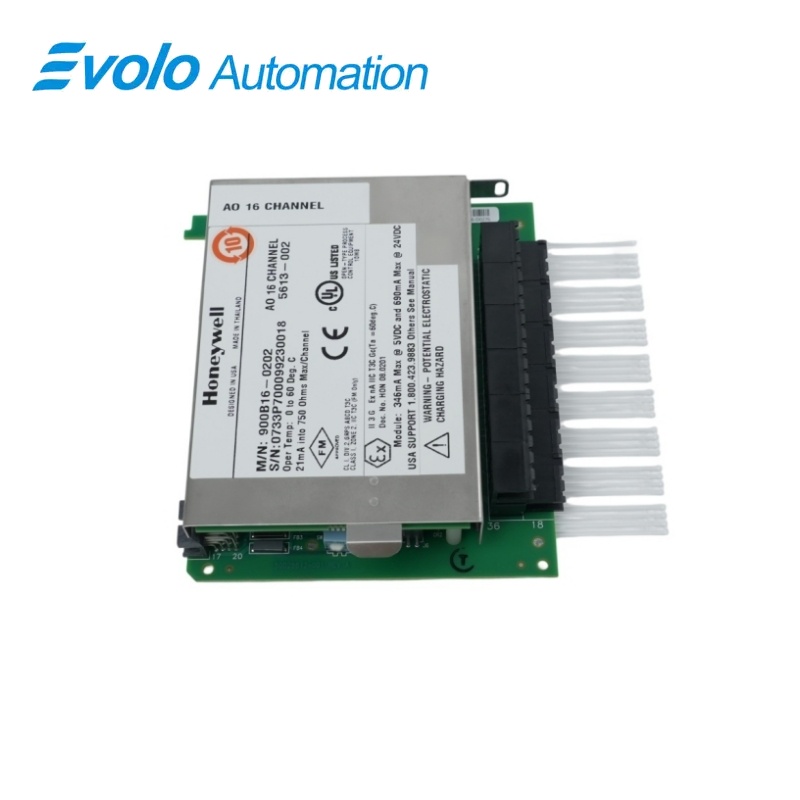

Honeywell ControlEdge HC900 Sixteen-Channel Analog Output Module 900B16-0202
Manufacturer: Honeywell
Condition: Brand New
Lead Time: In Stock
Origin: United States
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Honeywell • ControlEdge HC900
900B16-0202 ControlEdge HC900 Sixteen-Channel Analog Output Module
The 16-channel analog-output module provides user-scalable 0 to 21 mA outputs, isolation in four groups, output-current verification, diagnostics and internal or external 24 V loop-power selection.
At a Glance
| Brand | Honeywell |
|---|---|
| Model | 900B16-0202 |
| Product Type | Sixteen-channel current analog-output module |
| Core Function | Generates isolated configurable current outputs for HC900 process-control loops |
| Application or Compatible Series | Honeywell ControlEdge HC900 process and safety control systems |
Exact Identification
Match 900B16-0202 character by character and confirm the complete ControlEdge HC900 Sixteen-Channel Analog Output Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The 16-channel analog-output module provides user-scalable 0 to 21 mA outputs, isolation in four groups, output-current verification, diagnostics and internal or external 24 V loop-power selection.
Each channel can be scaled to a selected span within the 0 to 21 mA range. Outputs are isolated in four groups of four and every group is isolated from controller logic. Per-channel failsafe values, rate-of-change limits and output-current feedback support process commissioning and diagnostics.
Key Functions
Sixteen Current Outputs
Each channel can be scaled to a selected span within the 0 to 21 mA range.
Grouped Galvanic Isolation
Outputs are isolated in four groups of four and every group is isolated from controller logic.
Predictable Process Behavior
Per-channel failsafe values, rate-of-change limits and output-current feedback support process commissioning and diagnostics.
Official Specifications
| Selectable Current Range | 0 to 21 mA |
|---|---|
| Isolation Groups | 4 groups of 4 outputs |
| Maximum Load Resistance | 750 Ω |
| Group-to-Group Isolation | 500 V DC |
| Isolation from Controller Logic | 500 V DC |
| Accuracy at Reference Conditions | 0.1% of full scale |
| Maximum Modules per Rack | 2 with internal 24 V backplane power |
| Minimum Current Sensing | Greater than 0.5 mA per output |
| D/A Resolution | 13+ bits, 1 part in 13,332 |
| 5 V Supply Loading | 350 mA maximum |
| 24 V Supply Loading | 700 mA maximum |
| Terminal Block | 36-position Euro style, 900TCK-0001 |
| External Loop-Power Range | 18 to 36 V DC |
| External Loop-Power Current | 700 mA per module |
Frequently Asked Questions
How many analog loops can I connect to 900B16-0202?
The module provides sixteen current-output channels.
Can each channel on 900B16-0202 use a different output span?
Yes; every output can be scaled independently within the 0 to 21 mA range.
How are the outputs of 900B16-0202 isolated?
The channels are isolated in four groups of four, with 500 V DC isolation between groups and from controller logic.
Which terminal block is required for 900B16-0202?
Use the specified 36-position Euro-style terminal block.
Can 900B16-0202 use an external loop-power source?
Yes; select external power and provide 18 to 36 V DC at up to 700 mA per module.
What should I record before replacing 900B16-0202?
Save every channel range, failsafe value, rate limit, calibration record, field wire and power-selection setting.
What should I test after installing 900B16-0202?
Verify module diagnostics, each loop current, output feedback, isolation groups, failsafe action and the configured rate limits.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the module only in a supported ControlEdge HC900 rack and configuration.
- Keep internal-power installations within the two-module rack limit.
- Preserve every channel scale, field calibration and failsafe setting before exchange.
