Overview
Place of Origin: |
Switzerland |
Brand Name: |
ABB |
Model Number: |
GJR2392700R1210 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Dimensions: |
1.8x19.7x26.1 cm |
|
Weight: |
0.4 kg |
|
RoHS Compliance: |
Not RoHS Compliant |
|
WEEE Category: |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
Number of Batteries: |
0 |
|
Function: |
Stored-program analog control with continuous outputs |
|
Cycle Times: |
100 ms (1 actuator) / 200 ms (2 actuators) |
|
Power Supply: |
24 VDC (typical consumption 145 mA + output values) |
|
I/O Capacity: |
16 digital input channels, 8 relay output channels |
|
Communication: |
Ethernet (10/100BASE-T), RS-232/485 serial ports |
|
Operating Temperature: |
-25°C to +60°C |
Description

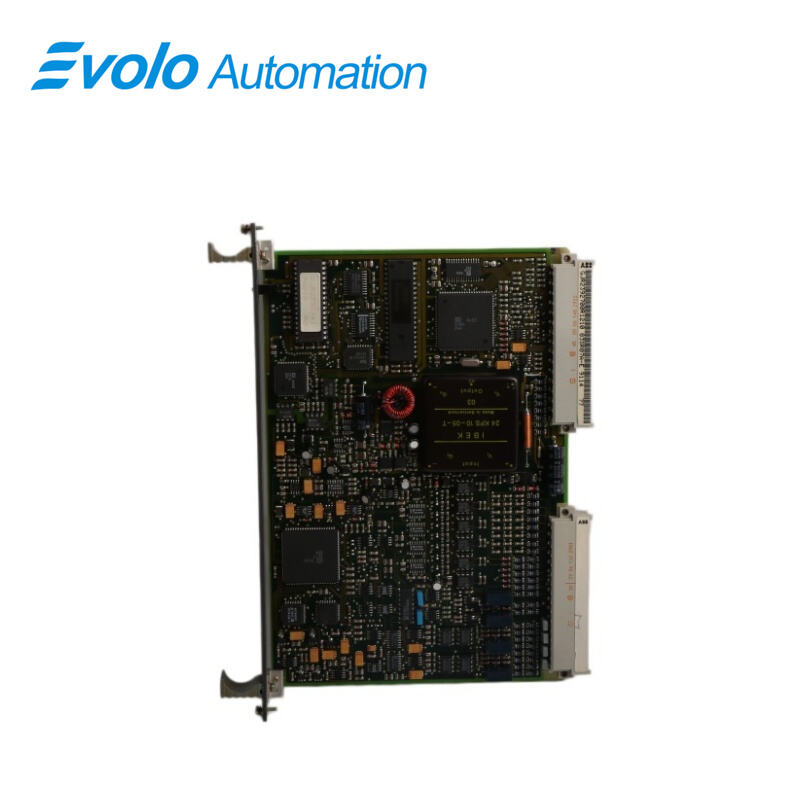

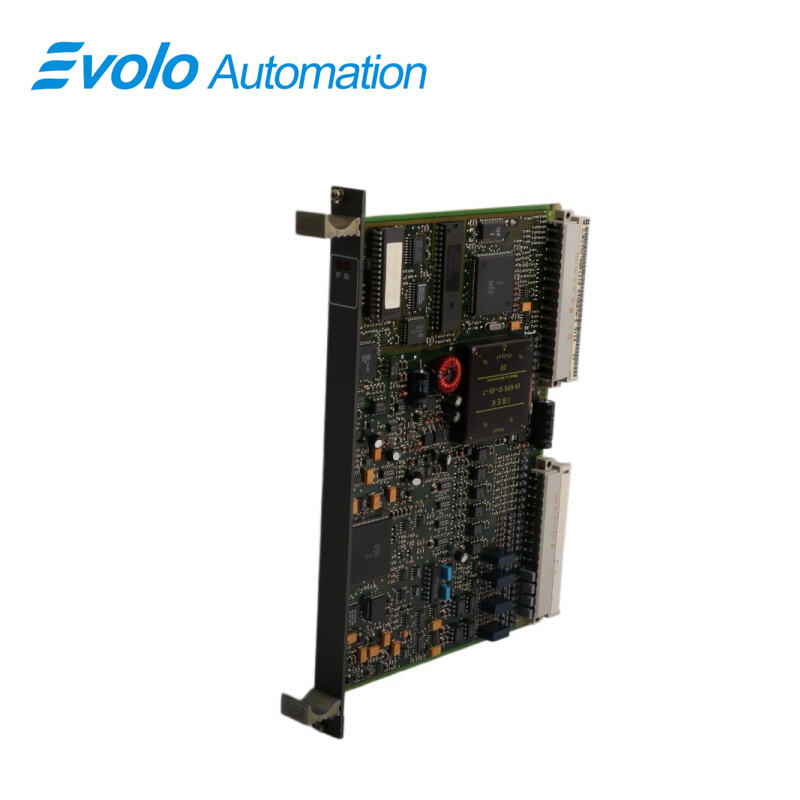

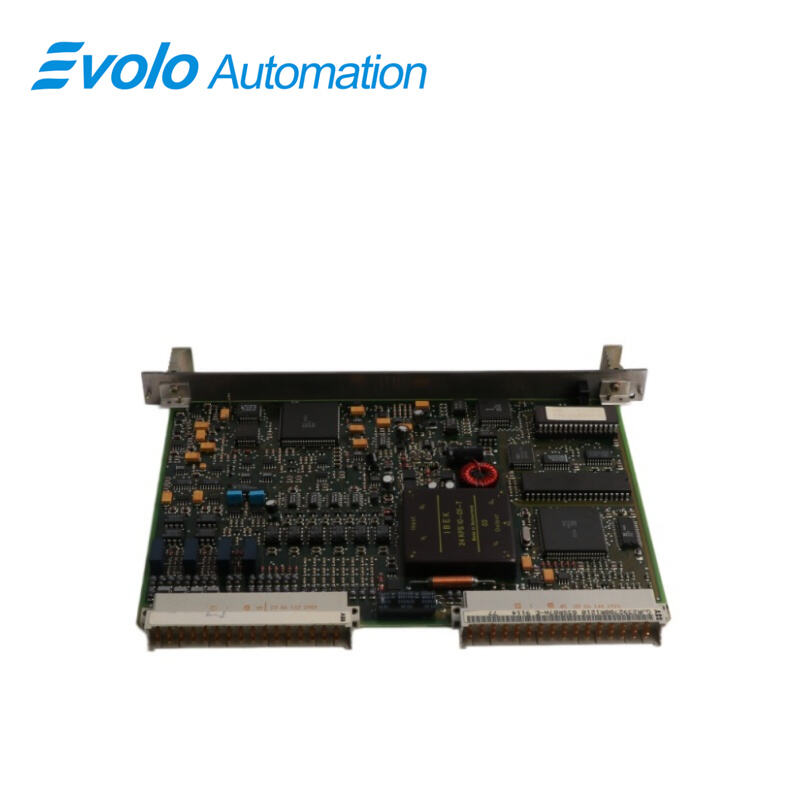

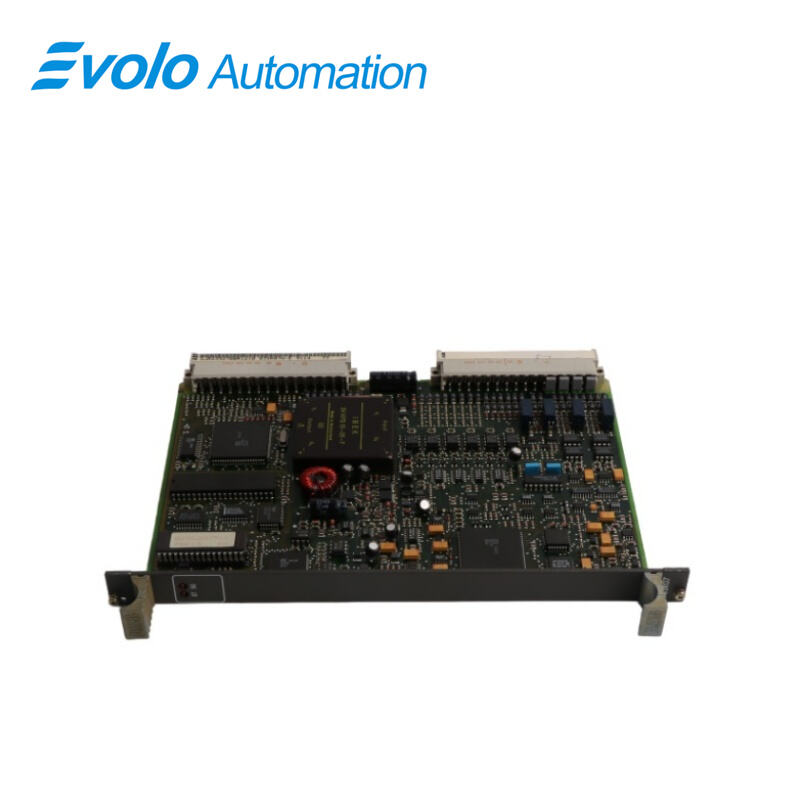

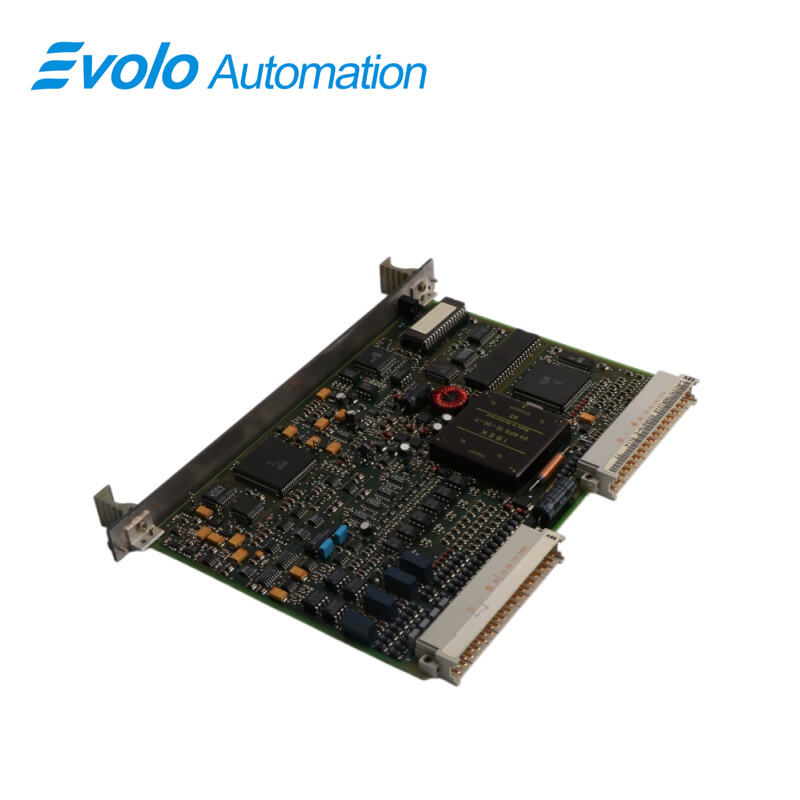

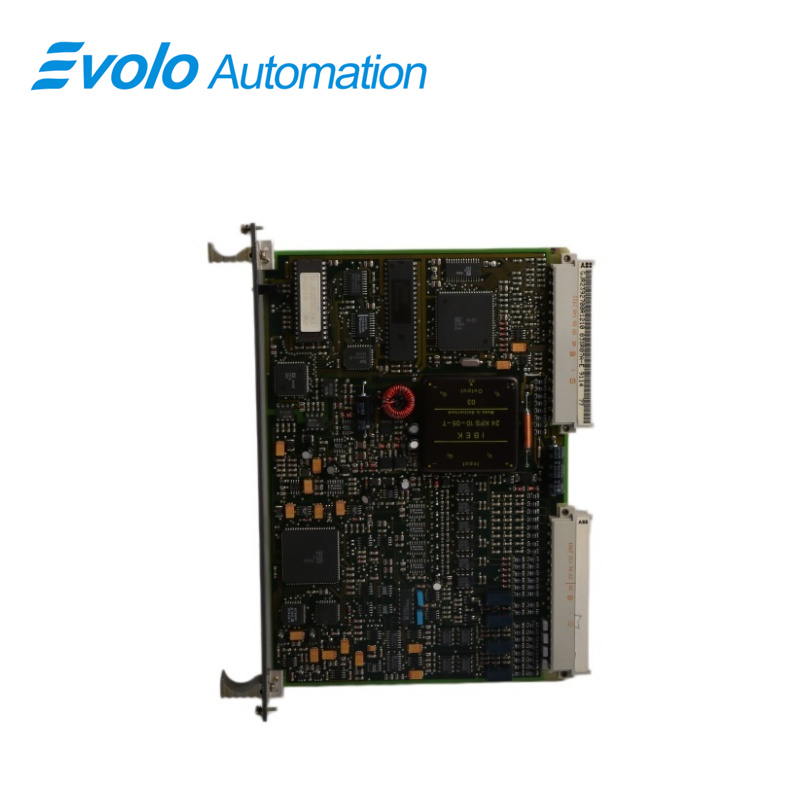

The GJR2392700R1210 is used for stored-program analog control of one or two process variables. It is provided with two continuous outputs for output of the correcting variables. The following types of actuators can be controlled: electrohydraulic actuators, electropneumatic actuators, and electric-motor-powered drives. The drives are positioned either locally at the transducer or in case of electric-motor-powered actuators, in a continuously operating power electronics system. It is also possible to supplement the single variable analog controls by a higher-level master control system. The module is intended for use in connection with the process operator station.
Applications
Power Generation: This is its primary application scenario. It's used for automation control in thermal power plants, gas turbine power plants, and hydroelectric power plants. It can precisely control the actuators of steam turbines and gas turbines, such as electro-hydraulic actuators and electric actuators.
Iron & Steel: Used for automation control in ironmaking and steelmaking processes, as well as solutions for aluminum smelters.
Metal Processing: Responsible for precise analog process variable control in hot and cold rolling production lines.
Packaging & Material Handling: Used for the automated integration of packaging machinery and material handling equipment.
Features
The module address is set automatically by plugging the module into the PROCONTROL station.
The telegrams received via the bus are checked by the module for error-free transfer by means of their parity bits.
The user program is stored in a non-volatile memory (EEPROM). It can be loaded and changed from the PDDS via the bus.
The module is ready for operation as soon as a valid user list is loaded.
For communication with the process and the switchgear, the module requires the following voltage: USA/USB operating voltage +24 V.
Redundancy and Safety
This module supports bumpless transfer in redundant configurations. When paired with a redundancy control module (such as the 88TR01), standby units synchronize with on-line units via synchronizing telegrams to ensure continuous process control in the event of a failure.
