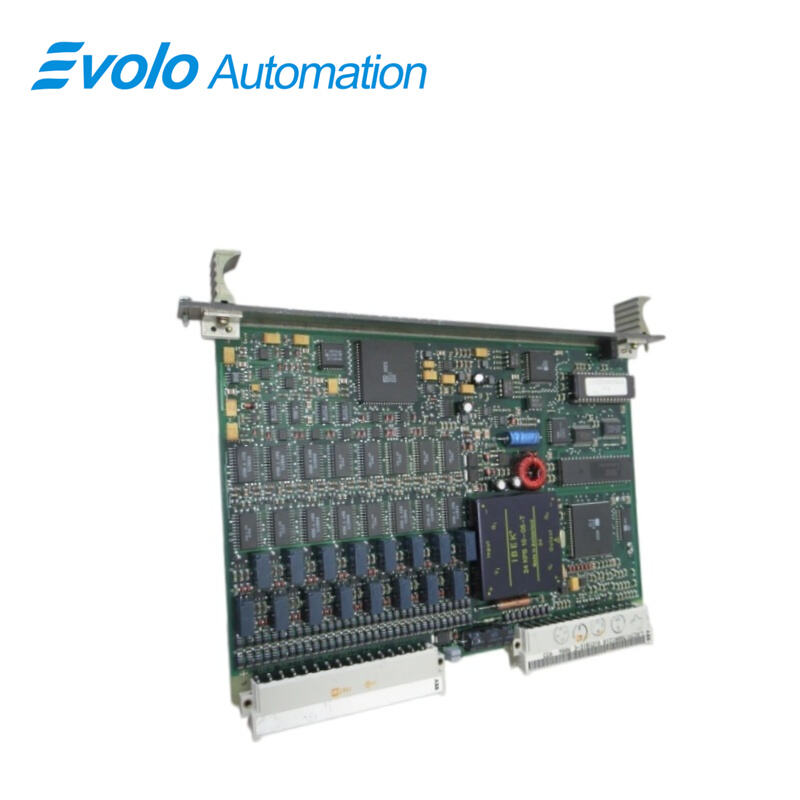

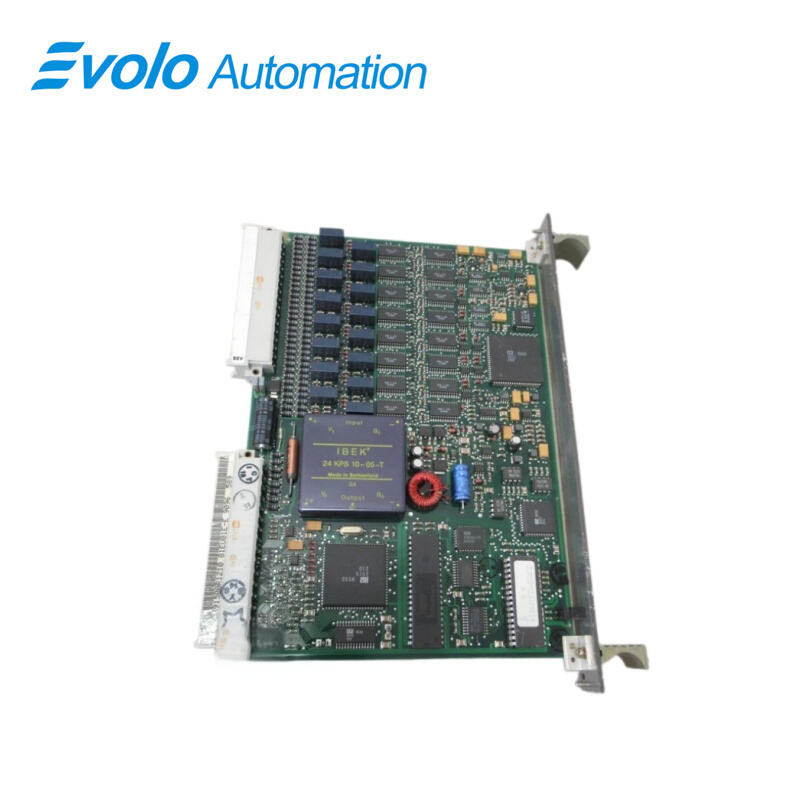

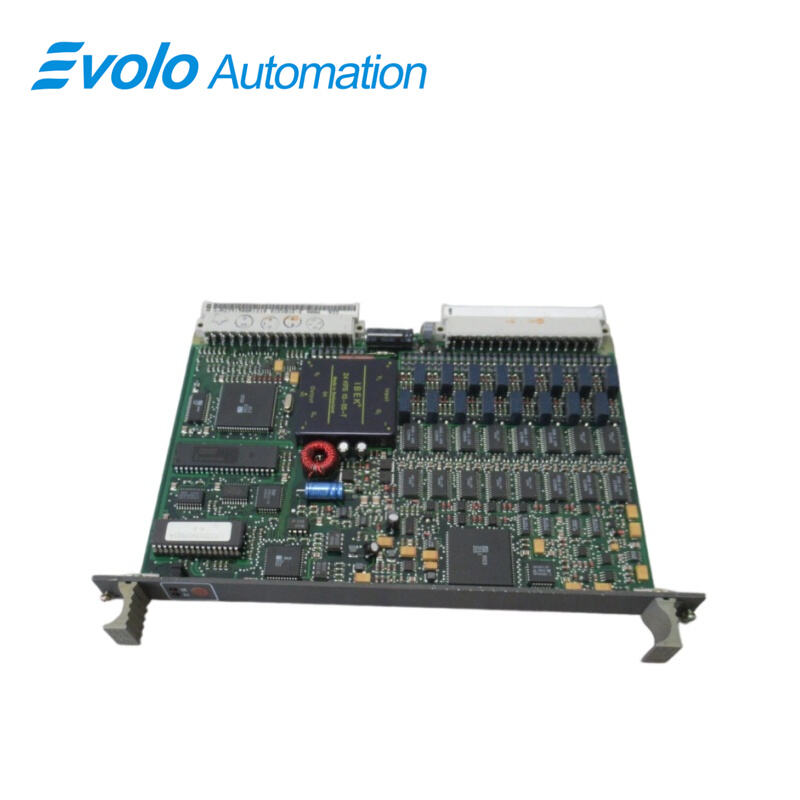

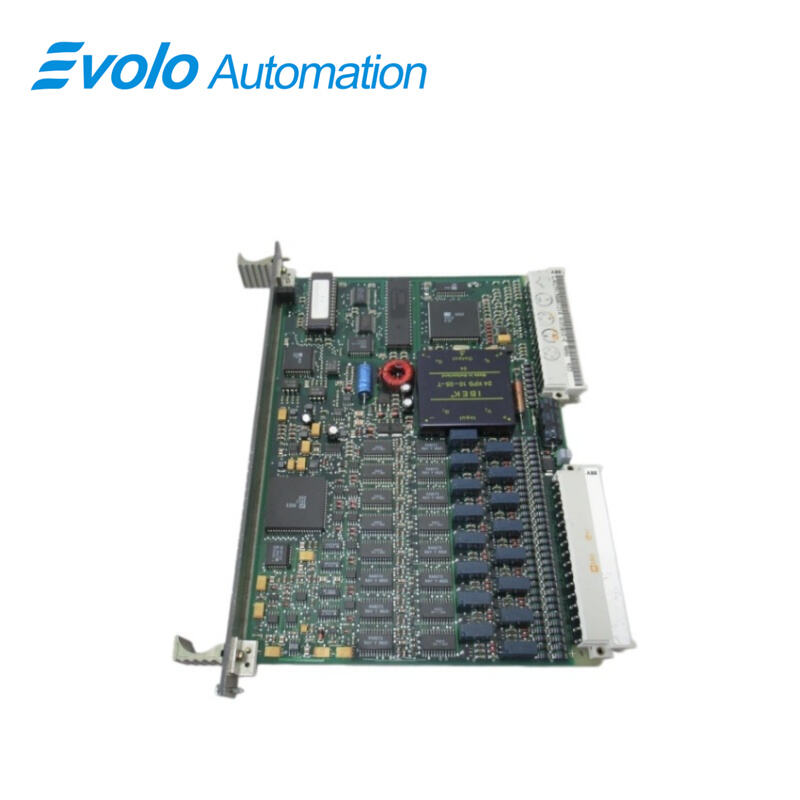

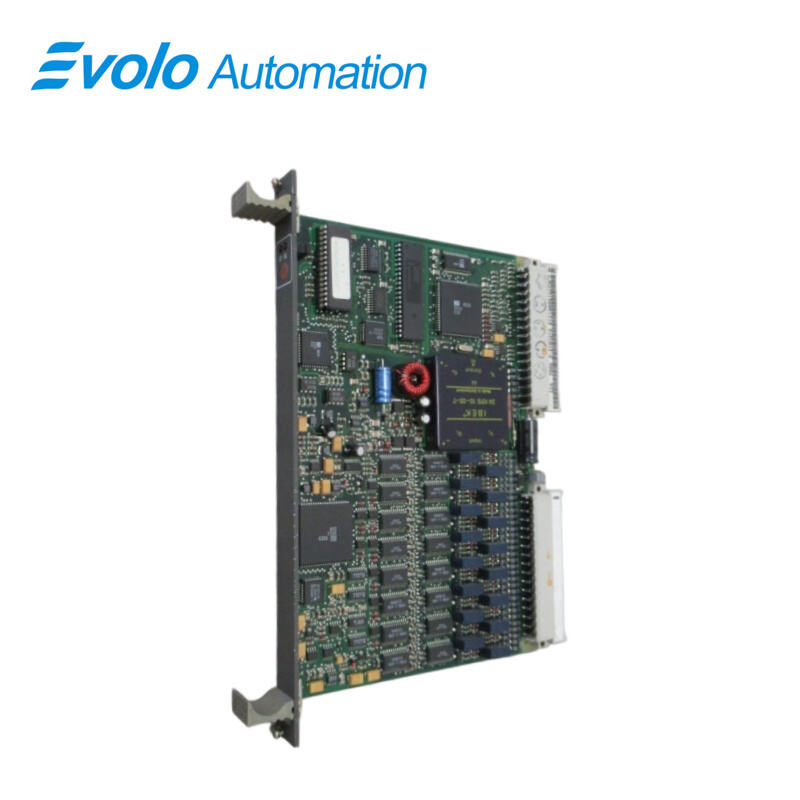

GJR2391500R1210 81EU01H Input Module

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	GJR2391500R1210 81EU01H
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

GJR2391500R1210 81EU01H is part of ABB Procontrol P14 Input Module. It is consists of 16 function units. Each function unit may be used for any type of input mode. Any combination is possible. Parameter allocation and setting is programmed easily via the configuration list. The programmed values are stored in an EEPROM to ensure that they are not lost in the event of power failure. They can be changed any time. Up to four limit values can be allocated to each analog signal. Up to four independent correction and filter calculations can be performed independently on each input module. Programming is done by function block structuring. Observe the boundary conditions for this application. The module can be plugged into any station of the PROCONTROL bus system. It incorporates a standard interface for the PROCONTROL station bus. The module transmits the input signals and/or converted input signals in telegrams via the station bus to the PROCONTROL bus system. Before transmission the telegrams are checked and provided with parity bits. This ensures that the receiving module can check for fault-free transmission. The module checks the telegrams received over the station bus, e.g. those intended for corrective calculations, by their parity bits for fault-free transmission.

Features

The module can be plugged into any station of the PROCONTROL bus system. It incorporates a standard interface for the PROCONTROL station bus.

The module transmits the input signals and/or converted input signals in telegrams via the station bus to the PROCONTROL bus system. Before transmission the telegrams are checked and provided with parity bits. This ensures that the receiving module can check for fault-free transmission.

The module checks the telegrams received over the station bus, e.g. those intended for corrective calculations, by their parity bits for fault-free transmission.

Provision is made to eliminate interference among the function units of the module and the station bus.

A short-circuit-proof and monitored transmitter power source is available for each function unit, suitable for the various applications.

In case the internal monitoring circuits or the input signal monitor respond, disturbance annunciation ST (general disturbance) will be indicated on the front panel of the module.

Response of the internal monitoring circuits is indicated as disturbance annunciation SG (module disturbance) on the front panel of the module.

Specifications

Procurement and Maintenance Information

Compatibility : This module can be inserted into any station slot of the Procontrol bus system and is compatible with the Master software environment of the Advant OCS system.

Spare Parts Status : Since the Procontrol P14 system is decades old, this module is primarily used as a maintenance spare part for older power plant systems. Suppliers such as PLC Masters and Moore Automation typically provide new or refurbished spare parts with a 12-month warranty.

Common variants : In addition to the 81EU01H , the series also includes versions such as 81EU01E , 81EU01F and 81EU01G . They are highly similar in function, but may differ in firmware version or specific signal linearization processing.

FAQ

What is the ABB GJR2391500R1210 81EU01H?

It is a Input Module.

Is this product brand new?

Yes, ABB GJR2391500R1210 81EU01H is brand new, original, unused, and factory sealed

Do you have it in stock?

Yes, right now we have GJR2391500R1210 81EU01H in stock ready for shipment, we can support video inspection.

Why can't I see a price for this GJR2391500R1210 81EU01H?

In addition to "new original" " units.

we also specialize in the selling "discontinued" and hard to find industrial automation parts which tend to have a fluctuating market value. These fluctuations may make it difficult for us to provide accurate daily prices for parts on our website. Therefore, in an effort to ensure that we always provide you with the best and most accurate price available, our team will source and price your part on an enquiry-by-enquiry basis.

Do you provide warranty as standard?

We provide a full 12-month warranty for the GJR2391500R1210 81EU01H. So, if you have any problems within 12 months from the date of delivery, then you can contact our Team who will be happy to help and explain what your next steps should be.
