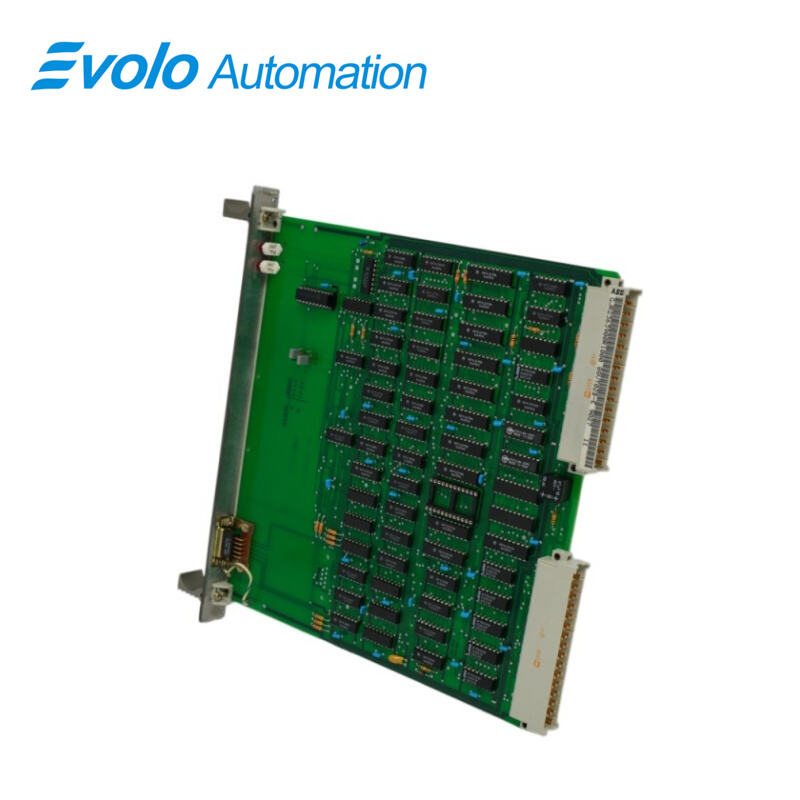

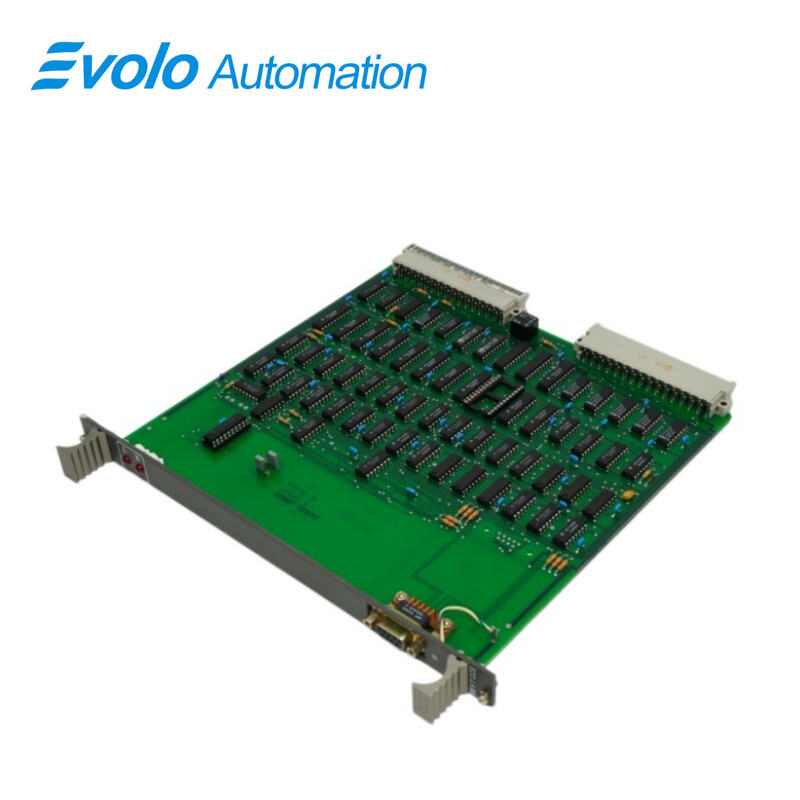

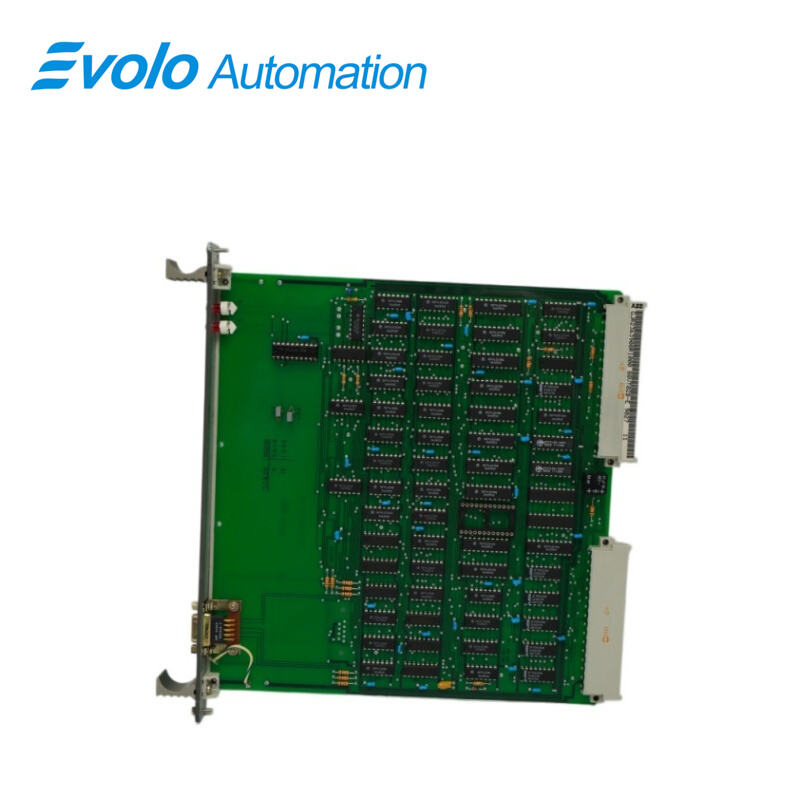

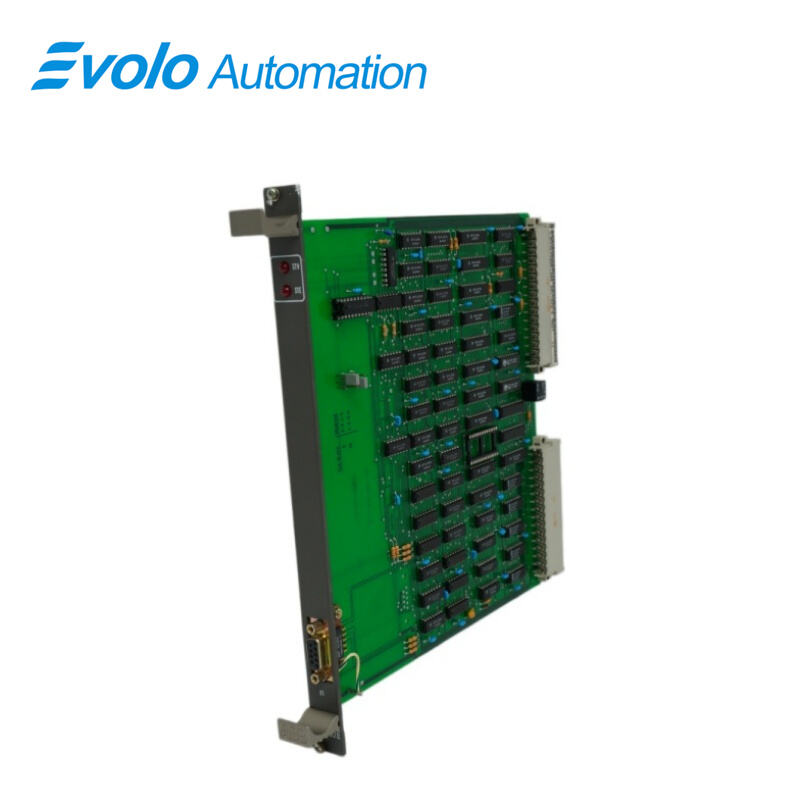

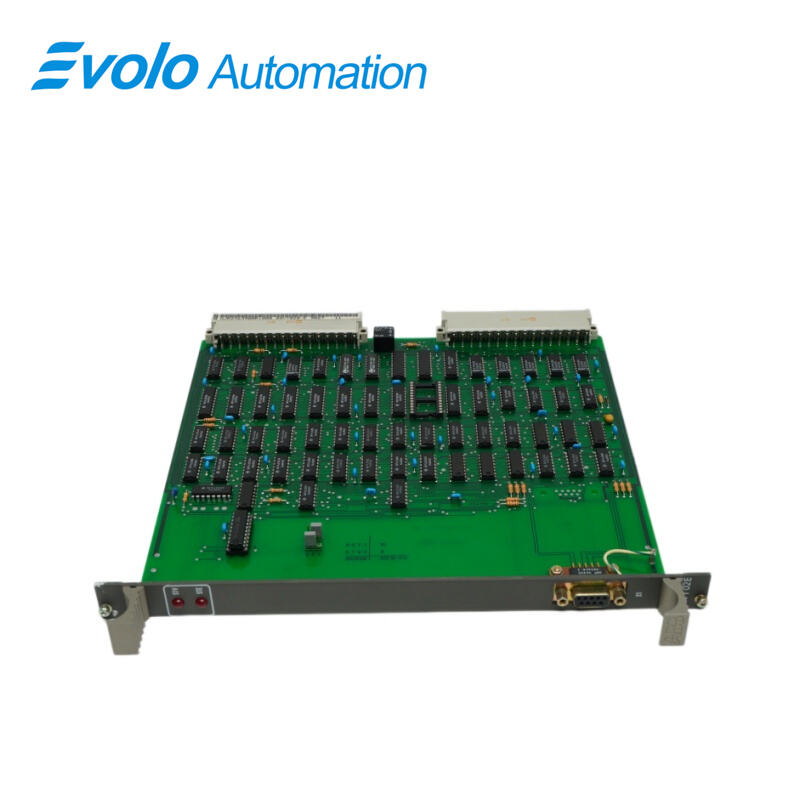

GJR2363900R1000 88VT02A-E Control Board

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	GJR2363900R1000 88VT02A-E
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The ABB GJR2363900R1000 88VT02A-E Control Board is designed for precise digital and analog signal control in industrial automation. Operating at 24 V DC logic supply with 180 mA module current, the GJR2363900R1000 88VT02A-E supports 14bit resolution and 500 V DC channel-to-bus isolation. Its analog outputs (4–20 mA or 0–10 V) interface with sensors and actuators, while fast logic and dual cooling allow operation in −25 °C to +70 °C environments. Compatible with ABB Procontrol P14 and AC 800M systems, it handles power up to 1600 kW, voltage 380–690 VAC, and current up to 3100 A.

Applications

Thermal Power Plants:

Boiler Feedwater System: Monitors signals from pressure, flow, and level transmitters.

Superheaters and Reheaters: Process signals from critical pressure measurement points in high-temperature environments.

Nuclear Power Stations: Used for automated monitoring of the conventional island (non-reactor area), such as instrumentation integration for turbine units and auxiliary cooling water systems.

Combined Cycle Power Plants: Monitors complex thermodynamic cycle parameters between gas turbines and waste heat boilers.

Large Petrochemical Plants: Used for signal collection and distribution outside flammable and explosive areas, bringing field two-wire transmitter signals to the central control room.

Hydraulic Engineering Hubs and Large Pumping Stations: Monitors sensor feedback for gate opening, water pressure, and bearing lubrication systems.

Specifications

Competitive Advantage

Competitive Advantage Fast Logic Response
With 14-bit resolution and real-time monitoring, the GJR2363900R1000 88VT02A-E reacts quickly to input changes, enabling precise control for high-speed industrial processes.

Competitive Advantage Wide Temperature Operation
The ABB GJR2363900R1000 88VT02A-E functions reliably from −25 °C to +70 °C, supporting harsh industrial environments without additional cooling requirements.

Competitive Advantage Built-in Diagnostics and Protection
The ABB GJR2363900R1000 88VT02A-E provides LED fault indication, overvoltage protection, and EMI shielding, allowing operators to detect issues quickly and maintain continuous operation.

Features

System Integration: It is fully compatible with the ABB AC 800M high-integrity control system and S800 I/O series PLC platforms.

HART Compatibility: The module is designed to distribute supply to external HART compatible transmitters, supporting both 2-wire and 3-wire configurations.

Protection Mechanisms: It includes built-in electromagnetic shielding and overvoltage protection to maintain stability in high-interference industrial environments.

Diagnostics: Features real-time status monitoring and LED fault indication to assist in rapid troubleshooting and minimize downtime
