Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
FC-FE-USI-0002 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
FC-FE-USI-0002 |
|
Product Type: |
Universal Safety Interface Module |
|
Dimensions: |
22.5 × 3.5 × 17.5 cm |
|
Weight: |
0.68 kg |
|
Input/Output: |
Up to 16 inputs and 16 outputs |
|
Power Supply: |
5 VDC, 1.2 A |
|
Input Voltage: |
24 VDC |
|
Current Rating per Channel: |
2 A |
|
Operating Temperature Range: |
-20°C to +60°C |
|
Protection Level: |
IP66 |
Description

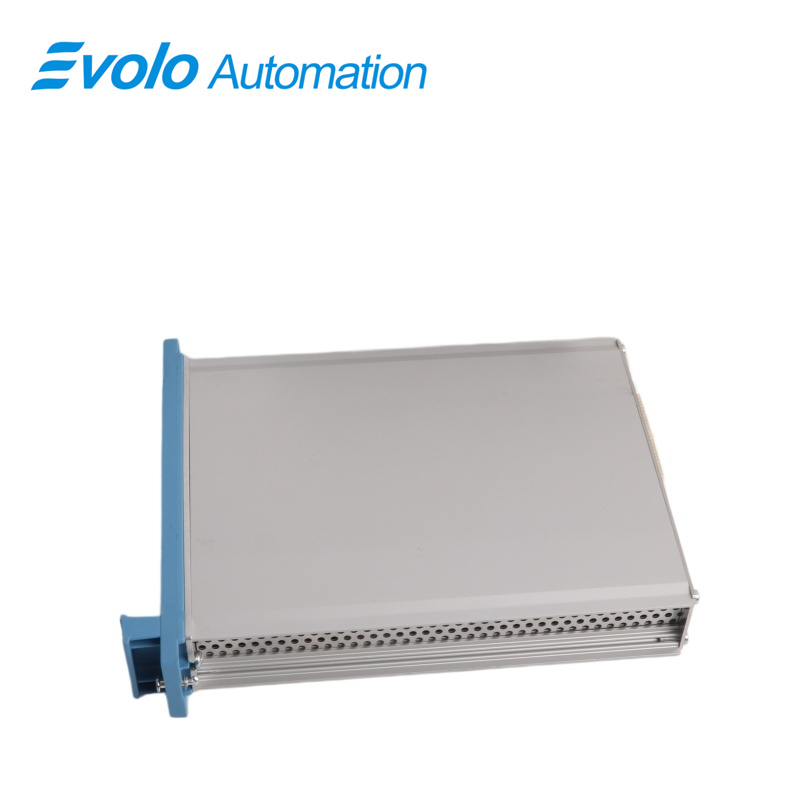

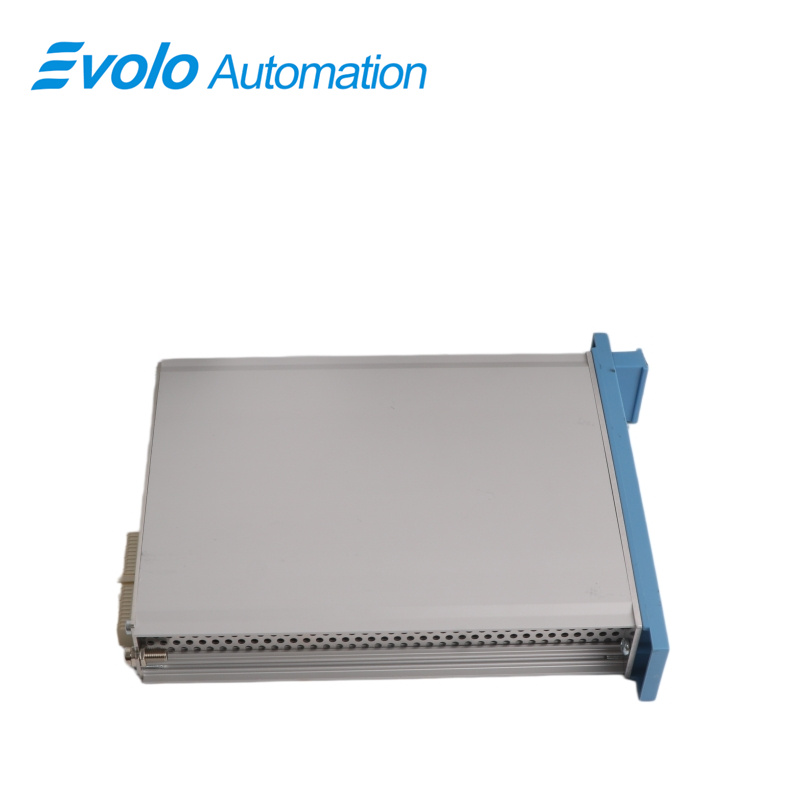

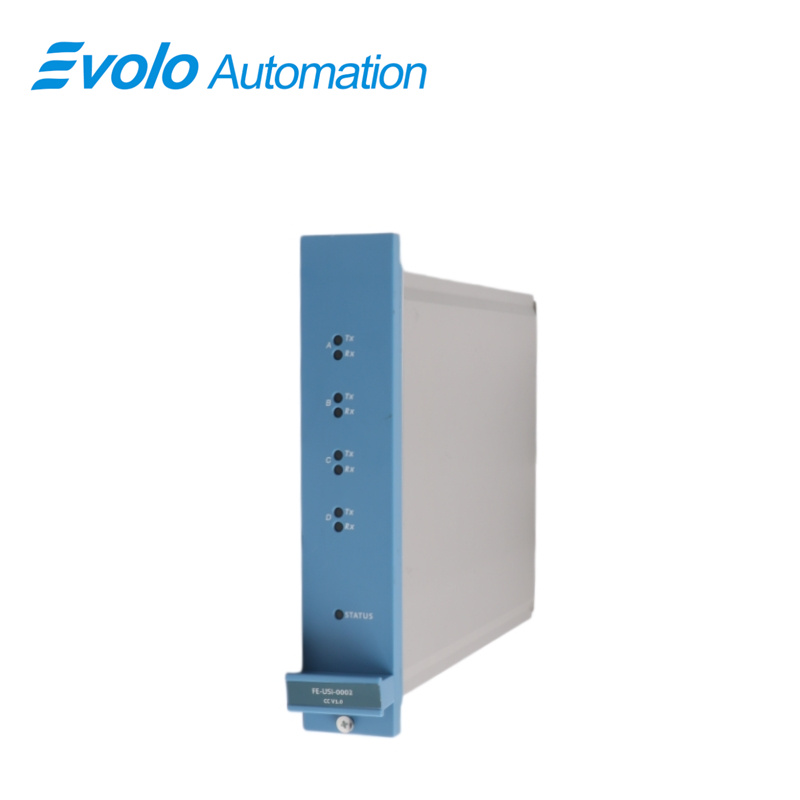

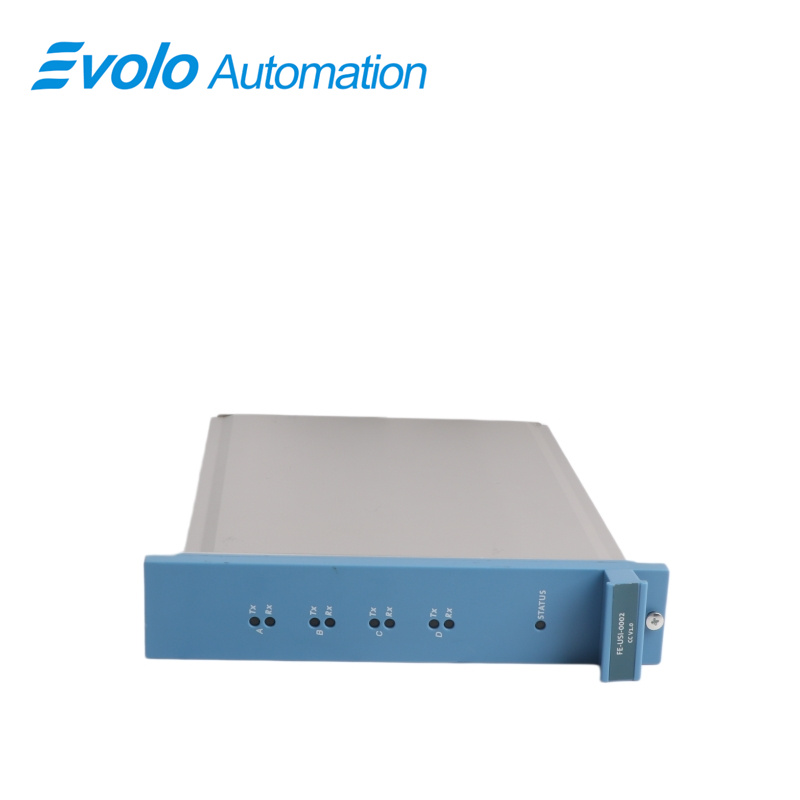

The FC-FE-USI-0002 is a Universal Safety Interface Module. It primarily handles Ethernet and network serial communication between the central control unit and external machines. It converts and distributes communication data between the two sides, conveying on-site safety instructions and operational status to the computer screen. Upon power-up, it automatically performs basic checks on its own memory and computing chips.
Applications
Fine chemical plants: Used in interlock systems for reactors to directly drive safety shutdown valves preventing runaway reactions.
Offshore gas fields: Installed in outdoor cabinets with strong protection against moisture and salt corrosion ensuring stable wellhead monitoring.
Cross-border crude pipelines: Applied in pumping stations for multi-channel signal collection and safety relief valve interlocking control.
Coal gasification power plants: Operate in high-temperature dusty environments ensuring stable transmission of critical equipment signals.
Metallurgical blast furnace plants: Integrated into cooling and emergency discharge systems ensuring fast response under heavy interference conditions.
Features
FAQ
Q: What is the maximum number of input and output channels of the FC-FE-USI-0002?
A: Up to 16 inputs and 16 outputs.
Q: What is the protection rating of the FC-FE-USI-0002?
A: IP66.
Q: What is the rated current per channel of the FC-FE-USI-0002?
A: 2 A.
Q: What are the power supply specifications of the FC-FE-USI-0002?
A: 5 VDC, 1.2 A.
Q: What is the operating temperature range of the FC-FE-USI-0002?
A: -20°C to +60°C.
