Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
F31X134EPRBEG1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
F31X134EPRBEG1 |
|
Part name |
Processor Interface Card |
|
Weight |
0.1 kg |
|
Dimensions |
2.5 × 10.8 × 12.7 cm |
|
Operating temperature |
-40°C to +85°C |
|
Protection rating |
IP20 |
|
Capacitor count |
118 |
|
Communication protocols |
Profibus-DP, Modbus TCP/IP |
|
Cable connectors |
3× male vertical pin cable connectors |
|
Header connector |
1× male vertical pin header connector |
|
Switch component |
1 |
|
Toggle switches |
7 individually numbered toggles |
|
Terminal strip |
3-screw terminal strip |
|
Mounting type |
DIN rail mounting supported |
Description

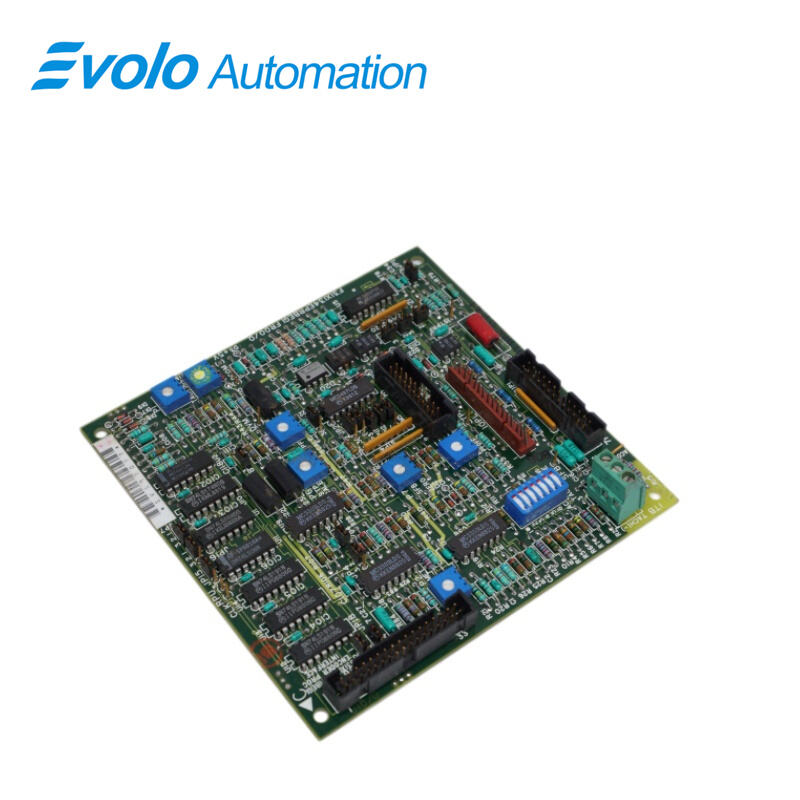

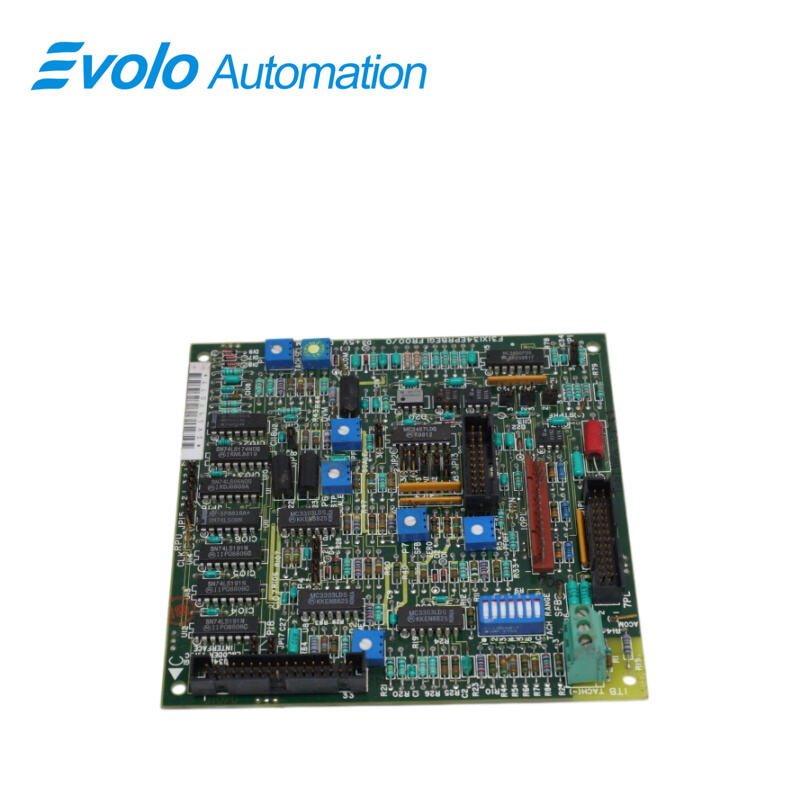

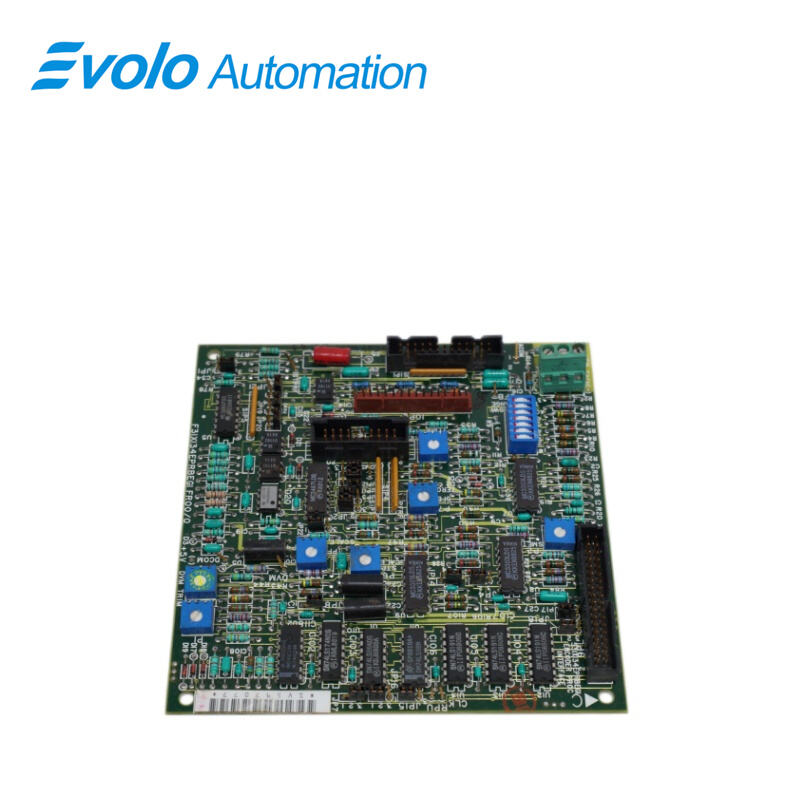

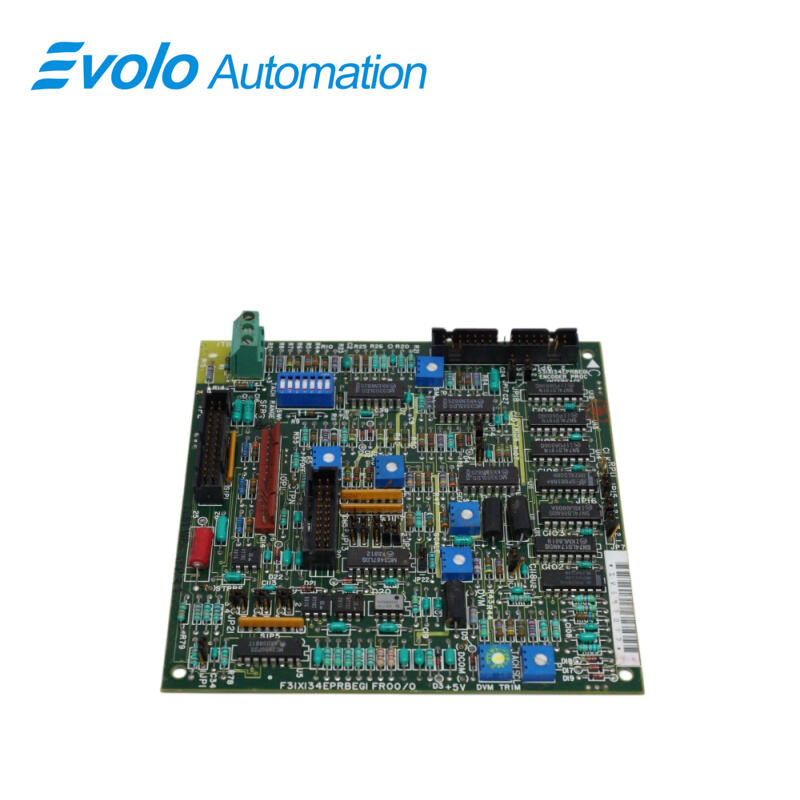

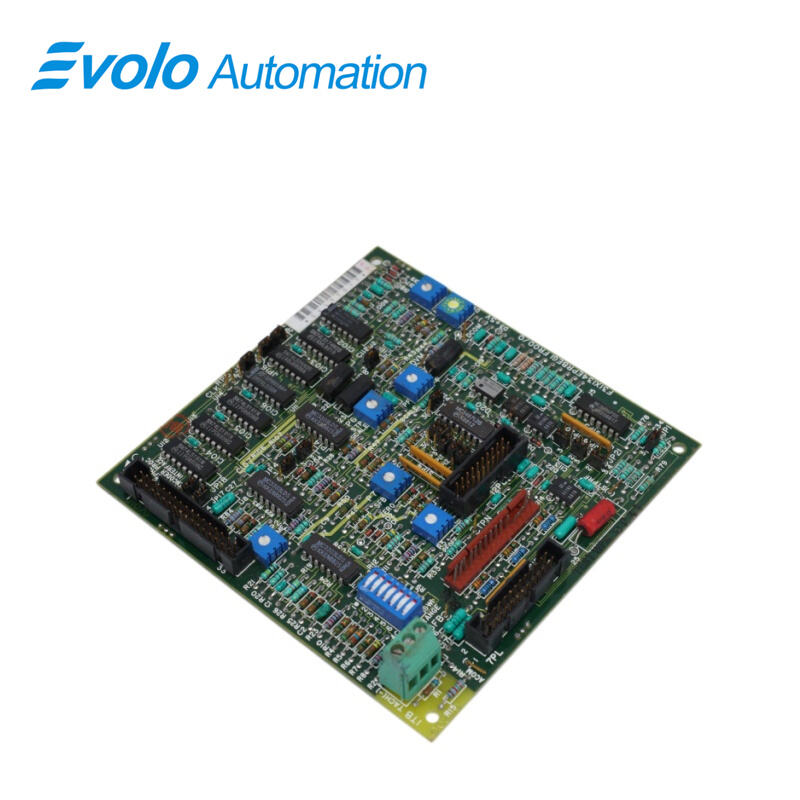

The GE F31X134EPRBEG1 Processor Interface Card is an advanced industrial control system component designed for seamless integration into various drive systems. Its versatile design enables compatibility across multiple platforms, including the DC-300 series, enhancing operational flexibility and efficiency.
Applications
Precision Electronics Plants: Enable multi-brand system communication and data synchronization on production lines.
Wind Power Plants: Installed in tower base control boxes to withstand harsh outdoor environments.
Automotive Powertrain Plants: Aggregate and transmit sensor data from engine assembly lines.
Pharmaceutical Packaging Plants: Provide compact signal processing in space-limited control cabinets.
Paper & Fiber Plants: Ensure stable interfacing between processors and I/O under harsh conditions.
Maintenance and Troubleshooting
Troubleshooting: In case of packet loss, first check if the status bits of the DIP switch component are consistent with the system software configuration. For intermittent logic errors, check if the shielding layer at the three-position terminal strip is grounded according to specifications.
Maintenance Recommendations: It is recommended to check the tightness of the pin connectors every six months to prevent increased contact resistance due to long-term micro-vibrations. Due to the fineness of the onboard components, always use dedicated anti-static compressed air for cleaning and avoid manually touching the capacitor array.
FAQ
Q: How does the F31X134EPRBEG1 maintain processor signal stability in harsh industrial environments?
A: It uses a precision voltage regulator with 118 capacitors to filter transient noise and ensure clean processor signal transmission.
Q: What are the communication compatibility advantages of the F31X134EPRBEG1?
A: It supports Profibus-DP and Modbus TCP/IP, enabling flexible integration into different industrial networks.
Q: How does the F31X134EPRBEG1 DIP switch design help in field debugging?
A: Seven onboard DIP switches allow quick hardware-level configuration of station address and operating mode without software tools.
Q: How does the F31X134EPRBEG1 perform under extreme temperature conditions?
A: It supports stable full-load operation from -40℃ to 85℃, ensuring reliable control logic in harsh environments.
Q: How does the F31X134EPRBEG1 interface design improve cabling efficiency?
A: Its multi-directional connector layout enables flexible wiring and improves installation efficiency in compact control cabinets.
