1X00884H01 32-Channel PMOD Cavity Insert

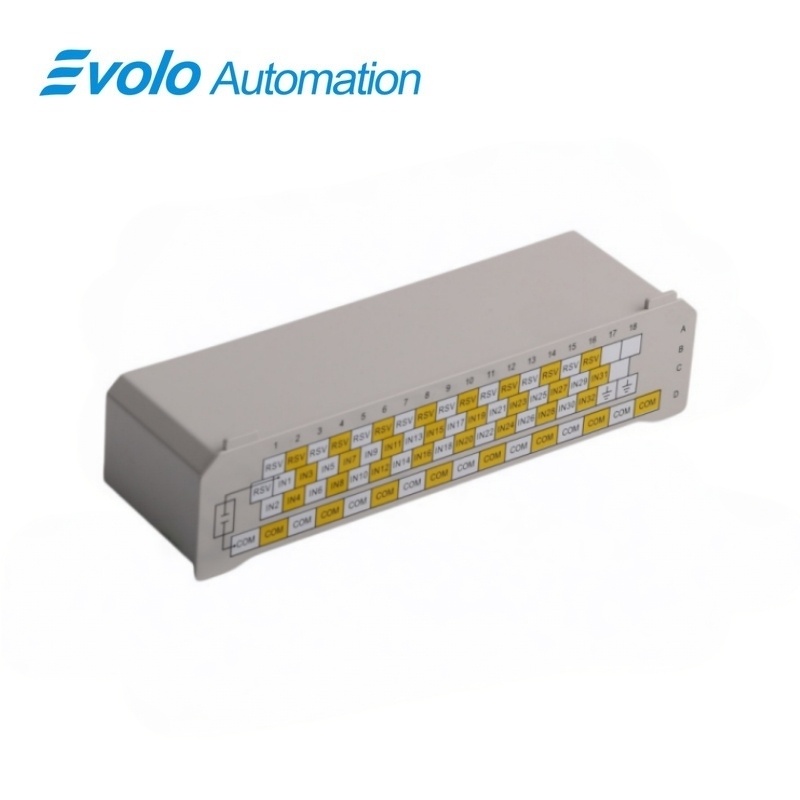

Emerson officially identifies 1X00884H01 as a PMOD cavity insert for 32-channel events input/contact input. The photographed terminal diagram shows IN1 through IN32 and common references for model verification.
At a Glance
| Brand | Emerson Ovation |
|---|---|
| Model | 1X00884H01 |
| Product Type | 32-channel events/contact-input PMOD cavity insert |
| Core Function | Provides the labeled IN1-IN32 input interface |
| Application / Compatible Series | Ovation 32-channel events/contact-input PMOD assemblies |
32-Channel Identity
The official item name and visible diagram both distinguish the 32-channel input arrangement.
Events / Contact Input
Supports the physical PMOD interface for the specified events-input/contact-input configuration.
Terminal Map Check
Compare channel numbering, common positions and connector orientation before installation.
Product Overview
The official Emerson spare-parts description for 1X00884H01 is PMOD cavity insert, events input/contact input, 32-channel. The product image supports identification through the molded Ovation/Emerson branding and 32-input terminal diagram.
This listing is for the cavity insert identified by that part number. Do not assume that a complete input electronics module, terminal block or cable is included unless the quotation states it.
Key Functions
32-Point Reference
Provides a labeled physical interface for the 32-channel events/contact-input arrangement.
Channel Orientation
The IN1-IN32 and common markings help maintain the intended channel positions during replacement.
PMOD Mechanical Fit
Matches only the compatible PMOD cavity and mating hardware confirmed for the installed system.
Official Specifications
| Manufacturer | Emerson |
|---|---|
| System Family | Ovation |
| Part Number | 1X00884H01 |
| Official Description | PMOD cavity insert, events input / contact input, 32 channel |
| Component Type | PMOD cavity insert |
| Signal Application | Events input |
| Input Type | Contact input |
| Input Channel Count | 32 |
| Channel Numbering | Sequential, 1 through 32 |
| Channel Marking Range | IN1–IN32 |
| Common Marking | Common positions identified |
| Terminal Layout | 32 labeled input positions plus common positions |
| Mechanical Interface | PMOD cavity interface |
| Module Role | Cavity insert for a 32-channel events/contact-input assembly |
Official source: Emerson Ovation spare-parts documentation and the product terminal markings.
Frequently Asked Questions
How should the channel map be documented before replacing 1X00884H01?
Record every IN1-IN32 conductor and common position, then compare the field wiring with the terminal diagram before removal.
Which PMOD details determine compatibility for 1X00884H01?
Match the complete assembly number, hardware revision, keyed cavity, connector orientation, channel numbering and common arrangement.
Does 1X00884H01 include the complete input electronics module?
The verified description identifies a cavity insert; confirm any required mating PMOD hardware separately in the quotation.
What installation precaution is most important for 1X00884H01?
De-energize the system and align the keyed insert without force so the cavity and connector surfaces are not damaged.
How can an engineer verify 1X00884H01 after installation?
Confirm that all 32 channel positions and common references match the recorded wiring, then perform the approved system checks.
What application is specified for 1X00884H01?
It is used as the physical insert for a compatible 32-channel Ovation events-input/contact-input PMOD configuration.
What information should accompany a replacement request for 1X00884H01?
Provide the installed PMOD assembly number, revision, terminal diagram and clear photos of the insert and surrounding hardware.
Compatibility & Ordering Notes
Compatibility Checklist
- Match the exact 1X00884H01 marking and hardware revision.
- Verify the installed application is the 32-channel events/contact-input arrangement.
- Compare IN1-IN32, common positions, keyed cavity and connector direction.
- State whether the requirement is the insert only or includes mating PMOD hardware.
