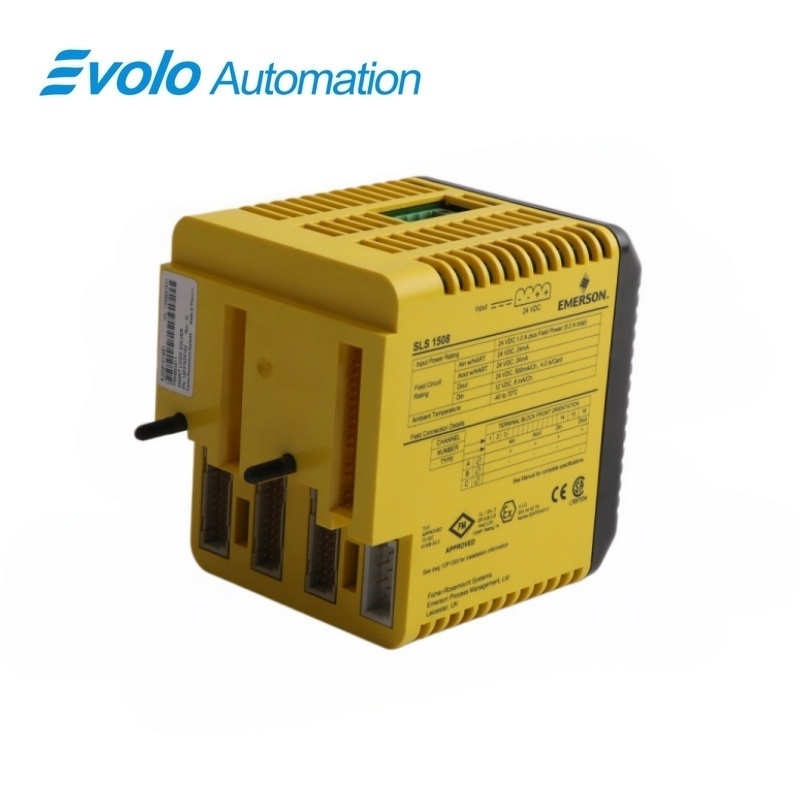

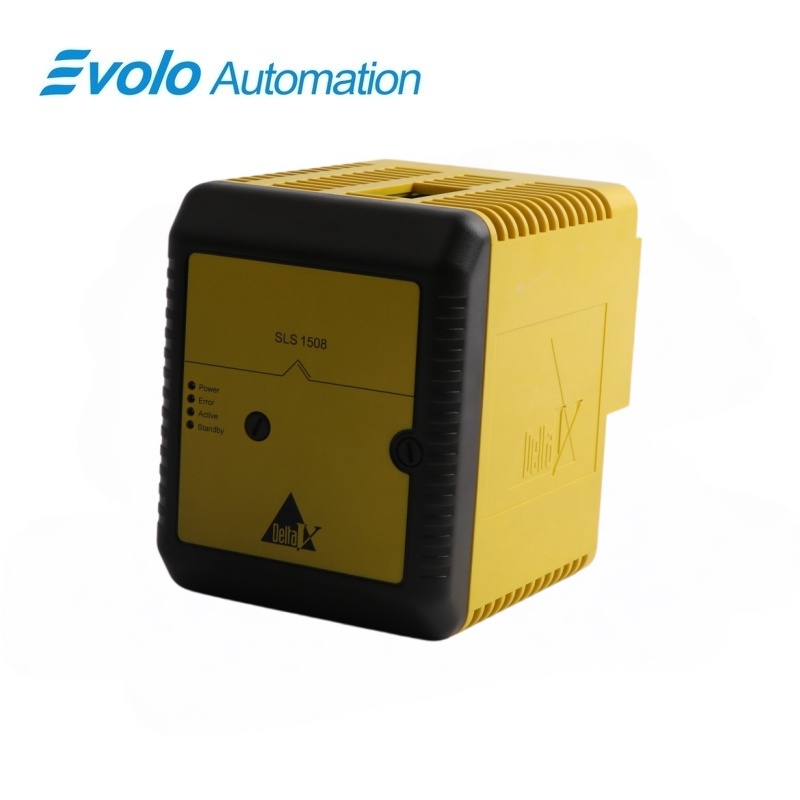

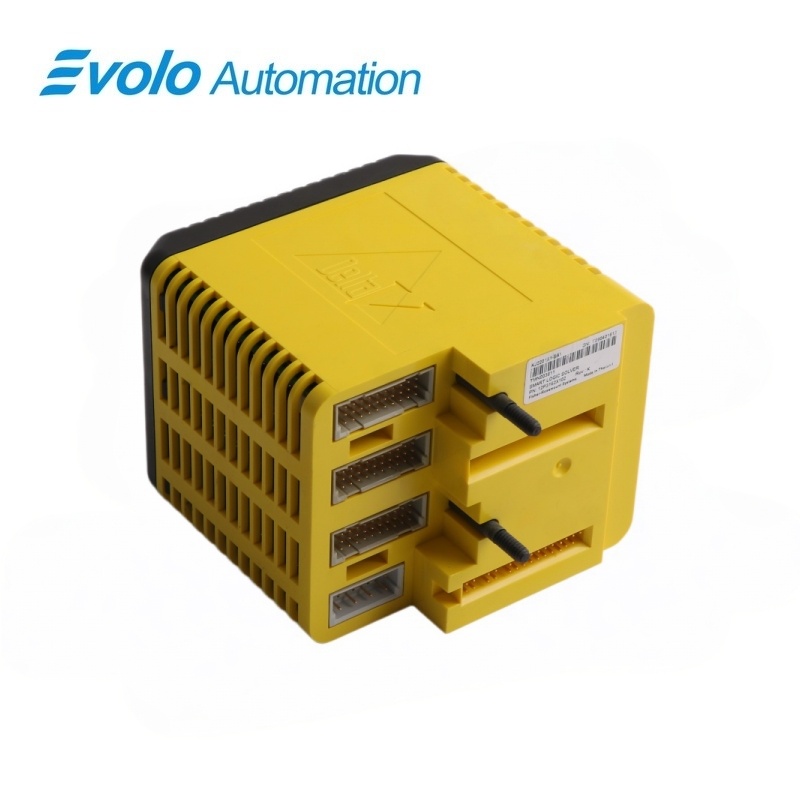

Emerson KJ2201X1-BA1 12P3162X102 SLS1508 SIS Logic Solver
Manufacturer: Emerson
Condition: Brand New
Lead Time: In Stock
Origin: United States
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
KJ2201X1-BA1 12P3162X102 SLS1508 SIS Logic Solver
Official-source product identification, application guidance and ordering checks for KJ2201X1-BA1 12P3162X102 SLS1508.
At a Glance
| Brand | Emerson |
|---|---|
| Model | KJ2201X1-BA1 12P3162X102 SLS1508 |
| Product Type | SIS Logic Solver |
| Core Function | Safety instrumented functions using configurable safety I/O. |
| Application / Compatible Series | DeltaV SIS |
Verified identification
KJ2201X1-BA1 12P3162X102 SLS1508 is identified by the complete manufacturer model and the photographed unit.
Application focus
KJ2201X1-BA1 12P3162X102 SLS1508 is intended for safety instrumented functions using configurable safety I/O.
Ordering control
KJ2201X1-BA1 12P3162X102 SLS1508 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
Emerson KJ2201X1-BA1 12P3162X102 SLS1508 is an SLS 1508 logic solver for DeltaV SIS, carrying the specific 12P3162X102 hardware identification. Safe replacement requires both system and field-power controls.
Emerson instructs users to remove field power before connecting or disconnecting the unit. Energized insertion or removal is not permitted unless the area is confirmed non-hazardous.
Key Functions
Safety application processing
The SLS executes the downloaded safety strategy and communicates its state to the DeltaV SIS environment.
Configurable safety I/O
Channels are assigned through the engineered SIS configuration rather than by the module nameplate alone.
Protected service sequence
Power and hazardous-area restrictions define how the hardware may be connected, removed and returned to service.
Official Specifications
| Safety I/O | 16 configurable channels |
|---|---|
| Supported modes | DI, DO, HART analog input or HART two-state output |
| Architecture | Redundant deployment for SIL 3 functions |
| Safety application processing | The SLS executes the downloaded safety strategy and communicates its state to the DeltaV SIS environment. |
| Configurable safety I/O | Channels are assigned through the engineered SIS configuration rather than by the module nameplate alone. |
| Protected service sequence | Power and hazardous-area restrictions define how the hardware may be connected, removed and returned to service. |
| Safety Integrity Level | SIL 3 |
| Redundancy Mode | Redundant |
| Redundancy Mode 2 | Simplex |
| Supported Mode 1 | DI |
| Supported Mode 2 | DO |
| Supported Mode 3 | HART analog input |
| Supported Mode 4 | HART two-state output |
| HART Support | Supported |
| Compatible Logic Solver | SLS 1508 |
Source scope: Technical statements below are limited to Emerson DeltaV SIS SLS1508 Product Data Sheet. Commercial availability, condition and warranty are seller terms.
Frequently Asked Questions
Where does KJ2201X1-BA1 12P3162X102 SLS1508 fit within a DeltaV SIS architecture?
It is intended for DeltaV SIS.
What customer application is addressed by the KJ2201X1-BA1 12P3162X102 SLS1508 SIS Logic Solver?
Safety instrumented functions using configurable safety I/O.
What rack, terminal and field-wiring checks are required before installing KJ2201X1-BA1 12P3162X102 SLS1508?
Confirm the specified code and revision the specified code. Identify simplex or redundant terminal hardware before removal.
Why is safety application processing important when integrating KJ2201X1-BA1 12P3162X102 SLS1508?
The SLS executes the downloaded safety strategy and communicates its state to the DeltaV SIS environment.
What documented configurable safety I/O limits apply to KJ2201X1-BA1 12P3162X102 SLS1508?
Channels are assigned through the engineered SIS configuration rather than by the module nameplate alone.
How should protected service sequence be checked during maintenance of KJ2201X1-BA1 12P3162X102 SLS1508?
Power and hazardous-area restrictions define how the hardware may be connected, removed and returned to service.
Which configuration and hardware revision checks are required when ordering KJ2201X1-BA1 12P3162X102 SLS1508?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for KJ2201X1-BA1 12P3162X102 SLS1508
- Confirm KJ2201X1-BA1 and revision 12P3162X102.
- Identify simplex or redundant terminal hardware before removal.
- Isolate field power and observe hazardous-area restrictions.
- Complete post-installation diagnostics and functional testing.
