Emerson 1X01046H01L Sola 24VDC 10A DIN-Rail Power Supply
Manufacturer: Emerson (Sola)
Condition: Brand New
Lead Time: In Stock
Origin: Philippines
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview

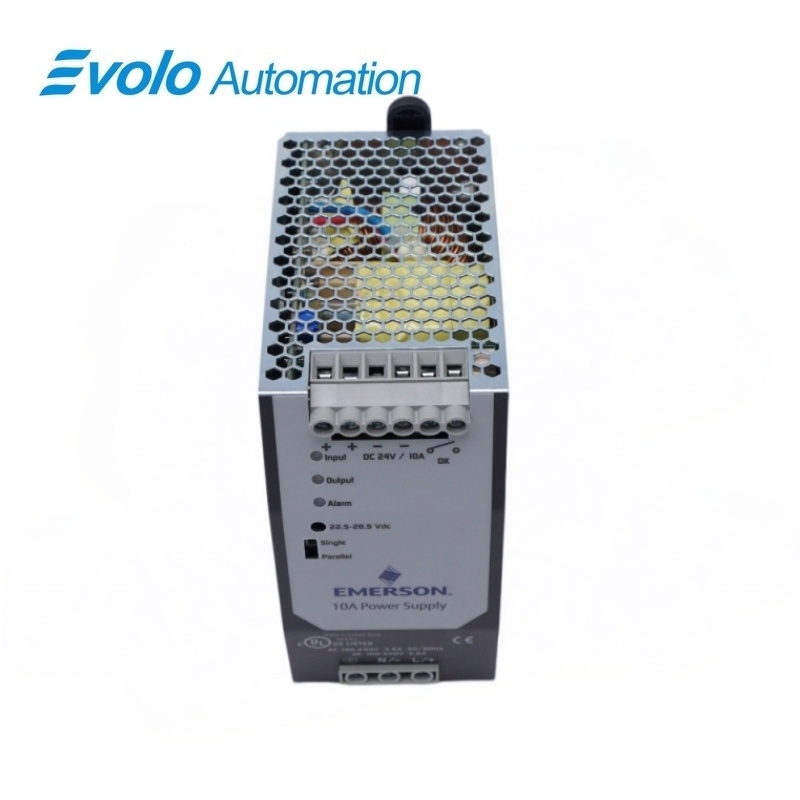

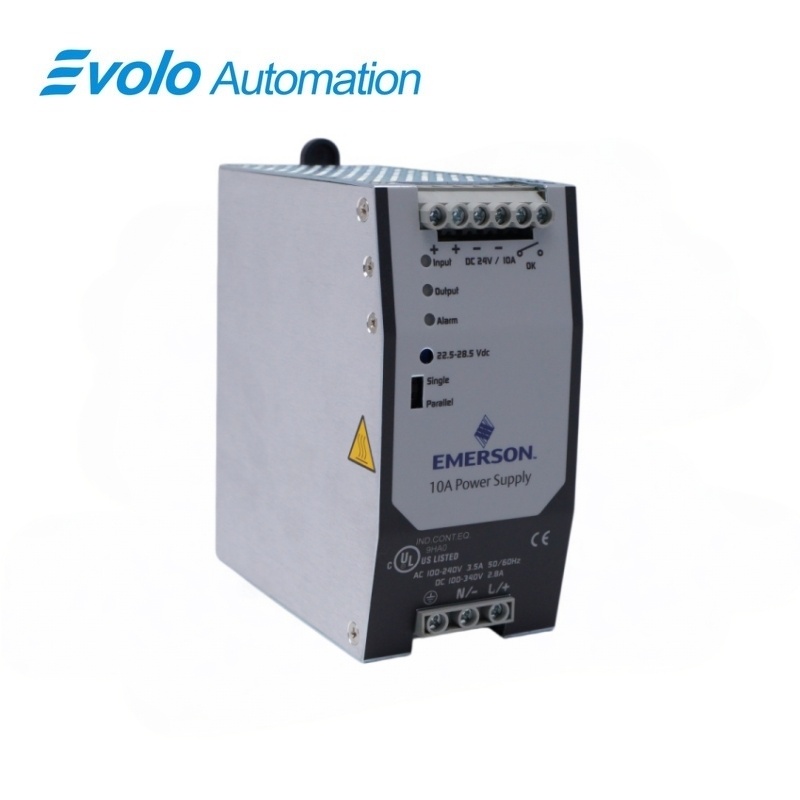

1X01046H01L Sola 24VDC 10A DIN-Rail Power Supply
The actual product label links Emerson part 1X01046H01L with Sola model SDN 10-24-100C and states 100-240 VAC input, 24 VDC 10 A output, -40°C to +70°C ambient range and Philippines origin.
At a Glance
| Brand | Emerson / Sola |
|---|---|
| Model | 1X01046H01L / SDN 10-24-100C |
| Product Type | Industrial DIN-rail power supply |
| Core Function | Converts 100-240 VAC to 24 VDC at 10 A |
| Application / Compatible Series | 24 VDC industrial control cabinets |
Dual Identification
Match both Emerson 1X01046H01L and Sola SDN 10-24-100C when comparing a replacement.
24 VDC / 10 A
The label states the output rating directly for load and cabinet-power checks.
Wide Ambient Range
The unit label states -40°C to +70°C; installation still requires the manufacturer's clearance and derating rules.
Product Overview
1X01046H01L is an Emerson-marked DIN-rail power supply whose label also identifies the Sola model SDN 10-24-100C. The label provides the core selection data: 100-240 VAC input, 24 VDC 10 A output, -40°C to +70°C ambient range and Made in Philippines.
A correct replacement must match more than nominal voltage. Verify both model identifiers, cabinet load, terminal arrangement, rail mounting, available space and the required system approval.
Key Functions
AC-to-DC Conversion
Converts the label-specified 100-240 VAC input to 24 VDC industrial control power.
10 A Output
Supports a verified 24 VDC load up to the stated 10 A rating under compliant operating conditions.

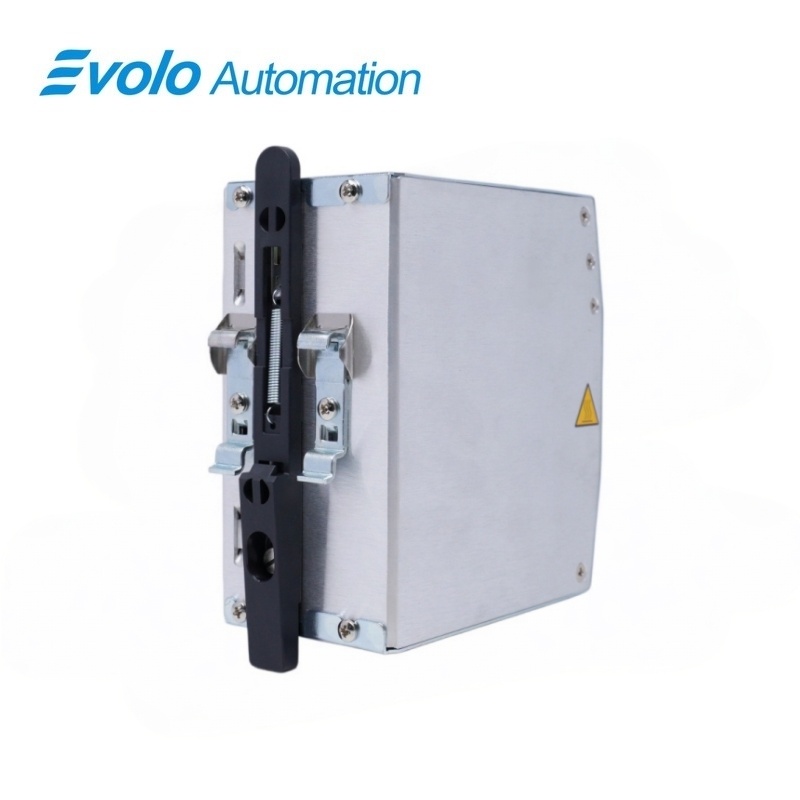

DIN-Rail Cabinet Fit
Integrates into a matched rail-mounted cabinet with correct clearance, wiring and ventilation.
Official Specifications
| Ambient | -40°C to +70°C |
|---|---|
| Input Voltage | 240 VAC |
| Output Voltage | 24 VDC |
| Output Current | 10 A |
| AC Input Voltage Range | 100–240 VAC |
| Output Current Type | DC |
| Minimum AC Input Voltage | 100 VAC |
| Input Current Type | AC |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +70 °C |
Source basis: the actual Emerson/Sola product label. No unshown certification, protection or performance data are inferred.
Frequently Asked Questions
Which input source is compatible with 1X01046H01L?
Use a 100-240 VAC source that meets the power-supply installation requirements.
How should an engineer size the load for 1X01046H01L?
Calculate the continuous and peak 24 VDC demand and keep it within the 10 A label rating under the actual cabinet conditions.
What thermal checks are required for 1X01046H01L?
Confirm the cabinet ambient temperature, ventilation and manufacturer clearance or derating rules before commissioning.
Can 1X01046H01L replace another 24 VDC DIN-rail supply directly?
Only after the input range, output rating, terminal layout, dimensions, rail fit and required approvals have been matched.
What installation sequence should be followed for 1X01046H01L?
Isolate the AC source, secure the unit on the DIN rail, verify protective measures and polarity, torque terminals correctly, then inspect the wiring before energizing.
Which identifiers should be checked when ordering 1X01046H01L?
Match both the Emerson part marking and the Sola product marking shown on the product label.
What should be verified during commissioning of 1X01046H01L?
Check the input voltage, output polarity, unloaded and loaded output voltage, load current and cabinet temperature.
Compatibility & Ordering Notes
Compatibility Checklist
- Match both 1X01046H01L and SDN 10-24-100C.
- Verify the supply is 100-240 VAC and the load is 24 VDC within 10 A.
- Compare terminals, polarity, dimensions, DIN-rail fit and cabinet clearance.
- Confirm environmental conditions against the -40°C to +70°C label range and installation instructions.
- Check required approvals and system/BOM acceptance before substitution.
