Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
DX522-XC 1SAP445200R0001 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Product Model: |
DX522-XC 1SAP445200R0001 |
|
Type: |
S500 Digital Input/Output Module |
|
Digital Inputs: |
8 DI, 24 V DC |
|
Digital Outputs: |
8 DO relay, 230 V AC, 3 A |
|
Configurable Digital I/O Points: |
0 |
|
Input Voltage Type: |
A.D |
|
Input Current: |
5 mA |
|
Maximum Input Voltage: |
0–30 V |
|
Delay Time (τ): |
0.1–32 ms |
|
Output Type: |
Relay |
|
Output Voltage Type: |
B.C |
|
Output Current: |
3 A |
|
Maximum Output Voltage: |
195.5–276 V |
|
Supply Voltage: |
20.4–28.8 V DC |
|
Protection Rating: |
IP20 |
|
Operating Temperature: |
-30°C to +70°C |
|
Storage Temperature: |
-40°C to +85°C |
|
Dimensions (L×H×W): |
62 x 76 x 67.5 mm |
|
Weight: |
0.177 kg |
|
WEEE Category: |
5 (Small Equipment, no external dimension > 50 cm) |
Description

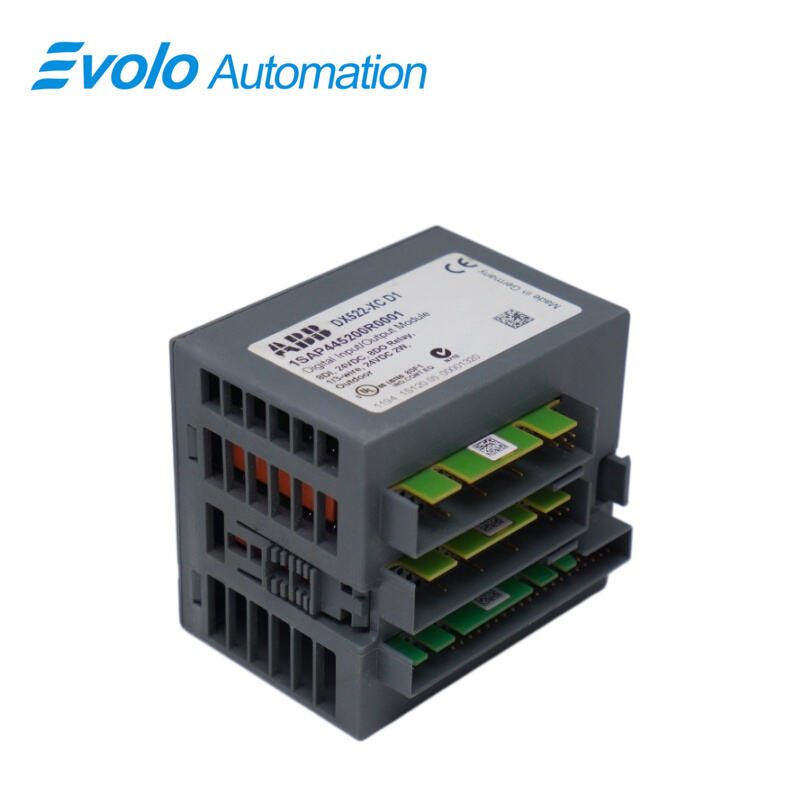

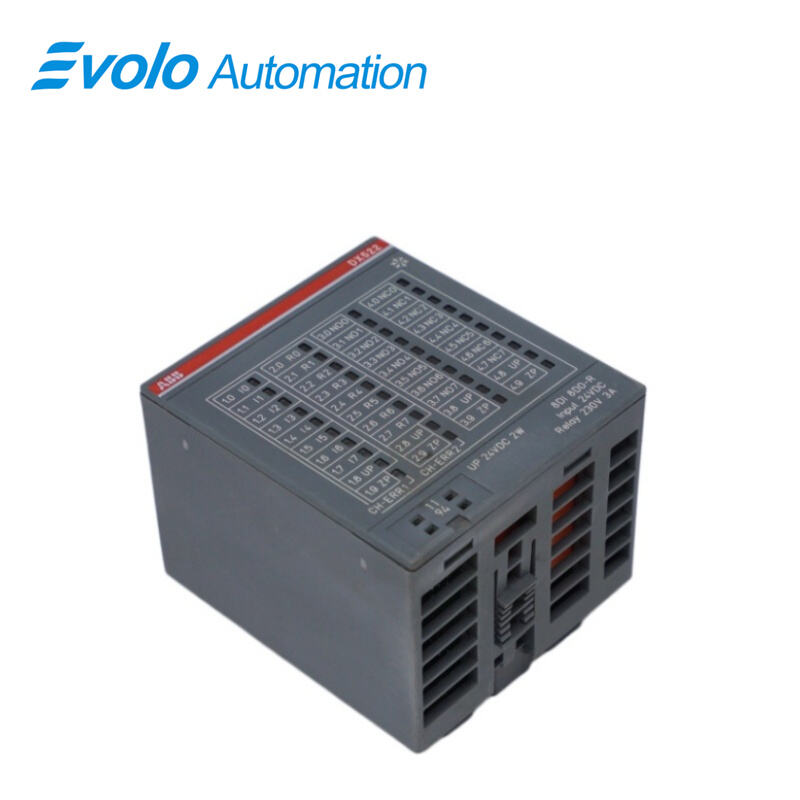

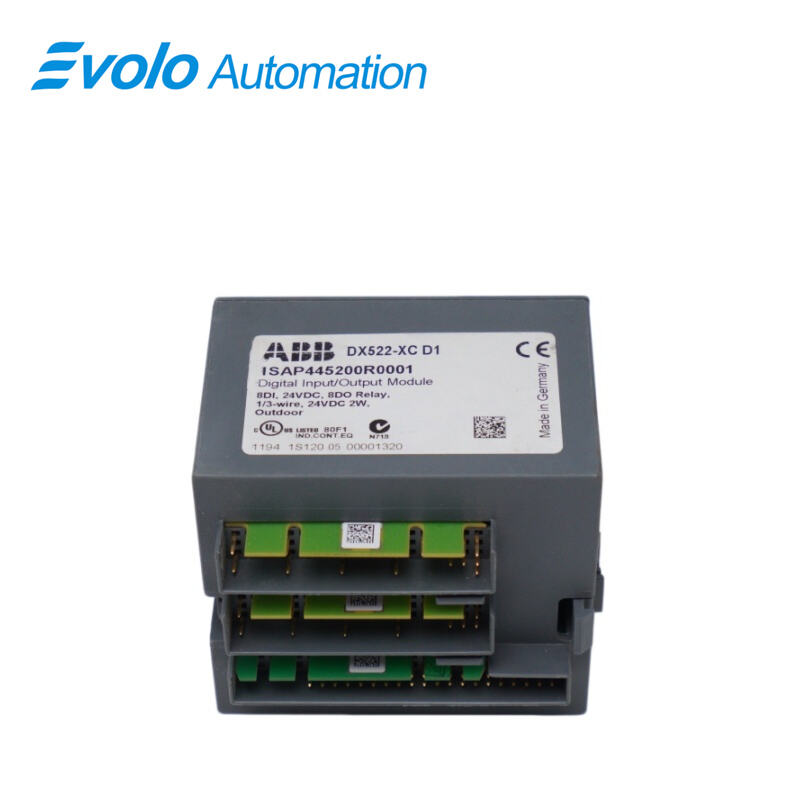

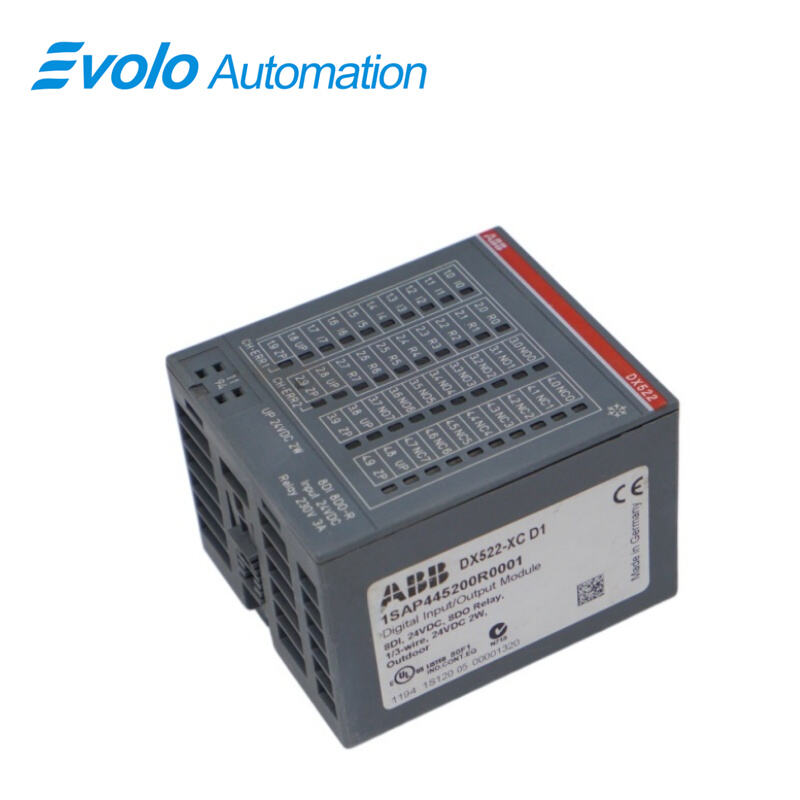

The DX522-XC 1SAP445200R0001 is a digital input/output module manufactured by ABB for the AC500 series programmable logic controllers (PLCs). Its core feature is that it is designed for eXtreme Conditions (XC) environments, capable of withstanding a wider operating temperature range and higher mechanical stress.
Applications
Offshore drilling platforms/factories: Resistant to high humidity and salt spray corrosion environments.
Wind power plants: Stable operation in extreme high and low temperature environments (from [insert temperature range here]).
Cold chain logistics plants/cold storage facilities: Supports low-temperature start-up and operation down to [insert temperature range here]).
Rail transit manufacturing plants: Adaptable to the industrial automation control requirements with high vibration and shock.
Metallurgical plants/steel plants: Serves as I/O acquisition nodes in high-temperature and electromagnetically interference-prone power distribution rooms.
Competitive Advantage

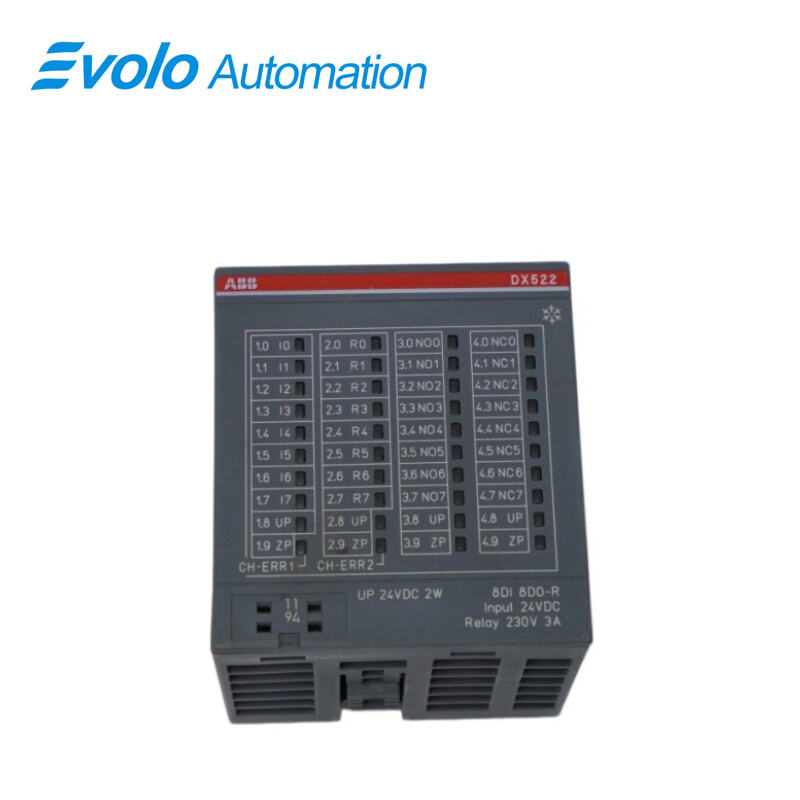

Rugged Design: This module typically features a "snowflake" icon on its surface, indicating enhanced vibration resistance, resistance to harmful gases (such as salt spray), and suitability for high altitudes.
Flexible Connectivity: Supports 2-wire or 3-wire connections, simplifying field wiring for sensors and actuators.
Wide Applications: Commonly used in industrial automation scenarios with extremely high reliability requirements, such as mining, shipbuilding, water treatment, and wind power generation.
FAQ
Q: What is the difference between the DX522-XC 1SAP445200R0001 and the standard version?
A: The key difference is XC (Extreme Conditions) performance. It supports a wider temperature range (-30°C to +70°C) and enhanced vibration and corrosion resistance, suitable for harsh industrial environments.
Q: What is the maximum relay output load for the DX522-XC 1SAP445200R0001?
A: Each output channel supports up to 230V AC / 3A. Exceeding this limit may damage the contacts.
Q: Can the I/O points of the DX522-XC 1SAP445200R0001 be customized?
A: No. This module has fixed 8 digital inputs (DI) and 8 digital outputs (DO); functions are not interchangeable.
Q: What is the input signal delay for the DX522-XC 1SAP445200R0001?
A: Delay ranges from 0.1ms to 32ms, effectively filtering electromagnetic interference or contact bounce on-site.
Q: What are the installation dimensions and protection rating for the DX522-XC 1SAP445200R0001?
A: Dimensions are approximately 67.5 x 76 x 62 mm, with an IP20 rating (must be installed inside a control cabinet).
