Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
DSDI110AV1 3BSE018295R1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
DSDI110AV1 3BSE018295R1 |
|
Type: |
Digital Input Board |
|
Dimensions (Depth x Height x Width): |
234 x 18 x 229.5 mm |
|
Weight: |
0.332 kg |
|
RoHS Compliance: |
Not RoHS Compliant |
|
WEEE Category: |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
Number of Batteries: |
0 |
|
Number of Channels: |
32 |
|
Input Voltage: |
24 V DC |
|
Input Current: |
10 mA |
|
Input Impedance: |
10 kΩ |
|
Output Voltage: |
24 V DC |
|
Output Current: |
20 mA |
|
Output Impedance: |
100 Ω |
|
Replacement Info: |
Step-up replacement for DSDI110 and DSDI110A modules |
|
Mounting: |
Compact, DIN-rail mount enclosure |
Description

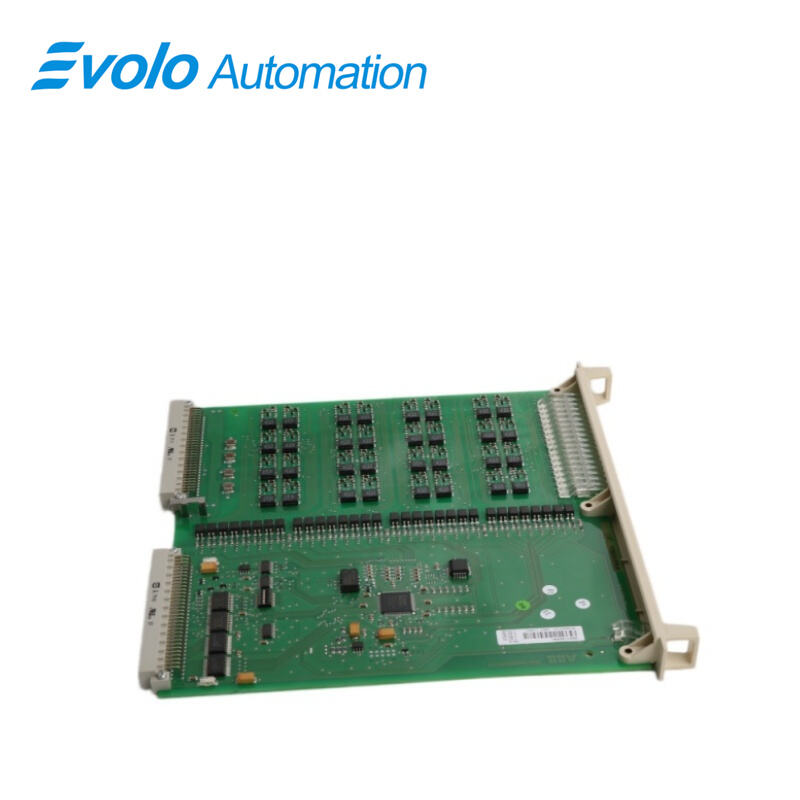

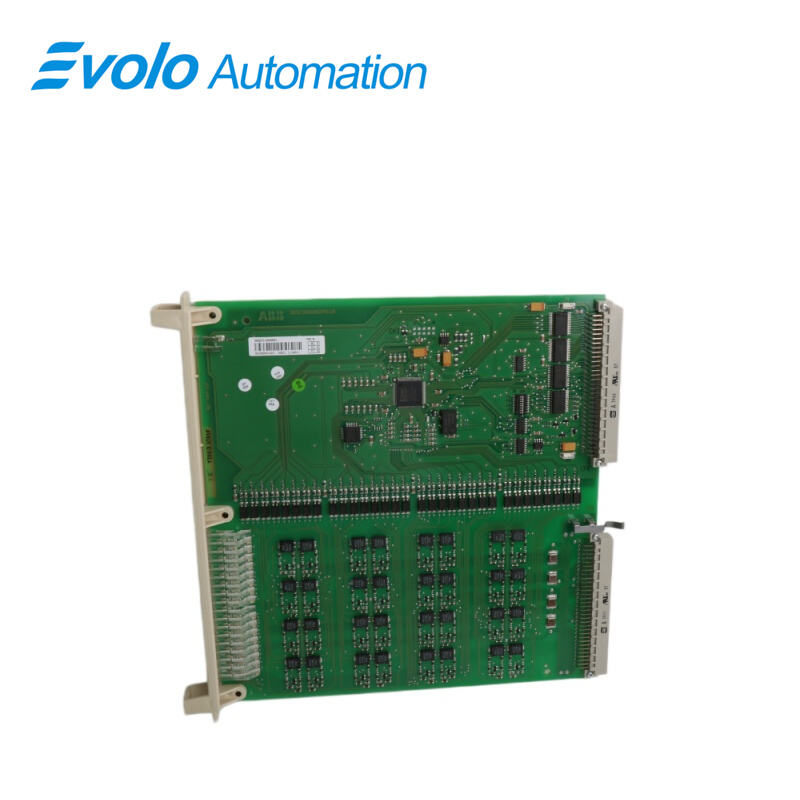

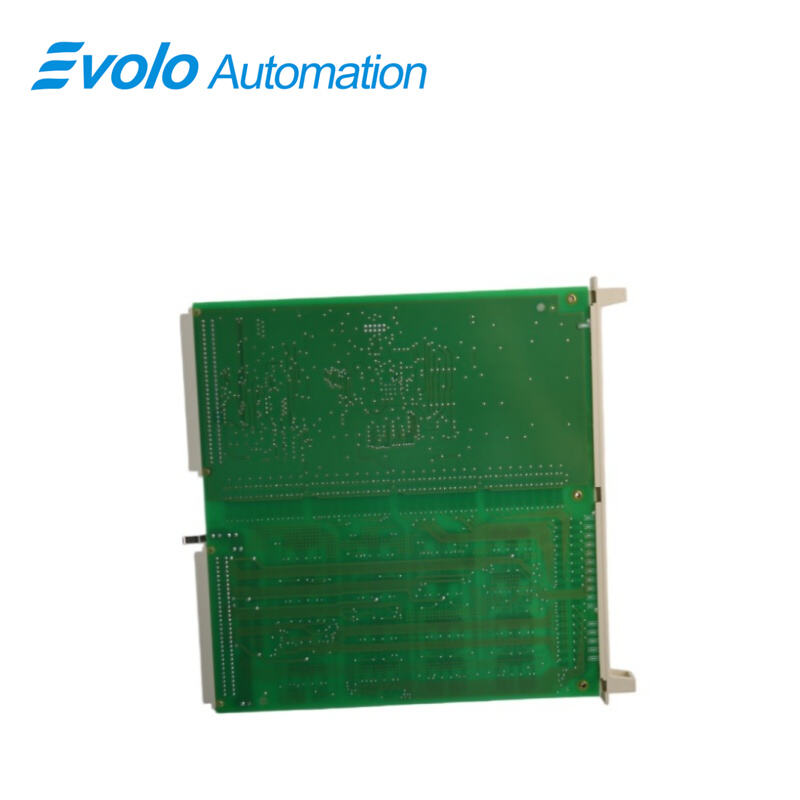

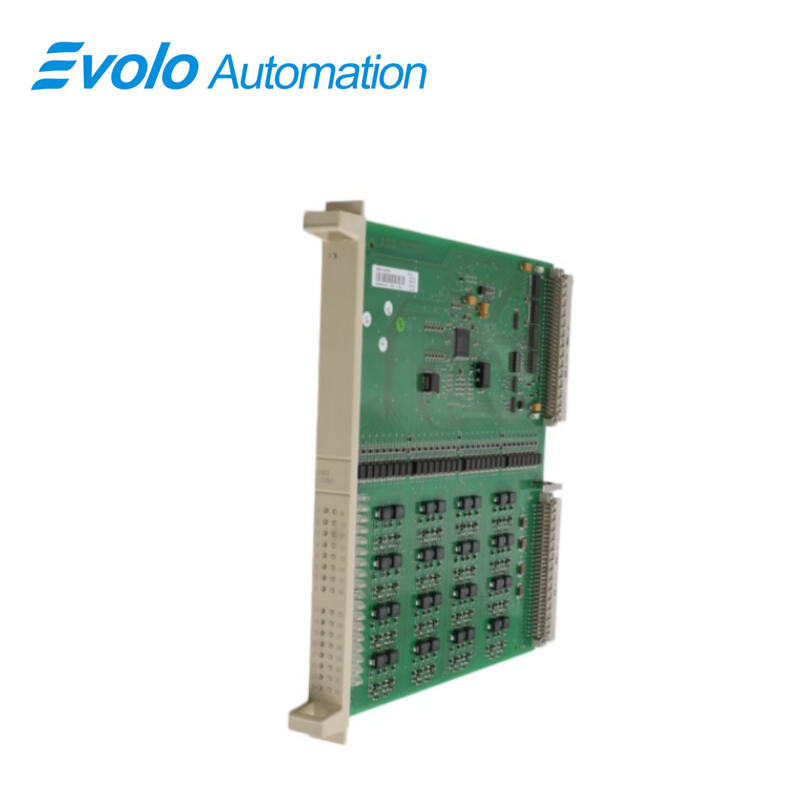

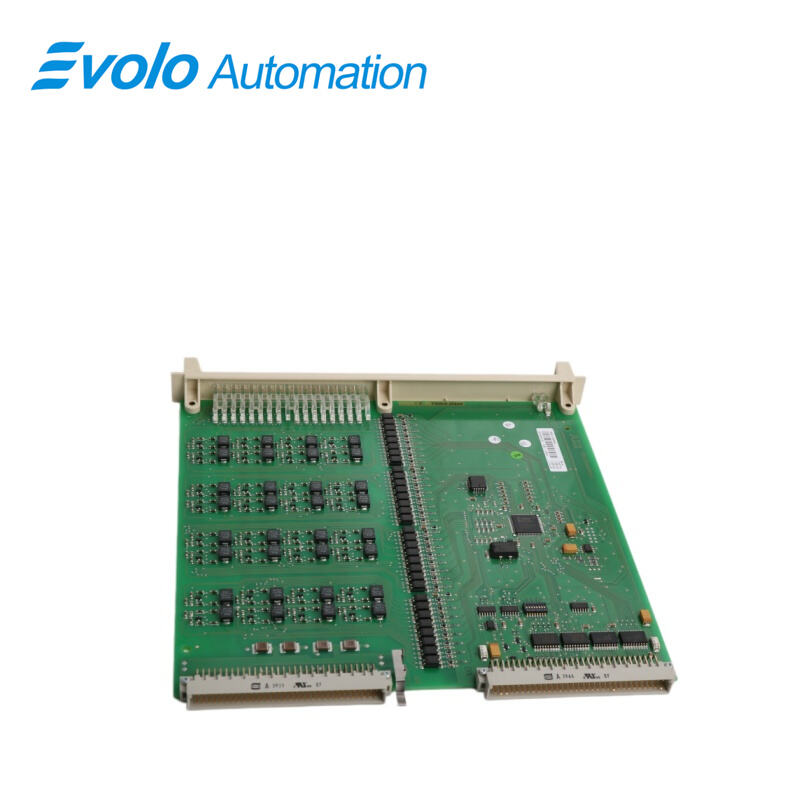

The ABB DSDI110AV1 3BSE018295R1 is a digital input module that provides 16 channels of 24 VDC input.It is a step-up replacement for the DSDI 110 and DSDI 110A modules.The ABB DSDI110AV1 3BSE018295R1 module is housed in a compact, DIN-rail mount enclosure and is easy to install.
Applications
Power and energy plants: Generator unit monitoring, substation signal acquisition.
Petrochemical and chemical plants: Refinery valve status feedback and safety interlocks.
Paper and metallurgical plants: Production line logic control, rolling mill process monitoring.
Food and pharmaceutical plants: Pasteurization recording, cold chain environment monitoring.
Competitive Advantage
Provides a cost-effective way to upgrade to a 24 VDC system
Easy to install and configure
Provides a high level of input isolation
Supports a wide range of input voltages
FAQ
Q: What improvements does the DSDI110AV1 3BSE018295R1 offer compared to the DSDI110A?
A: The DSDI110AV1 3BSE018295R1 features optimized hardware and improved durability, making it a direct replacement for the DSDI110A with more stable performance and full compatibility.
Q: Can the DSDI110AV1 3BSE018295R1 be hot-swapped?
A: Official manuals allow hot-swapping of S100 I/O modules within certain frameworks, but it is recommended to do so only after stopping the system or confirming safety logic.
Q: Why are the input indicator lights on the DSDI110AV1 3BSE018295R1, but the controller is not receiving data?
A: This may result from a communication failure with the bus expansion board (e.g., DSBC 176), backplane issues, or a software-configured scan address conflict.
Q: Can the input filtering time of the DSDI110AV1 3BSE018295R1 be changed?
A: Hardware filtering is typically fixed at ~5ms, but software can provide additional interference filtering via scan cycle configuration.
Q: Does the DSDI110AV1 3BSE018295R1 comply with RoHS environmental standards?
A: As a legacy industrial component, it may be exempt under certain clauses. For new purchases, batch-specific compliance should be confirmed.
