DS200TCTGG1AFF Simplex Trip Board, China DS200TCTGG1AFF Simplex Trip Board Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	DS200TCTGG1AFF
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Brand	GE
Model	DS200TCTGG1AFF
Product Type	Simplex Trip Board
Series	Speedtronic Mark V
Input Voltage	24 V DC
Output Voltage	5 V DC
Operating Temperature	-40℃ to 85℃
Communication Interface	RS485
Dimensions	10x 5x 2.5cm
Plug-in Relays	21
Relay Identification	K1 to K21
50-pin Connectors	3 (JLY, JLX, JLZ)
12-pin Connectors	2 (JN, JM)
Relay Mounting	Metal strap retention
Function	Trip signal processing and turbine shutdown control
Installation	Plug-in relay socket mounting
Application	Gas turbine control systems
Industry Use	Power generation and petrochemical systems

Description

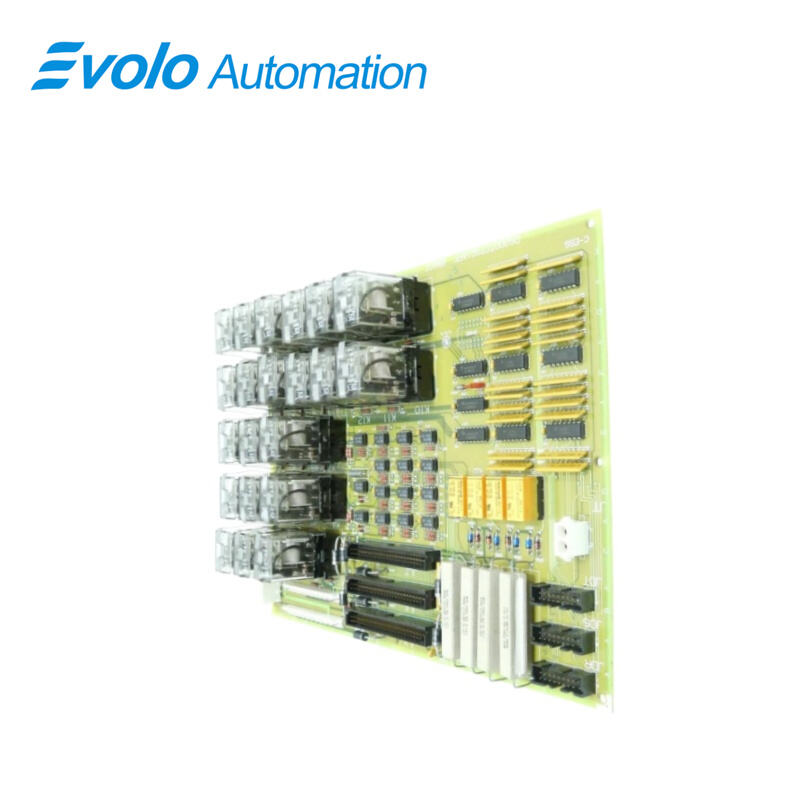

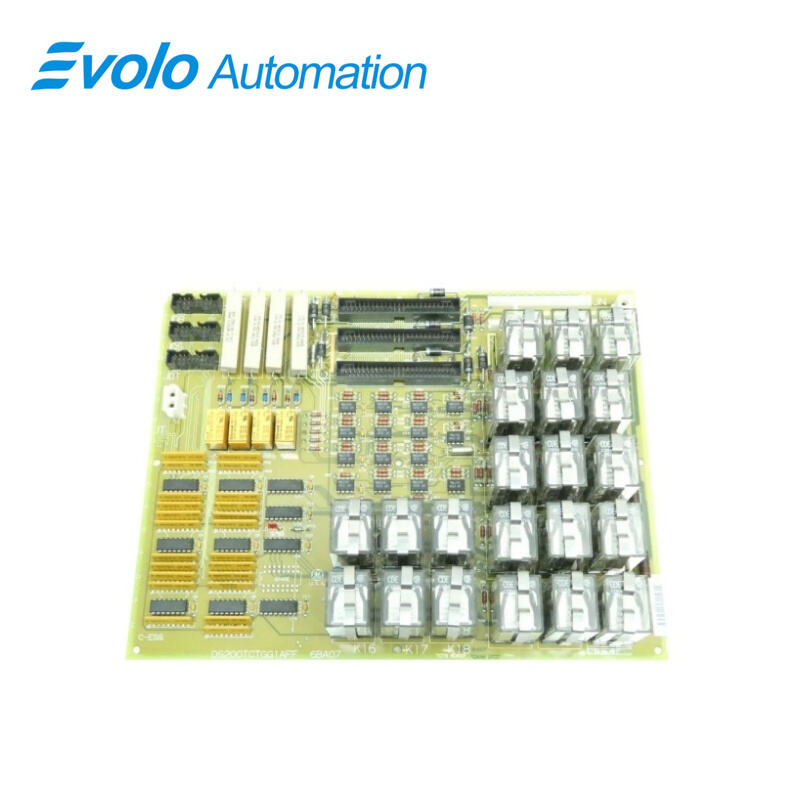

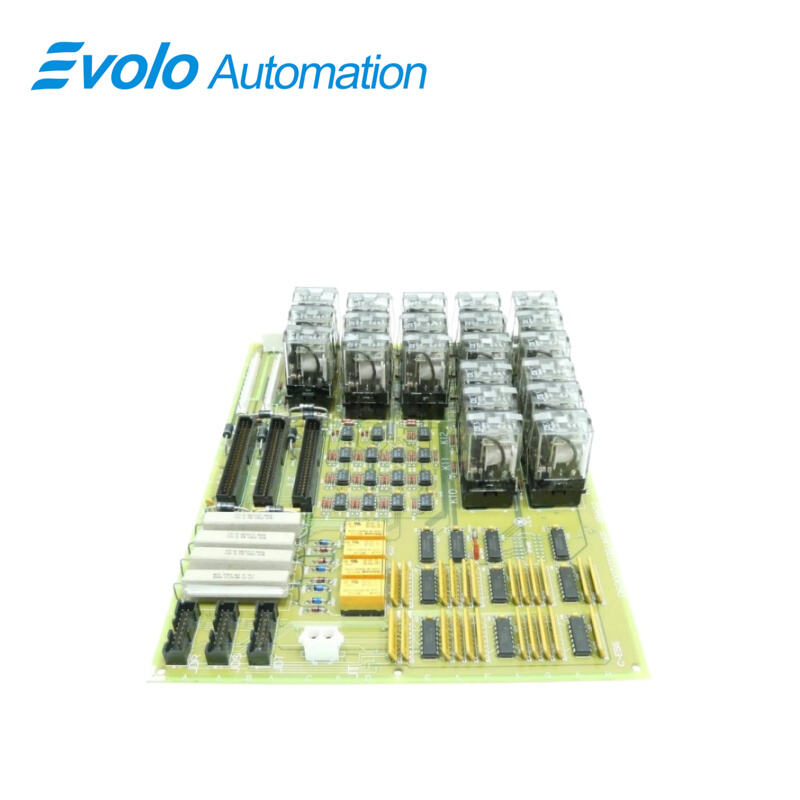

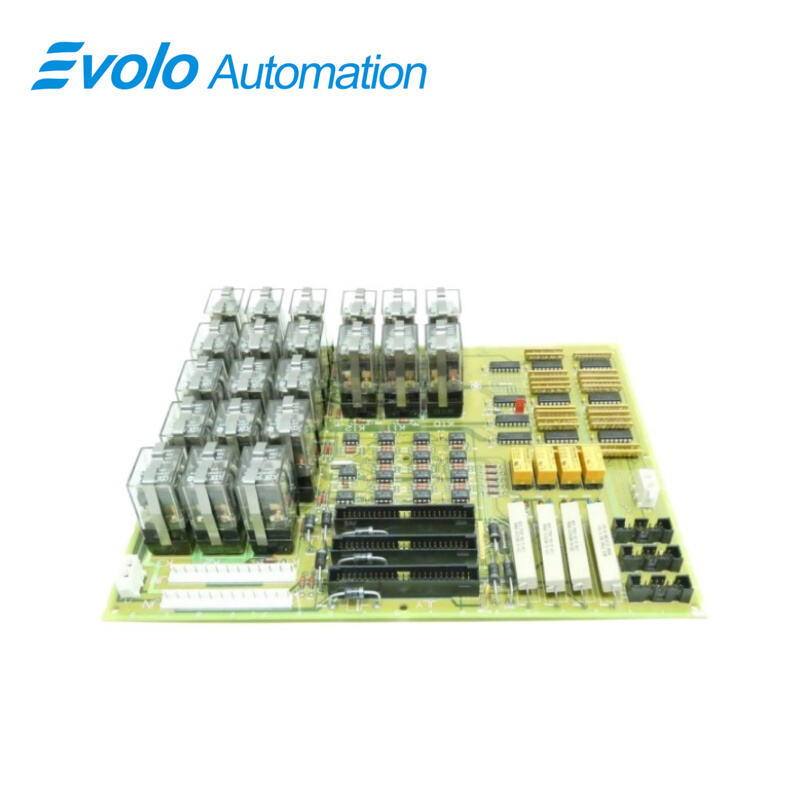

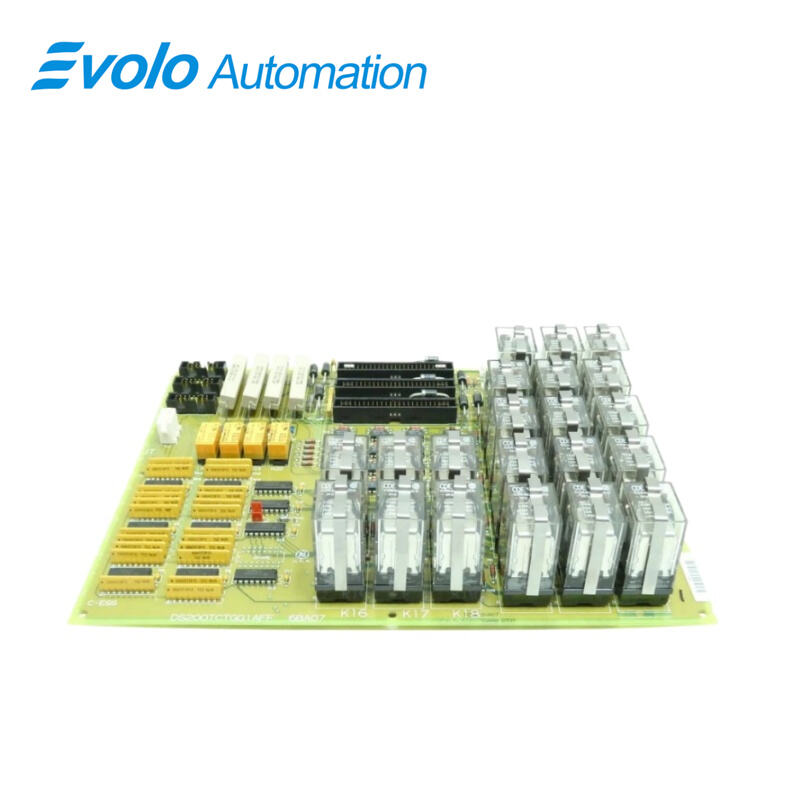

The DS200TCTGG1AFF is a Simplex Trip Board and is part of the GE Speedtronic Mark V gas turbine control systems. The Simplex Trip board functions as a medium trip board. There are 21 plug-in relays on the Simplex Trip Board DS200TCTGG1AFF. The board also includes three 50-pin connectors and two 12-pin connectors. JLY, JLX, and JLZ are the IDs allocated to the 50-pin connectors. JN and JM are the IDs assigned to the 12-pin connectors. The 21 plug-in relays have IDs that begin with K and end with a number.

The numbers are in ascending order, starting with 1. K1, K5, K10, and K21 are some of the IDs. Metal straps hold the relays in place as they snap into place on the board. Detach the metal strap from the relay and pull it out of the connector to remove it.

Align the relay with the connector and press it into the connector to install it. After that, clip one end of the metal strap to the connector, arrange the metal strap over the top of the relay and clip the other end of the metal strap to the other side of the connector.

Feature

The main feature of the DS200TCTGG1AFF is its simplex trip function. Simplex trip means that when a trip signal occurs, the trip panel immediately executes a trip action, cutting off the fuel supply. This design can effectively prevent dangerous situations such as gas turbine overspeed.

—High-speed data processing

—Rugged construction, suitable for harsh environments

— Easy to install and configure

—Wide operating temperature range

—Supports multiple communication protocols
