Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
DS200TCDAF1BCM |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Dimensions: |
28x21.3x2cm |
|
Weight: |
0.54 kg |
|
Product Model: |
DS200TCDAF1BCM |
|
Manufacturer: |
General Electric (GE) |
|
Board Type: |
Digital I/O Board |
|
Components: |
Microprocessor, multiple PROM modules |
|
LEDs: |
10 front LEDs, 1 green side LED |
|
Connectors: |
2×50-pin connectors |
|
Jumpers: |
8 jumpers |
|
PROM Modules: |
Removable, socketed |
|
Handling Precaution: |
Use wrist strap to prevent static damage |
|
Tool Requirement: |
Hand tools for PROM installation/removal |
Description

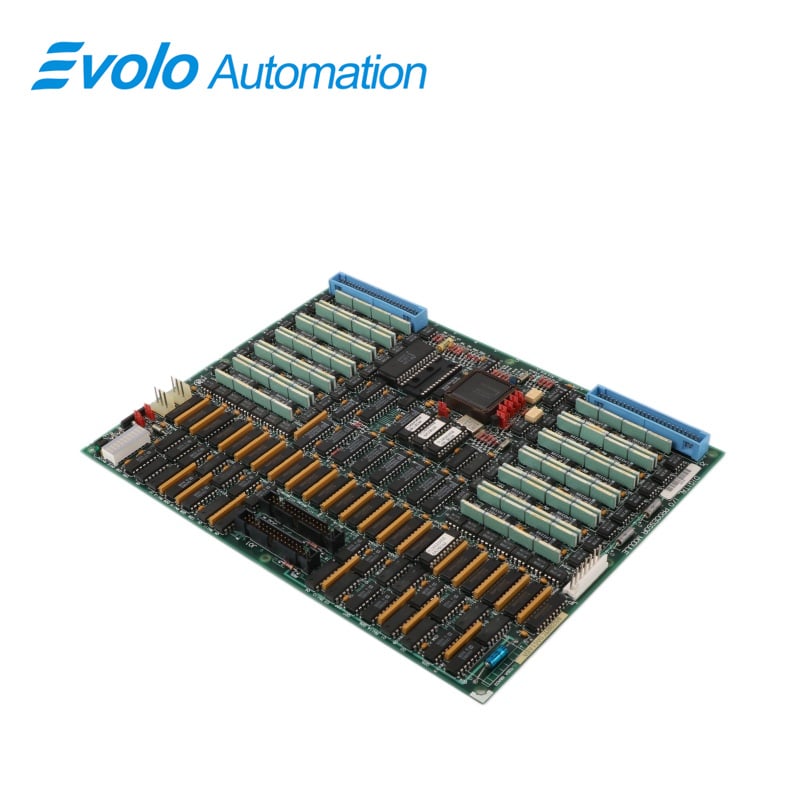

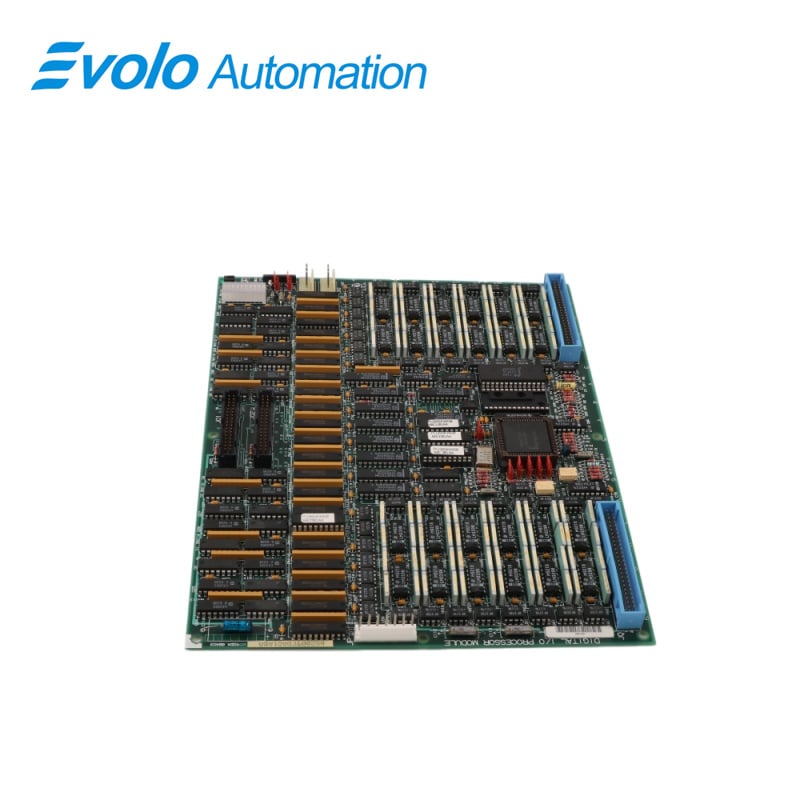

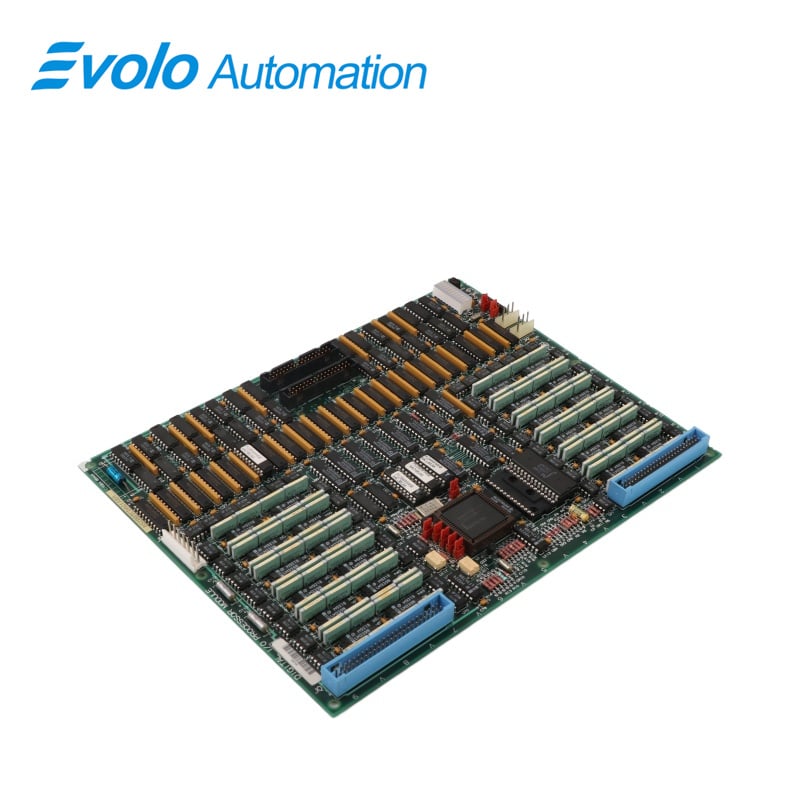

The DS200TCDAF1BCM General Electric digital I/O board features a microprocessor and multiple programmable read-only memory (PROM) modules. It also includes a block consisting of 10 LEDs and a pair of 50-pin connectors, along with 8 jumpers and one green LED visible from the side of the board. The PROM modules are removable from the board and are located in sockets embedded in the board. When replacing the motherboard, or if you are replacing the PROM modules for any reason, you can obtain hand tools specifically designed for removing and installing PROM modules. It is important to remember that PROM modules are easily damaged or destroyed by static buildup. Always wear a wrist strap to protect yourself and the equipment when working on the motherboard or any other motherboard or component in the drive. When the wrist strap is attached to a metal table or chair, static electricity will be attracted to a grounded object and removed from your body and the board.
Applications
Power Generation: Gas Turbines and Steam Turbines: Real-time monitoring, control, and overspeed/overheat protection for GE units across various series (e.g., Frame 5, 6, 7, 9).
Combined Cycle Power Plants (CCPP): Coordinating the operation of gas turbines and steam turbines in plant-wide automation.
Nuclear Power Plants: Turbine control in the conventional island (non-nuclear area), utilizing triple modular redundancy (TMR) technology to ensure safety.
Oil & Gas: Compressor Stations: Monitoring the status of turbines driving large process compressors.
LNG Plants: Managing interlocking logic for critical power equipment in environments requiring high continuity of production.
Heavy Industry Processes: Fertilizer and Petrochemical Plants: Ensuring stable operation of power turbines or drive motors in complex chemical reaction processes.
Specifications
|
System Compatibility: |
GE Mark V Speedtronic Turbine Control System |
|
Board Function: |
Digital Input/Output signal processing |
|
Microprocessor: |
Onboard microprocessor for signal handling |
|
Memory Modules: |
Multiple PROM modules for firmware & configuration |
|
Connectors: |
Two 50‑pin board edge connectors |
|
Communication Network: |
IONET high‑speed network interface |
|
Jumpers: |
8 hardware jumpers for configuration options |
|
LED Indicators: |
Block of 10 LEDs for status & diagnostics |
|
Input Interfaces: |
Contact inputs from DTBA and DTBB terminals |
|
Output Targets: |
Drives signals to relays/solenoids via actuator boards |
Competitive Advantage
Competitive Advantage Quick Signal Processing
The DS200TCDAF1BCM onboard microprocessor processes digital I/O signals efficiently, ensuring prompt response times for turbine control and safety actions.
Competitive Advantage Easy Firmware Maintenance
Removable PROM modules on the GE DS200TCDAF1BCM allow technicians to replace or update firmware without dismantling the entire board, minimizing downtime.
Competitive Advantage High Connectivity
With 2×50pin connectors and IONET network interface, the DS200TCDAF1BCM integrates directly with turbine control cabinets and actuator boards for seamless digital signal exchange.
Competitive Advantage Diagnostic LEDs
The DS200TCDAF1BCM features 10 front LEDs and a side green LED for clear visual status indication, simplifying troubleshooting and maintenance checks.
Competitive Advantage Hardware Configuration Flexibility
8 onboard jumpers on the DS200TCDAF1BCM allow engineers to customize input/output behavior for different operational requirements or control scenarios.
