Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
DC-TFB412 51307618-176 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
DC-TFB412 51307618-176 |
|
Product Type: |
Control Module |
|
Dimensions: |
26.8 × 12 × 5.5 cm |
|
Weight: |
0.36 kg |
|
Power Supply Voltage: |
24 VDC |
|
Operating Temperature Range: |
-20°C to +70°C |
|
Input Current: |
50 mA |
|
Output Current: |
30 mA |
|
Communication Protocol: |
MODBUS RTU |
|
Relay Contacts: |
2 NO + 2 NC |
Description

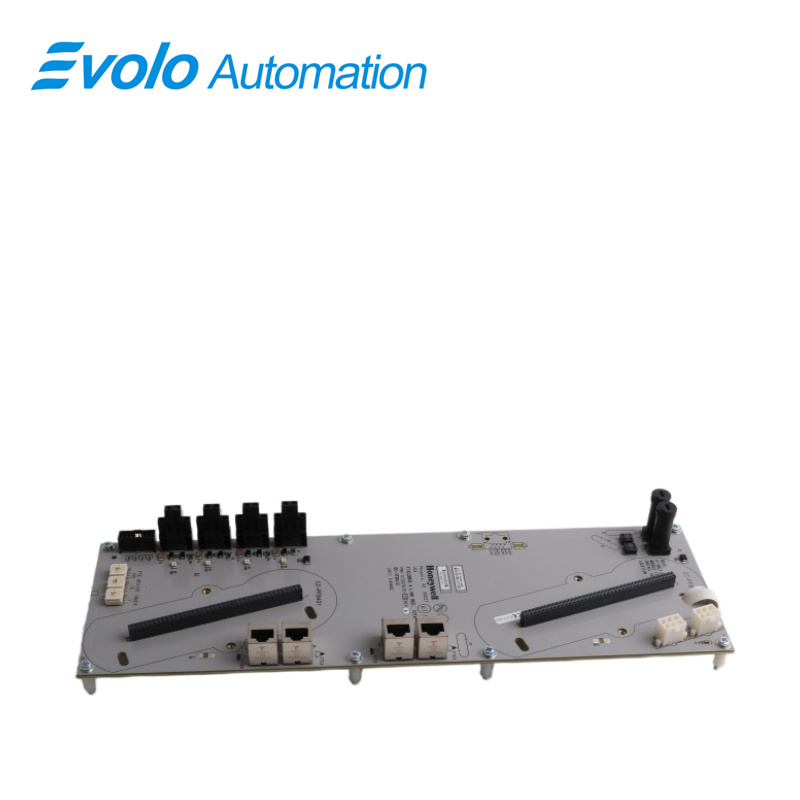

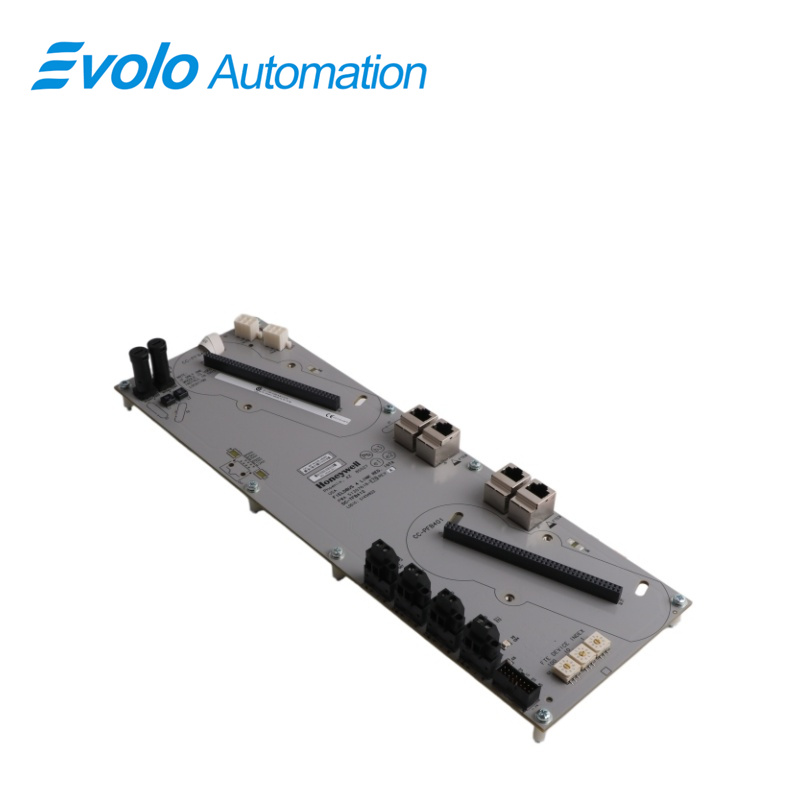

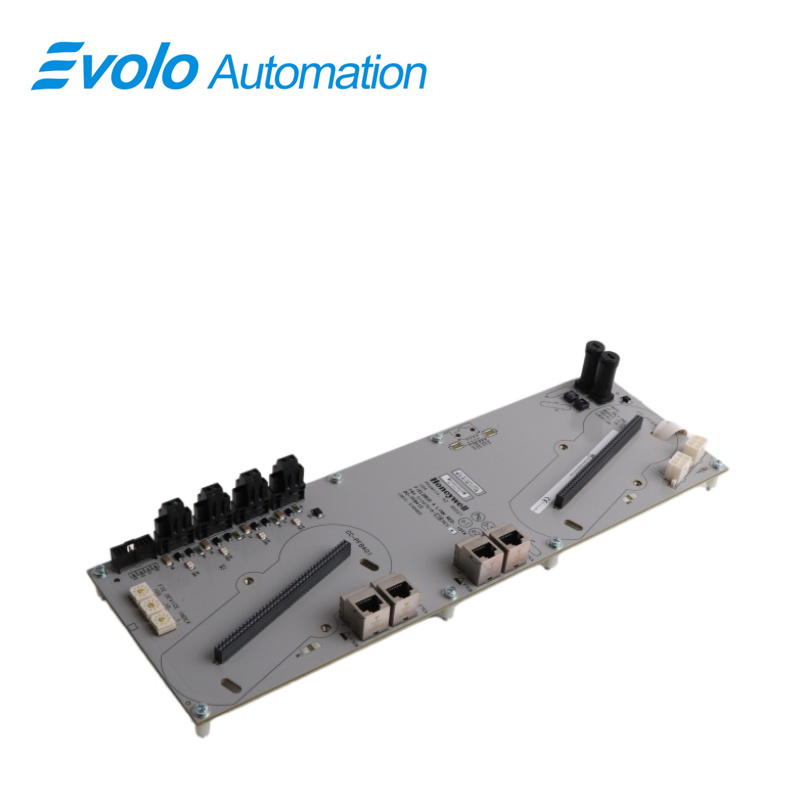

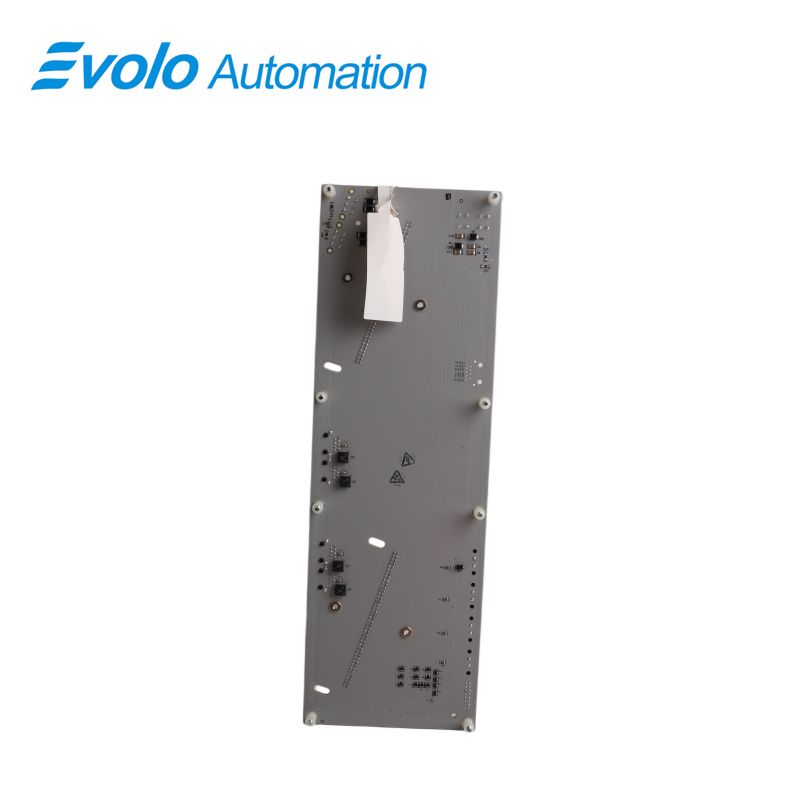

The Honeywell DC-TFB412 51307618-176 is a control module. It is primarily used to receive machine signals from the factory site, perform rapid internal calculations, and then send adjustment commands to valves or motors to automatically change the machine's operating speed or on/off state.
Applications
Chemical tank farm substations: Interlocking control of foam spray and nitrogen systems using relay-based alarm and control logic.
Thermal power plants: Integration of conveyor and ash handling systems with centralized status communication to DCS via industrial protocols.
Semiconductor ultrapure water plants: Control of circulation pumps with low-power input reducing load on control power systems.
Municipal wastewater plants: Centralized control of screening machines and dosing pumps using open industrial network architecture for easy integration.
Troubleshooting
Relay Contact Sticking or Failure to Operate: Check if the current at the external load pins exceeds the rated limit. If the external control coil experiences a sudden overload, it may cause physical contacts to weld. Power off the circuit and use a multimeter in continuity mode to measure the insulation of the NO/NC contacts. If damaged, the entire module must be replaced.
Intermittent Modbus Communication Loss: Check if the A/B terminals of the RS-485 shielded twisted pair are reversed, damp, or if a 120 Ω terminating resistor is missing at the end of the link. Use a serial port debugging tool to verify the module's slave address and baud rate configuration.
FAQ
Q: What is the relay contact configuration of the DC-TFB412 51307618-176?
A: 2 NO + 2 NC.
Q: Which communication protocol is supported by the DC-TFB412 51307618-176?
A: MODBUS RTU.
Q: What is the input current of the DC-TFB412 51307618-176?
A: 50 mA.
Q: What is the output current of the DC-TFB412 51307618-176?
A: 30 mA.
Q: What is the supply voltage of the DC-TFB412 51307618-176?
A: 24 VDC.
