Overview
Place of Origin: |
USA |
Brand Name: |
Honeywell |
Model Number: |
CP-EXPIO |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Operating Voltage |
24 VAC ± 20%, 50/60 Hz, 15 VA with “power” LED indication |
|
Power Consumption |
Max. 15 VA |
|
Housing Material |
ABS Plastic |
|
Mounting |
DIN rail, Wall mounting |
|
Protection Class |
IP 20 |
|
Digital Output |
4 DOs (Triac output), LED indication, Maximum voltage 24 VAC, Maximum continuous current 500 mA, Minimum current 30 mA |
|
Digital Input |
6 potential-free contact Digital Inputs, can be used as Pulse Input @ 15Hz for Energy Meter Totalization, LED indication when contact closed |
|
Analog Output |
6 AOs, 0-10 Vdc, 8-bit D/A converter resolution |
|
Analog Input |
8 Universal inputs, 0/2-10 Vdc, PT 1000 (-50 to +150 °C), NTC 20K (-50 to +150 °C), MTBF 100000 Hours / 11.4 Years, 12-bit A/D resolution |
Description

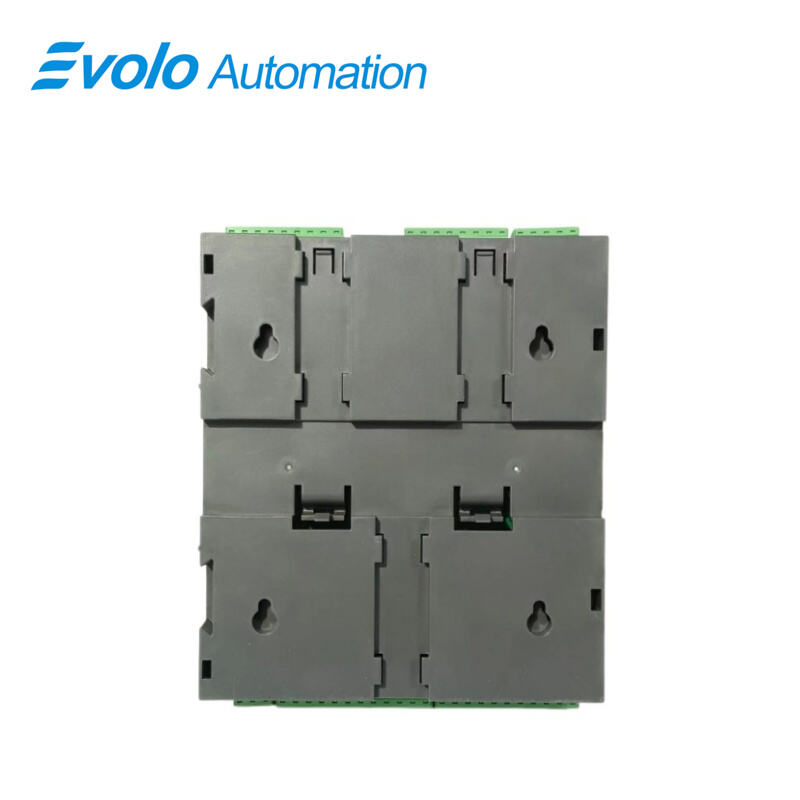

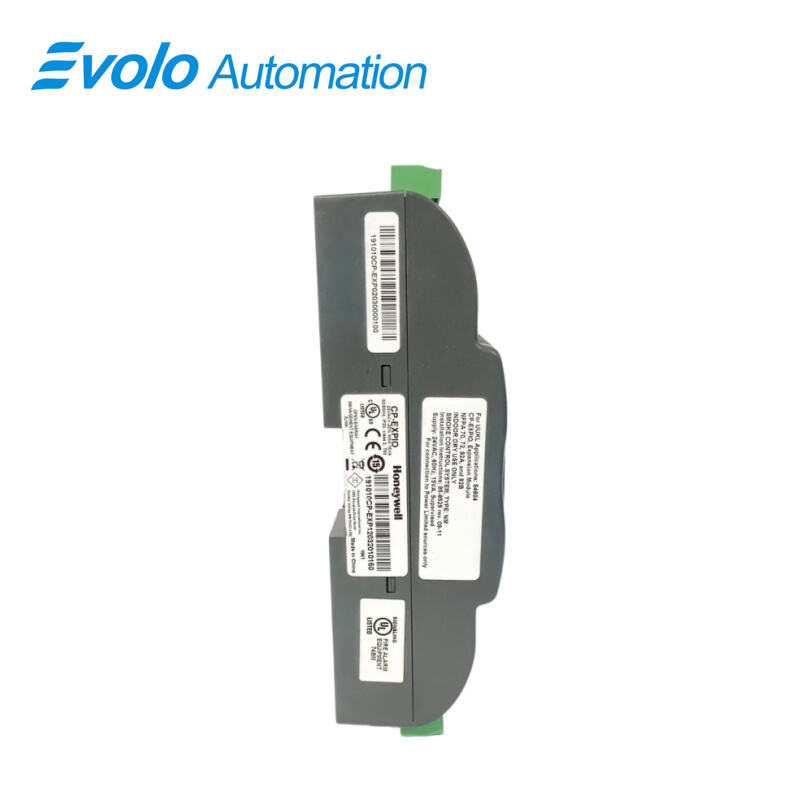

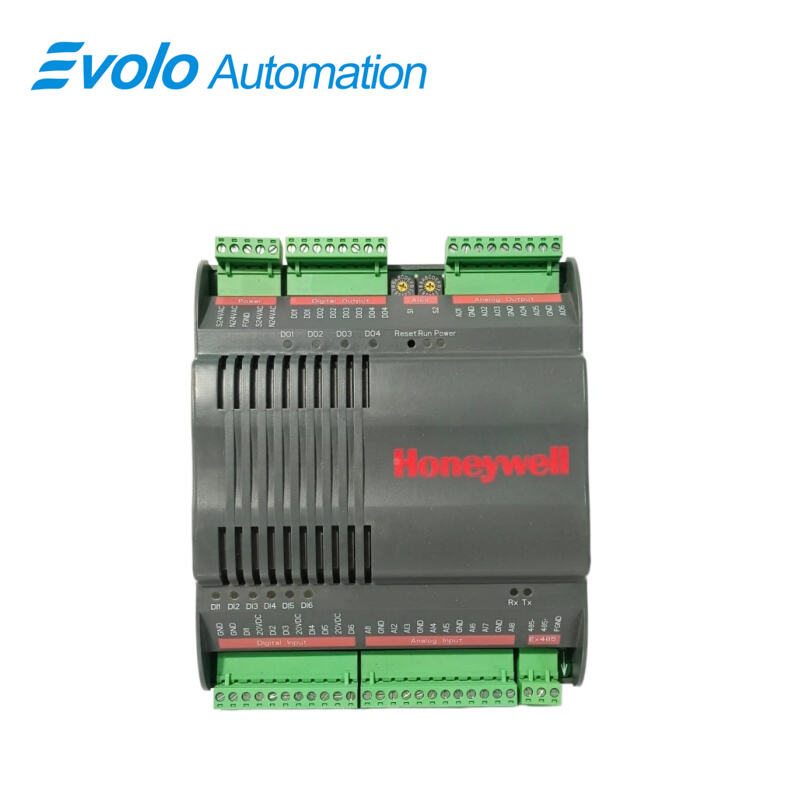

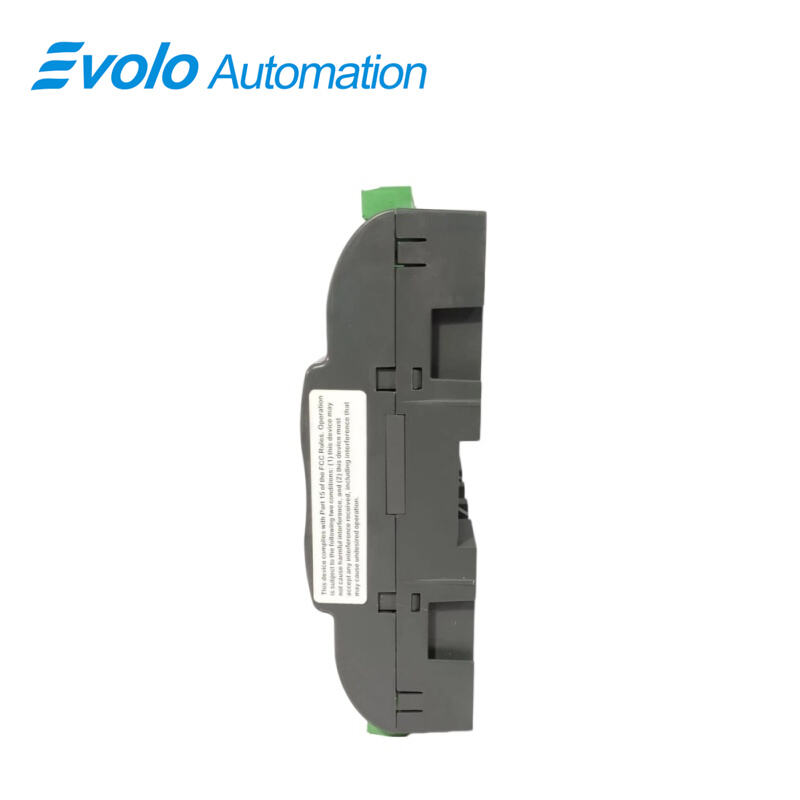

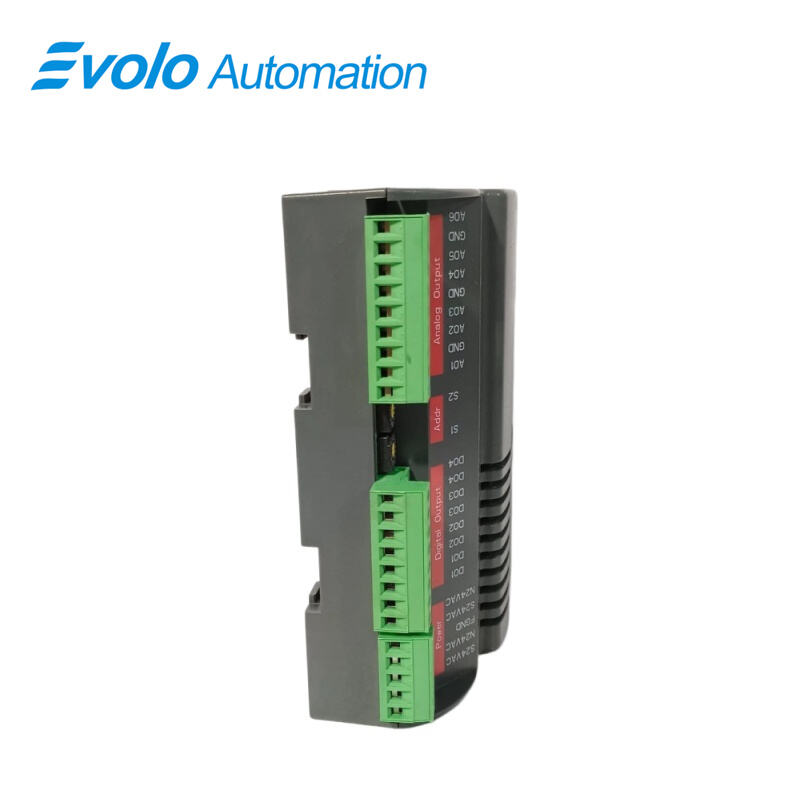

The CP-EXPIO Expansion I/O Board by Honeywell is a versatile automation module designed for ComfortPoint Open plant controllers. The CP-EXPIO operates at 24 VAC ± 20%, 50/60 Hz, with a maximum power consumption of 15 VA, featuring LED power indication. It provides 4 digital outputs (Triac, 24 VAC, 30–500 mA), 6 potential-free digital inputs (also usable as 15 Hz pulse inputs for energy meter totalization), 6 analog outputs (0–10 Vdc, 8-bit), and 8 universal analog inputs supporting PT1000, NTC 20K, and 0/2–10 Vdc signals with 12-bit resolution. With onboard processing, the CP-EXPIO enables fast I/O scanning and mixed input/output operations. RS485 connectivity allows linking up to 15–16 expansion boards on a single CP-IO bus, while addressing is handled via onboard HEX switch (0–15). The board supports firmware upgrades through ComfortPoint Open Online and can be mounted on DIN-rail or walls. Operating temperature ranges from 0–50 °C and storage from -20–70 °C, making the CP-EXPIO suitable for industrial and building automation applications requiring reliable, high-speed I/O control.
Applications
Building Management and Automation (BMS): As part of the ComfortPoint Open system, it is used for HVAC (Heating, Ventilation, and Air Conditioning) monitoring, lighting control, and energy management in large offices, hospitals, shopping malls, and airports.
Light Industrial: Suitable for factories requiring precise environmental parameter control, such as precision instrument, food processing, or electronic component assembly workshops.
Marine Automation: Automation systems applied to large vessels, monitoring the mechanical and environmental conditions inside the ship.
Fire and Security Systems: Supports UUKL smoke control applications, automatically adjusting fans and dampers in emergencies to ensure the safety of industrial buildings.
Specifications
|
Temperature Operation |
0 ~ 50 °C |
|
Temperature Storage |
-20 ~ +70 °C |
|
Ambient Humidity |
5 to 93% relative humidity, non condensing |
|
Certifications |
CE, UL 916, FCC Part 15 Subpart B Class B, UUKL Smoke Control Application |
|
Models |
CP-EXPIO: 24 points on board |
|
RS485 Connection |
Allows connection to ComfortPoint Open plant controllers and other Expansion IO Boards |
|
HEX Switch |
For Addressing of EXPIO |
FEATURES
Powerful Processor
CP-EXPIO Expansion I/O Boards have powerful onboard processors for fast input/output scanning.
Mixed Inputs and Outputs
CP-EXPIO comes with a mix of 24 input and outputs to suit any application requirements.
Expandable
The ComfortPoint Open plant controller can connect up to:
- 15 expansion IO boards (for CP-IPC).
- 16 expansion IO boards (for CPO-PC-6A).
All the Expansion IO boards are connected on the same RS485 CP-IO bus.
Programming and Configuration
ComfortPoint Open Studio allows users to add/delete/modify expansion boards and IO Assignment.
Addressing
Addressing of CP-EXPIO is done via onboard HEX Switch.
The address can be between 1 through 15. For firmware 2.1 and later the address can be selected between 0 through 15.
Firmware Upgrade
Firmware on the CP-EXPIO can be easily upgraded using ComfortPoint Open Online.
Flexible mounting options
DIN-rail or Wall mounting.
FAQ
Is CP-EXPIO brand new or refurbished?
It is brand new and comes with a one-year warranty.
How long will it take for the CP-EXPIO to arrive after I place an order?
Once payment is confirmed, we ship immediately. Delivery typically takes 3–5 days from China to your location.
Do you offer any discounts?
Yes! For discounts on CP-EXPIO, please contact John for the best offer.
Do you have it in stock?
Yes, right now we have CP-EXPIO in stock ready for shipment. We can support video inspection.
Do you provide warranty as standard?
We provide a full 12-month warranty for the CP-EXPIO. So, if you have any problems within 12 months from the date of delivery, you can contact our team, who will be happy to help and explain what your next steps should be.
