Emerson CON041 PR6424/000-121 16 mm Eddy-Current Measurement System
Manufacturer: Emerson (EPRO/AMS)
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
EPRO EDDY-CURRENT MEASUREMENT
CON041 PR6424/000-121 16 mm Eddy-Current Measurement System
Official-source product identification, application guidance and ordering checks for CON041 PR6424/000-121.
At a Glance
| Brand | Emerson (EPRO/AMS) |
|---|---|
| Model | CON041 PR6424/000-121 |
| Product Type | 16 mm Eddy-Current Measurement System |
| Core Function | Shaft displacement, position, eccentricity and speed monitoring. |
| Application / Compatible Series | EPRO eddy-current measurement |
Verified identification
CON041 PR6424/000-121 is identified by the complete manufacturer model and the photographed unit.
Application focus
CON041 PR6424/000-121 is intended for shaft displacement, position, eccentricity and speed monitoring.
Ordering control
CON041 PR6424/000-121 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview

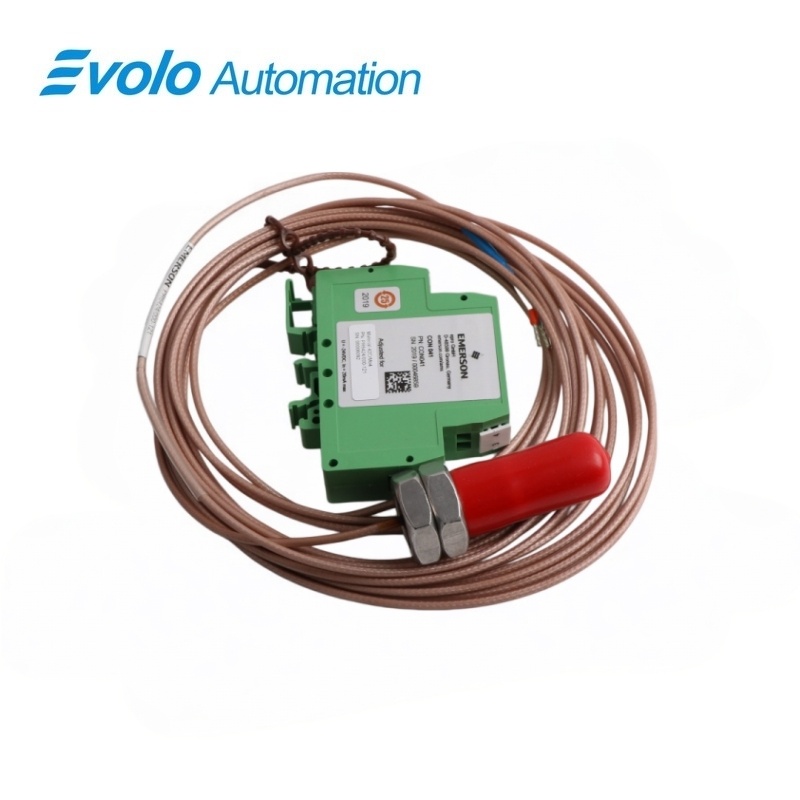

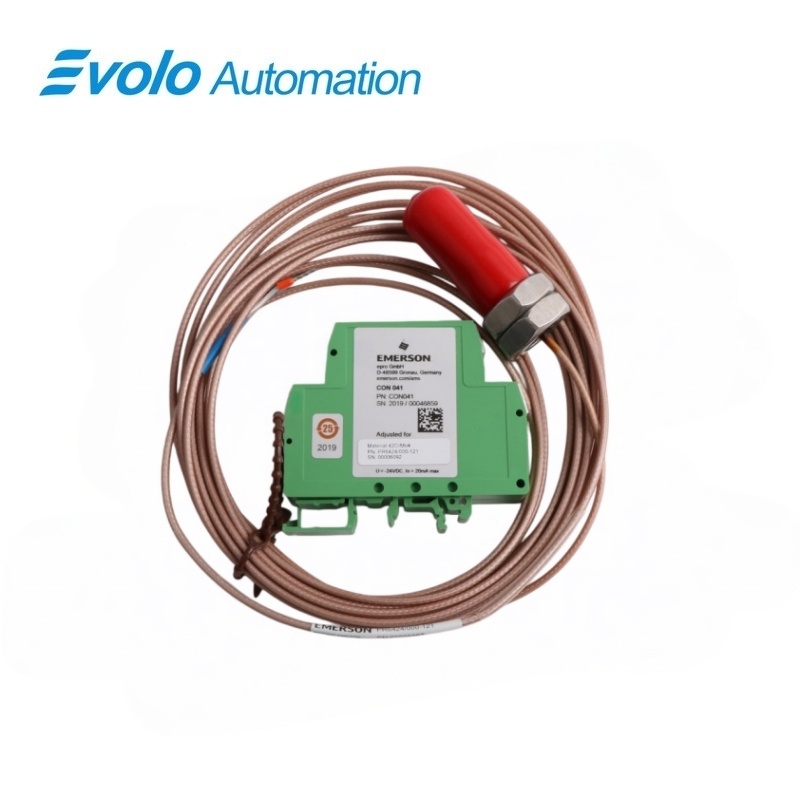

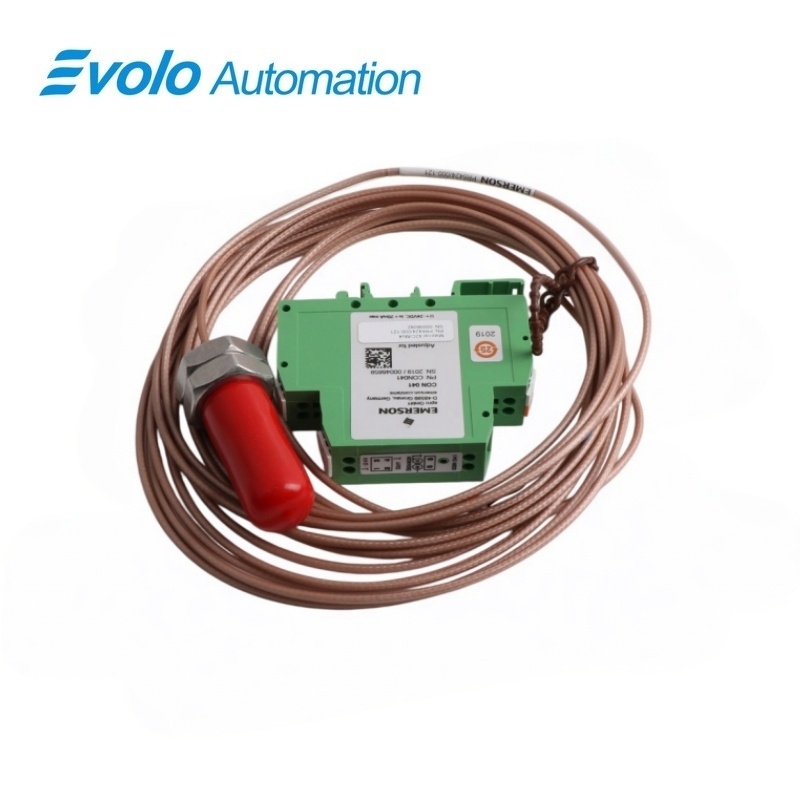

Emerson CON041 PR6424/000-121 combines a CON041 signal converter with a PR6424 16 mm eddy-current probe for non-contact shaft displacement or vibration measurement.
The official PR642x documentation identifies a 4 mm standard measuring range and 4 V/mm nominal scale factor for the PR6424 system. Probe, extension cable and converter calibration form one measurement chain.
Key Functions
Non-Contact Measurement
Measures the gap to a conductive target without physical contact for suitable shaft displacement and vibration applications.
16 mm Probe System
Uses the PR6424 16 mm probe with the documented 4 mm standard range and 4 V/mm nominal sensitivity.
Conditioned Signal Output
The CON041 converter conditions the probe signal for connection to a compatible monitoring or protection channel.
Official Specifications
| Probe diameter | 16 mm |
|---|---|
| Standard measuring range | 4 mm |
| Nominal scale factor | 4 V/mm |
| Probe temperature | −35 to +120 °C nominal |
| Non-Contact Measurement | Measures the gap to a conductive target without physical contact for suitable shaft displacement and vibration applications. |
| 16 mm Probe System | Uses the PR6424 16 mm probe with the documented 4 mm standard range and 4 V/mm nominal sensitivity. |
| Conditioned Signal Output | The CON041 converter conditions the probe signal for connection to a compatible monitoring or protection channel. |
| Operating Temperature Range | 35 to +120 °C |
| Measurement Principle | Eddy current |
| Target Material | Conductive |
| Signal Converter | CON041 |
| Measurement Chain | Probe, extension cable, and converter |
| Measurement Method | Non-contact |
| Minimum Operating Temperature | −35 °C |
| Maximum Operating Temperature | +120 °C |
Official source: Emerson PR642x Eddy-Current Sensor and CON041 Converter Installation Guides. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which EPRO eddy-current measurement systems are compatible with CON041 PR6424/000-121?
It is intended for EPRO eddy-current measurement.
What operating task is CON041 PR6424/000-121 designed to perform as a 16 mm Eddy-Current Measurement System?
Shaft displacement, position, eccentricity and speed monitoring.
What installation interfaces need confirmation before using CON041 PR6424/000-121?
Verify the specified code and the the specified code converter version. Confirm probe, extension-cable length and connector type.
Which non-contact measurement details should engineers confirm for CON041 PR6424/000-121?
Measures the gap to a conductive target without physical contact for suitable shaft displacement and vibration applications.
How does CON041 PR6424/000-121 handle 16 mm probe system?
Uses the PR6424 16 mm probe with the documented 4 mm standard range and 4 V/mm nominal sensitivity.
What should technicians verify about conditioned signal output when commissioning CON041 PR6424/000-121?
The the specified code converter conditions the probe signal for connection to a compatible monitoring or protection channel.
Which nameplate and revision details should buyers verify before ordering CON041 PR6424/000-121?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for CON041 PR6424/000-121
- Verify PR6424/000-121 and the CON041 converter version.
- Confirm probe, extension-cable length and connector type.
- Check target material, mounting thread and required range.
- Validate converter output range and monitoring-channel scaling.
