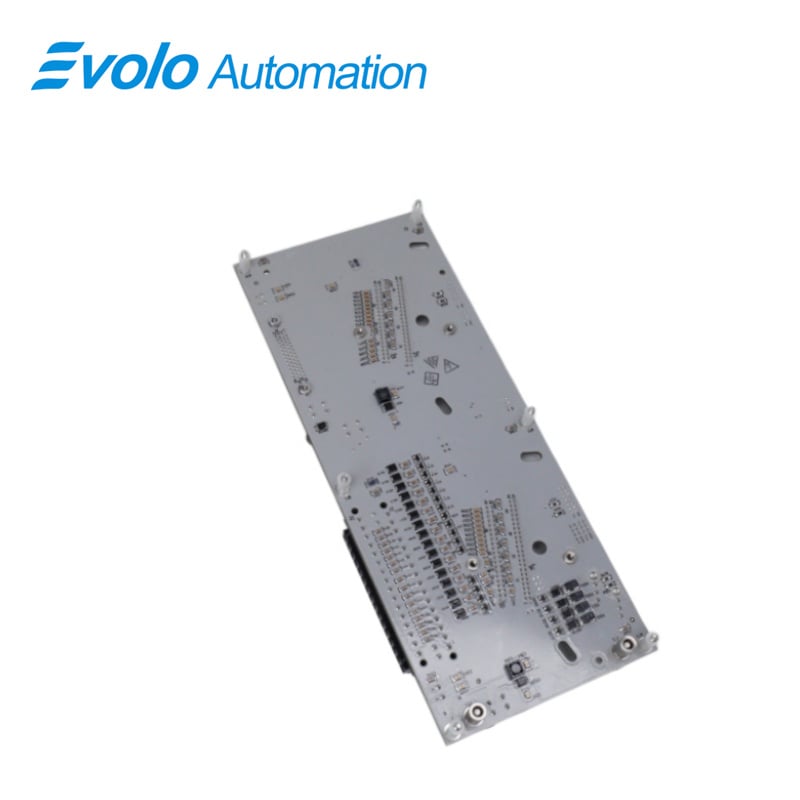

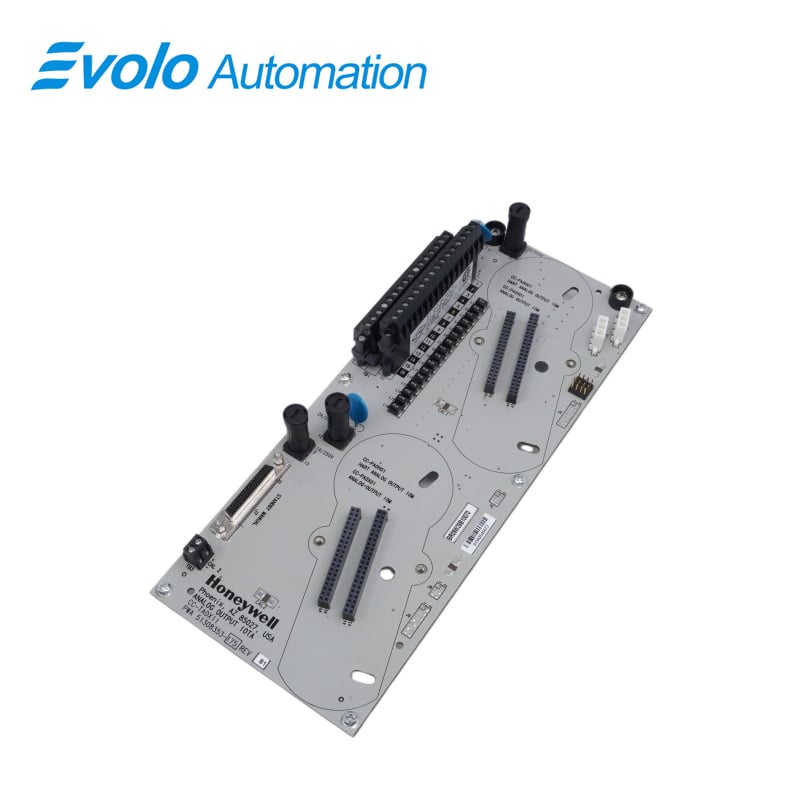

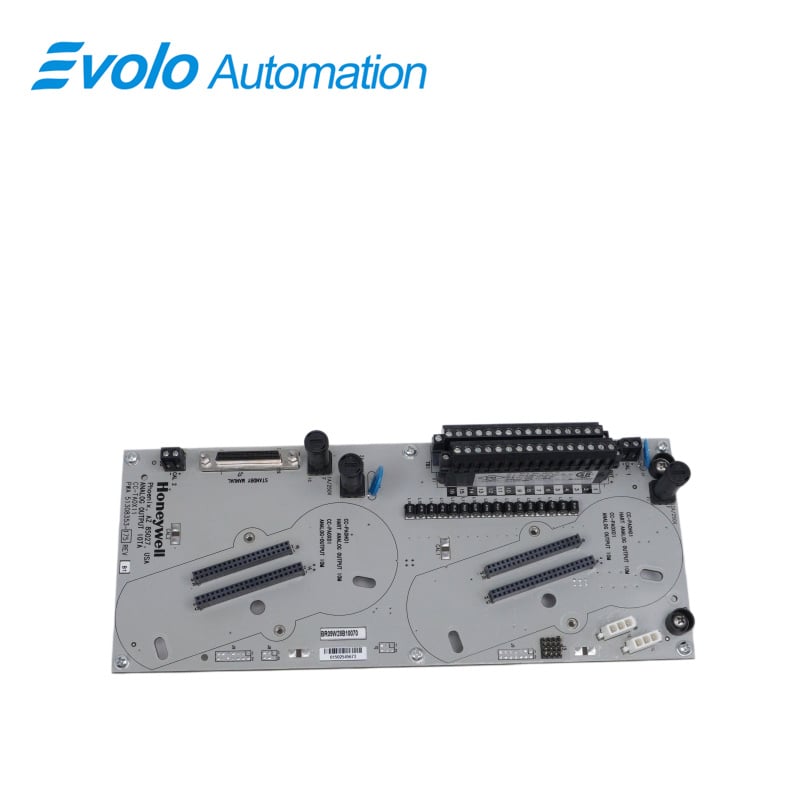

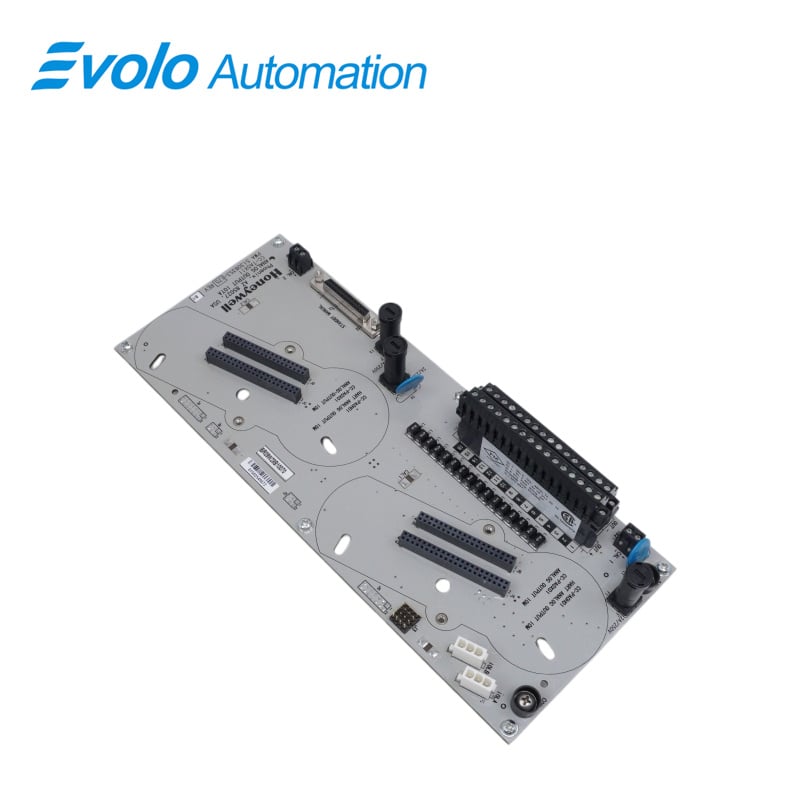

CC-TAOX11 51308353-175 High-Level Analog Output Module, China CC-TAOX11 51308353-175 High-Level Analog Output Module Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	HONEYWELL
Model Number:	CC-TAOX11 51308353-175
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Model:	CC-TAOX11 51308353-175
Product Type:	High-Level Analog Output Module
Dimensions:	29.4 × 12 × 6.3 cm
Weight:	0.36 kg
Redundancy:	Supported
Output Type:	4–20 mA
Output Channels:	16
Output Ripple:	<100 mV peak-to-peak (at power line frequency, across 250 Ω load)
Output Temperature Drift:	0.005% of Full Scale / °C
Output Readback Accuracy:	±4% of Full Scale
Output Current Linearity:	±0.05% of Full Scale (nominal)
Resolution:	±0.05% of Full Scale
Calibrated Accuracy:	±0.35% of Full Scale (25°C, incl. linearity)
Output Current Range:	0 mA, 2.9 mA to 21.1 mA (directly settable)
Maximum Resistive Load:	800 Ω (24 V supply: 22–28 VDC)
Maximum Output Compliant Voltage:	16 V (24 V supply: 22–28 VDC)
Maximum Open Circuit Voltage:	22 V
Response Time:	Settles within 1% of final value in 80 ms
Switchover Gap:	10 ms max (0 mA output to field, redundancy only)

Description

The Honeywell CC-TAOX11 51308353-175 is a High-Level Analog Output Module for Honeywell Experion DCS systems. It provides multiple isolated analog output channels for delivering accurate control signals to field devices such as control valves, positioners, and actuator systems.

Applications

Oil refineries: Control of large control and emergency shutdown valves in crude distillation and catalytic units with redundant architecture ensuring stable continuous operation.

Thermal power plants: Precise control of boiler fans, dampers, and turbine speed systems supporting stable grid load regulation.

Coal gasification plants: Gas flow control in high-pressure gasifiers and pipeline systems ensuring accurate process regulation under complex conditions.

Large fertilizer plants: Regulation of proportional valves in ammonia and urea process loops maintaining stable operation in varying environmental conditions.

Notable Features

Extensive self-diagnostics

Optional redundancy

Safe-state (FAILOPT) behaviors configurable on a per channel basis

Output read-back and alarm on discrepancy

Non-incendive output

Detection

FAILOPT:

Series C AO module supports the FAILOPT parameter on a per channel basis. The user can configure each channel to either HOLD LAST VALUE, or SHED to a SAFE VALUE. The Output will always go to zero, the safe state, if the IOM device electronics fails.

Open-wire Detection:

This Series C IO function will be able to detect and annunciate open field wire with a Channel Soft Failure indication.

FAQ

Q: What are the redundancy capability and output type of CC-TAOX11 51308353-175?
A: Supports redundancy and provides 16 channels of 4–20 mA analog outputs.

Q: What are the calibration accuracy and readback accuracy of CC-TAOX11 51308353-175?
A: Ambient temperature calibration accuracy is ±0.35%, and output readback accuracy is ±4%.

Q: What are the output resolution and current range of CC-TAOX11 51308353-175?
A: Resolution reaches ±0.05%, supporting configurable ranges of 0 mA and 2.9 to 21.1 mA.

Q: What are the load resistance and open-circuit voltage of CC-TAOX11 51308353-175?
A: Supports a maximum resistive load of 800 Ω, with a maximum open-circuit voltage of 22 V.

Q: What are the temperature drift and compliance voltage specifications of CC-TAOX11 51308353-175?
A: Temperature drift is 0.005%/°C, and the maximum output compliance voltage is 16 V.
