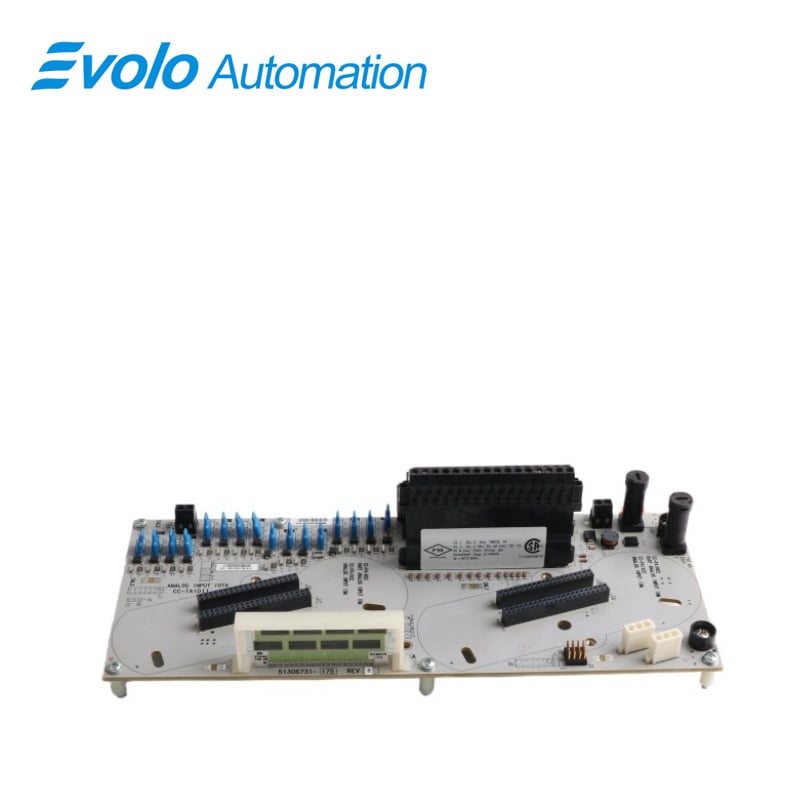

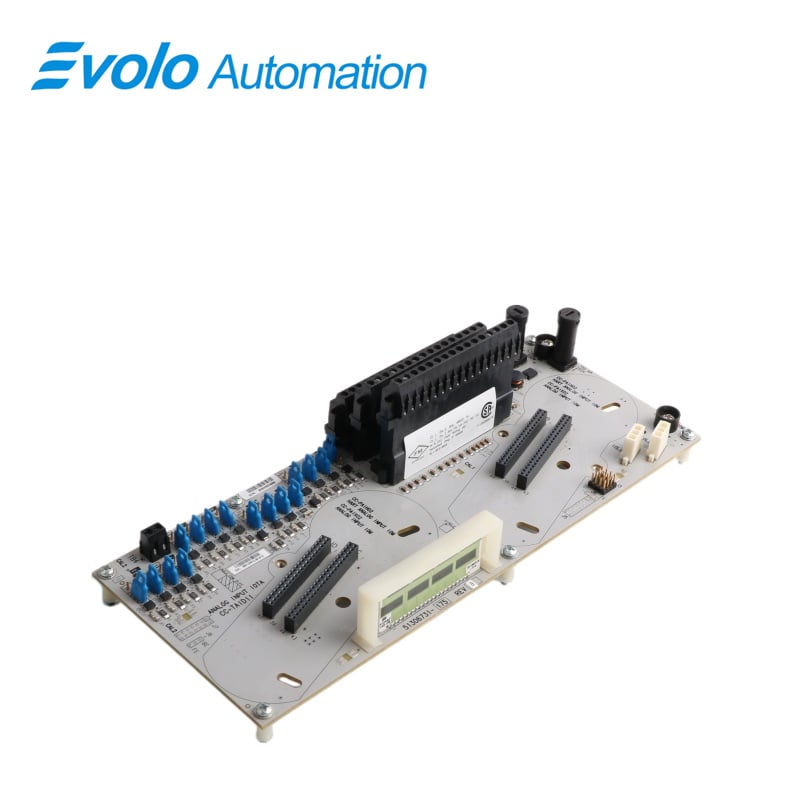

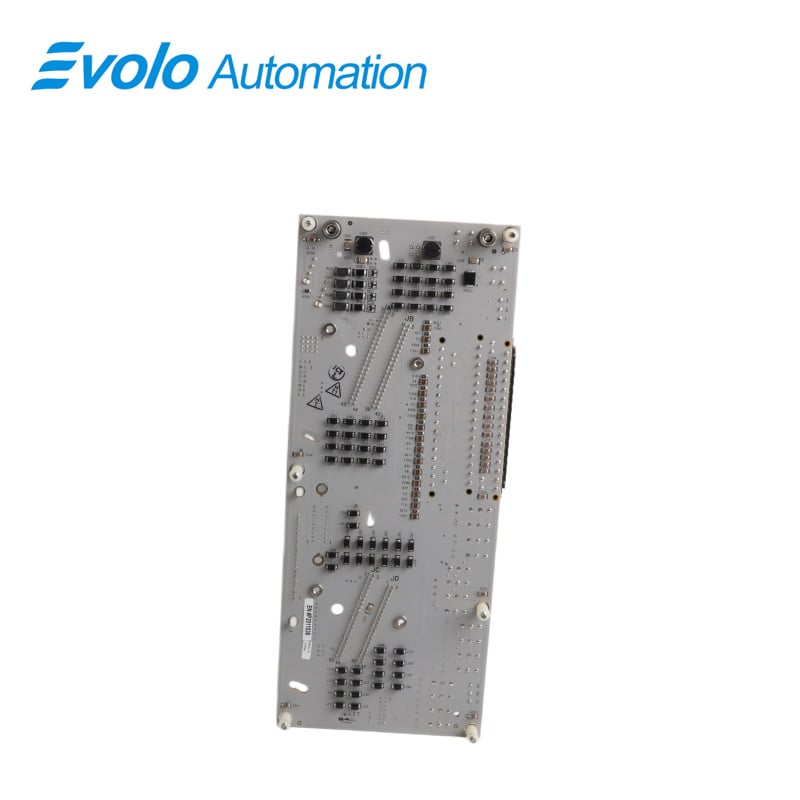

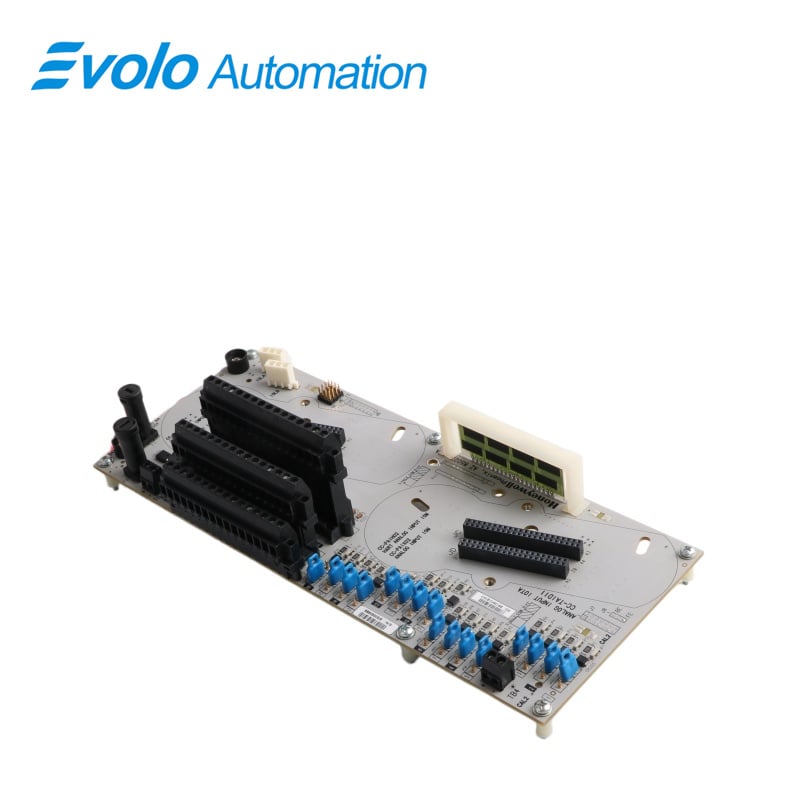

CC-TAID11 51306731-175 High-Level Analog Input Module
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Specifications
- Description
- Applications
- Notable Features
- FAQ
- Recommended Products
Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
CC-TAID11 51306731-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
CC-TAID11 51306731-175 |
|
Product Type: |
High-Level Analog Input Module |
|
Dimensions: |
29.4 × 12 × 8 cm |
|
Weight: |
0.42 kg |
|
Protocol Support: |
HART |
|
Redundancy: |
Supported |
|
Input Type: |
Voltage, current (2-wire or self-powered transmitters) |
|
Input Channels: |
16 Channels (12 Single-Ended / 4 Differential) |
|
Common Mode Rejection Ratio: |
70 dB (dc to 60 Hz, 500 Ω source imbalance) |
|
Common Mode Voltage: |
-6 to +5 V peak (dc to 60 Hz) |
|
A/D Converter Resolution: |
16 bits |
|
Input Range: |
0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4–20 mA (through 250 Ω) |
|
Normal Mode Rejection Ratio: |
19 dB at 60 Hz |
|
Normal Mode Filter Response: |
Single-pole RC, -3 dB @ 6.5 Hz |
|
Maximum Normal Mode Input: |
±30 V (differential inputs, no damage) |
|
Crosstalk: |
-60 dB (channel-to-channel, dc to 60 Hz) |
|
Input Impedance: |
>10 MΩ powered (voltage inputs) |
|
Input Scan Rate: |
50 ms |
|
Hardware Accuracy: |
±0.075% FS (23.5°C ±2°C); ±0.15% FS (0 to 60°C) |
|
Field Power Conditioning: |
Individually protected current limiting circuits for Class 1, Div 2 non-incendive interfacing; no fusing required |
Description
The Honeywell CC-TAID11 51306731-175 is a High-Level Analog Input Module. It is primarily used to fix input hardware and connect field power cables, introducing continuous current or voltage signals from field devices such as valve positioners, level gauges, or temperature transmitters into the entire control network. When field wiring faults or circuit interruptions occur, it can work with upper-level electronic modules to report these abnormal states to maintenance personnel.
Applications
Oil refineries: Real-time monitoring of pressure and temperature transmitters in hazardous areas through HART communication, ensuring continuous operation of refining units.
Thermal power plants: Accurate acquisition of boiler drum level and steam pressure signals for stable closed-loop control.
Large chemical plants: Reliable operation in high electromagnetic interference environments with effective industrial noise filtering.
Oil and gas gathering stations: Safe sensor signal connection in hazardous gas areas with explosion-protected current limiting design.
Notable Features
Extensive self-diagnostics
Optional redundancy
Open Wire Detection
Supplies non-incendive field power
Non-incendive power support
HART-capable multivariable instruments support
Multiple modems for fast control variable collection
Fast loop scan
PV protection through open wire detection diagnostics
Open-wire Bad PV detection
FAQ
Q: What protocol and redundancy structure does the CC-TAID11 51306731-175 support?
A: Supports HART protocol with redundancy capability.
Q: What input types and channel configuration does the CC-TAID11 51306731-175 have?
A: Supports voltage and current inputs with 16 channels (12 single-ended / 4 differential).
Q: What are the resolution and measurement ranges of the CC-TAID11 51306731-175?
A: Uses 16-bit resolution supporting 0–5 V, 1–5 V, 0.4–2 V, and 4–20 mA ranges.
Q: What is the input impedance of the CC-TAID11 51306731-175?
A: Powered voltage input impedance is greater than 10 MΩ.
Q: What are the noise immunity and maximum voltage ratings of the CC-TAID11 51306731-175?
A: Common-mode rejection ratio is 70 dB, and differential inputs withstand up to ±30 V.
