Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
CC-TAID01 51306733-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
CC-TAID01 51306733-175 |
|
Part Type |
Analog Input Module |
|
Dimensions |
22.1 x 12.1 x 8 cm |
|
Weight |
0.34 kg |
|
Input Signal Type |
4–20 mA current loop |
|
Channel Count |
16 analog input channels |
|
Power Supply |
Non-incendive field power |
|
Signal Isolation |
Channel-to-channel and channel-to-ground isolation |
|
Accuracy |
±0.1% of span |
|
Mounting |
Panel or rack-mounted |
|
Operating Temperature |
-20°C to +70°C |
|
Certifications |
CE, RoHS; suitable for Class I Div 2 environments |
Description

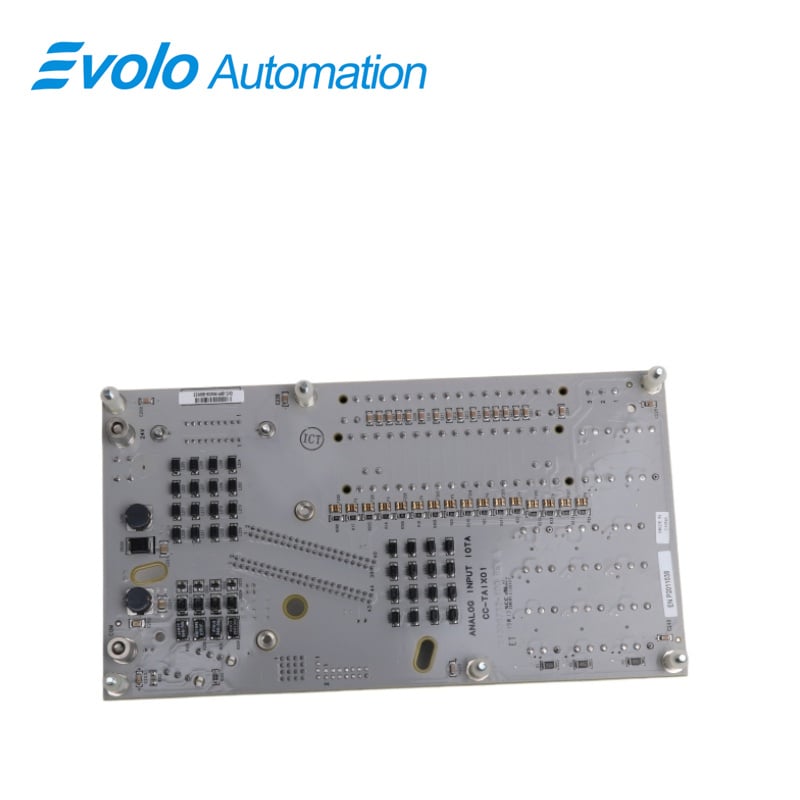

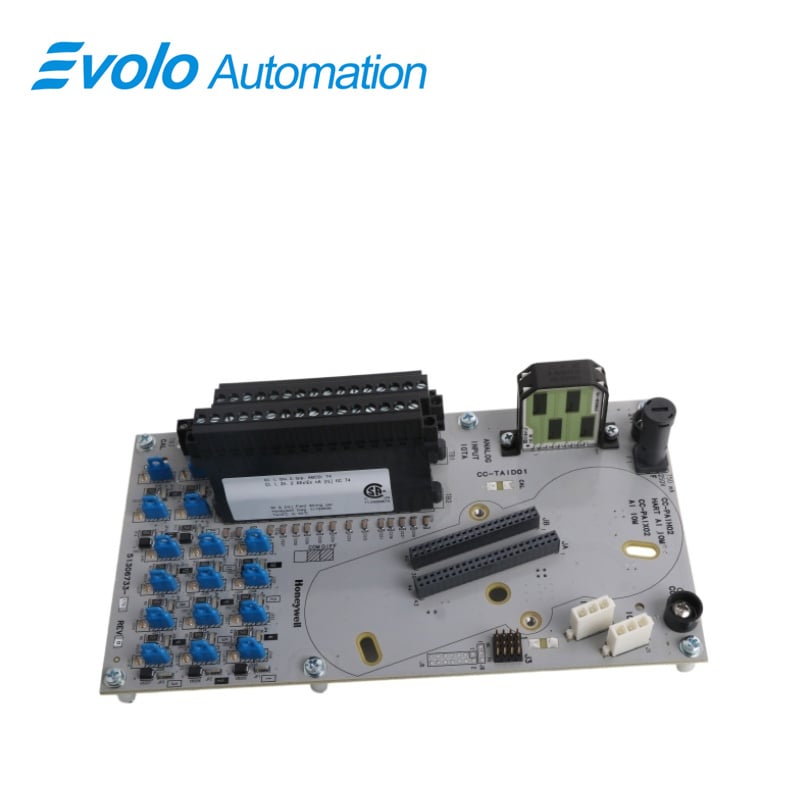

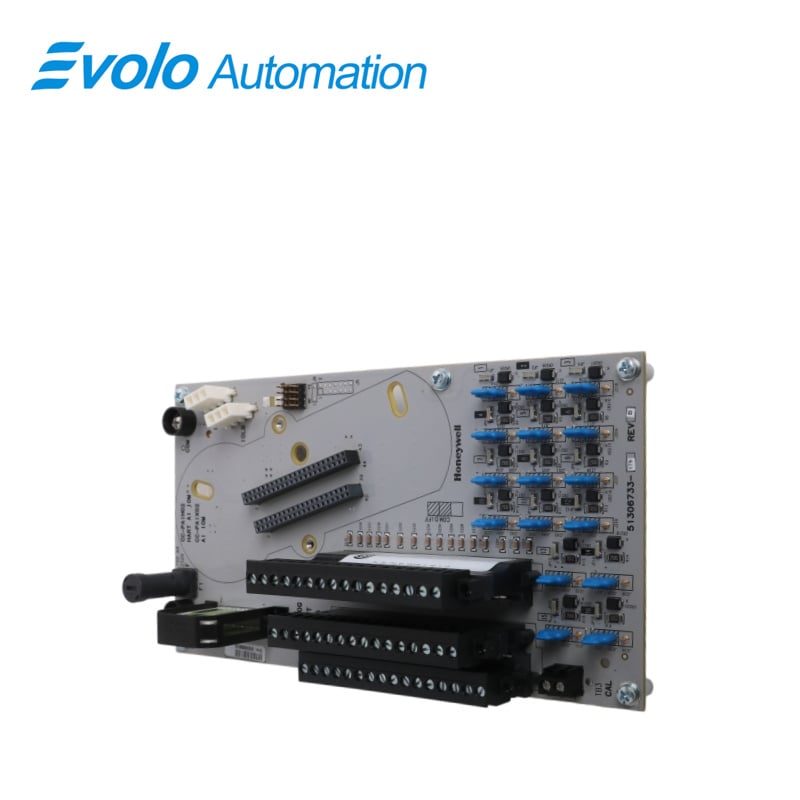

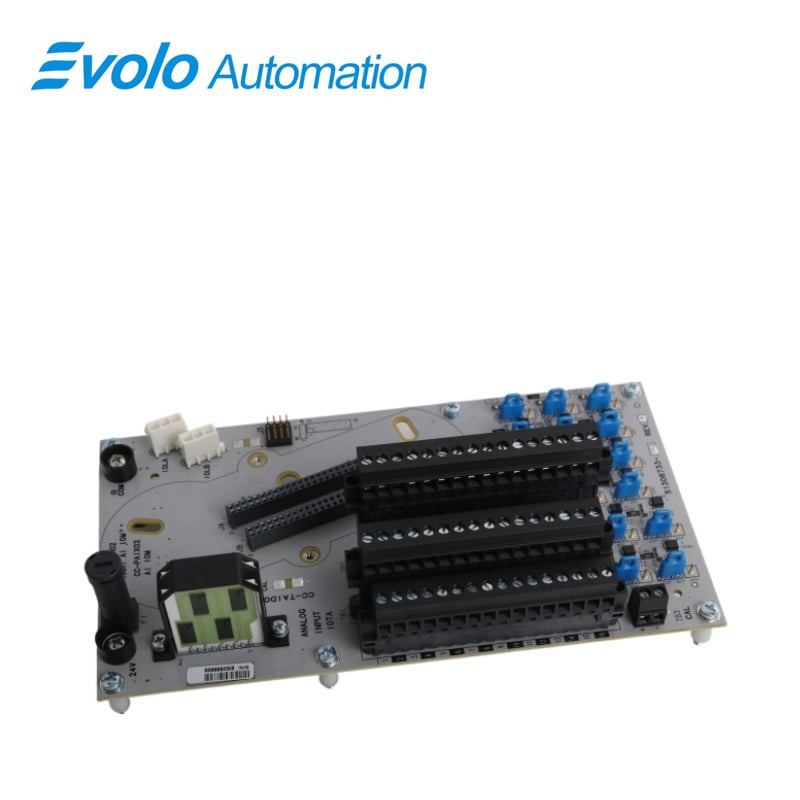

The Honeywell CC-TAID01 51306733-175 is an Analog Input Module. This module is primarily used to connect current and voltage signal lines from measuring instruments on field pipelines and storage tanks. Specifically, it ensures that all external instrument cables are neatly arranged and connected within the control cabinet, directly transmitting measured data such as pressure and flow rate to the electronic board for calculation.
Applications
Fine chemical plant: ensures strict monitoring of reactor levels and composition ratios with high-precision measurement capability.
Pharmaceutical manufacturing plant: prevents sensor network interference through channel isolation, ensuring accurate batch production data.
Gas pressure regulation station: maintains stable flow monitoring in outdoor pipelines under wide temperature variations.
Paper and pulp plant: ensures clean 4–20 mA signal transmission in high-moisture and high-noise industrial environments.
Features
High-density input supporting 16 current channels in a compact design
Non-incendive power design for safe use in hazardous areas without external barriers
High accuracy for precise signal acquisition in critical process control
Fast update rate for real-time monitoring and control
Built-in diagnostics for open loop, short circuit, and signal integrity detection
Seamless system integration with C300 controllers and Series C I/O infrastructure
FAQ
Q: What signal type and channel count does the CC-TAID01 51306733-175 support?
A: 16-channel 4–20 mA current loop analog input.
Q: What are the measurement accuracy and operating temperature of the CC-TAID01 51306733-175?
A: Accuracy is ±0.1% of span, operating temperature -20°C to +70°C.
Q: What are the power supply and isolation features of the CC-TAID01 51306733-175?
A: Non-incendive field power supply with channel-to-channel and channel-to-ground isolation.
Q: What are the installation methods and certifications of the CC-TAID01 51306733-175?
A: Panel or rack mounting, certified with CE and RoHS.
Q: What hazardous area rating does the CC-TAID01 51306733-175 have?
A: Suitable for Class I Div 2 hazardous environments.
