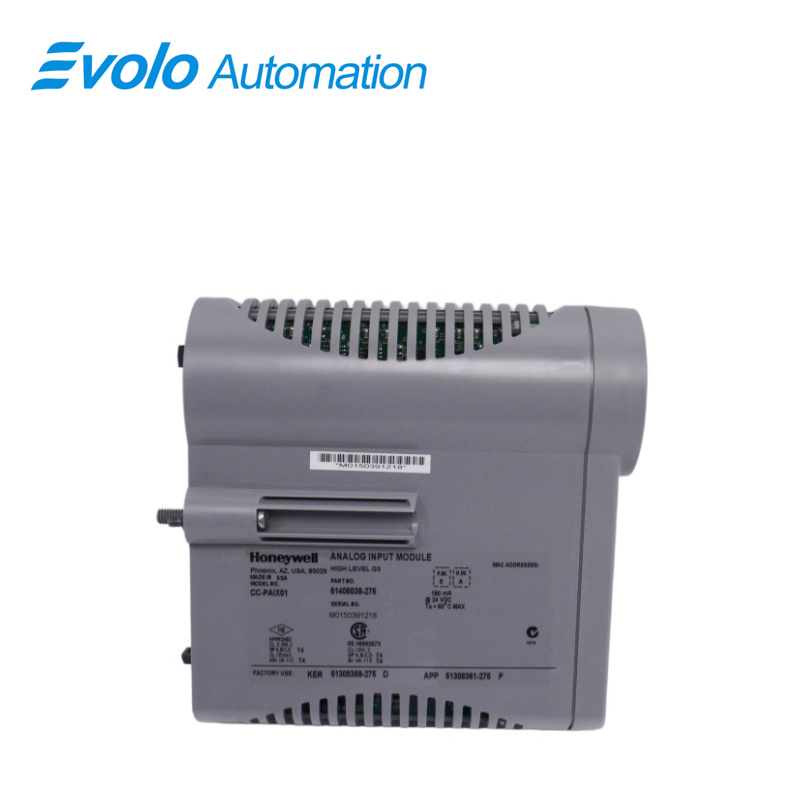

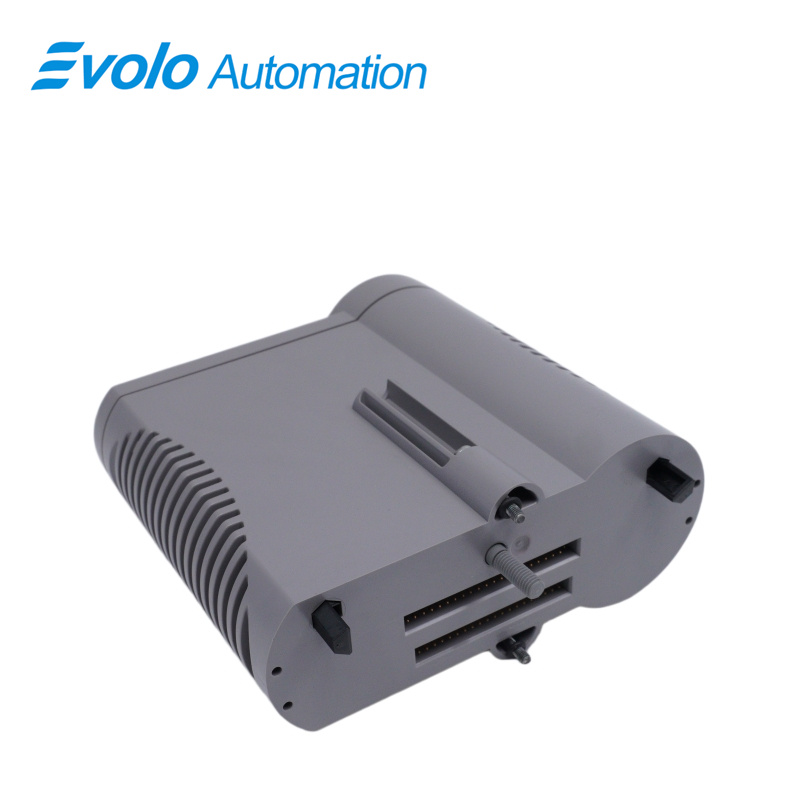

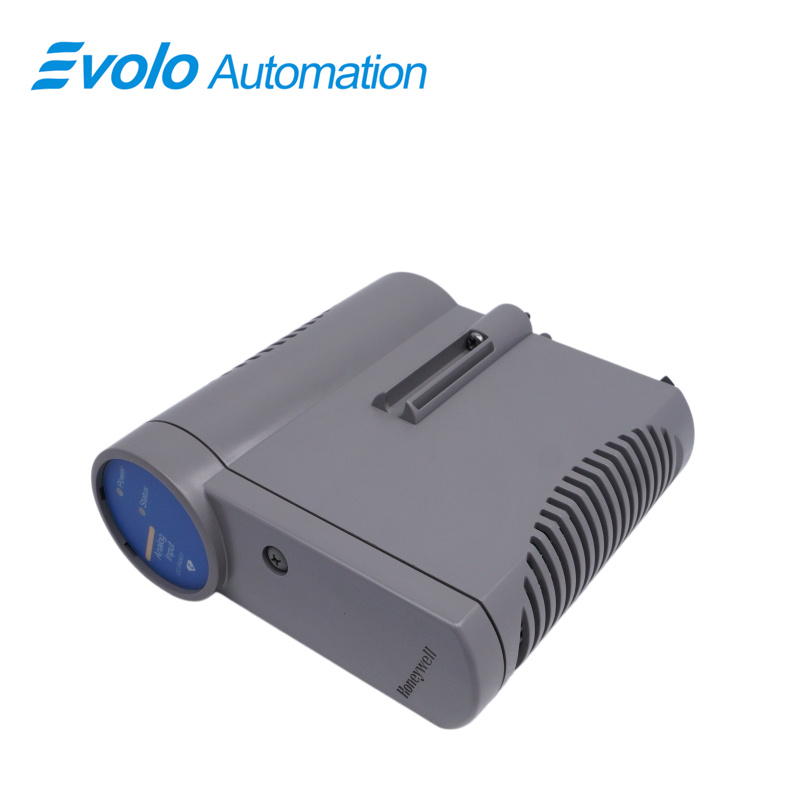

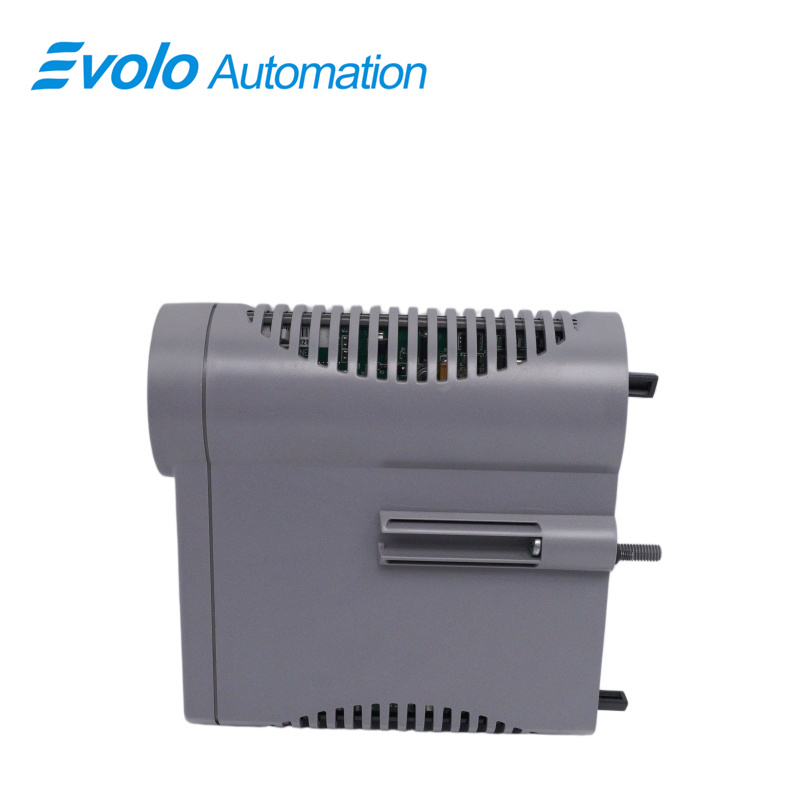

CC-PAIX01 51405038-275 High-Level Analog Input Module
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Specifications
- Description
- Applications
- Notable Features
- FAQ
- Recommended Products
Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
CC-PAIX01 51405038-275 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
CC-PAIX01 51405038-275 |
|
Part Type |
High-Level Analog Input Module |
|
Dimensions |
5.5 x 16 x 14.5 cm |
|
Weight |
0.4 kg |
|
Input Type |
Voltage; current (2-wire or self-powered transmitters) |
|
Input Channels |
16 (12 single-ended / 4 differential) |
|
A/D Converter Resolution |
16-bit |
|
Input Range |
0–5 V; 1–5 V; 0.4–2 V; 4–20 mA (through 250 Ω) |
|
Common Mode Rejection Ratio (DC to 60 Hz, 500 Ω imbalance) |
70 dB |
|
Common Mode Voltage (DC to 60 Hz) |
-6 to +5 V peak |
|
Normal Mode Rejection Ratio (60 Hz) |
19 dB |
|
Normal Mode Filter Response |
Single-pole RC, -3 dB @ 6.5 Hz |
|
Maximum Normal Mode Input |
±30 V (differential inputs, no damage) |
|
Crosstalk (DC to 60 Hz, channel-to-channel) |
-60 dB |
|
Input Impedance (Voltage inputs) |
>10 MΩ (powered) |
|
Input Scan Rate |
50 ms |
|
Hardware Accuracy (23.5°C ±2°C) |
±0.075% of full scale |
|
Hardware Accuracy (0 to 60°C) |
±0.15% of full scale |
|
Transmitter Field Power Conditioning |
Individually protected current limiting circuits (Class 1 Div 2 non-incendive; no fusing required) |
Description
The Honeywell CC-PAIX01 51405038-275 is a high-level analog input module used for the Experion Process Knowledge System (PKS) Series C. It enables accurate analog-to-digital conversion of field signals, supporting intelligent device communication and enhancing system responsiveness in harsh industrial environments.
Applications
Refineries: Collects crude oil pipeline pressure signals.
Chemical Plants: Receives reactor level transmitter signals.
Thermal Power Plants: Collects steam flowmeter data.
Water Treatment Plants: Monitors water pipeline pressure signals.
Pharmaceutical Plants: Sorts tank weighing sensor signals.
Notable Features
Extensive self-diagnostics
Optional redundancy
Supplies non-incendive field power
Non-Incendive Power
Fast loop scan
FAQ
Q: What inputs and channel count are supported by the CC-PAIX01 51405038-275?
A: Supports voltage and current inputs with 16 channels (12 single-ended / 4 differential).
Q: What are the resolution and input ranges of the CC-PAIX01 51405038-275?
A: Uses 16-bit resolution supporting 0–5 V, 1–5 V, 0.4–2 V, and 4–20 mA ranges.
Q: What are the channel impedance and sampling speed of the CC-PAIX01 51405038-275?
A: Powered voltage input impedance is greater than 10 MΩ, with a full-channel scan cycle of 50 ms.
Q: What noise immunity and mode rejection does the CC-PAIX01 51405038-275 provide?
A: Common-mode rejection ratio is 70 dB, normal-mode rejection ratio is 19 dB, and crosstalk is as low as -60 dB.
Q: What is the maximum input voltage tolerance of the CC-PAIX01 51405038-275?
A: Supports common-mode voltage peaks from -6 to +5 V, and differential inputs withstand up to ±30 V.
