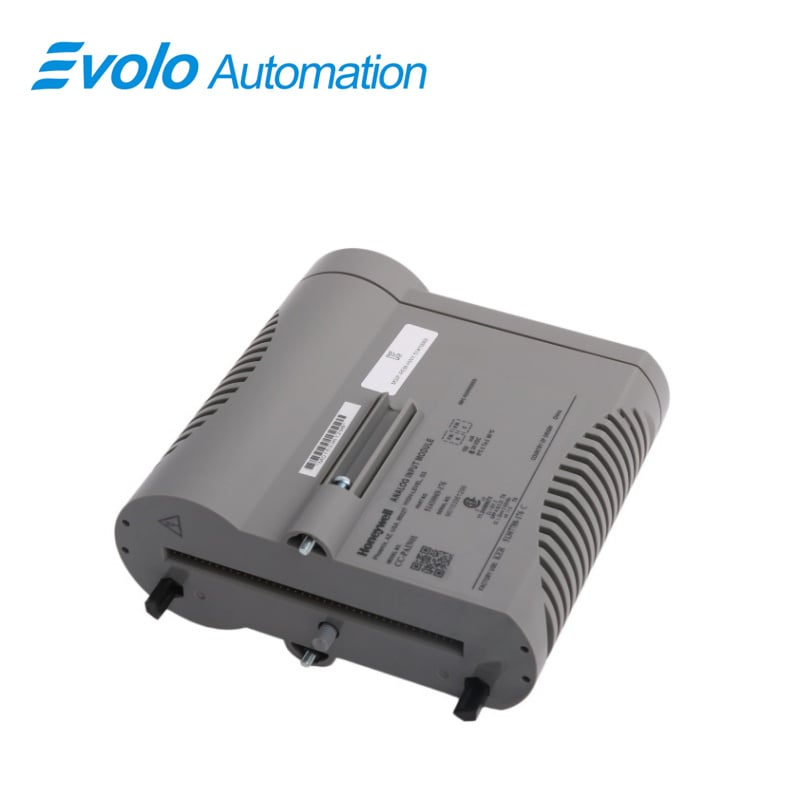

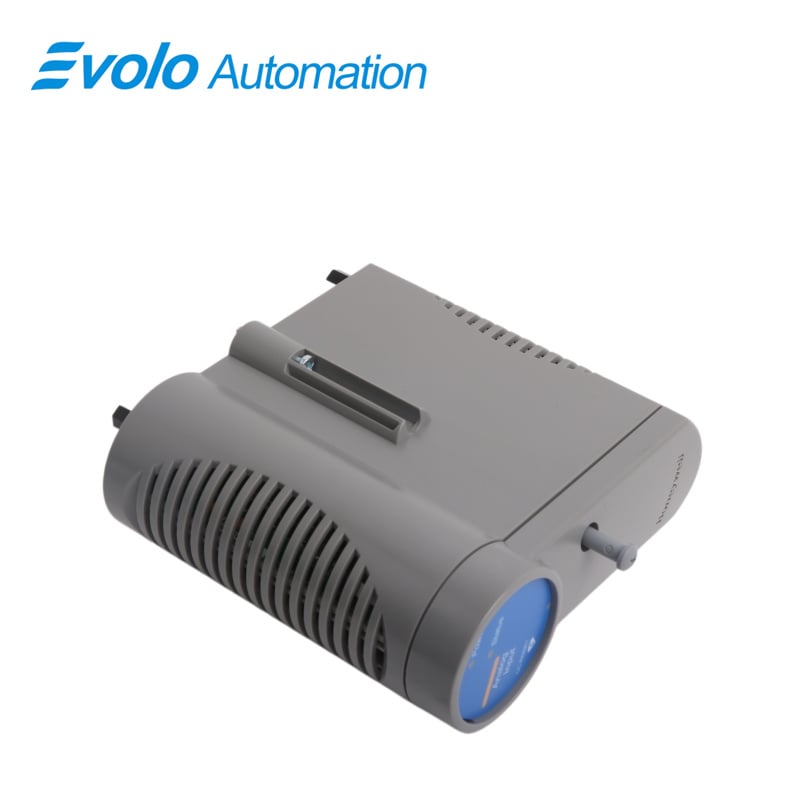

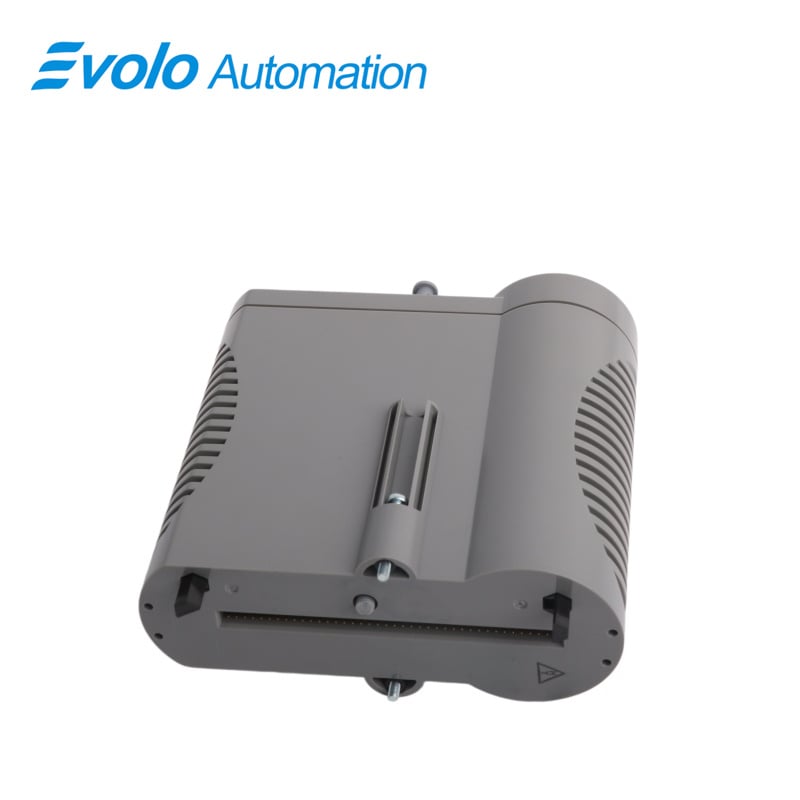

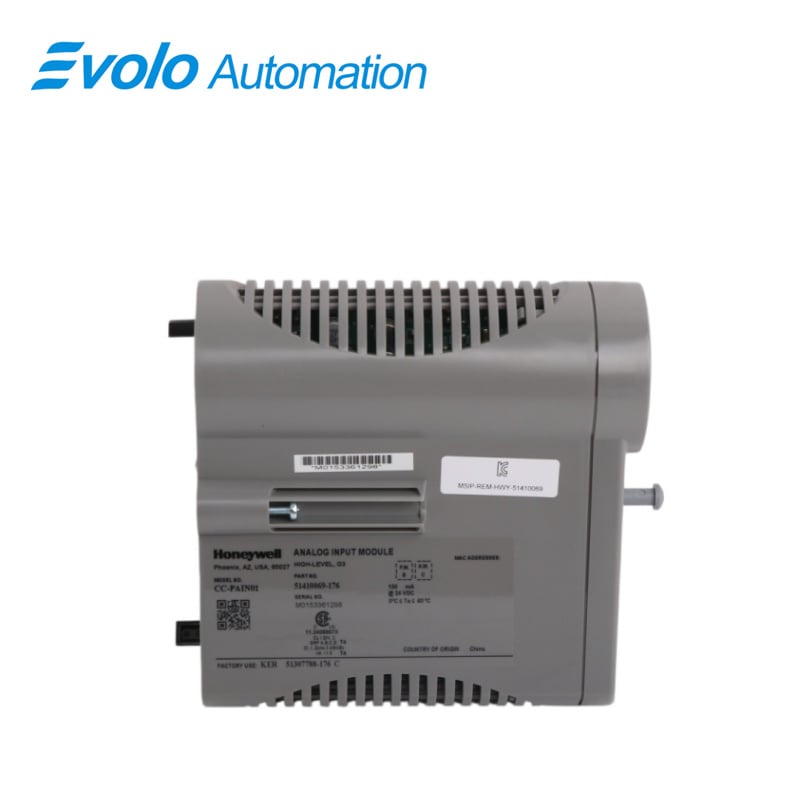

CC-PAIN01 51410069-176 High-Level Analog Input Module
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Specifications
- Description
- Applications
- Notable Features
- FAQ
- Recommended Products
Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
CC-PAIN01 51410069-176 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
CC-PAIN01 51410069-176 |
|
Part Type |
High-Level Analog Input Module |
|
Dimensions |
14.5 x 6.1 x 14.5 cm |
|
Weight |
0.3 kg |
|
Input Type |
Current (2-wire or self-powered transmitters) |
|
Input Channels |
16 single-ended channels |
|
A/D Converter Resolution |
16-bit |
|
Input Range |
4–20 mA (through 200 Ω) |
|
Common Mode Rejection Ratio (DC to 60 Hz, 500 Ω imbalance) |
70 dB |
|
Normal Mode Rejection Ratio (60 Hz) |
20 dB |
|
Normal Mode Filter Response |
Single-pole RC, -3 dB @ 6.0 Hz |
|
Maximum Normal Mode Input |
±30 V |
|
Crosstalk (DC to 60 Hz, channel-to-channel) |
-60 dB |
|
Input Scan Rate |
50 ms |
|
Hardware Accuracy (23.5°C ±2°C) |
±0.075% of full scale |
|
Hardware Accuracy (0 to 60°C) |
±0.15% of full scale |
|
Transmitter Field Power Conditioning |
Individually protected current limiting circuits (Class 1 Div 2 non-incendive; no fusi |
Description
The Honeywell CC-PAIN01 51410069-176 is a high-level analog input module designed for use in Honeywell C300 control platforms. It accepts current inputs from field transmitters and provides fast, reliable signal acquisition for process control applications.
Applications
Chemical Plants: Receives reactor level transmitter signals.
Thermal Power Plants: Collects steam pipeline flowmeter data.
Water Treatment Plants: Monitors pipeline pressure signals.
Pharmaceutical Plants: Sorts tank weighing sensor signals.
Paper Mills: Collects dryer cylinder pressure data.
Notable Features
Extensive self-diagnostics
Optional redundancy
Supplies non-incendive field power
Fast loop scan
FAQ
Q: What inputs and channel count are supported by the CC-PAIN01 51410069-176?
A: Supports current input only (2-wire/self-powered) with 16 single-ended channels.
Q: What are the resolution and signal range of the CC-PAIN01 51410069-176?
A: Uses 16-bit resolution with an input range of 4–20 mA (through 200 Ω).
Q: What are the sampling speed and hardware accuracy of the CC-PAIN01 51410069-176?
A: Scan cycle is 50 ms, with ±0.075% accuracy at room temperature and ±0.15% over a wide temperature range.
Q: How are the noise immunity and voltage tolerance of the CC-PAIN01 51410069-176?
A: Common-mode rejection ratio is 70 dB, crosstalk is -60 dB, and maximum voltage tolerance is ±30 V.
Q: How does the CC-PAIN01 51410069-176 ensure field power distribution safety?
A: Each channel has independent current limiting protection, meets Class 1 Div 2 requirements, and requires no fuses.
