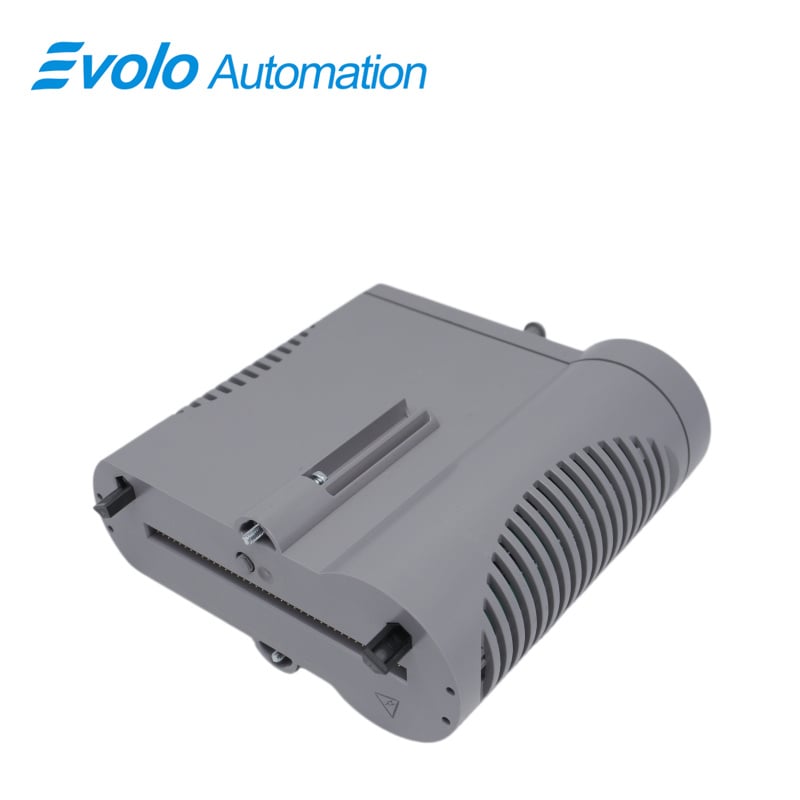

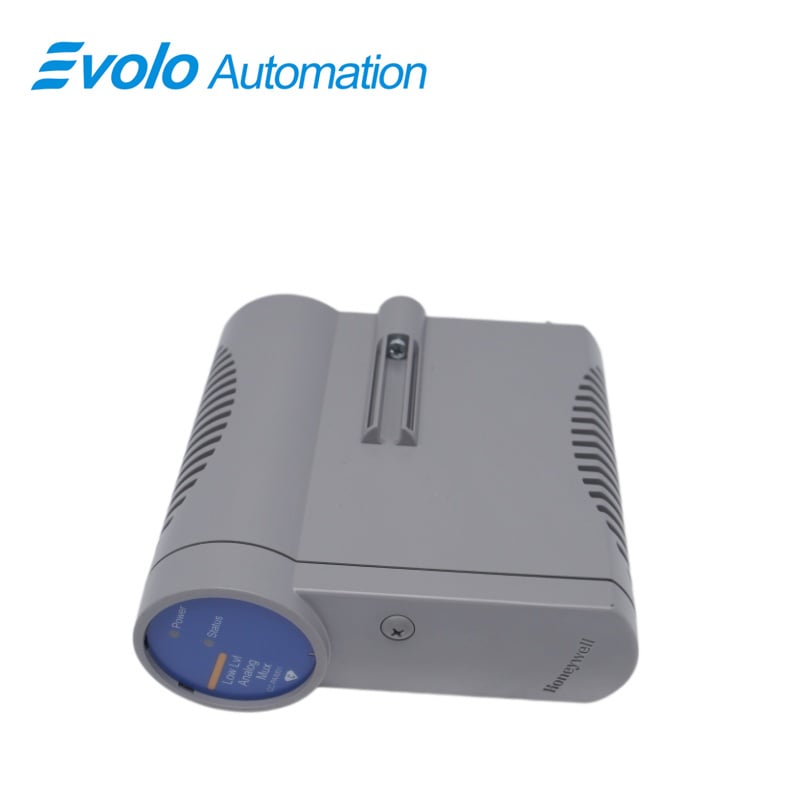

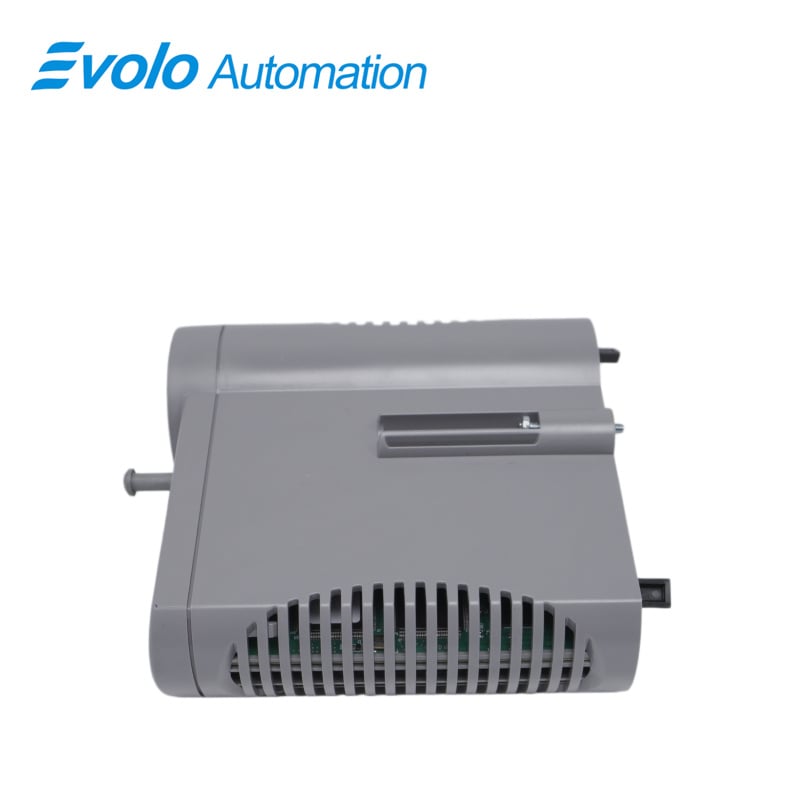

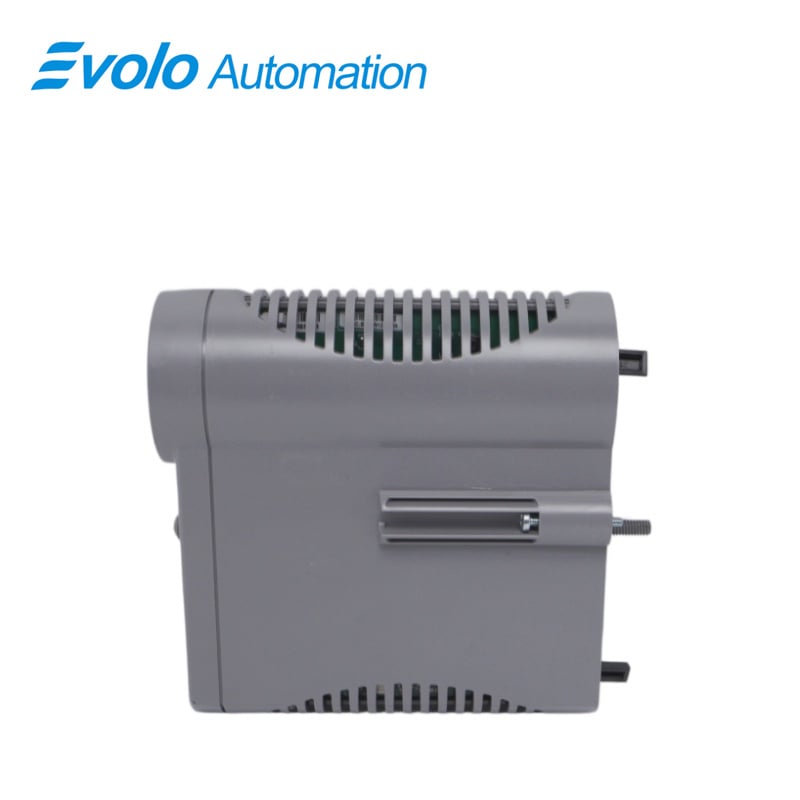

CC-PAIM01 51405045-175 Low Level Analog (Temperature) Input Module
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Specifications
- Description
- Applications
- Notable Features
- Function
- FAQ
- Recommended Products
Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
CC-PAIM01 51405045-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
CC-PAIM01 51405045-175 |
|
Part Type |
Low Level Analog (Temperature) Input Module |
|
Dimensions |
6.3 x 12.4 x 30.7 cm |
|
Input Type |
Thermocouple (TC) and / or RTD |
|
Input Channels |
64 fully isolated (channel-to-channel, channel-to-PM, channel-to-power supply common; in 16-channel increments) |
|
Input Scan Rate |
1 second fixed by IOM (up to 64 channels/sec max.) |
|
Channel Bandwidth |
0 to 4.7 Hz (-3 dB) |
|
Nominal Input Range (TC only) |
-20 to +100 mV |
|
Maximum Normal Mode Input (TC) |
-10 to +10 V (non-damaging) |
|
Maximum Normal Mode Input (RTD) |
-1 to +2 V @ 100 mA |
|
Gain Error (mV range) |
0.050% full scale max |
|
Temperature Stability (TC/mV) |
±20 ppm/°C max |
|
Temperature Stability (RTD) |
±20 ppm/°C max |
|
Long Term Drift |
500 ppm |
|
Input Impedance (TC only) |
1 MΩ at DC |
|
CMV (System Common, DC to 60 Hz) |
±250 VDC or VAC RMS |
|
CMRR (50/60 Hz, 1000 Ω source max) |
120 dB min |
|
Voltage (Channel-to-Channel) |
±250 VDC or VAC RMS |
|
Crosstalk (DC to 60 Hz) |
80 dB (120 dB at 50/60 Hz) |
|
NMRR at 50/60 Hz |
60 dB min |
|
Line Frequency Integration |
Selectable 50 Hz or 60 Hz |
|
RTD Sensor Excitation Current |
1 mA |
|
Cold Junction Reference Accuracy (0–50°C) |
±1.0°C max |
|
Cold Junction Reference Accuracy (-20–60°C) |
±1.5°C max |
|
TC Linearization Accuracy |
±0.05 Ω/°C |
|
Open Thermocouple Detection |
≤1000 Ω no-trip; ≥1500 Ω trip |
|
RTD Max Lead Resistance |
15 Ω |
|
Surge Protection (Sensor Terminals) |
EN 61000-4-5 (1 kV line-line, 2 kV line-ground) |
|
Surge Protection (Power/Serial Link) |
EN 61000-4-5 (1 kV line-line, 2 kV line-ground) |
|
Max Cable Distance (IOTA to FTA) |
1000 ft (16 gauge wire, two twisted pairs per FTA) |
|
Supported Millivolt Types |
-20 to +100 mV |
Description
The Honeywell CC-PAIM01 51405045-175 is a low-level analog input module designed for the Experion Series C Distributed Control System (DCS). This module facilitates the integration of low-level analog signals, such as those from thermocouples and RTDs, into the control system, enabling precise monitoring of temperature and other process variables.
Applications
Refineries: Measures distillation tower tray temperatures.
Chemical Plants: Monitors reactor catalytic temperatures.
Steel Mills: Collects blast furnace temperature data.
Thermal Power Plants: Monitors boiler and bearing temperatures.
Cement Plants: Receives rotary kiln temperature signals.
Notable Features
TC and RTD operation
Remote cold junction capability
1 Second PV scanning with OTD protection
Configurable OTD protection (See below)
Temperature points can be added in 16 point increments
Function
The LLMUX IOP module supports up to 64 channels of temperature inputs. Low level inputs use the Honeywell PMIO LLMUX FTA. Each FTA supports 16 channels. Two types of LLMUX FTA are supported. One provides 16 RTD inputs. The other provides 16 TC or MV inputs. Any combination of FTAs may be used to provide the mix of TC, mV or RTD points required.
FAQ
Q: What signal types and channel count are supported by the CC-PAIM01 51405045-175?
A: Supports thermocouple (TC) and RTD inputs with 64 fully isolated channels.
Q: What are the sampling speed and bandwidth of the CC-PAIM01 51405045-175?
A: Full-channel scan cycle is fixed at 1 second, with a signal bandwidth of 0 to 4.7 Hz.
Q: What are the temperature measurement accuracy and cold junction error of the CC-PAIM01 51405045-175?
A: Maximum gain error is 0.050%, and cold junction compensation accuracy is ±1.0°C at room temperature.
Q: What are the RTD excitation and lead resistance requirements of the CC-PAIM01 51405045-175?
A: Provides 1 mA excitation current and supports a maximum lead resistance of 15 Ω.
Q: How are the noise immunity and open-wire detection capabilities of the CC-PAIM01 51405045-175?
A: Power frequency rejection ratio is ≥60 dB, and an open-wire alarm is triggered at resistance ≥1500 Ω.
