Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
GJR2365700R1010 88VA02A-E |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Dimensions: |
2×25.8×26.1 cm |
|
Weight: |
0.4 kg |
|
Product Type: |
Relay Module |
|
Channels: |
2 relay outputs |
|
Nominal Load Current: |
8 A per channel |
|
Input Voltage Range: |
24 VDC–250 VAC |
|
Supported Loads: |
Motors, solenoids, lamps |
|
Status Indicators: |
LED indicators for each relay |
|
Manual Control: |
Built-in test button |
|
Protection: |
Short circuit and overload protection |
|
Output Type: |
Form A (SPST) relay contacts |
Description

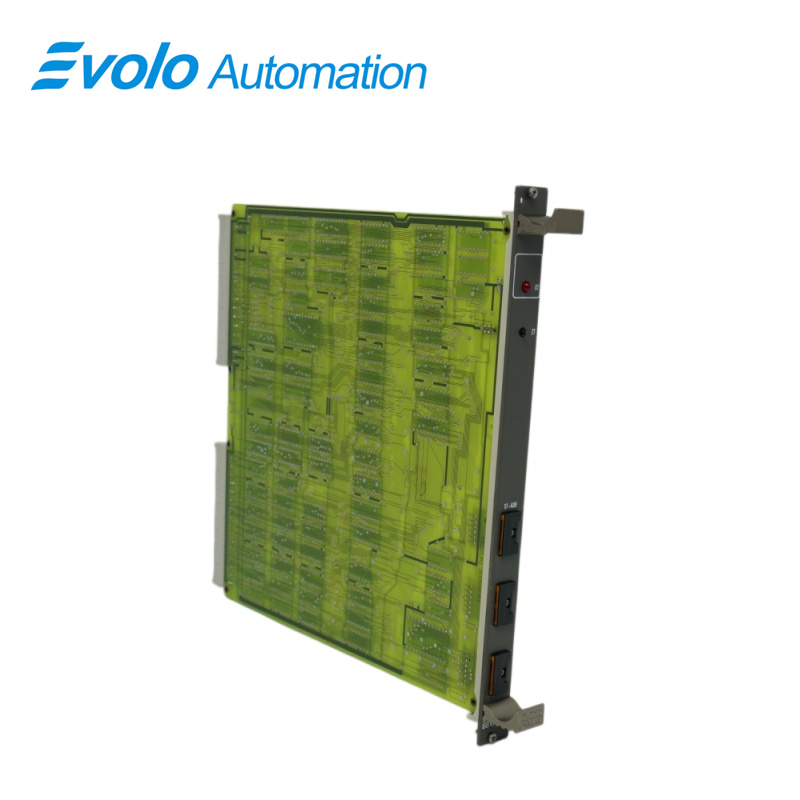

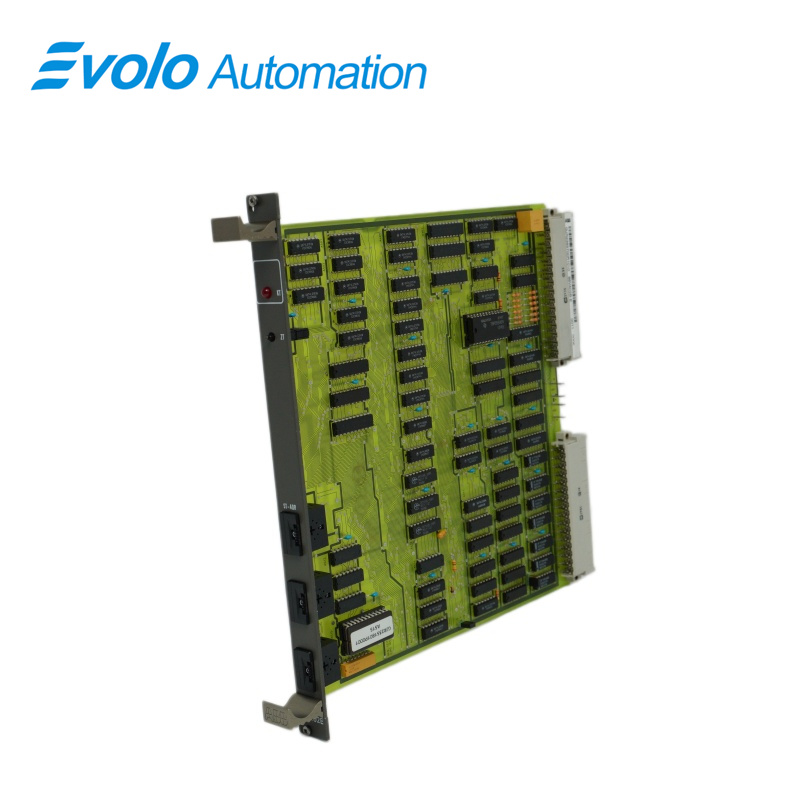

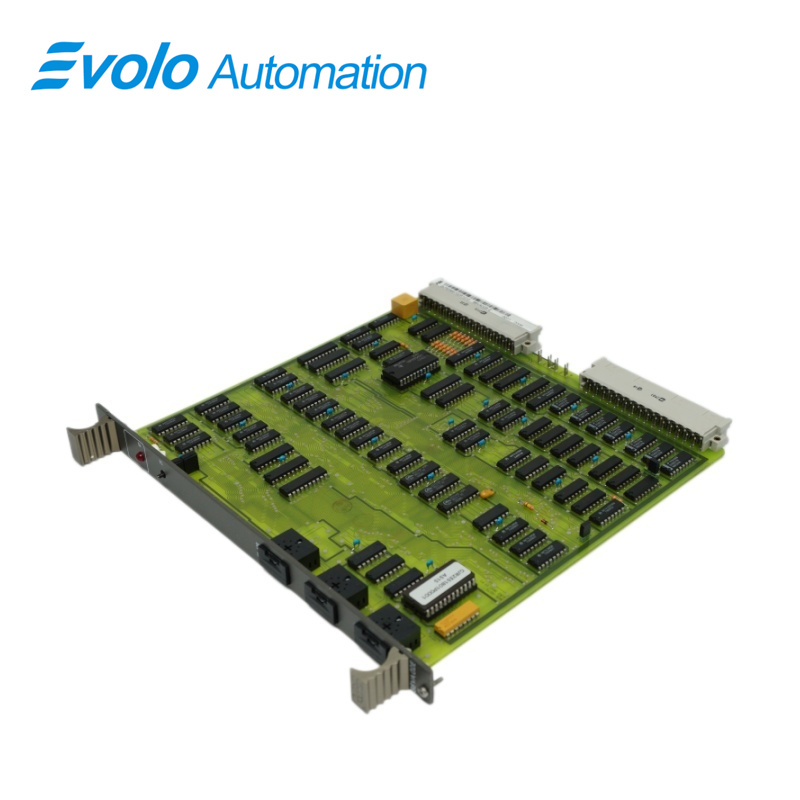

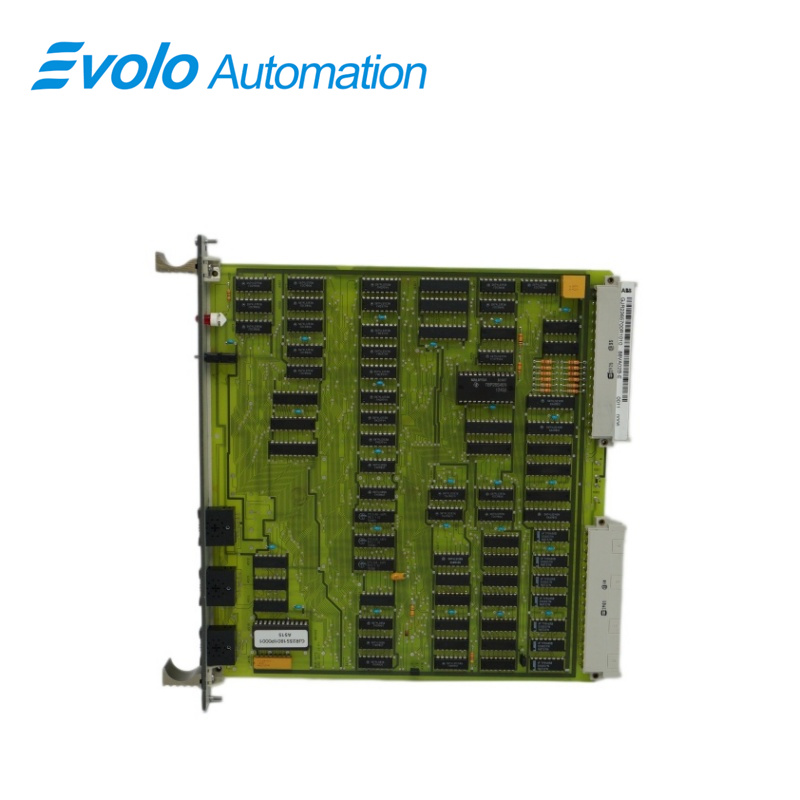

The ABB GJR2365700R1010 88VA02B-E is a 2-channel relay module with a nominal load current of 8 A per channel. It boasts an extensive input voltage range, spanning from 24 VDC to 250 VAC, and can be utilized to switch a variety of loads, such as motors, solenoids, and lamps.
Applications
Conventional and Nuclear Power Plants: Boiler Feed Pump Control: Precisely controls feedwater flow by adjusting frequency converters or hydraulic couplers via analog signal output.
Steam Turbine Regulating Valve: Controls steam flow to maintain generator speed and load stability.
Bypass System: Precisely adjusts desuperheating and pressure reducing valves during unit startup or load shedding.
Steel and Metallurgy: Blast Furnace Blow Control: Regulates blower speed or valve opening.
Continuous Casting Process: Controls crystallizer liquid level or cooling water flow.
Chemical and Refineries: Used to regulate temperature control valves for long-distance transfer pumps, large reactors, and anti-surge valves for gas compressors.
Water Control Projects and Pumping Stations: Regulates outlet valves or speed control devices of large water pumps to meet urban water supply or flood control needs.
Specifications
|
Switching Power: |
88 VA per channel |
|
Contact Material: |
AgSnO |
|
Operating Temperature Range: |
−25 °C to +55 °C |
|
Storage Temperature Range: |
−40 °C to +85 °C |
|
Mounting: |
DIN rail mount |
|
Life Expectancy: |
~10 million operations |
Competitive Advantage
Competitive Advantage Manual Relay Testing
The ABB GJR2365700R1010 88VA02A-E includes a test button that allows operators to manually activate relay outputs, making system commissioning and troubleshooting faster and easier.
Competitive Advantage Visual Output Monitoring
With LED status indicators on each channel, the GJR2365700R1010 88VA02A-E provides instant visual feedback of relay operation, helping technicians quickly verify circuit status.
Competitive Advantage High Load Switching
Each channel of the ABB GJR2365700R1010 88VA02A-E can handle up to 8 A, enabling control of motors, solenoids, and lamps without additional relay components.
Competitive Advantage Wide Input Voltage Range
The GJR2365700R1010 88VA02A-E works from 24 VDC to 250 VAC, allowing integration with a variety of industrial power systems.
Competitive Advantage Long Operational Life
Rated for ~10 million operations, the ABB GJR2365700R1010 88VA02A-E supports prolonged industrial use while minimizing replacement needs.
Competitive Advantage Easy Mounting and Compact Design
The GJR2365700R1010 88VA02A-E is DIN rail mountable and lightweight (0.4 kg), enabling fast installation in control panels with limited space.
